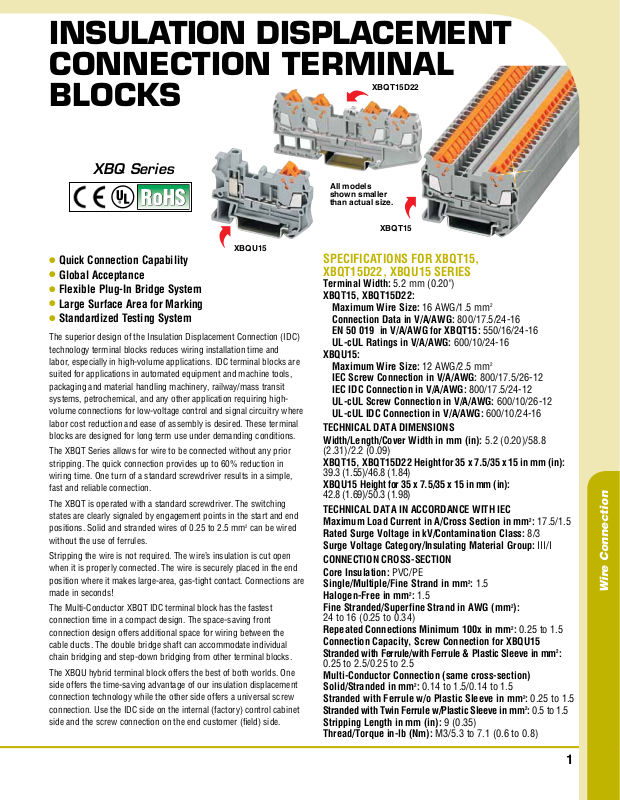

InsulatIon DIsplacement
connectIon termInal
XBQT15D22
Blocks
XBQ Series

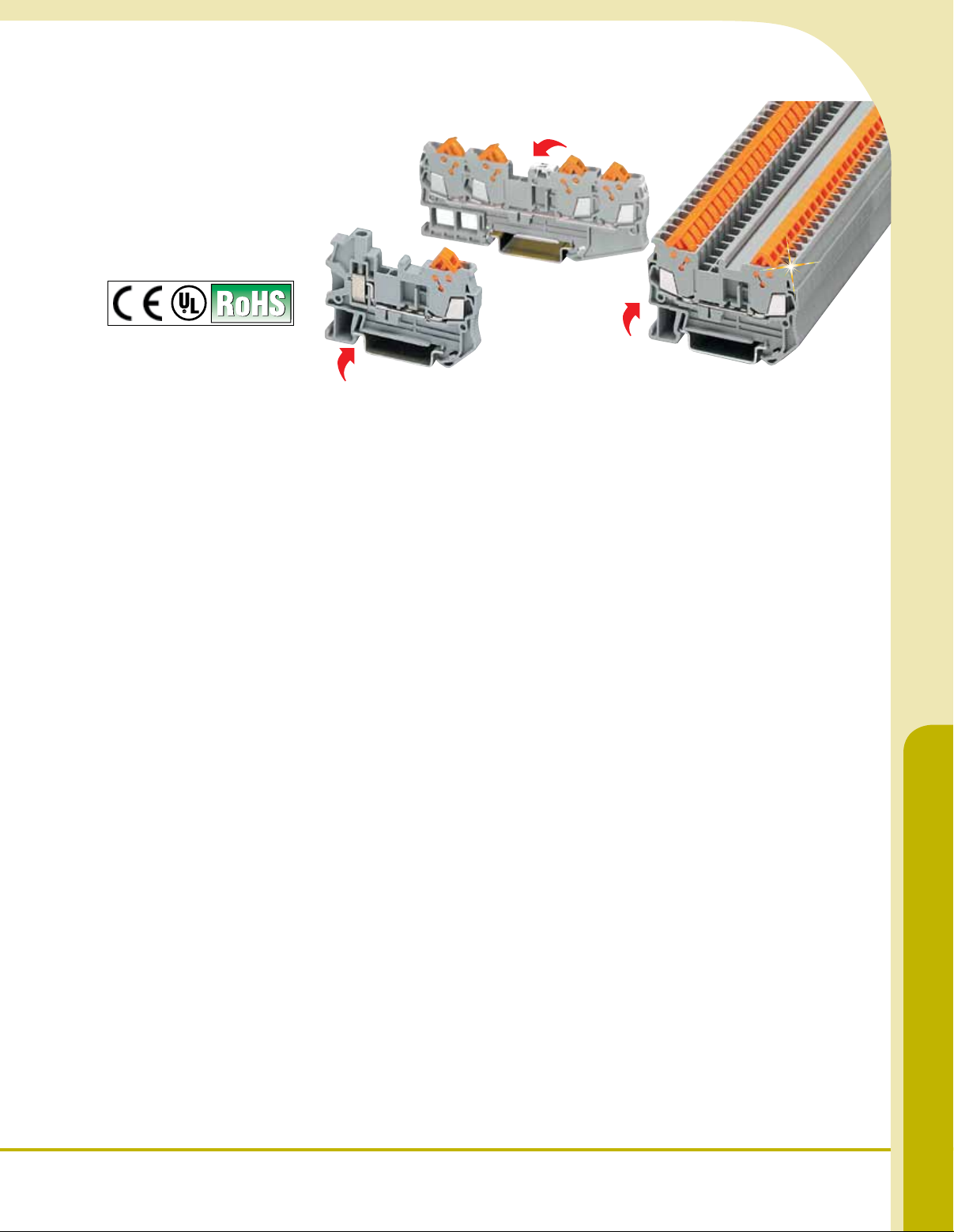

All models
shown smaller
than actual size.
XBQT15
XBQU15
l
Quick Connection Capability
l
Global Acceptance
l
Flexible Plug-In Bridge System
l
Large Surface Area for Marking
l
Standardized Testing System
The superior design of the Insulation Displacement Connection (IDC)
technology terminal blocks reduces wiring installation time and
labor, especially in high-volume applications. IDC terminal blocks are
suited for applications in automated equipment and machine tools,
packaging and material handling machinery, railway/mass transit
systems, petrochemical, and any other application requiring highvolume connections for low-voltage control and signal circuitry where
labor cost reduction and ease of assembly is desired. These terminal
blocks are designed for long term use under demanding conditions.
The XBQT Series allows for wire to be connected without any prior
stripping. The quick connection provides up to 60% reduction in
wiring time. One turn of a standard screwdriver results in a simple,
fast and reliable connection.
The XBQT is operated with a standard screwdriver. The switching
states are clearly signaled by engagement points in the start and end
positions. Solid and stranded wires of 0.25 to 2.5 mm
without the use of ferrules.
Stripping the wire is not required. The wire’s insulation is cut open
when it is properly connected. The wire is securely placed in the end
position where it makes large-area, gas-tight contact. Connections are
made in seconds!
The Multi-Conductor XBQT IDC terminal block has the fastest
connection time in a compact design. The space-saving front
connection design offers additional space for wiring between the
cable ducts. The double bridge shaft can accommodate individual
chain bridging and step-down bridging from other terminal blocks.
The XBQU hybrid terminal block offers the best of both worlds. One
side offers the time-saving advantage of our insulation displacement
connection technology while the other side offers a universal screw
connection. Use the IDC side on the internal (factory) control cabinet
side and the screw connection on the end customer (field) side.
2
can be wired
SPECIFICATIONS FOR XBQT15,
XBQT15D22, XBQU15 SERIES
Terminal Width: 5.2 mm (0.20")
XBQT15, XBQT15D22:
Maximum Wire Size: 16 AWG/1.5 mm
Connection Data in V/A/AWG: 800/17.5/24-16
EN 50 019 in V/A/AWG for XBQT15: 550/16/24-16
UL-cUL Ratings in V/A/AWG: 600/10/24-16
XBQU15:
Maximum Wire Size: 12 AWG/2.5 mm
IEC Screw Connection in V/A/AWG: 800/17.5/26-12
IEC IDC Connection in V/A/AWG: 800/17.5/24-12
UL-cUL Screw Connection in V/A/AWG: 600/10/26-12
UL-cUL IDC Connection in V/A/AWG: 600/10/24-16
TECHNICAL DATA DIMENSIONS
Width/Length/Cover Width in mm (in): 5.2 (0.20)/58.8
(2.31)/2.2 (0.09)
XBQT15, XBQT15D22 Height for 35 x 7.5/35 x 15 in mm (in):
39.3 (1.55)/46.8 (1.84)
XBQU15 Height for 35 x 7.5/35 x 15 in mm (in):
42.8 (1.69)/50.3 (1.98)
TECHNICAL DATA IN ACCORDANCE WITH IEC
Maximum Load Current in A/Cross Section in mm2: 17.5/1.5
Rated Surge Voltage in kV/Contamination Class: 8/3
Surge Voltage Category/Insulating Material Group: III/I
CONNECTION CROSS-SECTION
Core Insulation: PVC/PE
Single/Multiple/Fine Strand in mm2: 1.5
Halogen-Free in mm
2
: 1.5
Fine Stranded/Superfine Strand in AWG (mm2):
24 to 16 (0.25 to 0.34)
Repeated Connections Minimum 100x in mm2: 0.25 to 1.5
Connection Capacity, Screw Connection for XBQU15
Stranded with Ferrule/with Ferrule & Plastic Sleeve in mm2:
0.25 to 2.5/0.25 to 2.5
Multi-Conductor Connection (same cross-section)
2
Solid/Stranded in mm
: 0.14 to 1.5/0.14 to 1.5
Stranded with Ferrule w/o Plastic Sleeve in mm2: 0.25 to 1.5
Stranded with Twin Ferrule w/Plastic Sleeve in mm2: 0.5 to 1.5
Stripping Length in mm (in): 9 (0.35)
Thread/Torque in-lb (Nm): M3/5.3 to 7.1 (0.6 to 0.8)
2
2
Wire Connection
1
Page 2
SPECIFICATIONS FOR XBQT25
AND XBQU25 SERIES
Terminal Width: 6.2 mm (0.24”)
XBQT25 Maximum Wire Size: 14 AWG/2.5 mm
Maximum Wire Size for XBQU25: 10 AWG/4 mm
Connection Data in V/A/AWG: 800/24/20-14
UL-cUL Ratings in V/A/AWG: 600/215/20-14
XBQU25 Maximum Wire Size: 10 AWG/4 mm
Screw Connection in V/A/AWG: 800/24/26-10
IEC IDC Connection in V/A/AWG: 800/24/20-14
UL-cUL Screw Connection in V/A/AWG: 600/15/26-10
UL-cUL IDC Connection in V/A/AWG: 600/15/24-14
TECHNICAL DATA DIMENSIONS
Width/Length/Cover Width in mm (in): 6.2 (0.24)/62.6
(2.46)/2.2 (0.09)
XBQT25 Height for 35 x 7.5/35 x 15 in mm (in):
39.3 (1.55)/46.8 (1.84)
XBQU25 Height for 35 x 7.5/35 x 15 in mm (in):
42.8 (1.69)/50.3 (1.98)
To Order
MODEL NO. DESCRIPTION
XBQT15 Gray, 5.2 mm (0.20") IDC single level TB, 24-16 AWG
XBQT15BU Blue, 5.2 mm (0.20") IDC single level TB, 24-16 AWG
XBQT25 Gray, 6.2 mm (0.24") IDC single level TB, 20-14 AWG
XBQT25BU Blue, 5.2 mm (0.20") IDC single level TB, 20-14 AWG
XBQT15D22 Gray, 5.2 mm (0.20") 4 wire multi-conductor IDC TB, 24-16 AWG
XBQT15D22BU Blue, 5.2 mm (0.20") 4 wire multi-conductor IDC TB, 24-16 AWG
XBQU15 Gray, 5.2 mm (0.20") IDC hybrid TB, 24-16 AWG
XBQU25 Gray, 6.2 mm (0.24") IDC hybrid TB, 20-14 AWG
ACCESSORIES
XBACQT15 Gray end cover for XBQT15
XBACQT15D22 Gray end cover for XBQT15D22
XBACQT25 Gray end cover for XBQT25
XBACQU15 Gray end cover for XBQU15
XBACQU25 Gray end cover for XBQU25
XBAFBS25 Red 2 position plug-in bridge for XBQT15, XBQU15 Series
XBAFBS35 Red 3 position plug-in bridge for XBQT15, XBQU15 Series
XBAFBS55 Red 5 position plug-in bridge for XBQT15, XBQU15 Series
XBAFBS105 Red 10 position plug-in bridge for XBQT15, XBQU15 Series
XBAFBS505 Red 50 position plug-in bridge for XBQT15, XBQU15 Series
XBAFBS26 Red 2 position plug-in bridge for XBQT25, XBQU25 Series
XBAFBS36 Red 3 position plug-in bridge for XBQT25, XBQU25 Series
XBAFBS56 Red 5 position plug-in bridge for XBQT25, XBQU25 Series
XBAFBS106 Red 10 position plug-in bridge for XBQT25, XBQU25 Series
XBAFBS506 Red 50 position plug-in bridge for XBQT25, XBQU25 Series
XBATSPAI4 Test adaptor
XBMZBF5 White blank marker strip external labeling for XBQT15, XBQU15 Series
XBMZB5 White blank marker strip external labeling for XBQT15, XBQU15 Series
XBMZBF6 White blank marker strip external labeling for XBQT25, XBQU25 Series
XBMZB6 White blank marker strip external labeling for XBQT25, XBQU25 Series
XBANS3575P DIN rail 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6') slotted
XBANS3575U DIN rail 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6') solid
XBANS3515P DIN rail 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6') slotted
XBANS3515U DIN rail 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6') slotted
XBAES35C 1-screw mounted end stop
XBAES35T 3-screw mounted end stop
XBAES35N Snap-on end stop
Ordering Examples: XBQT15, IDC terminal block, XBACQT15, end cover, XBANS3575P, DIN rail.
XBQU25, hybrid terminal block, XBACQU25, end cover, XBMZB6, blank marker strip, XBANS3575P DIN rail.
2
2
2
TECHNICAL DATA IN
ACCORDANCE WITH IEC
Maximum Load Current in A/Cross Section in mm
Rated Surge Voltage in kV/Contamination Class: 8/3
Surge Voltage Category/Insulating Material Group: III/I
CONNECTION CROSS-SECTION
Core Insulation: PVC/PE
Single/Multiple/Fine Strand in mm2: 2.5
Halogen-Free in mm2: 2.5
Fine Stranded/Superfine Strand in AWG: 20 to 14
Repeated Connections Minimum 100x in mm2: 0.5 to 2.5
Connection Capacity, Screw Connection for XBQU25
Stranded with Ferrule/with Ferrule and Plastic Sleeve in mm2:
0.25 to/0.25 to 4
Multi-Conductor Connection (same cross-section)
Solid/Stranded in mm2: 0.14 to 1.5/0.14 to 1.5
Stranded with Ferrule w/o Plastic Sleeve in mm2: 0.25 to 1.5
Stranded with Twin Ferrule w/ Plastic Sleeve in mm2: 0.5 to 2.5
Stripping Length in mm (in): 9 (0.35)
Thread/Torque in-lb (Nm): M3/5.3 to 7.1 (0.6 to 0.8)
2
: 24/2.5
2
