Page 1

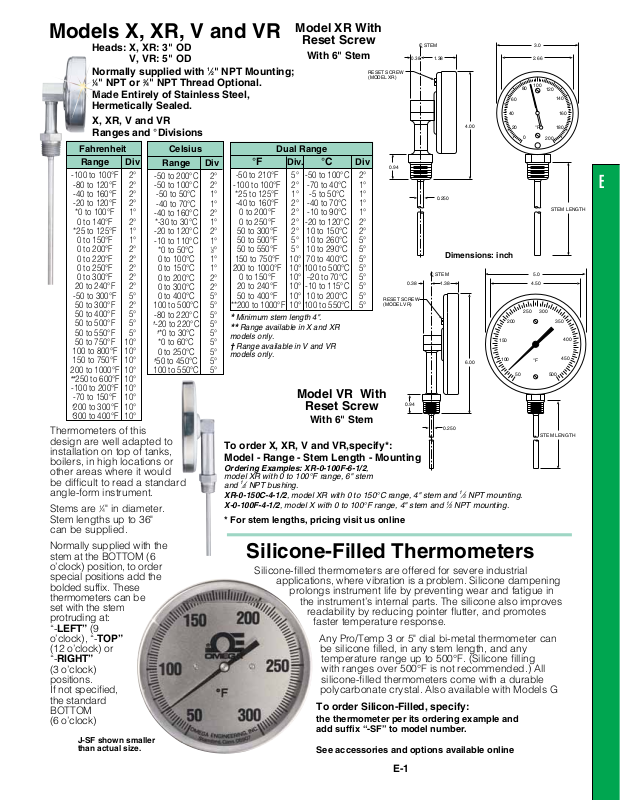

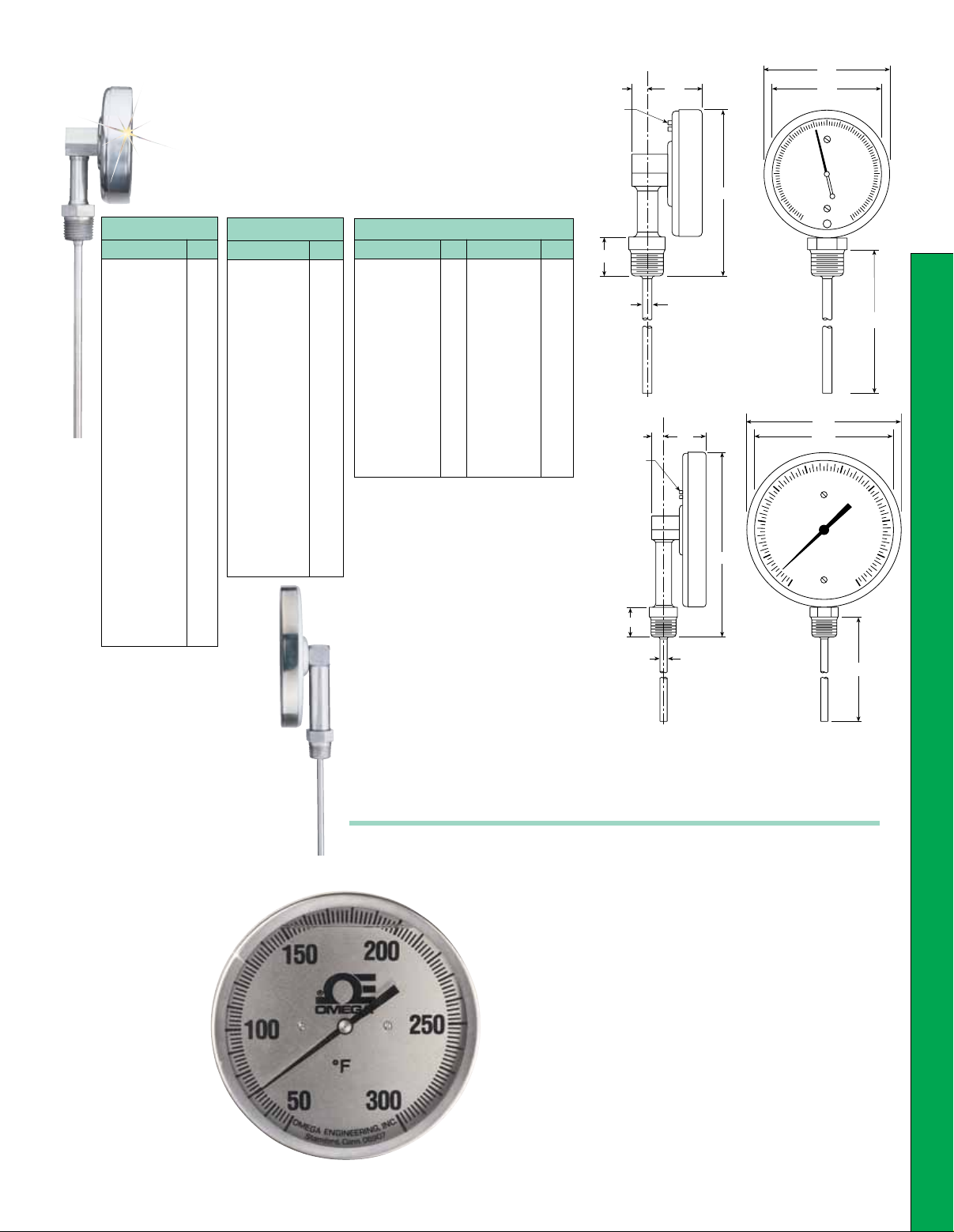

Models X, XR, V and VR
T-DialTemp/X/LineDrawing
0.250
0.94
4.00
RESET SCREW
(MODEL XR)
1.38
0.38
C STEM
L
40
20
0
60
80
100
120
140
160
180
200
°F
3.0
2.66
STEM LENGTH
T-DialTemp/V/LineDrawing
Heads: X, XR: 3" OD
V, VR: 5" OD
Normally supplied with 1⁄2" NPT Mounting;
1
⁄4" NPT or 3⁄4" NPT Thread Optional.
Made Entirely of Stainless Steel,
Hermetically Sealed.
X, XR, V and VR
Ranges and °Divisions
Fahrenheit
Range Div
-100 to 100°F 2°
-80 to 120°F 2°
-40 to 160°F 2°
-20 to 120°F 2°
*0 to 100°F 1°
0 to 140°F 2°
*25 to 125°F 1°
0 to 150°F 1°
0 to 200°F 2°
0 to 220°F 2°
0 to 250°F 2°
0 to 300°F 2°
20 to 240°F 2°
-50 to 300°F 5°
50 to 300°F 2°
50 to 400°F 5°
50 to 500°F 5°
50 to 550°F 5°
50 to 750°F 10°
100 to 800°F 10°
150 to 750°F 10°
200 to 1000°F 10°
**250 to 600°F 10°
-100 to 200°F 10°
-70 to 150°F 10°
†200 to 300°F 10°
†300 to 400°F 10°
Thermometers of this
design are well adapted to
installation on top of tanks,
boilers, in high locations or
other areas where it would
be difficult to read a standard
angle-form instrument.
Stems are 1⁄4" in diameter.
Stem lengths up to 36"
can be supplied.
Normally supplied with the
stem at the BOTTOM (6
o’clock) position, to order
special positions add the
bolded suffix. These
thermometers can be
set with the stem
protruding at:
“-LEFT” (9
o’clock), “-TOP”
(12 o’clock) or
“-RIGHT”
(3 o’clock)
positions.
If not specified,
the standard
BOTTOM
(6 o’clock)
J-SF shown smaller
than actual size.
Celsius
Range Div
-50 to 200°C 2°
-50 to 100°C 2°
-50 to 50°C 1°
-40 to 70°C 1°
-40 to 160°C 2°
*-30 to 30°C 1°
-20 to 120°C 2°
-10 to 110°C 1°
*0 to 50°C 1⁄2°
0 to 100°C 1°
0 to 150°C 1°
0 to 200°C 2°
0 to 300°C 2°
0 to 400°C 5°
100 to 500°C 5°
-80 to 220°C 5°
†-20 to 220°C 5°
†*0 to 30°C 5°
*0 to 60°C 5°
0 to 250°C 5°
†50 to 450°C 5°
100 to 550°C 5°
-100 to 100°F 2° -70 to 40°C 1°
*25 to 125°F 1° -5 to 50°C 1°
-40 to 160°F 2° -40 to 70°C 1°
0 to 200°F 2° -10 to 90°C 1°
0 to 250°F 2° -20 to 120°C 2°
50 to 300°F 2° 10 to 150°C 2°
50 to 500°F 5° 10 to 260°C 5°
50 to 550°F 5° 10 to 290°C 5°
150 to 750°F 10° 70 to 400°C 5°
200 to 1000°F 10° 100 to 500°C 5°
0 to 150°F 10° –20 to 70°C 5°
20 to 240°F 10° -10 to 115°C 5°
50 to 400°F 10° 10 to 200°C 5°
** 200 to 1000°F 10° 100 to 550°C 5°
Minimum stem length 4".
*
**
models only.
† Range available in V and VR
models only.
To order X, XR, V and VR,specify*:
Model - Range - Stem Length - Mounting
Ordering Examples: XR-0-100F-6-1/2,
model XR with 0 to 100°F range, 6" stem
and
XR-0-150C-4-1/2, model XR with 0 to 150°C range, 4" stem and
X-0-100F-4-1/2, model X with 0 to 100°F range, 4" stem and
* For stem lengths, pricing visit us online
Model XR With
Reset Screw
With 6" Stem
Dual Range
°F Div. °C Div
- 50 to 210°F 5° -50 to 100°C 2°
Dimensions: inch
C STEM
L
1.380.38
RESET SCREW
(MODEL VR)
Range available in X and XR
150
100
1
⁄2 NPT bushing.
Model VR With
Reset Screw
With 6" Stem
0.94
6.00
0.250
1
⁄2 NPT mounting.
1
⁄2 NPT mounting.
Silicone-Filled Thermometers
Silicone-filled thermometers are offered for severe industrial
applications, where vibration is a problem. Silicone dampening
prolongs instrument life by preventing wear and fatigue in
the instrument’s internal parts. The silicone also improves
readability by reducing pointer flutter, and promotes
faster temperature response.
Any Pro/Temp 3 or 5" dial bi-metal thermometer can
be silicone filled, in any stem length, and any
temperature range up to 500°F. (Silicone filling
with ranges over 500°F is not recommended.) All
silicone-filled thermometers come with a durable
polycarbonate crystal. Also available with Models G
To order Silicon-Filled, specify:
the thermometer per its ordering example and
add suffix “-SF” to model number.
See accessories and options available online
200
250300
50
5.0
4.50
°F
500
STEM LENGTH
E
350
400
450
E-1
