Omega WVT User guide

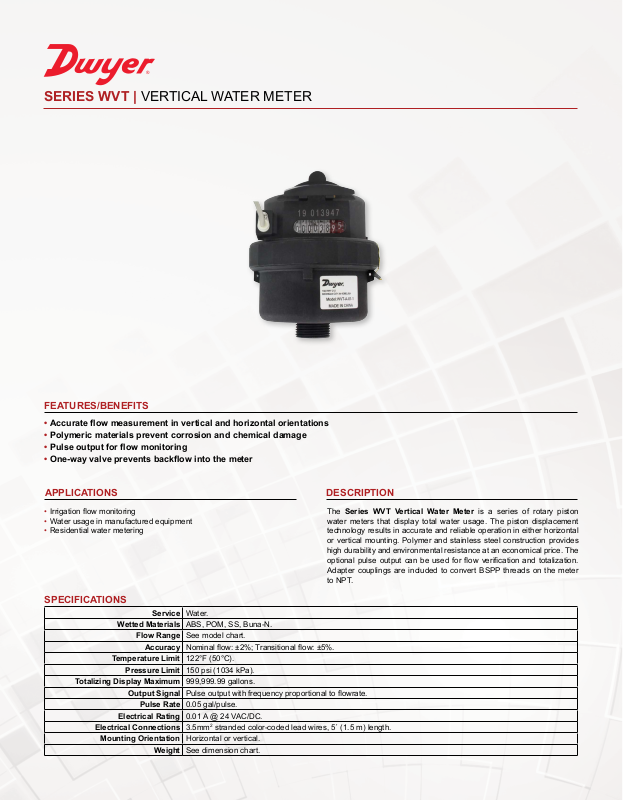

SERIES WVT | VERTICAL WATER METER

®

FEATURES/BENEFITS

•Accurateowmeasurementinverticalandhorizontalorientations

•Polymericmaterialspreventcorrosionandchemicaldamage

•Pulseoutputforowmonitoring

•One-wayvalvepreventsbackowintothemeter

• Irrigation ow monitoring

• Water usage in manufactured equipment

• Residential water metering

SPECIFICATIONS

Service Water.

WettedMaterials ABS, POM, SS, Buna-N.

FlowRange See model chart.

Accuracy Nominal ow: ±2%; Transitional ow: ±5%.

TemperatureLimit 122°F (50°C).

PressureLimit 150 psi (1034 kPa).

TotalizingDisplayMaximum 999,999.99 gallons.

OutputSignal Pulse output with frequency proportional to owrate.

Pulse Rate 0.05 gal/pulse.

ElectricalRating 0.01 A @ 24 VAC/DC.

ElectricalConnections 3.5mm

MountingOrientation Horizontal or vertical.

Weight See dimension chart.

2

stranded color-coded lead wires, 5´ (1.5 m) length.

DESCRIPTIONAPPLICATIONS

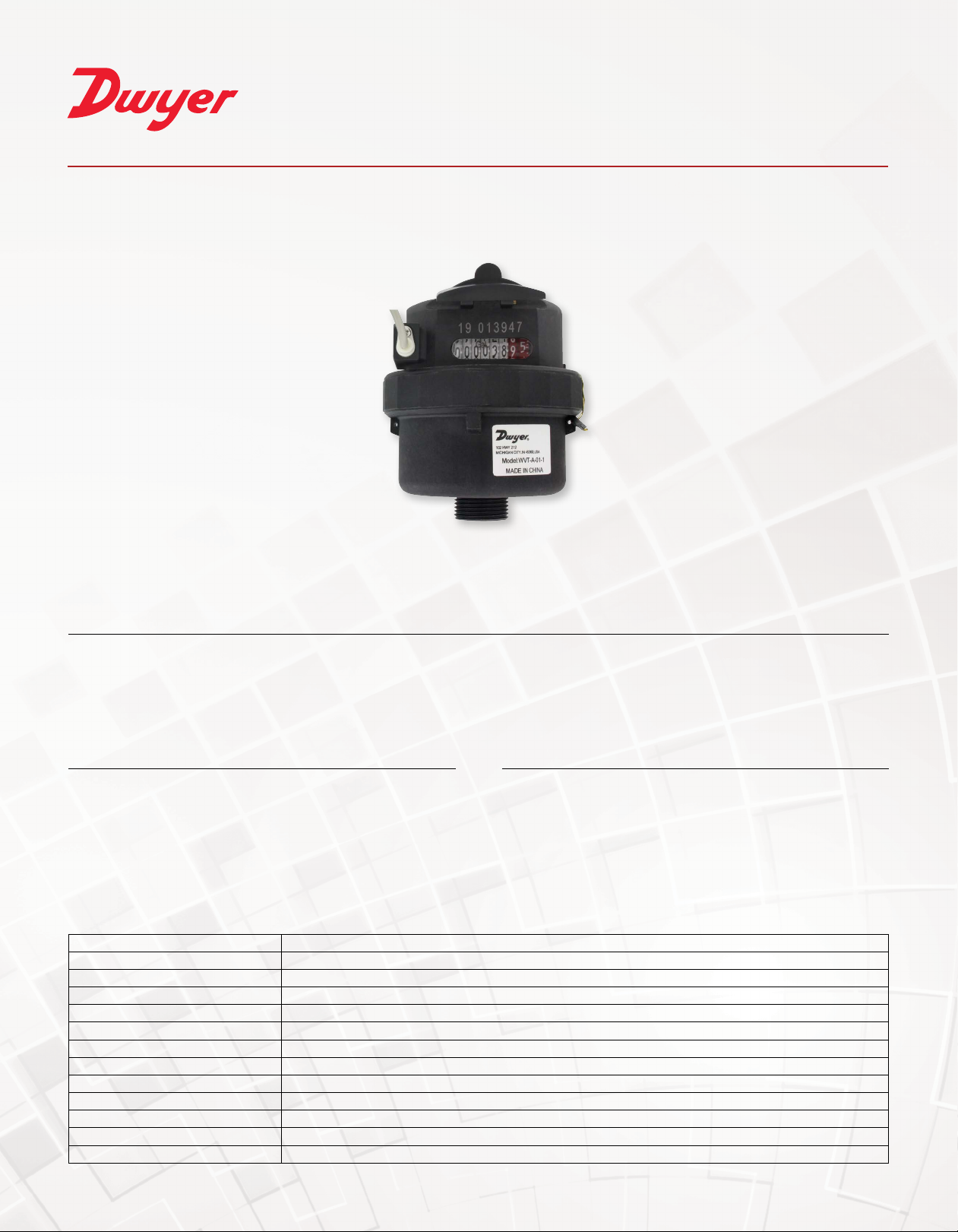

The Series WVT Vertical Water Meter is a series of rotary piston
water meters that display total water usage. The piston displacement
technology results in accurate and reliable operation in either horizontal
or vertical mounting. Polymer and stainless steel construction provides
high durability and environmental resistance at an economical price. The

optional pulse output can be used for ow verication and totalization.

Adapter couplings are included to convert BSPP threads on the meter
to NPT.

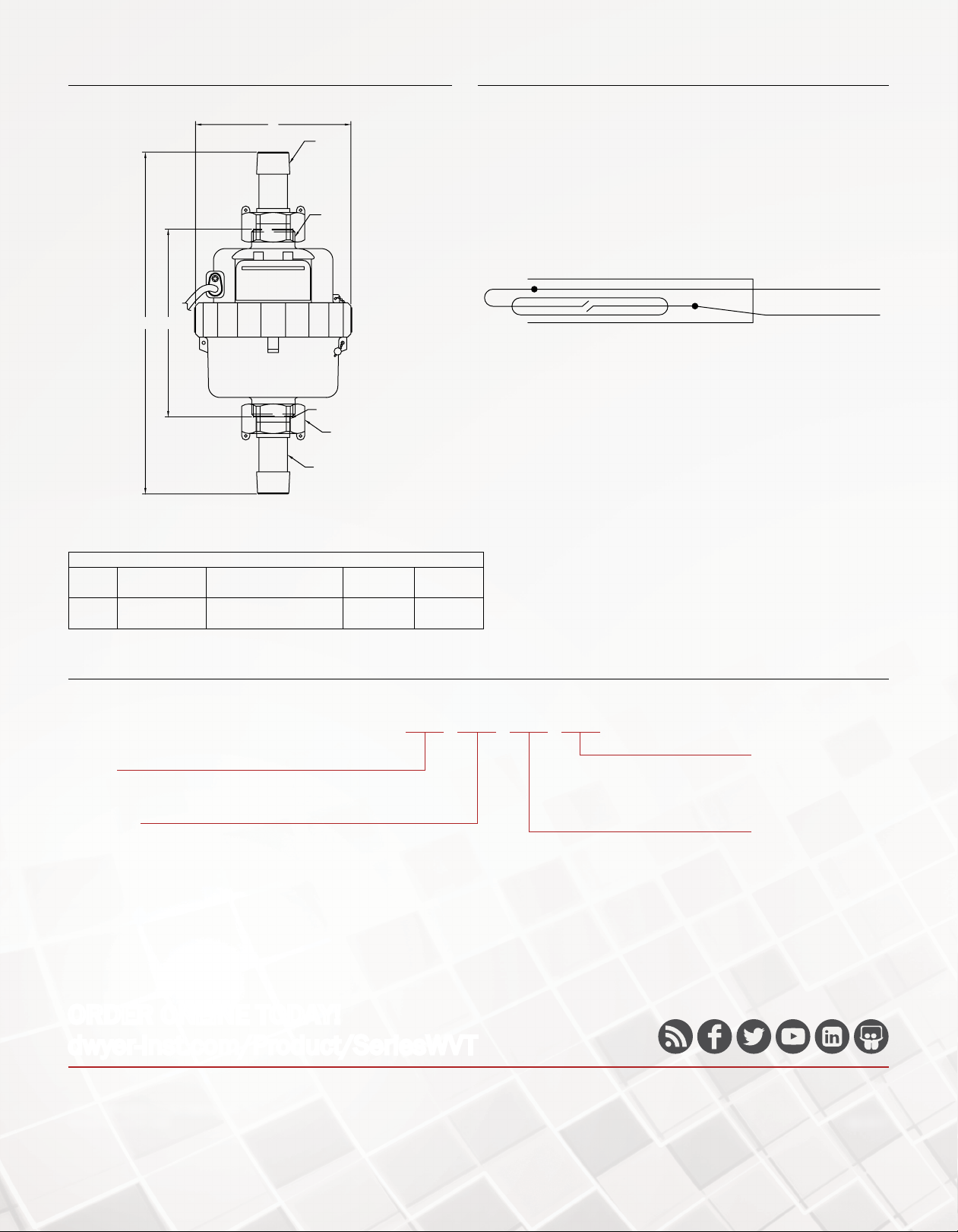

DIMENSIONS WIRING DIAGRAM

L1

)

W

BLACK - COMMON

D

D1

L

GASKET (X2)

NUT (X2)

COUPLING (X2

DIMENSIONS CHART

Spud
Size

G3/4G14.53 (115)

Length“L”in
(mm)

6.50 (165)

LengthwithNPT
Coupling“L1”in(mm)

8.23 (209)

10.16 (258)

Width“W”
In(mm)

3.78 (96)

4.17 (106)

Weightlb
(kg)

1.15 (0.52)

1.34 (0.6)

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

WVT -A -01 1

RED - NO

PULSE RATE

SERIES

WVT: Vertical water meter

ACCURACY

-A:Gallons

(BLANK): No output

1: 0.05 gal output

SIZE

-01: 5/8˝ x 1/2˝

-02: 5/8˝ x 3/4˝

ORDER ONLINE TODAY!

dwyer-inst.com/Product/SeriesWVT

DWYER INSTRUMENTS, INC.

©Copyright 2020 Dwyer Instruments, Inc.
Printed in U.S.A. 7/20 DS-WVT
