WT-3115
Benchtop Closed Loop
Wind Tunnel with Controller
Page 2
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
ISO 9001 Certified Stamford, CT 06907-0047 USA
Canada: 976 Bergar
Laval (Quebec), Canada H7L 5A1
Toll-Free: 1-800-826-6342 TEL: (514) 856-6928
FAX: (514) 856-6886 e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA
®
Customer Service: 1-800-622-2378/1-800-622-BEST
®
Engineering Service: 1-800-872-9436/1-800-USA-WHEN
®
Mexico: En Español: 001 (203) 359-7803 FAX: (001) 203-359-7807
Servicing Europe:
Benelux: Managed by the United Kingdom Office
Czech Republic: Frystatska 184
733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: +420-59-6311899
FAX: +420-59-6311114 e-mail: [email protected]
France: Managed by the United Kingdom Office
Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00
FAX: +33 (0) 130 57 54 27 e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26
D-75392 Deckenpfronn, Germany
Toll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0
FAX: +49 (0) 7056 9398-29 e-mail: [email protected]
United Kingdom: OMEGA Engineering Ltd.
ISO 9001 Certified One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD England
Toll-Free: 0800-488-488 TEL: +44 (0)161 777-6611
FAX: +44 (0)161 777-6622 e-mail: [email protected]
OMEGAnet®Online Service Internet e-mail
omega.com [email protected]
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
Page 3
ITEM
SPECIFICATION
EXPLANATION
Overall length
86.9" (220.8 cm)
Overall width
19.4" (49.3 cm)
Overall height
34” (86.5 cm)
Test section length
30.5” (77.6 cm)
Test section width
10.2” (26.0 cm)
Test section height
4.55” (11.6 cm)
Flow range
Up to 1000 ft/min (5.0
m/s)
Temperature range
Up to 80 oC
Fuse
Main AC fuse = 30 Amp
Blower fuse = 3 Amp
Electronic fuse = 1 Amp
SYSTEM CHARACTERISTICS
The WT-3115 is a unique closed loop wind tunnel for thermal characterization of components,
boards and heat sinks. The unit is made of Aluminum, sheetmetal and LEXANTM and produces
flows up to 1000 ft/min (5 m/s) and temperature up to 80 oC. The general characteristics of the
WT-3115 are shown in the table below.
The WT-3115 test section can be accessed from the top door and sides for mounting of the
boards. A unique internal rail guides provide mechanisms for installation of test specimen of
different sizes (e.g., PCB, heat sink). Instrument ports are provided throughout the test section
(on the front and side-walls) for placement of temperature, velocity and pressure sensors.
Sensors to measure the flow parameters are also supplied by Omega as optional accessories.
The tunnel is equipped with an Ebm Papst EC gas blower model # G1G170AB0520 (115 VAC).
The blower is also equipped with a PWM card that can be controlled with a 0-10 VDC input
signal. Models with 220 VAC are available upon request.
A wind tunnel controller can also be supplied by Omega for controlling the flow and temperature
automatically.
Page 4
The WT-3115 can be used for the following applications:
SYSTEM COMPONENTS
Heat Sink Testing- Characterize a variety of heat sink sizes for natural and forced
convection cooling.
Heat Sink Comparison- Test two heat sinks side by side and compare their thermal
performance in the same environment.
Component Testing- Test vehicle for component characterization.
PCB Testing- Test actual or simulated PCBs for thermal and flow distribution.
Flow Visualization- Observe flow distribution when a PCB or test object is placed in the
tunnel by smoke or buoyant bubbles through the all Lexan™ test section.
Variable Speed- Change the flow rate by controlling the fan RPM.
Quick Access- Quickly change the test specimen through the top panel.
Sensor Port- Measure pressure, velocity and temperature through the ports at the entrance
and exhaust of the test section.

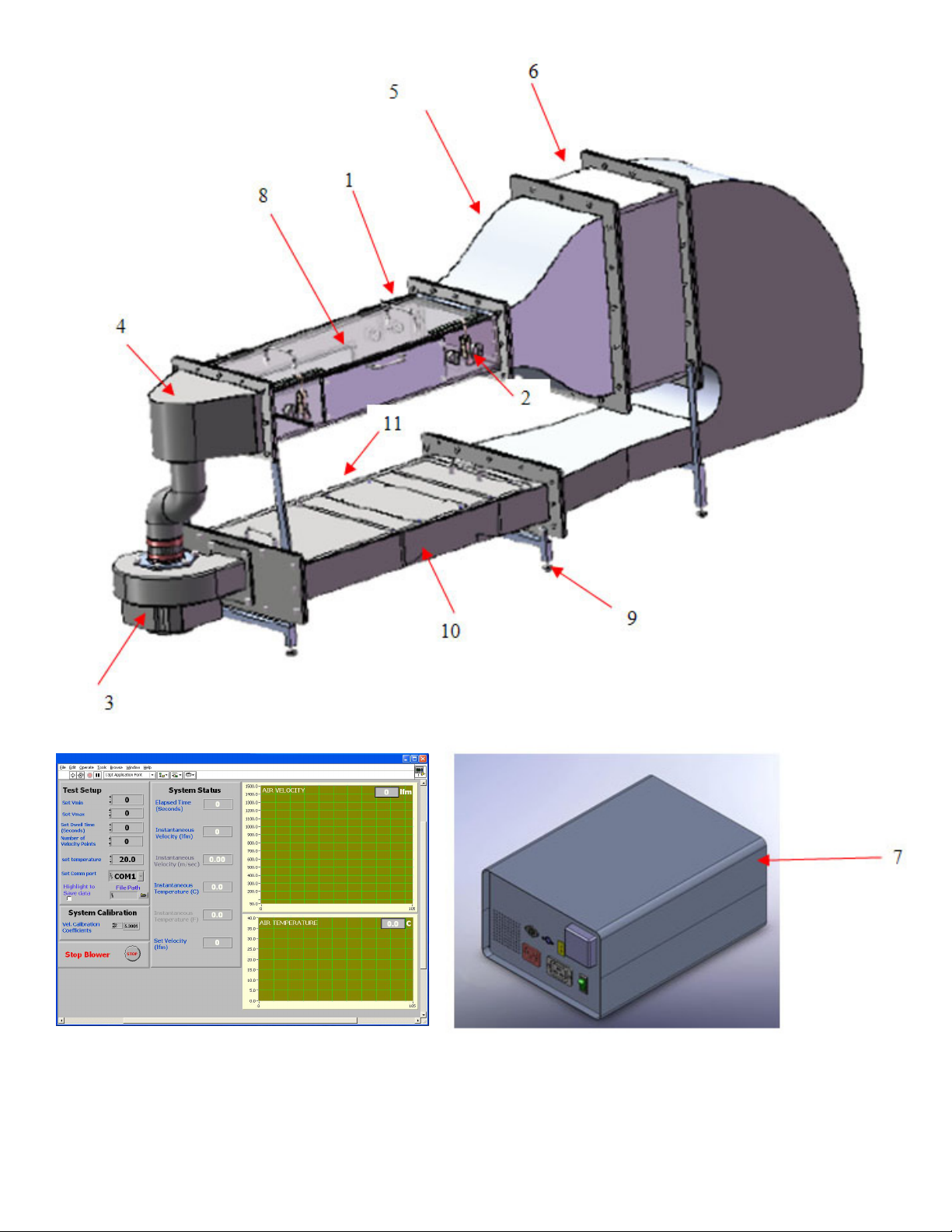

The numbers identified in Figure 1 show the system components of the WT-3115 system.
These numbers are described below:
1. Test Section
2. Instrument ports
3. Blower
4. Diffuser section
5. Nozzle section
6. Settling Chamber
7. Controller and software (optional)
8. Test section top cover panel
9. Stands
10. Heater section
11. Heater Power Plug
Page 5
Figure 1: The WT-3115 and the Controller System Components
Page 6
SYSTEM OPERATION
1. Release the clamps on top panel to have access to the test section.
2. Mount your specimen (e.g., component, PCB or heat sink) in the test section.
3. Clamp the door back on the WT-3115.
4. Place flow measurement instrument in the instrument port. Place the velocity sensor and
the thermocouple in the test section. Place the sensor and the thermocouple very close
to each other, since the velocity sensor needs the temperature values to calculate the
velocity. Wind tunnel will be controlled based on the local temperature and velocity
values at the sensor locations.
5. Connect the blower cables (power cable and control cable) to the controller box.
6. Connect the heater wires to the control box.
7. Turn on the controller.
8. Set the velocity range and temperature on the controller and run the software. The
controller will automatically measure and control the air velocity and temperature. It can
also save the temperature and velocity data on the PC.
Page 7
