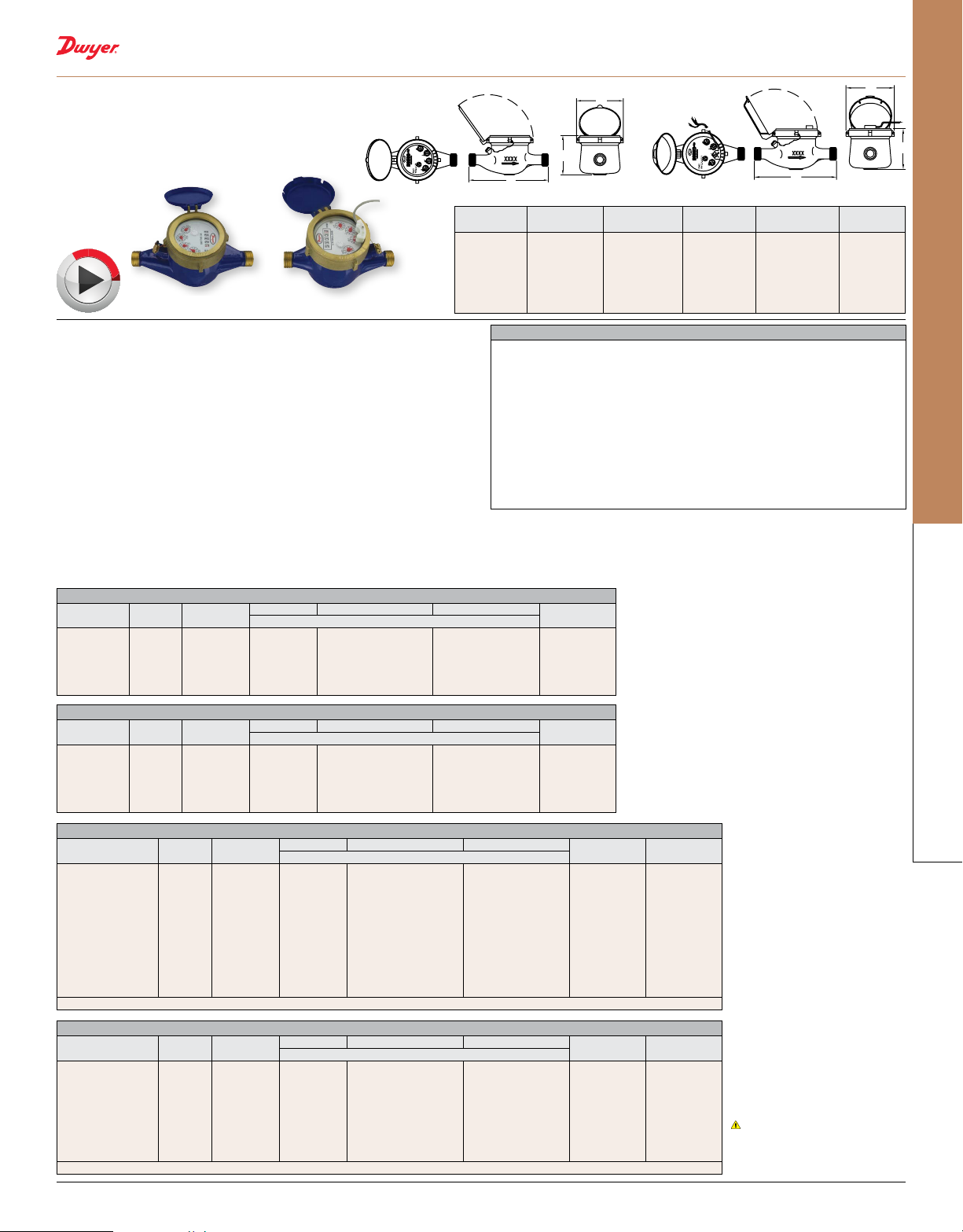

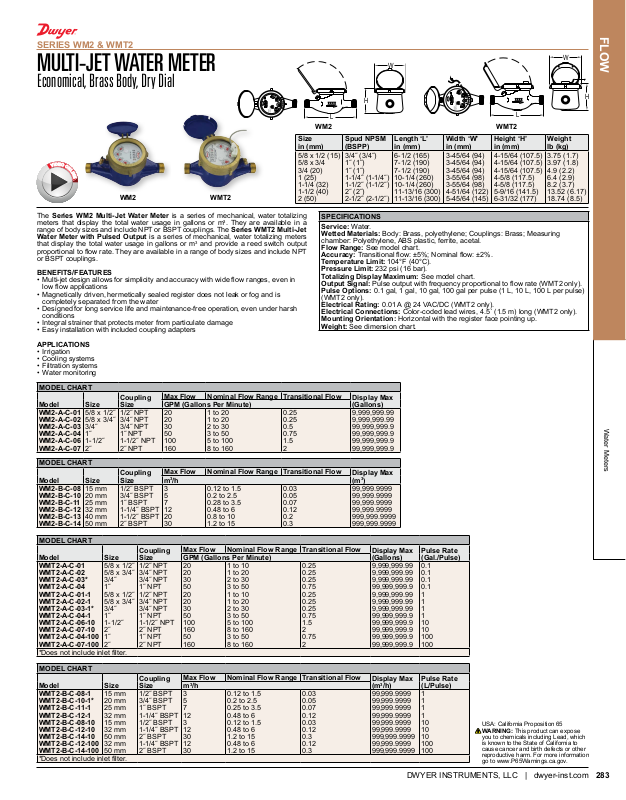

SERIES WM2 & WMT2
E
H
L
W
FLOW
MULTI-JET WATER METER
Economical, Brass Body, Dry Dial
Size
in (mm)
5/8 x 1/2 (15)
0.25
0.25
0.5
0.75
1.5
2
0.03
0.05
0.07
0.12
0.2
0.3
5/8 x 3/4
3/4 (20)
1 (25)
1-1/4 (32)
1-1/2 (40)
2 (50)
E
O
D
I
V
O
N
L
I
N
WM2
The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing
meters that display the total water usage in gallons or m3. They are available in a
range of body sizes and include NPT or BSPT couplings. The Series WMT2 Multi-Jet
Water Meter with Pulsed Output is a series of mechanical, water totalizing meters
that display the total water usage in gallons or m3 and provide a reed switch output
proportional to ow rate. They are available in a range of body sizes and include NPT
or BSPT couplings.
BENEFITS/FEATURES
• Multi-jet design allows for simplicity and accuracy with wide ow ranges, even in
low ow applications
• Magnetically driven, hermetically sealed register does not leak or fog and is
completely separated from the water
• Designed for long service life and maintenance-free operation, even under harsh
conditions
• Integral strainer that protects meter from particulate damage
• Easy installation with included coupling adapters
APPLICATIONS
• Irrigation
• Cooling systems
• Filtration systems
• Water monitoring
WMT2
MODEL CHART
Model Size
WM2-A-C-01
WM2-A-C-02
WM2-A-C-03
WM2-A-C-04
WM2-A-C-06
WM2-A-C-07
5/8 x 1/2˝
5/8 x 3/4˝
3/4˝
1˝
1-1/2˝
2˝
Coupling
Size
1/2˝ NPT
3/4˝ NPT
3/4˝ NPT
1˝ NPT
1-1/2˝ NPT
2˝ NPT
Max Flow Nominal Flow Range Transitional Flow
20
20
30
50
100
160
1 to 20
1 to 20
2 to 30
3 to 50
5 to 100
8 to 160
MODEL CHART
Model Size
WM2-B-C-08
WM2-B-C-10
WM2-B-C-11
WM2-B-C-12
WM2-B-C-13
WM2-B-C-14
15 mm
20 mm
25 mm
32 mm
40 mm
50 mm
Coupling
Size
1/2˝ BSPT
3/4˝ BSPT
1˝ BSPT
1-1/4˝ BSPT
1-1/2˝ BSPT
2˝ BSPT
Max Flow Nominal Flow Range Transitional Flow
3
5
7
12
20
30
0.12 to 1.5
0.2 to 2.5
0.28 to 3.5
0.48 to 6
0.8 to 10
1.2 to 15
MODEL CHART
Model Size
WMT2-A-C-01
WMT2-A-C-02
WMT2-A-C-03*
WMT2-A-C-04
WMT2-A-C-01-1
WMT2-A-C-02-1
WMT2-A-C-03-1*
WMT2-A-C-04-1
WMT2-A-C-06-10
WMT2-A-C-07-10
WMT2-A-C-04-100
WMT2-A-C-07-100
*Does not include inlet lter.
5/8 x 1/2˝
5/8 x 3/4˝
3/4˝
1˝
5/8 x 1/2˝
5/8 x 3/4˝
3/4˝
1˝
1-1/2˝
2˝
1˝
2˝
Coupling
Size
1/2˝ NPT
3/4˝ NPT
3/4˝ NPT
1˝ NPT
1/2˝ NPT
3/4˝ NPT
3/4˝ NPT
1˝ NPT
1-1/2˝ NPT
2˝ NPT
1˝ NPT
2˝ NPT
Max Flow Nominal Flow Range Transitional Flow
20
20
30
50
20
20
30
50
100
160
50
160
1 to 10
1 to 20
2 to 30
3 to 50
1 to 10
1 to 20
2 to 30
3 to 50
5 to 100
8 to 160
3 to 50
8 to 160
MODEL CHART
Model Size
WMT2-B-C-08-1
WMT2-B-C-10-1*
WMT2-B-C-11-1
WMT2-B-C-12-1
WMT2-B-C-08-10
WMT2-B-C-12-10
WMT2-B-C-14-10
WMT2-B-C-12-100
WMT2-B-C-14-100
*Does not include inlet lter.
15 mm
20 mm
25 mm
32 mm
15 mm
32 mm
50 mm
32 mm
50 mm
Coupling
Size
1/2˝ BSPT
3/4˝ BSPT
1˝ BSPT
1-1/4˝ BSPT
1/2˝ BSPT
1-1/4˝ BSPT
2˝ BSPT
1-1/4˝ BSPT
2˝ BSPT
Max Flow Nominal Flow Range Transitional Flow
3
5
7
12
3
12
30
12
30
0.12 to 1.5
0.2 to 2.5
0.25 to 3.5
0.48 to 6
0.12 to 1.5
0.48 to 6
1.2 to 15
0.48 to 6
1.2 to 15
W
H
WM2
Spud NPSM
(BSPP)
3/4˝ (3/4˝)
1˝ (1˝)
1˝ (1˝)
1-1/4˝ (1-1/4˝)
1-1/2˝ (1-1/2˝)
2˝ (2˝)
2-1/2˝ (2-1/2˝)
Length ‘L’
in (mm)
6-1/2 (165)
7-1/2 (190)
7-1/2 (190)
10-1/4 (260)
10-1/4 (260)
11-13/16 (300)
11-13/16 (300)
Width ‘W’
in (mm)
3-45/64 (94)
3-45/64 (94)
3-45/64 (94)
3-55/64 (98)
3-55/64 (98)
4-51/64 (122)
5-45/64 (145)
WMT2
Height ‘H’
in (mm)
4-15/64 (107.5)
4-15/64 (107.5)
4-15/64 (107.5)
4-5/8 (117.5)
4-5/8 (117.5)
5-9/16 (141.5)
6-31/32 (177)
SPECIFICATIONS
Service: Water.
Wetted Materials: Body: Brass, polyethylene; Couplings: Brass; Measuring
chamber: Polyethylene, ABS plastic, ferrite, acetal.
Flow Range: See model chart.
Accuracy: Transitional ow: ±5%; Nominal ow: ±2%.
Temperature Limit: 104°F (40°C).
Pressure Limit: 232 psi (16 bar).
Totalizing Display Maximum: See model chart.
Output Signal: Pulse output with frequency proportional to ow rate (WMT2 only).
Pulse Options: 0.1 gal, 1 gal, 10 gal, 100 gal per pulse (1 L, 10 L, 100 L per pulse)
(WMT2 only).
Electrical Rating: 0.01 A @ 24 VAC/DC (WMT2 only).
Electrical Connections: Color-coded lead wires, 4.5´ (1.5 m) long (WMT2 only).
Mounting Orientation: Horizontal with the register face pointing up.
Weight: See dimension chart.
Display Max
(Gallons)GPM (Gallons Per Minute)
9,999,999.99
9,999,999.99
99,999,999.9
99,999,999.9
99,999,999.9
99,999,999.9
Display Max
3
(m
)m3/h
99,999.9999
99,999.9999
99,999.9999
99,999.9999
999,999.9999
999,999.9999
0.25
0.25
0.25
0.75
0.25
0.25
0.25
0.75
1.5
2
0.75
2
0.03
0.05
0.07
0.12
0.03
0.12
0.3
0.12
0.3
Display Max
(Gallons)
9,999,999.99
9,999,999.99
9,999,999.99
99,999,999.9
9,999,999.99
9,999,999.99
9,999,999.99
99,999,999.9
99,999,999.9
99,999,999.9
99,999,999.9
99,999,999.9
Display Max
3
/h)
(m
99,999.9999
99,999.9999
99,999.9999
99,999.9999
99,999.9999
99,999.9999
999,999.9999
99,999.9999
999,999.9999
Pulse Rate
(Gal./Pulse)GPM (Gallons Per Minute)
0.1
0.1
0.1
0.1
1
1
1
1
10
10
100
100
Pulse Rate
(L/Pulse)m3/h
1
1
1
1
10
10
10
100
100
