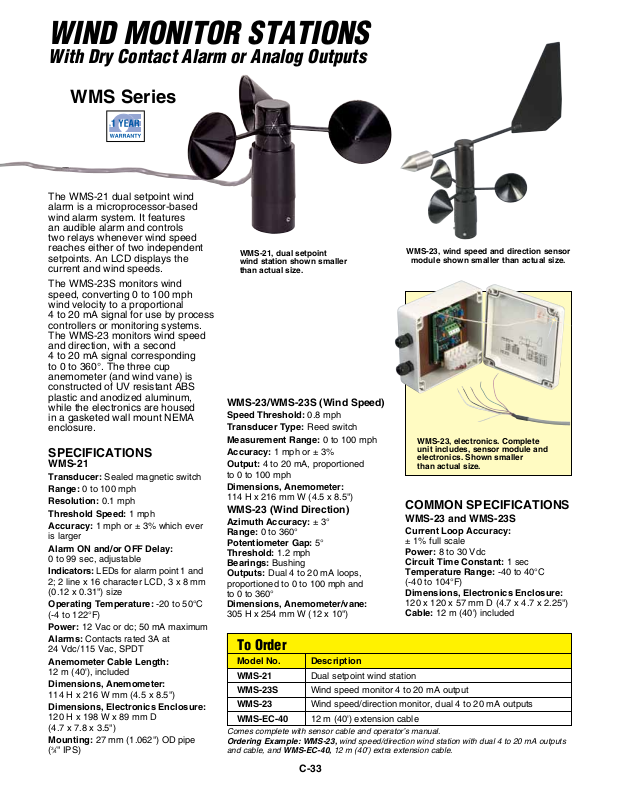

WIND MONITOR STATIONS
With Dry Contact Alarm or Analog Outputs
WMS Series
The WMS-21 dual setpoint wind
alarm is a microprocessor-based
wind alarm system. It features
an audible alarm and controls
two relays whenever wind speed
reaches either of two independent
setpoints. An LCD displays the
current and wind speeds.
The WMS-23S monitors wind
speed, converting 0 to 100 mph
wind velocity to a proportional
4 to 20 mA signal for use by process
controllers or monitoring systems.
The WMS-23 monitors wind speed
and direction, with a second
4 to 20 mA signal corresponding
to 0 to 360°. The three cup
anemometer (and wind vane) is
constructed of UV resistant ABS
plastic and anodized aluminum,
while the electronics are housed
in a gasketed wall mount NEMA
enclosure.
SPECIFICATIONS
WMS-21
Transducer: Sealed magnetic switch
Range: 0 to 100 mph
Resolution: 0.1 mph
Threshold Speed: 1 mph
Accuracy: 1 mph or ± 3% which ever
is larger
Alarm ON and/or OFF Delay:
0 to 99 sec, adjustable
Indicators: LEDs for alarm point 1 and
2; 2 line x 16 character LCD, 3 x 8 mm
(0.12 x 0.31") size
Operating Temperature: -20 to 50°C
(-4 to 122°F)
Power: 12 Vac or dc; 50 mA maximum
Alarms: Contacts rated 3A at
24 Vdc/115 Vac, SPDT
Anemometer Cable Length:
12 m (40'), included
Dimensions, Anemometer:
114 H x 216 W mm (4.5 x 8.5")
Dimensions, Electronics Enclosure:
120 H x 198 W x 89 mm D
(4.7 x 7.8 x 3.5")
Mounting: 27 mm (1.062") OD pipe
3
(
⁄4" IPS)
WMS-21, dual setpoint
wind station shown smaller
than actual size.
WMS-23/WMS-23S (Wind Speed)
Speed Threshold: 0.8 mph
Transducer Type: Reed switch
Measurement Range: 0 to 100 mph
Accuracy: 1 mph or ± 3%
Output: 4 to 20 mA, proportioned
to 0 to 100 mph
Dimensions, Anemometer:
114 H x 216 mm W (4.5 x 8.5")
WMS-23 (Wind Direction)
Azimuth Accuracy: ± 3°
Range: 0 to 360°
Potentiometer Gap: 5°
Threshold: 1.2 mph
Bearings: Bushing
Outputs: Dual 4 to 20 mA loops,
proportioned to 0 to 100 mph and
to 0 to 360°
Dimensions, Anemometer/vane:
305 H x 254 mm W (12 x 10")
To Order
Model No. Description
WMS-21 Dual setpoint wind station
WMS-23S Wind speed monitor 4 to 20 mA output
WMS-23 Wind speed/direction monitor, dual 4 to 20 mA outputs
WMS-EC-40 12 m (40') extension cable
Comes complete with sensor cable and operator’s manual.
Ordering Example: WMS-23, wind speed/direction wind station with dual 4 to 20 mA outputs
and cable, and WMS-EC-40, 12 m (40') extra extension cable.

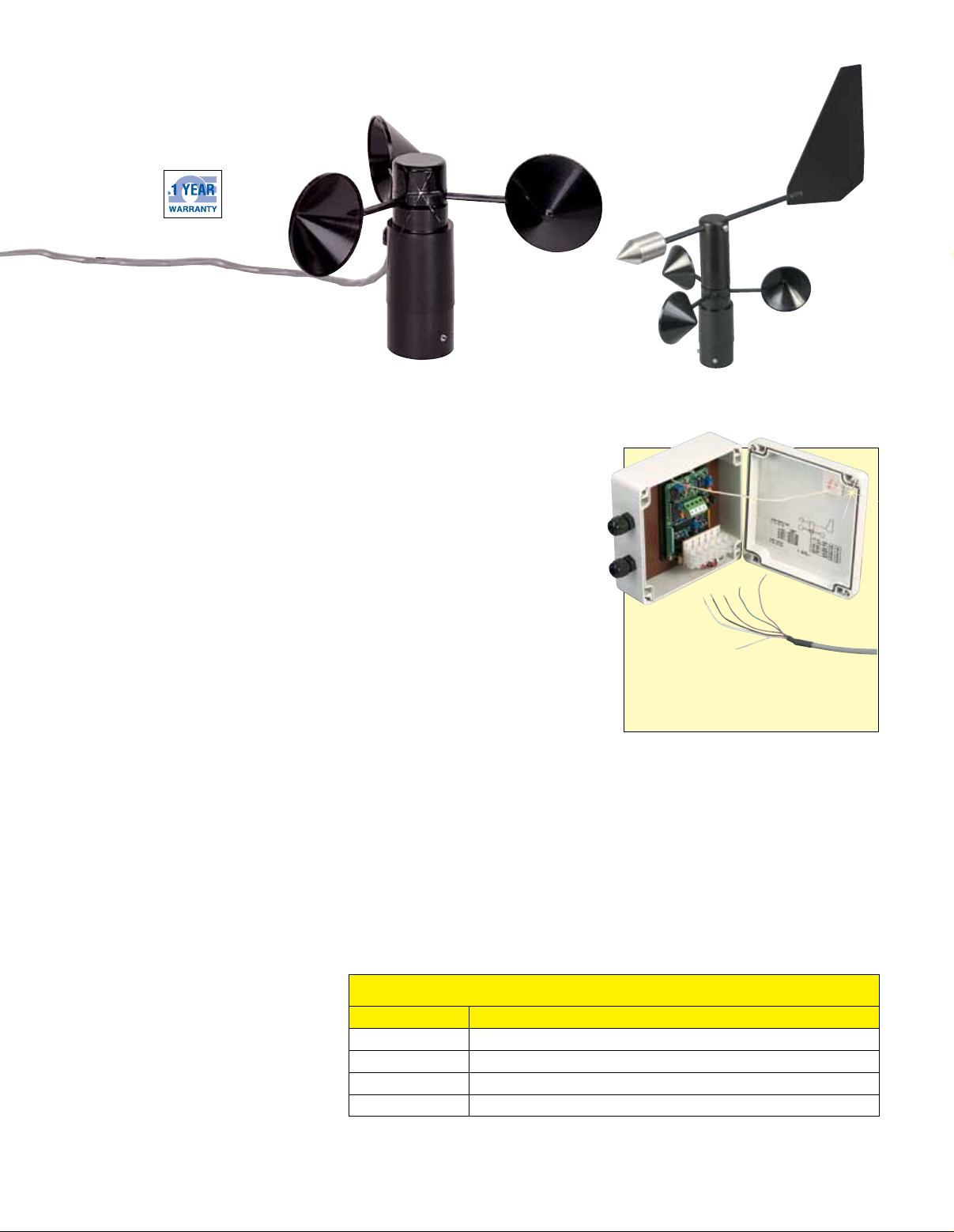

WMS-23, wind speed and direction sensor
module shown smaller than actual size.
WMS-23, electronics. Complete
unit includes, sensor module and
electronics. Shown smaller
than actual size.
COMMON SPECIFICATIONS
WMS-23 and WMS-23S
Current Loop Accuracy:
± 1% full scale
Power: 8 to 30 Vdc
Circuit Time Constant: 1 sec
Temperature Range: -40 to 40°C
(-40 to 104°F)
Dimensions, Electronics Enclosure:
120 x 120 x 57 mm D (4.7 x 4.7 x 2.25")
Cable: 12 m (40') included
