[26.21]
M12 x 1 THD, 4-PIN

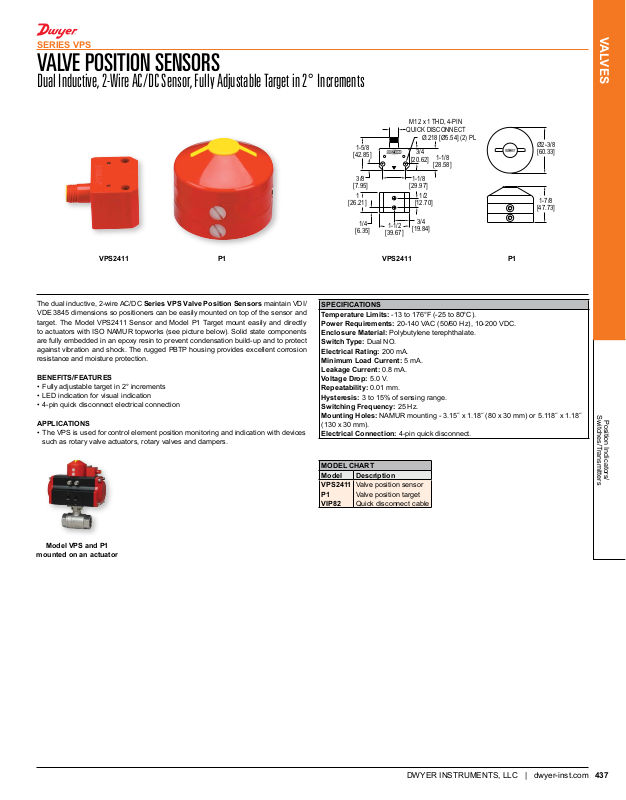

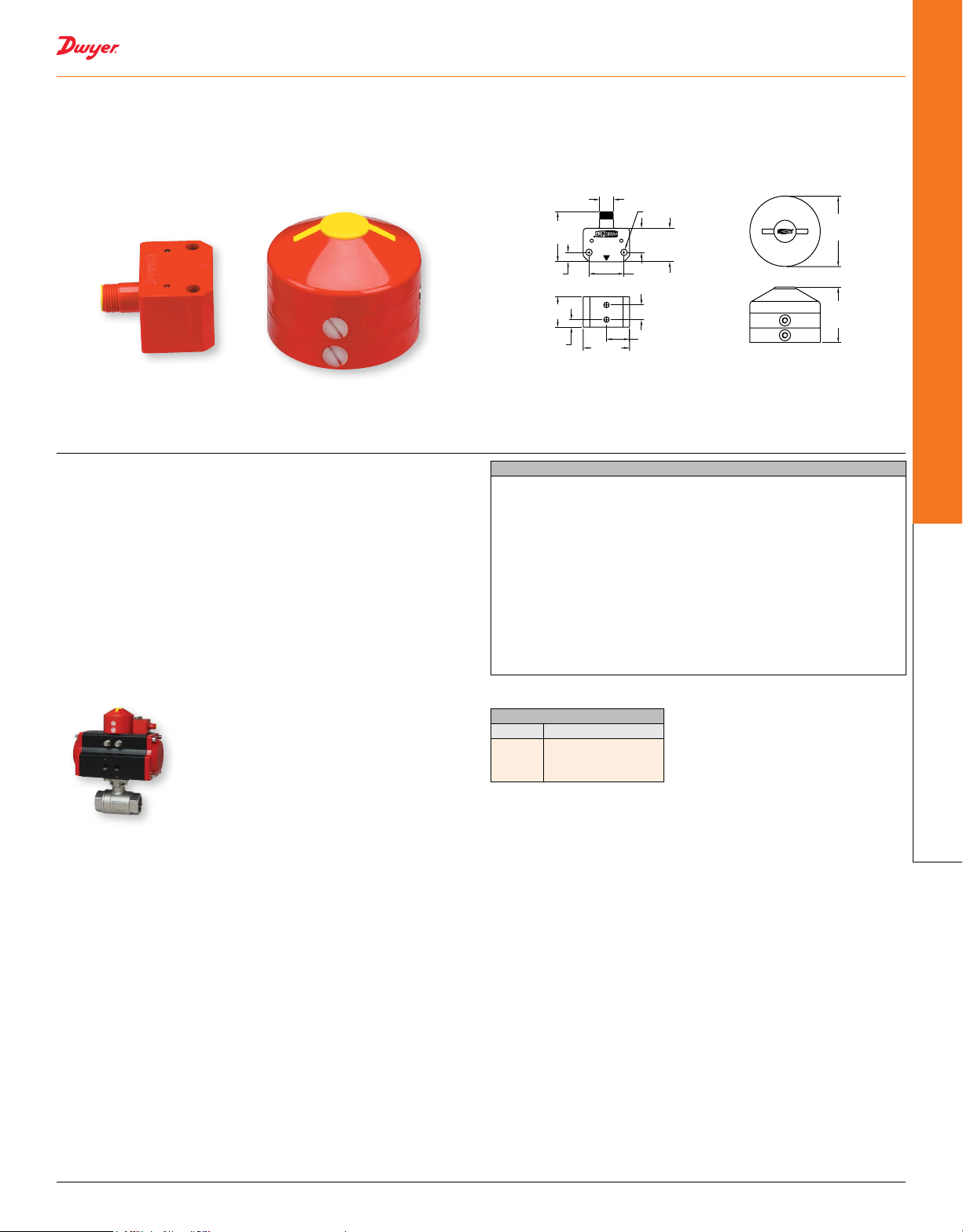

SERIES VPS
VALVE POSITION SENSORS
Dual Inductive, 2-Wire AC/DC Sensor, Fully Adjustable Target in 2° Increments
1-5/8
[42.85]
[7.95]
1
[6.35]
VPS2411 VPS2411P1 P1
VALVES
QUICK DISCONNECT
Ø.218 [Ø5.54] (2) PL
3/4
1-1/8
[20.62]
[28.58]
1-1/2
[39.67]
1-1/8
[29.97]
[12.70]
3/4
[19.84]
1/2
3/8
1/4
Ø2-3/8
[60.33]
1-7/8
[47.73]
The dual inductive, 2-wire AC/DC Series VPS Valve Position Sensors maintain VDI/
VDE 3845 dimensions so positioners can be easily mounted on top of the sensor and
target. The Model VPS2411 Sensor and Model P1 Target mount easily and directly
to actuators with ISO NAMUR topworks (see picture below). Solid state components
are fully embedded in an epoxy resin to prevent condensation build-up and to protect
against vibration and shock. The rugged PBTP housing provides excellent corrosion
resistance and moisture protection.
BENEFITS/FEATURES
• Fully adjustable target in 2° increments
• LED indication for visual indication
• 4-pin quick disconnect electrical connection
APPLICATIONS
• The VPS is used for control element position monitoring and indication with devices
such as rotary valve actuators, rotary valves and dampers.
Model VPS and P1
mounted on an actuator
SPECIFICATIONS
Temperature Limits: -13 to 176°F (-25 to 80°C).
Power Requirements: 20-140 VAC (50/60 Hz), 10-200 VDC.
Enclosure Material: Polybutylene terephthalate.
Switch Type: Dual NO.
Electrical Rating: 200 mA.
Minimum Load Current: 5 mA.
Leakage Current: 0.8 mA.
Voltage Drop: 5.0 V.
Repeatability: 0.01 mm.
Hysteresis: 3 to 15% of sensing range.
Switching Frequency: 25 Hz.
Mounting Holes: NAMUR mounting - 3.15˝ x 1.18˝ (80 x 30 mm) or 5.118˝ x 1.18˝
(130 x 30 mm).
Electrical Connection: 4-pin quick disconnect.
MODEL CHART
Model Description
VPS2411
P1
VIP82
Valve position sensor
Valve position target
Quick disconnect cable
Switches/Transmitters
Position Indicators/
DWYER INSTRUMENTS, LLC | dwyer-inst.com
