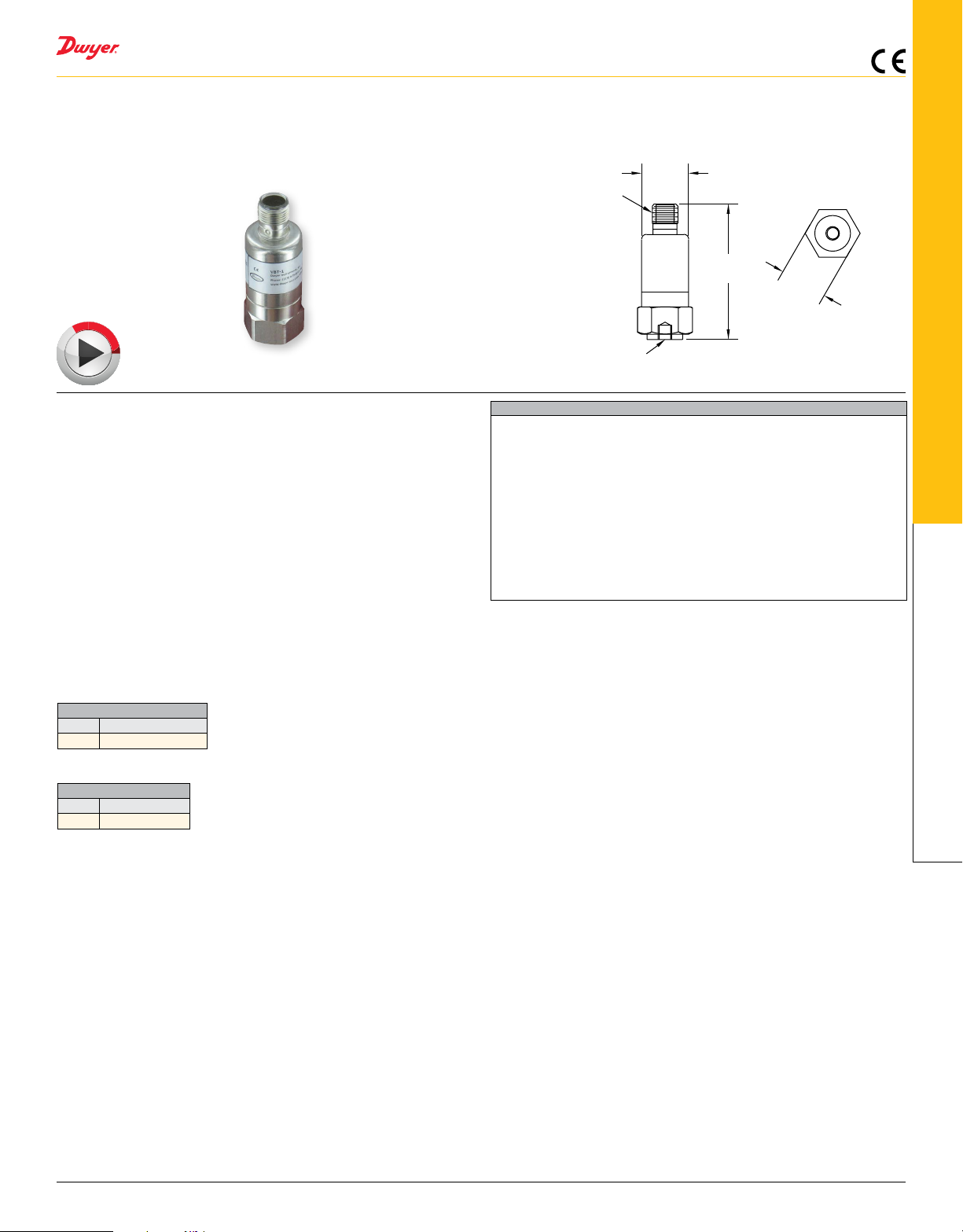

1/4˝-28 UNF
M12 CONNECT
Ø7/8

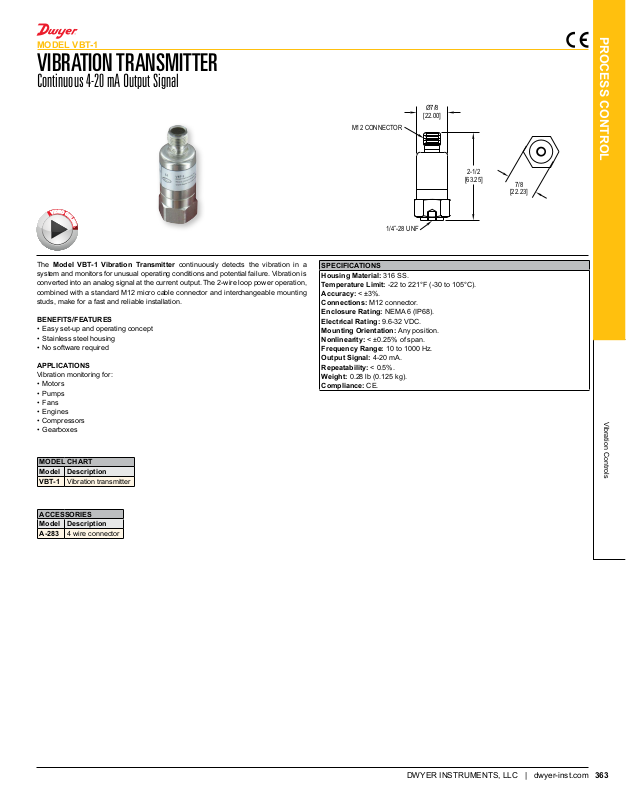

MODEL VBT-1
E
VIBRATION TRANSMITTER
Continuous 4-20 mA Output Signal
E
O
D
I
V
O
N
L
I
N
OR
[22.00]
2-1/2
[63.25]
7/8
[22.23]
PROCESS CONTROL
The Model VBT-1 Vibration Transmitter continuously detects the vibration in a
system and monitors for unusual operating conditions and potential failure. Vibration is
converted into an analog signal at the current output. The 2-wire loop power operation,
combined with a standard M12 micro cable connector and interchangeable mounting
studs, make for a fast and reliable installation.
BENEFITS/FEATURES
• Easy set-up and operating concept
• Stainless steel housing
• No software required
APPLICATIONS
Vibration monitoring for:
• Motors
• Pumps
• Fans
• Engines
• Compressors
• Gearboxes
MODEL CHART
Model Description
VBT-1 Vibration transmitter
ACCESSORIES
Model Description
A-283 4 wire connector
SPECIFICATIONS
Housing Material: 316 SS.
Temperature Limit: -22 to 221°F (-30 to 105°C).
Accuracy: < ±3%.
Connections: M12 connector.
Enclosure Rating: NEMA 6 (IP68).
Electrical Rating: 9.6-32 VDC.
Mounting Orientation: Any position.
Nonlinearity: < ±0.25% of span.
Frequency Range: 10 to 1000 Hz.
Output Signal: 4-20 mA.
Repeatability: < 0.5%.
Weight: 0.28 lb (0.125 kg).
Compliance: CE.
Vibration Controls
