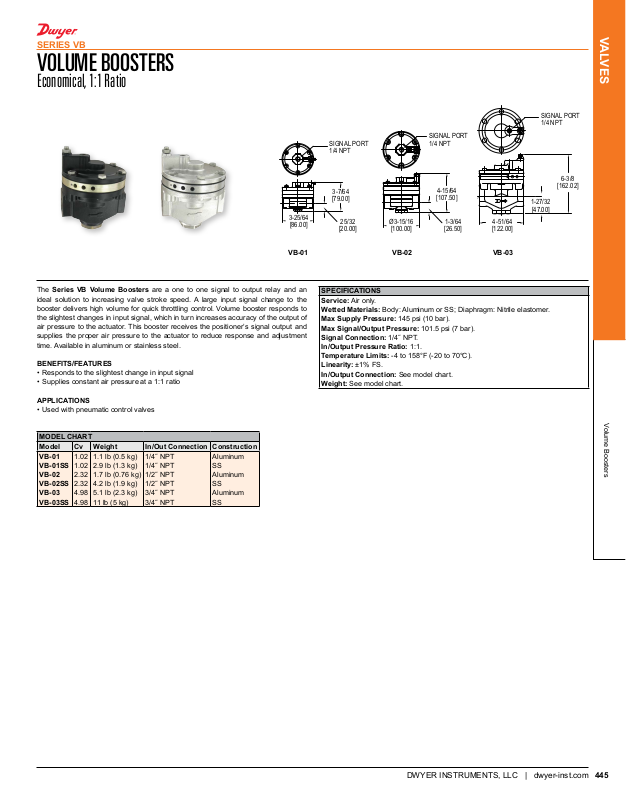

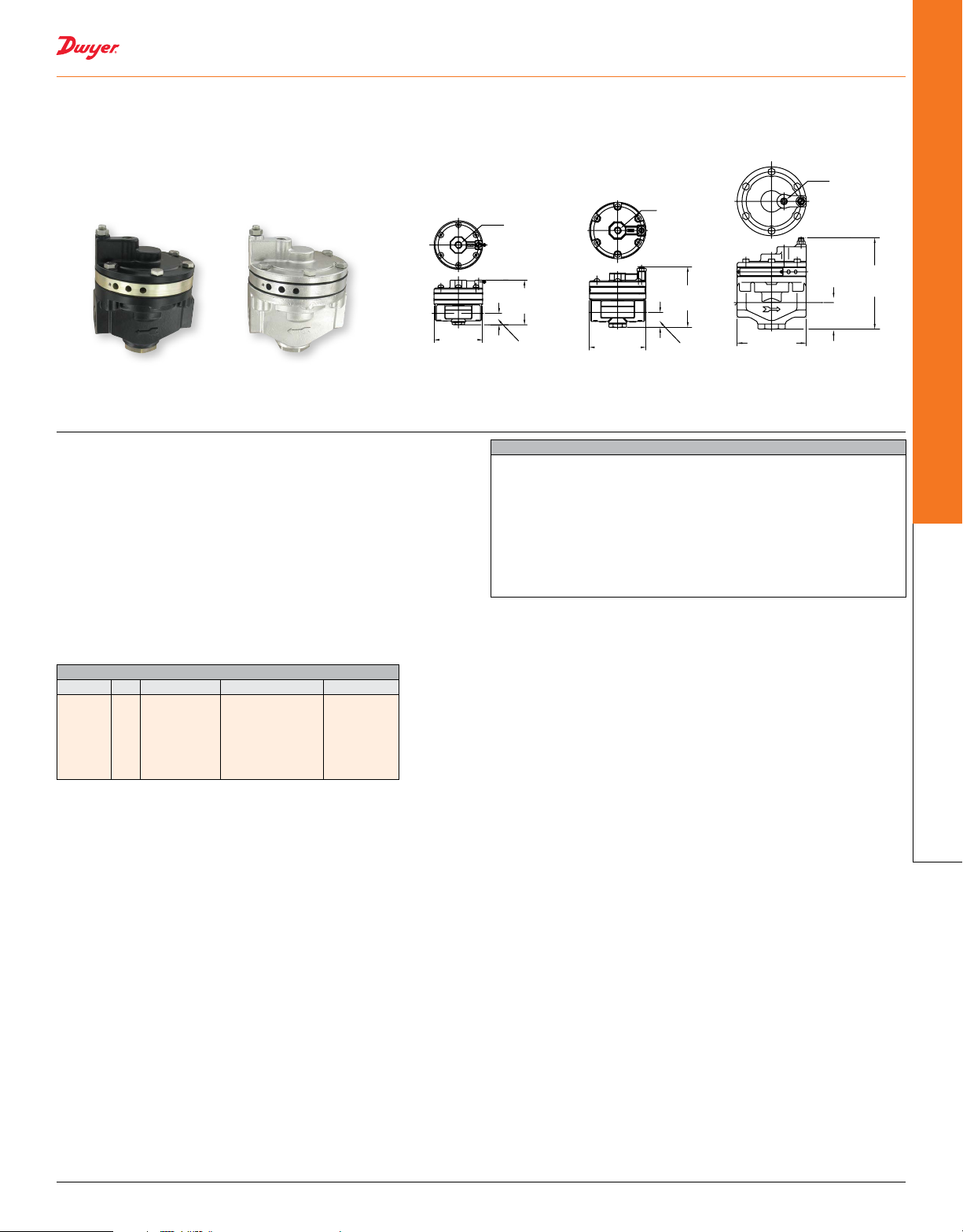

SERIES VB
VOLUME BOOSTERS
Economical, 1:1 Ratio
SIGNAL PORT
SIGNAL PORT
1/4 NPT
3-7/64
[79.00]
3-25/64
[86.00]
VB-01 VB-02 VB-03
25/32
Ø3-15/16
1/4 NPT
4-15/64
[107.50]
1-3/64
4-51/64
[122.00]
SIGNAL PO
1/4 NPT
1-27/32
[47.00]
6-3/8
[162.02]
VALVES
The Series VB Volume Boosters are a one to one signal to output relay and an
ideal solution to increasing valve stroke speed. A large input signal change to the
booster delivers high volume for quick throttling control. Volume booster responds to
the slightest changes in input signal, which in turn increases accuracy of the output of
air pressure to the actuator. This booster receives the positioner’s signal output and
supplies the proper air pressure to the actuator to reduce response and adjustment
time. Available in aluminum or stainless steel.
BENEFITS/FEATURES
• Responds to the slightest change in input signal
• Supplies constant air pressure at a 1:1 ratio
APPLICATIONS
• Used with pneumatic control valves
MODEL CHART
Model Cv Weight In/Out Connection Construction
VB-01
VB-01SS
VB-02
VB-02SS
VB-03
VB-03SS
1.02
1.1 lb (0.5 kg)
1.02
2.9 lb (1.3 kg)
2.32
1.7 lb (0.76 kg)
2.32
4.2 lb (1.9 kg)
4.98
5.1 lb (2.3 kg)
4.98
11 lb (5 kg)
1/4˝ NPT
1/4˝ NPT
1/2˝ NPT
1/2˝ NPT
3/4˝ NPT
3/4˝ NPT
Aluminum
SS
Aluminum
SS
Aluminum
SS
SPECIFICATIONS
Service: Air only.
Wetted Materials: Body: Aluminum or SS; Diaphragm: Nitrile elastomer.
Max Supply Pressure: 145 psi (10 bar).
Max Signal/Output Pressure: 101.5 psi (7 bar).
Signal Connection: 1/4˝ NPT.
In/Output Pressure Ratio: 1:1.
Temperature Limits: -4 to 158°F (-20 to 70°C).
Linearity: ±1% FS.
In/Output Connection: See model chart.
Weight: See model chart.
