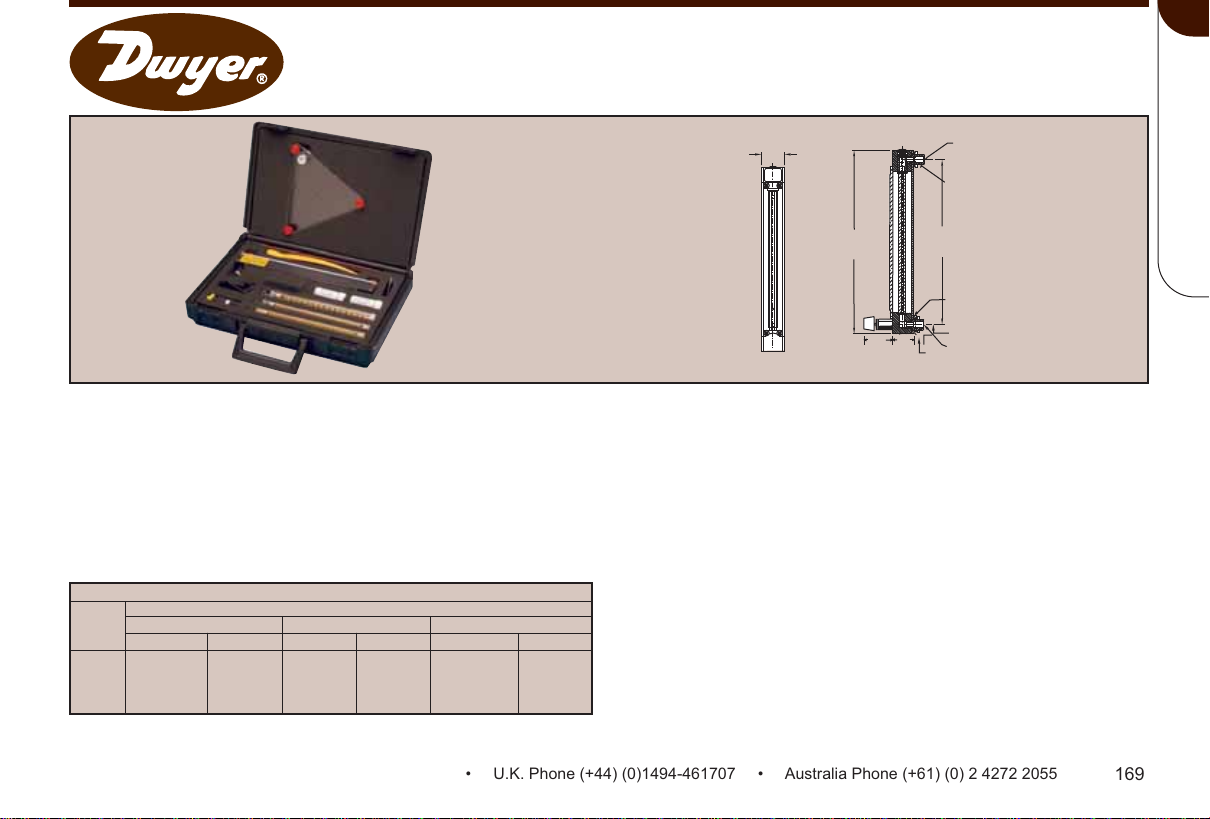

Series
VA-K
Variable Area Flowmeter Kits
Interchangeable Flow Tubes and Floats, 150 mm Universal Scales
1-1/4
[31.75]
1/8 NPT
1/2˝ HEX
Flowmeters, Variable Area
8-13/16
[223.82]
7/8˝ HEX NUT
1/2
[12.75]
1-1/8
[28.57]
1/8 NPT
1/2
[12.75]
Connection: 1/8˝ female NPT.
Flowtube: Borosilicate glass.
Float: Glass, 316 SS or tantalum.
Float Stops: PTFE.
End Fittings: Anodized aluminum or
316 SS.
Front Shield: Polycarbonate.
Side Panels: Black, anodized
aluminum.
O-rings: Buna-N on aluminum models
and fluoroelastomer on stainless steel
models.
Valve Orifice: Acetal on aluminum
models and PCTFE on stainless steel
models.

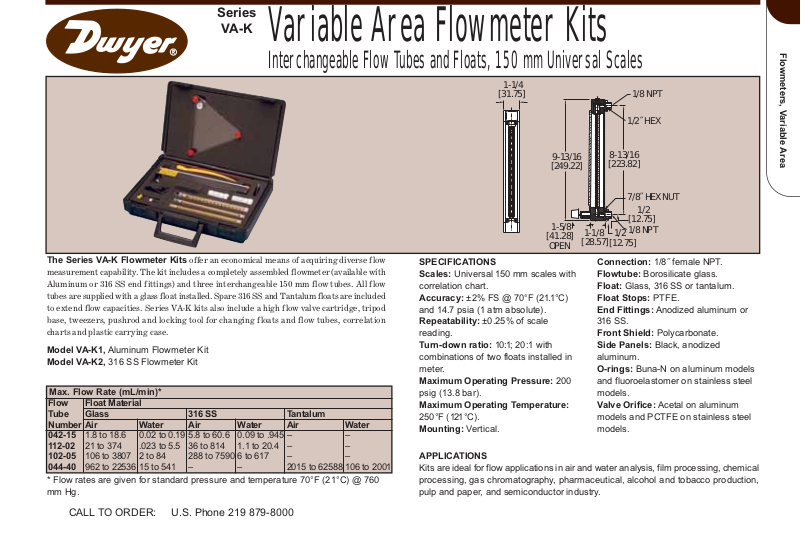

The Series VA-K Flowmeter Kits offer an economical means of acquiring diverse flow
measurement capability. The kit includes a completely assembled flowmeter (available with
Aluminum or 316 SS end fittings) and three interchangeable 150 mm flow tubes. All flow
tubes are supplied with a glass float installed. Spare 316 SS and Tantalum floats are included
to extend flow capacities. Series VA-K kits also include a high flow valve cartridge, tripod
base, tweezers, pushrod and locking tool for changing floats and flow tubes, correlation
charts and plastic carrying case.
Model VA-K1, Aluminum Flowmeter Kit
Model VA-K2, 316 SS Flowmeter Kit
Max. Flow Rate (mL/min)*
Flow
Float Material
Tube
Glass
Number
Air
042-15
1.8 to 18.6
112-02
21 to 374
102-05
106 to 3807
044-40
962 to 22536
* Flow rates are given for standard pressure and temperature 70°F (21°C) @ 760
mm Hg.
Water
0.02 to 0.19
.023 to 5.5
2 to 84
15 to 541
316 SS
Air
5.8 to 60.6
36 to 814
288 to 7590
–
Water
0.09 to .945
1.1 to 20.4
6 to 617
–
Tantalum
Air
–
–
–
2015 to 62588
Water
–
–
–
106 to 2001
9-13/16
[249.22]
1-5/8
[41.28]
OPEN
SPECIFICATIONS
Scales: Universal 150 mm scales with
correlation chart.
Accuracy: ±2% FS @ 70°F (21.1°C)
and 14.7 psia (1 atm absolute).
Repeatability: ±0.25% of scale
reading.
Turn-down ratio: 10:1; 20:1 with
combinations of two floats installed in
meter.
Maximum Operating Pressure: 200
psig (13.8 bar).
Maximum Operating Temperature:
250°F (121°C).
Mounting: Vertical.
APPLICATIONS
Kits are ideal for flow applications in air and water analysis, film processing, chemical
processing, gas chromatography, pharmaceutical, alcohol and tobacco production,
pulp and paper, and semiconductor industry.
