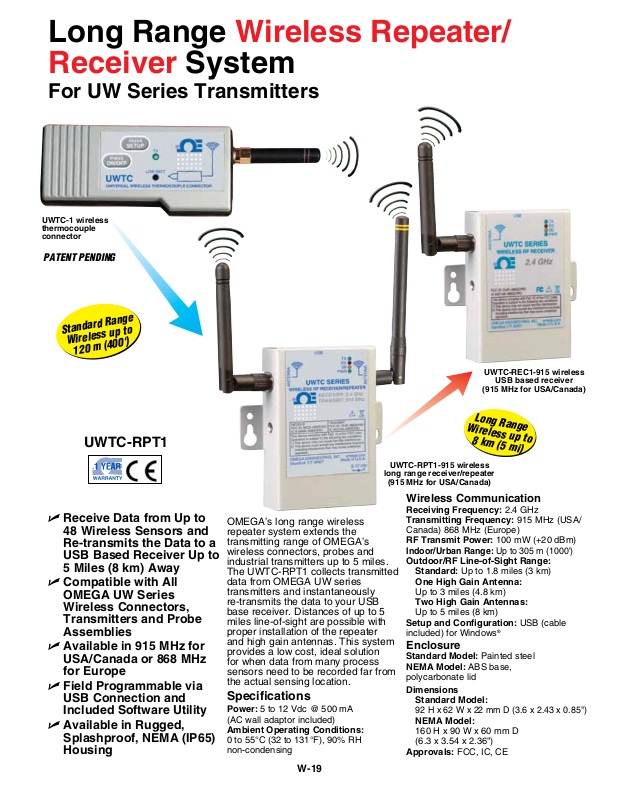

Long Range Wireless Repeater/
Receiver System
For UW Series Transmitters
UWTC-1 wireless
thermocouple
connector
PATENT PENDING
Standard Range
Wireless up to
120 m (400')
UWTC-RPT1
U Receive Data from Up to
48 Wireless Sensors and
Re-transmits the Data to a
USB Based Receiver Up to
5 Miles (8 km) Away
U Compatible with All
OMEGA UW Series
Wireless Connectors,
Transmitters and Probe
Assemblies
U Available in 915 MHz for
USA/Canada or 868 MHz
for Europe
U Field Programmable via
USB Connection and
Included Software Utility
U Available in Rugged,
Splashproof, NEMA (IP65)
Housing

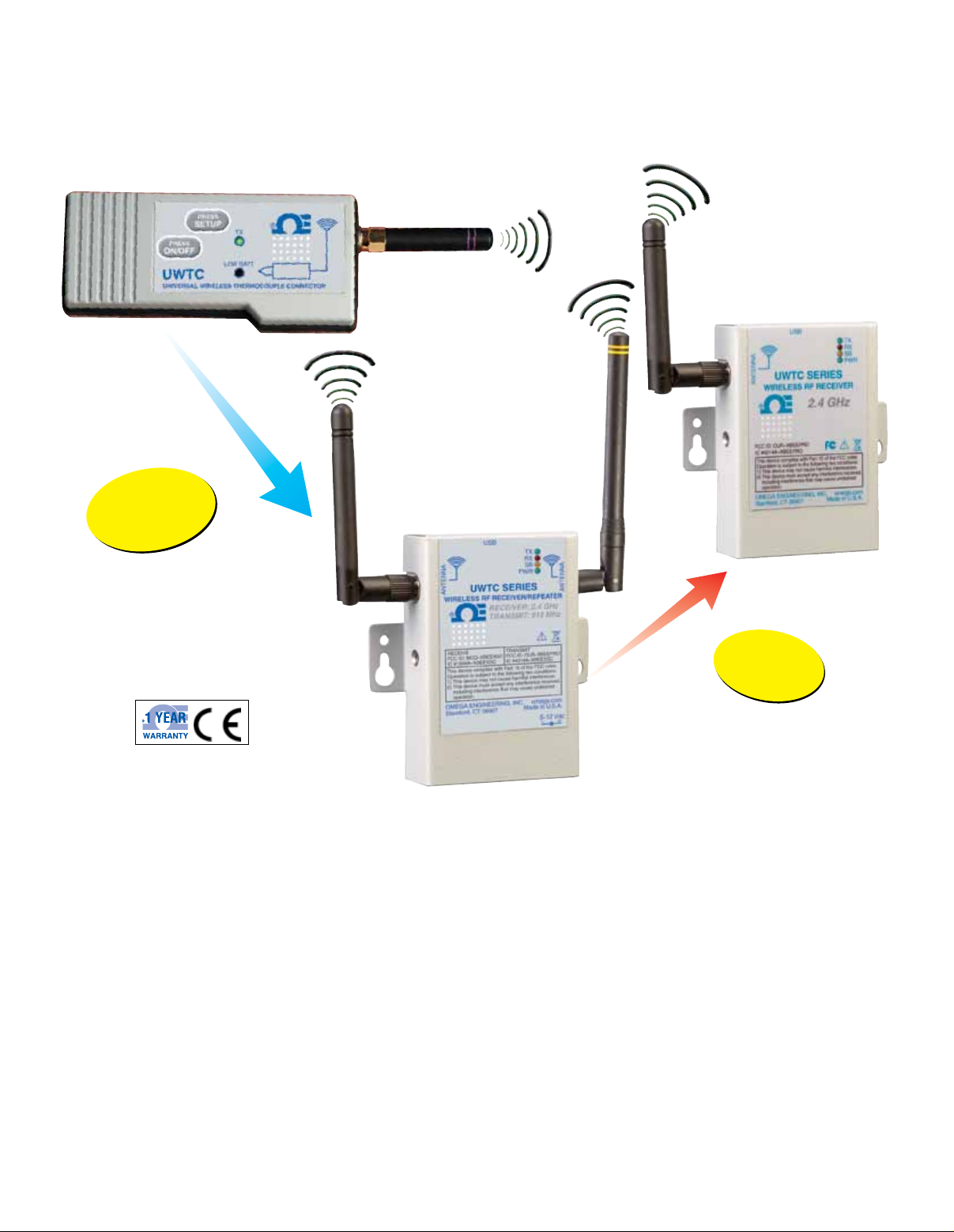

UWTC-RPT1-915 wireless
long range receiver/repeater
(915 MHz for USA/Canada)
OMEGA’s long range wireless
repeater system extends the
transmitting range of OMEGA’s
wireless connectors, probes and
industrial transmitters up to 5 miles.
The UWTC-RPT1 collects transmitted
data from OMEGA UW series
transmitters and instantaneously
re-transmits the data to your USB
base receiver. Distances of up to 5
miles line-of-sight are possible with
proper installation of the repeater
and high gain antennas. This system
provides a low cost, ideal solution
for when data from many process
sensors need to be recorded far from
the actual sensing location.
Specifications
Power: 5 to 12 Vdc @ 500 mA
(AC wall adaptor included)
Ambient Operating Conditions:
0 to 55°C (32 to 131°F), 90% RH
non-condensing
W-19
UWTC-REC1-915 wireless
USB based receiver
(915 MHz for USA/Canada)
Long Range
Wireless up to
8 km (5 mi)
Wireless Communication
Receiving Frequency: 2.4 GHz
Transmitting Frequency: 915 MHz (USA/
Canada) 868 MHz (Europe)
RF Transmit Power: 100 mW (+20 dBm)
Indoor/Urban Range: Up to 305 m (1000')
Outdoor/RF Line-of-Sight Range:
Standard: Up to 1.8 miles (3 km)
One High Gain Antenna:
Up to 3 miles (4.8 km)
Two High Gain Antennas:
Up to 5 miles (8 km)
Setup and Configuration: USB (cable
included) for Windows
®
Enclosure
Standard Model: Painted steel
NEMA Model: ABS base,
polycarbonate lid
Dimensions
Standard Model:
92 H x 62 W x 22 mm D (3.6 x 2.43 x 0.85")
NEMA Model:
160 H x 90 W x 60 mm D
(6.3 x 3.54 x 2.36")
Approvals: FCC, IC, CE
Page 2
Consolidate All Your Wireless Signals Into
a Single Convenient Location, Up to 5 Miles Away
with the UWTC-RPT1 Wireless Repeater System
4
TC Central
Software Included.
See Page W-26 for
Details.
6
7
Up To 48
Channels!
1
2
1
W
6
4
6
5
6
3

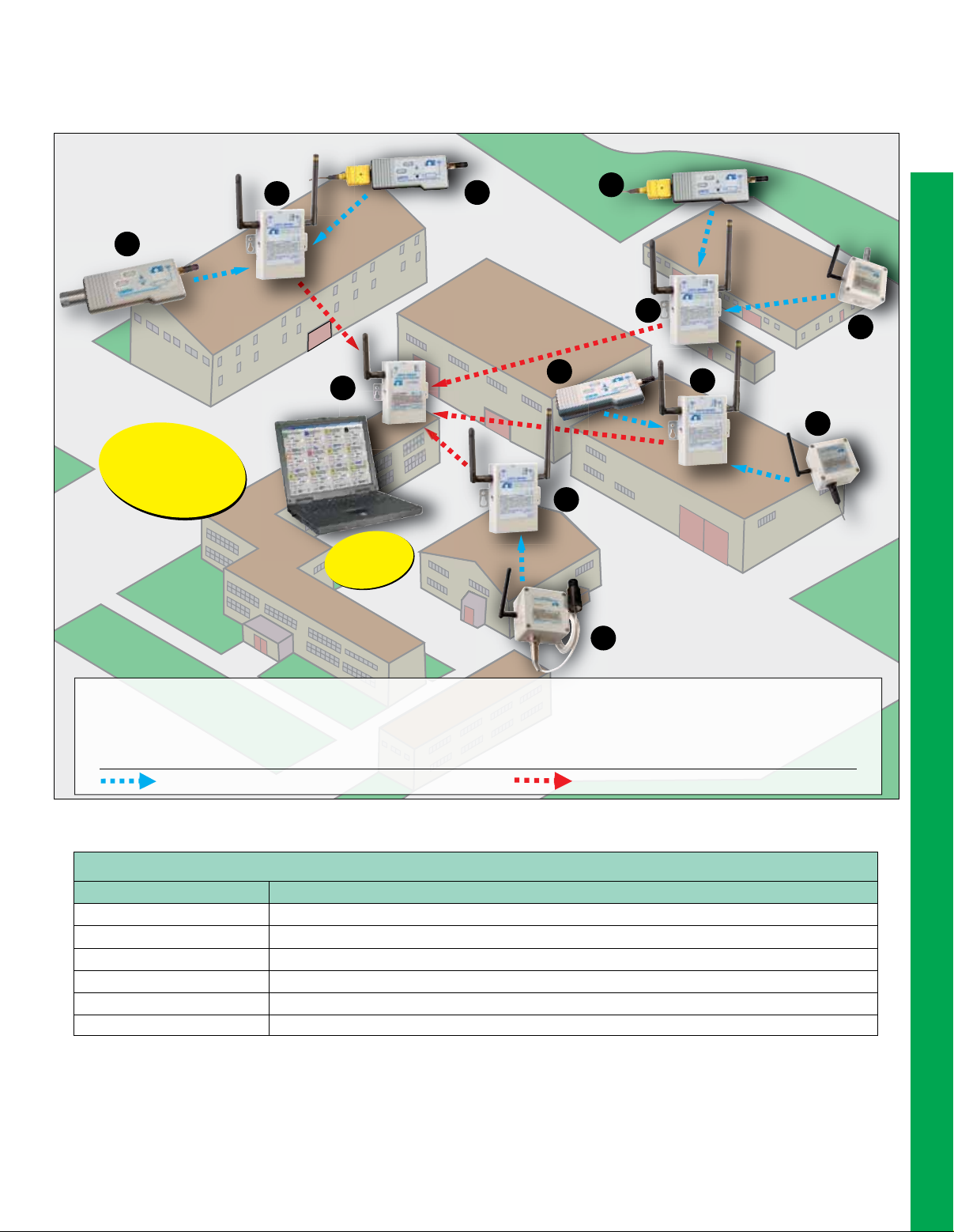

1. UWTC – wireless thermocouple connector
2. UWRTD – wireless RTD connector
3. UWIR – wireless infrared temperature
4. UWRH – wireless RH transmitter
Short range wireless (2.4 GHz)
5. UWPC – wireless process transmitter
6. UWTC-RPT – long range wireless repeater
7. UWTC-REC – wireless receiver
Long range wireless (915 or 868 MHz)
To Order
Model No. Description
UWTC-RPT1-(*) 48-device wireless receiver/repeater†
Legend
UWTC-RPT1-(*)-NEMA 48-device wireless receiver/repeater, NEMA enclosure
UWTC-REC1-(*) 48-device wireless USB receiver
UWTC-REC1-(*)-NEMA 48-device wireless USB receiver, NEMA enclosure
UWTC-RPT-ANT-900 UWTC-RPT1 high gain antenna mounting kit (for longer range)
UWTC-RPT-CABLE-25 25' extension cable for high gain antenna mounting kit
Note: The UWTC-RPT-ANT-900 high gain antenna kit includes one high gain antenna, adapter, and 10' cable to be installed on the receiver.
To extend the range further, you may purchase a second kit and install it on the repeater.
Specify RF “915” for 915 MHz (USA/Canada) or “868” for 868 MHz (Europe) † additional cost for “868” models
*
Each receiver comes complete with a USB cable, PC based software and operator’s manual.
Each repeater comes complete with a USB programming cable, AC wall adaptor and operator’s manual.
USA/Canada Ordering Example: UWTC-RPT1-915, 48-device wireless repeater (USA/Canada), and UWTC-REC1-915, 48-device wireless
receiver (USA/Canada).
Europe Ordering Example: UWTC-RPT1-868, 48-device wireless repeater (Europe), and UWTC-REC7-868, 48-device wireless receiver
(Europe).
