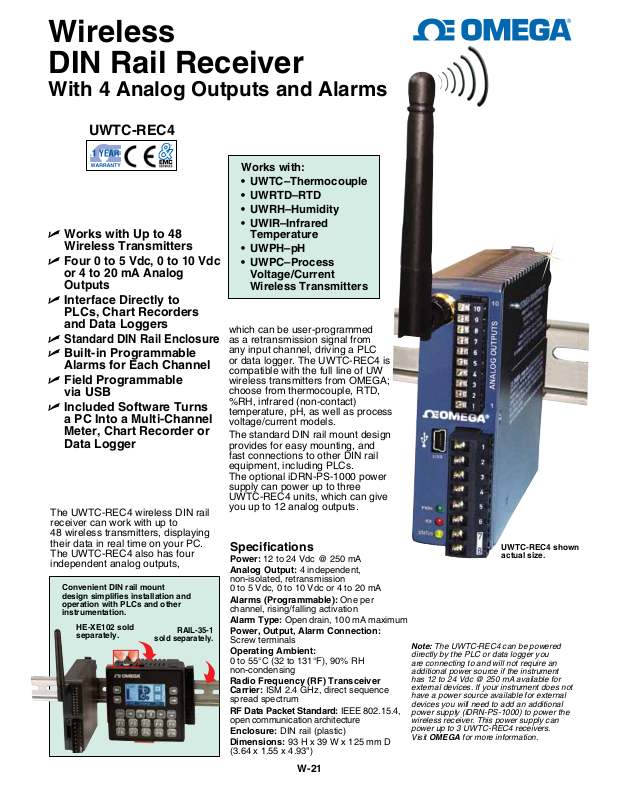

Page 1
Wireless
DIN Rail Receiver
With 4 Analog Outputs and Alarms
UWTC-REC4
Works with:
• UWTC–Thermocouple
• UWRTD–RTD
• UWRH–Humidity
• UWIR–Infrared
U Works with Up to 48
Wireless Transmitters
Four 0 to 5 Vdc, 0 to 10 Vdc
U
or 4 to 20 mA Analog
Outputs
U
Interface Directly to
PLCs, Chart Recorders
and Data Loggers
Standard DIN Rail Enclosure
U
U Built-in Programmable
Alarms for Each Channel
U Field Programmable
via USB
U Included Software Turns
a PC Into a Multi-Channel
Meter, Chart Recorder or
Data Logger
The UWTC-REC4 wireless DIN rail
receiver can work with up to
48 wireless transmitters, displaying
their data in real time on your PC.
The UWTC-REC4 also has four
independent analog outputs,
Convenient DIN rail mount
design simplifies installation and
operation with PLCs and other
instrumentation.
HE-XE102 sold
separately.
RAIL-35-1
sold separately.
Temperature
• UWPH–pH
• UWPC–Process
Voltage/Current
Wireless Transmitters
which can be user-programmed
as a retransmission signal from
any input channel, driving a PLC
or data logger. The UWTC-REC4 is
compatible with the full line of UW
wireless transmitters from OMEGA;
choose from thermocouple, RTD,
%RH, infrared (non-contact)
temperature, pH, as well as process
voltage/current models.
The standard DIN rail mount design
provides for easy mounting, and
fast connections to other DIN rail
equipment, including PLCs.
The optional iDRN-PS-1000 power
supply can power up to three
UWTC-REC4 units, which can give
you up to 12 analog outputs.
Specifications
Power: 12 to 24 Vdc @ 250 mA
Analog Output: 4 independent,
non-isolated, retransmission
0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
Alarms (Programmable): One per
channel, rising/falling activation
Alarm Type: Open drain, 100 mA maximum
Power, Output, Alarm Connection:
Screw terminals
Operating Ambient:
0 to 55°C (32 to 131°F), 90% RH
non-condensing
Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence
spread spectrum
RF Data Packet Standard: IEEE 802.15.4,
open communication architecture
Enclosure: DIN rail (plastic)
Dimensions: 93 H x 39 W x 125 mm D
(3.64 x 1.55 x 4.93")

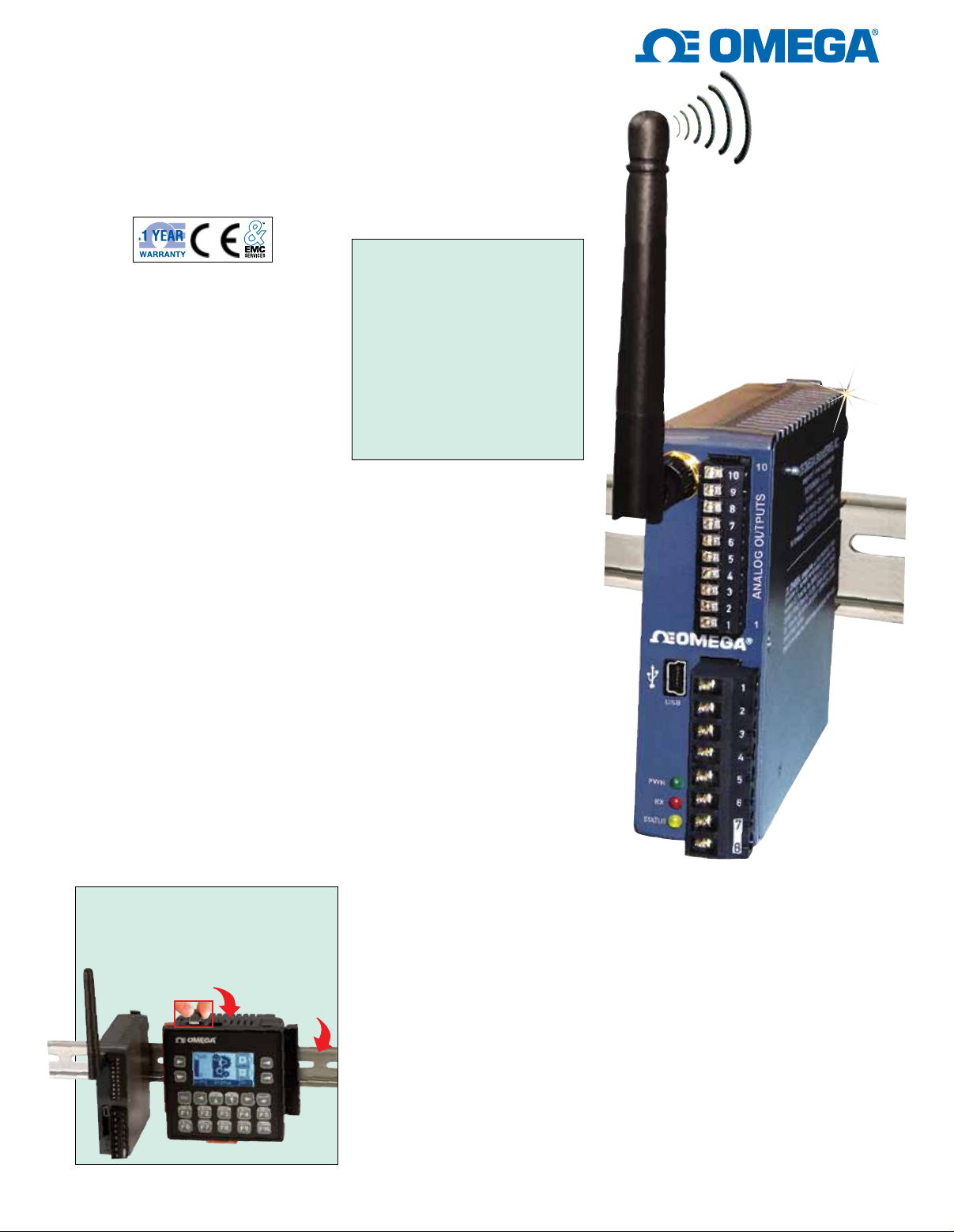

UWTC-REC4 shown
actual size.
Note: The UWTC-REC4 can be powered
directly by the PLC or data logger you
are connecting to and will not require an
additional power source if the instrument
has 12 to 24 Vdc @ 250 mA available for
external devices. If your instrument does not
have a power source available for external
devices you will need to add an additional
power supply (iDRN-PS-1000) to power the
wireless receiver. This power supply can
power up to 3 UWTC-REC4 receivers.
Visit OMEGA for more information.
W-21
Page 2
Interfaces Directly with PLCs and Multi-Channel
Data Loggers to Form a Complete Wireless
Measurement and Control System!
UWTC-2-NEMA, thermocouple
transmitter.
UWIR-2-NEMA,
infrared
temperature
transmitter.
Wireless
Inputs
RD8802CD,
W
paperless
recorder.
RD9912,
paperless
recorder.
4 Analog
Outputs
HE-XE102,
programmable
logic controller.
USB
UWRH-2-NEMA,
humidity/temperature
transmitter.
Connection
TC Central
Software Included,
visit OMEGA
UWTC-2, thermocouple
connector.

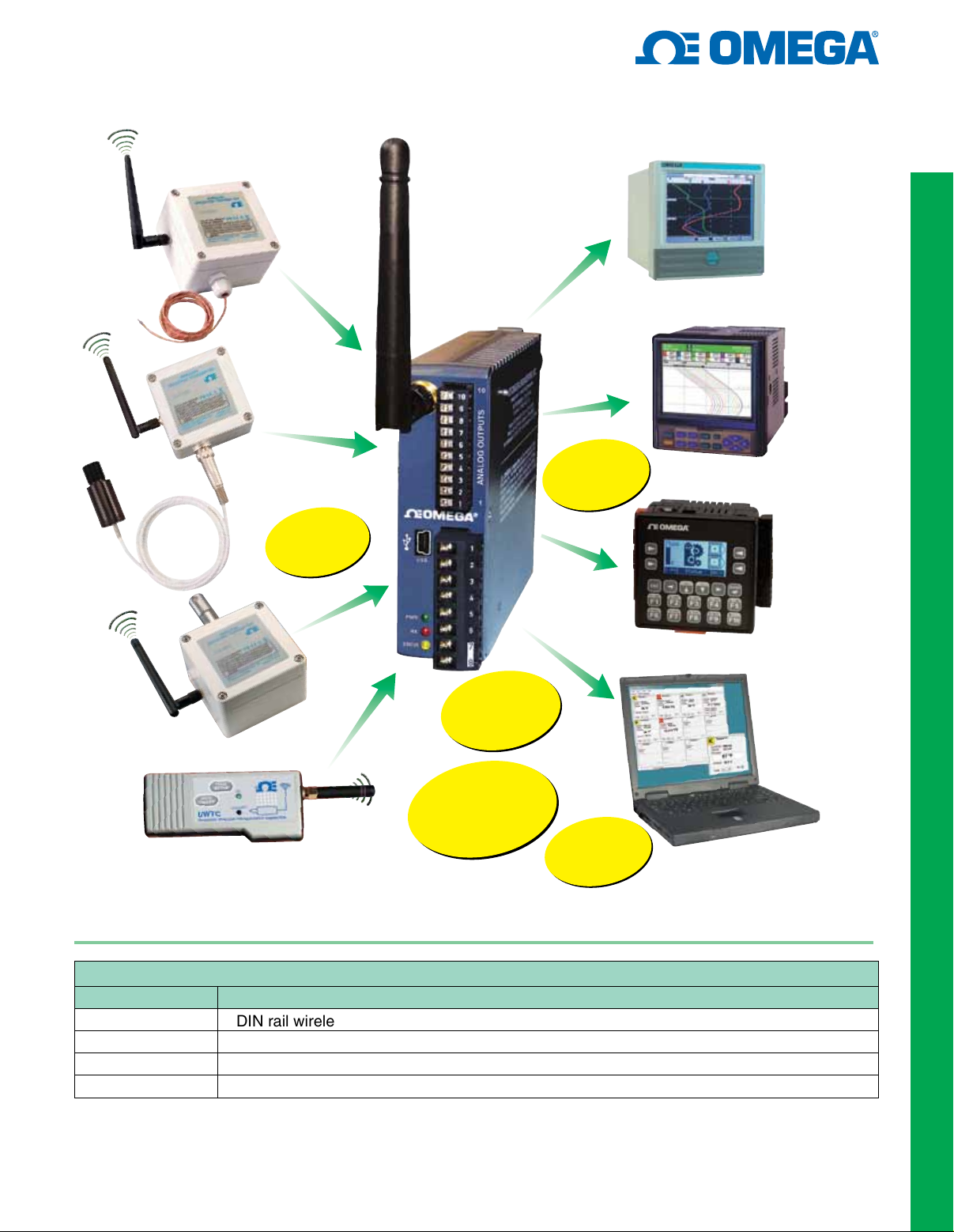

Typical system shown above includes any 4 wireless transmitters with one UWTC-REC4-MA wireless receiver
with analog outputs and HE-XE102 PLC. (Receiver and PC only).
for Details
Up To 48
Channels!
Laptop not included.
To Order
Model No. Description
UWTC-REC4-(*) DIN rail wireless receiver with 4 analog outputs and alarms
iDRN-PS-1000 Power supply (switching) 95 to 240 Vac input, 24 Vdc output @ 850 mA (power 3 units)
RAIL-35-1 35 mm (1.4") DIN rail, 1 m (3.3') length
RAIL-35-2 35 mm (1.4") DIN rail, 2 m (6.6') length
Note: Because of transmission frequency regulations, these products may only be used in the US, Canada, Europe and China.
Comes complete with measurement/data logging software, USB programming cable, and operator’s manual.
Specify analog output signal: “V1” for 0 to 5 Vdc; “V2” for 0 to 10 Vdc, “TC” for Type K thermocouple, or “MA” for 4 to 20 mA signal.
*
Ordering Example: UWTC-REC4-MA, 48-channel DIN rail receiver with four 4 to 20 mA outputs and alarms.
W-22
