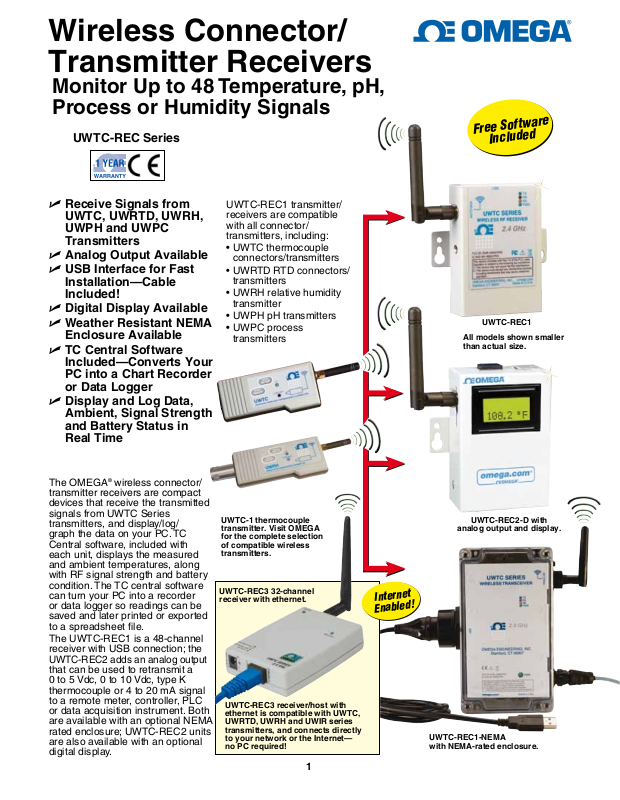

Page 1
Wireless Connector/
Transmitter Receivers
Monitor Up to 48 Temperature, pH,
Process or Humidity Signals
UWTC-REC Series
U Receive Signals from
UWTC, UWRTD, UWRH,
UWPH and UWPC
Transmitters
U Analog Output Available
U USB Interface for Fast
Installation—Cable
Included!
U Digital Display Available
U Weather Resistant NEMA
Enclosure Available
U TC Central Software
Included—Converts Your
PC into a Chart Recorder
or Data Logger
U Display and Log Data,
Ambient, Signal Strength
and Battery Status in
Real Time
UWTC-REC1 transmitter/
receivers are compatible
with all connector/
transmitters, including:
• UWTC thermocouple
connectors/transmitters
• UWRTD RTD connectors/
transmitters
• UWRH relative humidity
transmitter
• UWPH pH transmitters
• UWPC process
transmitters
Free Software
Included
UWTC-REC1
All models shown smaller
than actual size.
The OMEGA® wireless connector/
transmitter receivers are compact
devices that receive the transmitted
signals from UWTC Series
transmitters, and display/log/
graph the data on your PC. TC
Central software, included with
each unit, displays the measured
and ambient temperatures, along
with RF signal strength and battery
condition. The TC central software
can turn your PC into a recorder
or data logger so readings can be
saved and later printed or exported
to a spreadsheet file.
The UWTC-REC1 is a 48-channel
receiver with USB connection; the
UWTC-REC2 adds an analog output
that can be used to retransmit a
0 to 5 Vdc, 0 to 10 Vdc, type K
thermocouple or 4 to 20 mA signal
to a remote meter, controller, PLC
or data acquisition instrument. Both
are available with an optional NEMA
rated enclosure; UWTC-REC2 units
are also available with an optional
digital display.
UWTC-1 thermocouple
transmitter. Visit OMEGA
for the complete selection
of compatible wireless
transmitters.
UWTC-REC3 32-channel
receiver with ethernet.
UWTC-REC3 receiver/host with
ethernet is compatible with UWTC,
UWRTD, UWRH and UWIR series
transmitters, and connects directly
to your network or the Internet—
no PC required!
1
UWTC-REC2-D with
analog output and display.
Internet
Enabled!
UWTC-REC1-NEMA
with NEMA-rated enclosure.
Page 2
Combine One of These Wireless Receivers
with Multiple Wireless Connectors or Wireless
Probe Assemblies to Form a Complete Wireless Measurement System!
Data Logging and
Recording Software
Included
TC Central Software
U Display, Log and Chart
Data from up to 48
Wireless Instruments
U Easy Setup and
Operation
U High/Low Alarms
U Programmable
Engineering Units
U Transmission, Signal
Strength and Battery
Power Indicators
U Data Export to CSV File,
Chart Export to Clipboard
U Included with UW and
MWTC Wireless
Instruments
10 Vdc or Type K thermocouple output.
Mating connector and cable included.
USB connection
(cable included)
UWTC-REC2 models are available
with 4 to 20 mA, 0 to 5 Vdc, 0 to
Data Logging
Laptop not included.
Charting
Compatible with 32-bit Windows
(2000, XP, Vista or 7) OS
Latest software version available for
free download at ftp.omega.com
Radio Frequency (RF) Transceiver
SPECIFICATIONS
Power: USB-powered device; receives
power from host; UWTC-REC2 units
also require dc power supply for analog
output (AC adaptor included)
Operating Environment: -10 to 70°C
(14 to 158°F)
Carrier: ISM 2.4 GHz, direct sequence
spread spectrum
RF Data Packet Standard: IEEE 802.15.4,
open communication architecture
Software (Included):
Requires Windows
CE Compliance: Standard
®
OS
Note: Because of transmission frequency
regulations, the UWTC-REC1 may only be
used in the United States, Canada, Europe,
South Korea and Brazil. The UWTC-REC2
may only be used in the United States,
Canada, Europe, China, South Korea,
Singapore, Brazil and Mexico. For purchase
of model UWTC-REC2 exclusively in Japan,
please order model UWTC-REC2J.
To Order
Model No. Description
UWTC-REC1 USB powered 48-channel transmitter receiver
UWTC-REC1-NEMA USB powered 48-channel transmitter receiver with NEMA enclosure
UWTC-REC2-(*) 48-channel transmitter receiver with analog output
UWTC-REC2-D-(*) 48-channel transmitter receiver with analog output and digital display
UWTC-REC2-(*)-NEMA 48-channel transmitter receiver with analog output, NEMA enclosure
UWTC-REC2-D-(*)-NEMA 48-channel transmitter receiver with analog output and digital display,
NEMA enclosure (TC version is no longer available)
UWTC-CABLE Additional USB programming/communication cable
Comes complete with measurement/data logging software, USB cable, and operator’s manual. UWTC-REC2 units also include
AC power adaptor.
Specify analog output signal: “V1” for 0 to 5 Vdc; “V2” for 0 to 10 Vdc, “TC” for Type K thermocouple, or “MA” for 4 to 20 mA.
*
Ordering Examples: UWTC-REC1, USB powered 48-channel transmitter receiver.
UWTC-REC2-D-V1-NEMA, 48-channel transmitter receiver with analog output and digital display, NEMA enclosure.
2
