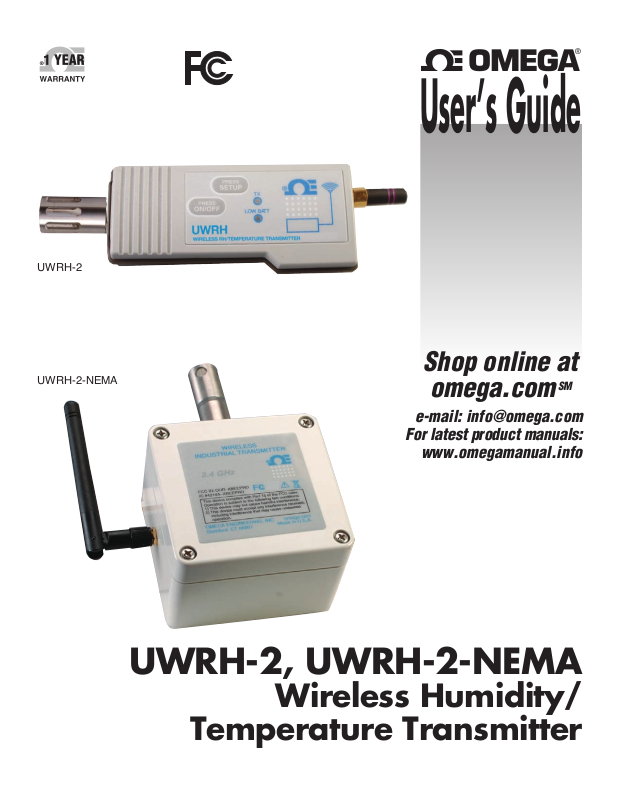

Page 1
UWRH-2
UWRH-2-NEMA
User’s Guide
Shop online at
omega.com
e-mail: [email protected]
SM
For latest product manuals:
www.omegamanual.info
UWRH-2, UWRH-2-NEMA
Wireless Humidity/
Temperature Transmitter
Page 2
omega.com [email protected]
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3
Table of Contents
Section Page
Section 1 Introduction ......................................................................................... 1-1
1.1 Precautions ................................................................................................ 1-1
1.2 Statement on FCC ............. ....................................................................... 1-2
1.3 General Description and System Components .................................... 1-2
UWRH-2/UWRH-2-NEMA
Wireless Humidity/Temperature Transmitter
Section 2 Hardware
2.1 Unpacking and Inspection ...................................................................... 2-1
2.2 Included Items .......................................................................................... 2-1
Section 3 Operation
3.1 Main Transmitter Board .......................................................................... 3-1
Section 4 Software
4.1 Getting Started .......................................................................................... 4-1
4.2 Software Installation ................................................................................ 4-1
Section 5 End Device Operation
5.1SetupandConguration ......................................................................... 5-1
5.2 Mounting Installation .............................................................................. 5-7
5.3 Battery Replacement ................................................................................ 5-9
Section 6 System Operation
6.1 Introduction ............................................................................................... 6-1
6.2 RF Communication Basics ....................................................................... 6-1
6.3 Basic System Overview ............................................................................ 6-1
6.4 Environment/Operating Conditions ..................................................... 6-2
6.5 Transmit Rate vs. Battery Life ................................................................. 6-3
............................................................................................. 2-1
............................................................................................. 3-1
............................................................................................... 4-1
....................................................................... 5-1
............................................................................... 6-1
Section 7 Service and Calibration
7.1 Service and Calibration ............................................................................ 7-1
Section 8 Specications
Section 9 Approvals, Regulatory Compliance
...................................................................................... 8-1
..................................................................... 7-1
............................................... 9-1
i
Page 4
UWRH-2/UWRH-2-NEMA
Wireless Humidity/Temperature Transmitter
List of Figures
Section Figure Description .............................................................. Page
Section 3.1 1A Main Transmitter Operation, UWRH-2 ................ 3-1
Section 3.1 1B Main Transmitter Board, UWRH-2-NEMA .......... 3-1
Section 4.2.2 2 Software - Welcome Screen ...................................... 4-1
Section 4.2.2 3 Software - Select Installation Screen ....................... 4-2
Section4.2.2 4 Software-ConrmInstallationScreen................... 4-2
Section 4.2.2 5 Software – License Agreement Screen .................... 4-3
Section 4.2.2 6 Software – Installation Complete Screen ............... 4-3
Section 5.1 7 USB Cable ................................................................... 5-1
Section 5.1.4 8 Main Transmitter Board ........................................... 5-3

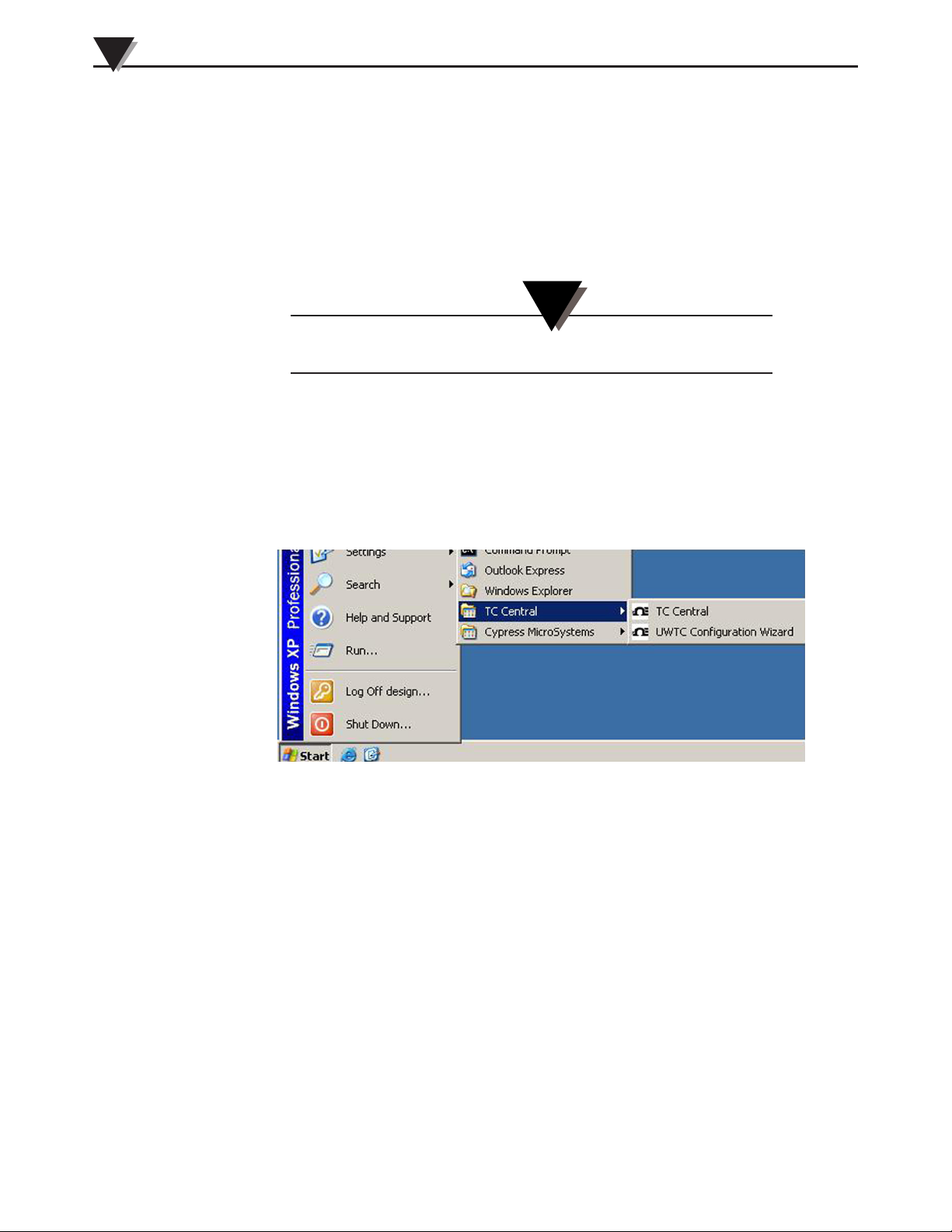

Section 5.1.4 9 Launch Setup Utility Screen ..................................... 5-3
Section 5.1.4 10 Utility Program - Welcome Screen .......................... 5-4
Section 5.1.4 11 Utility Program – Connect To Transmitter Screen 5-4

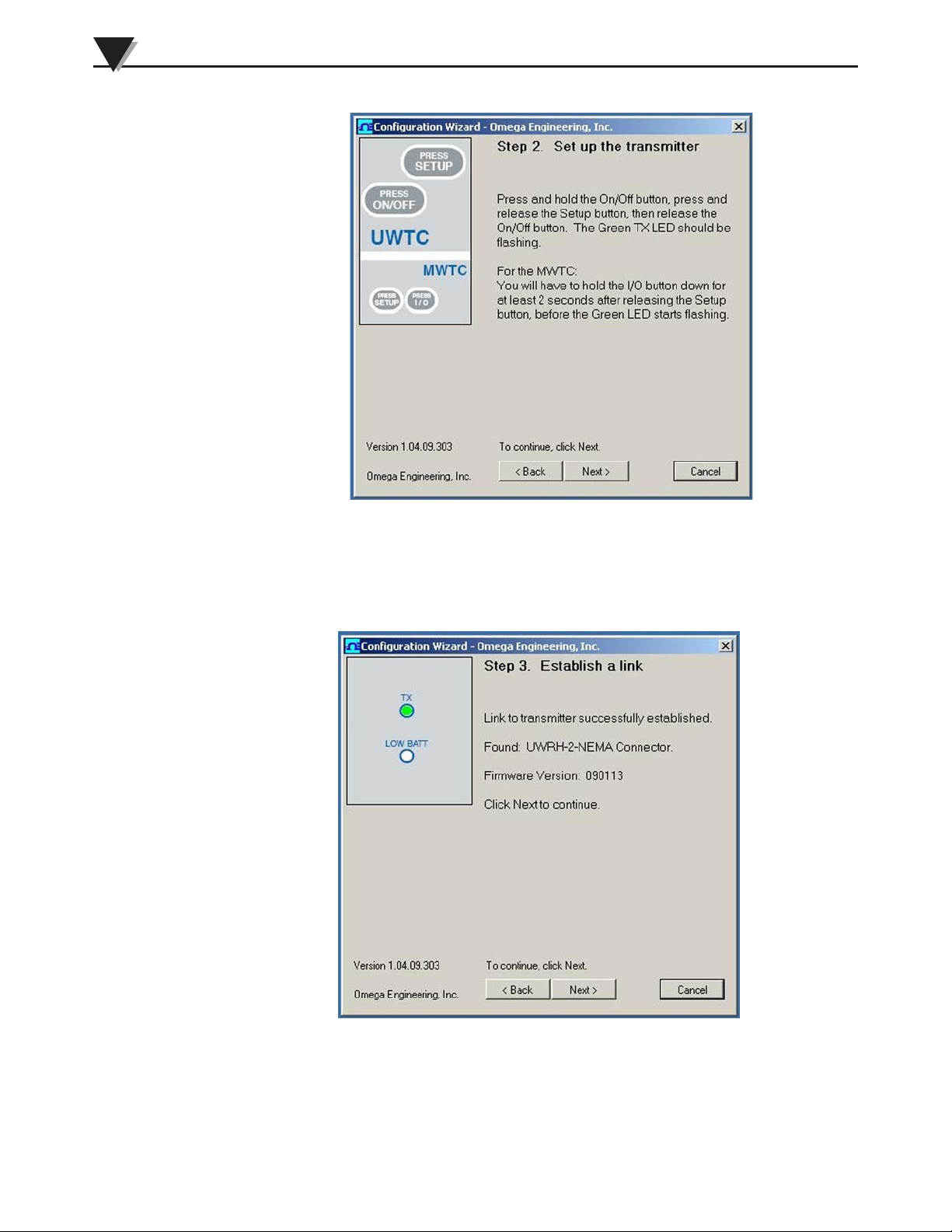

Section 5.1.4 12 Utility Program – Setup Transmitter Screen.......... 5-5
Section 5.1.4 13 Utility Program – Establish Link Screen ................ 5-5

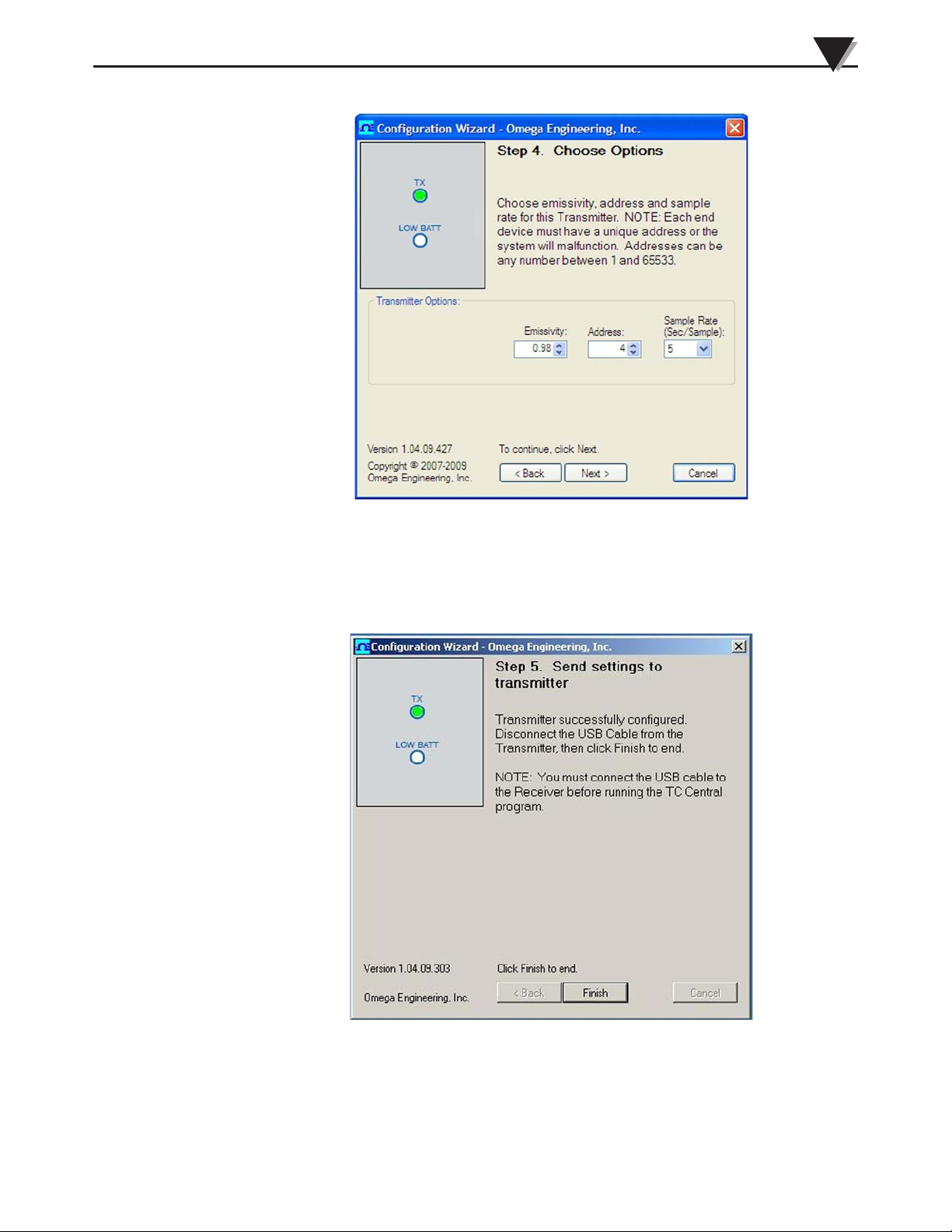

Section 5.1.4 14 Utility Program – Choose Options Screen ............. 5-6
Section 5.1.4 15 Utility Program –
Send Setting To Transmitter Screen ....................... 5-6

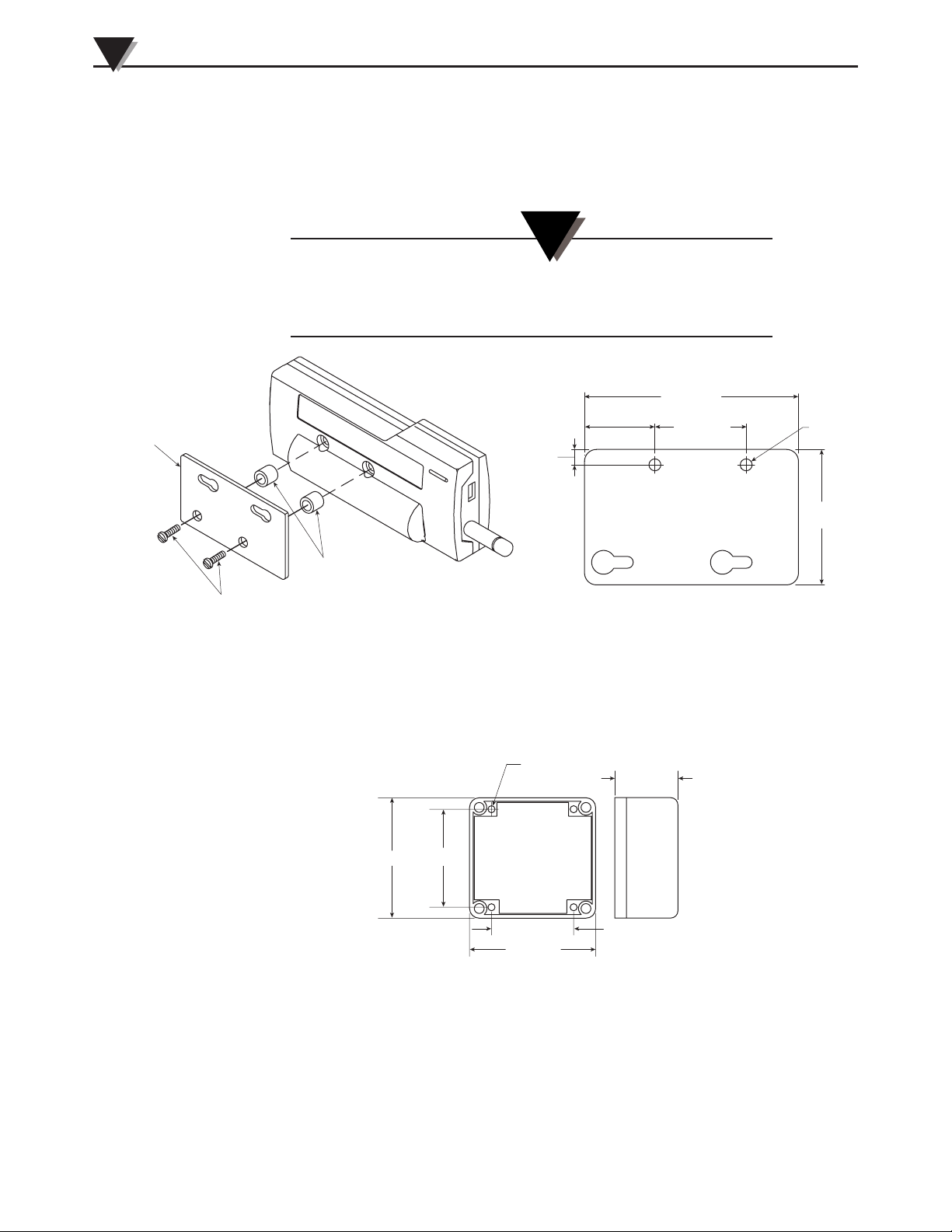

Section 5.2.1 16A Mounting, UWRH-2 ................................................. 5-7
Section 5.2.1 16B Mounting, UWRH-2-NEMA ................................... 5-7

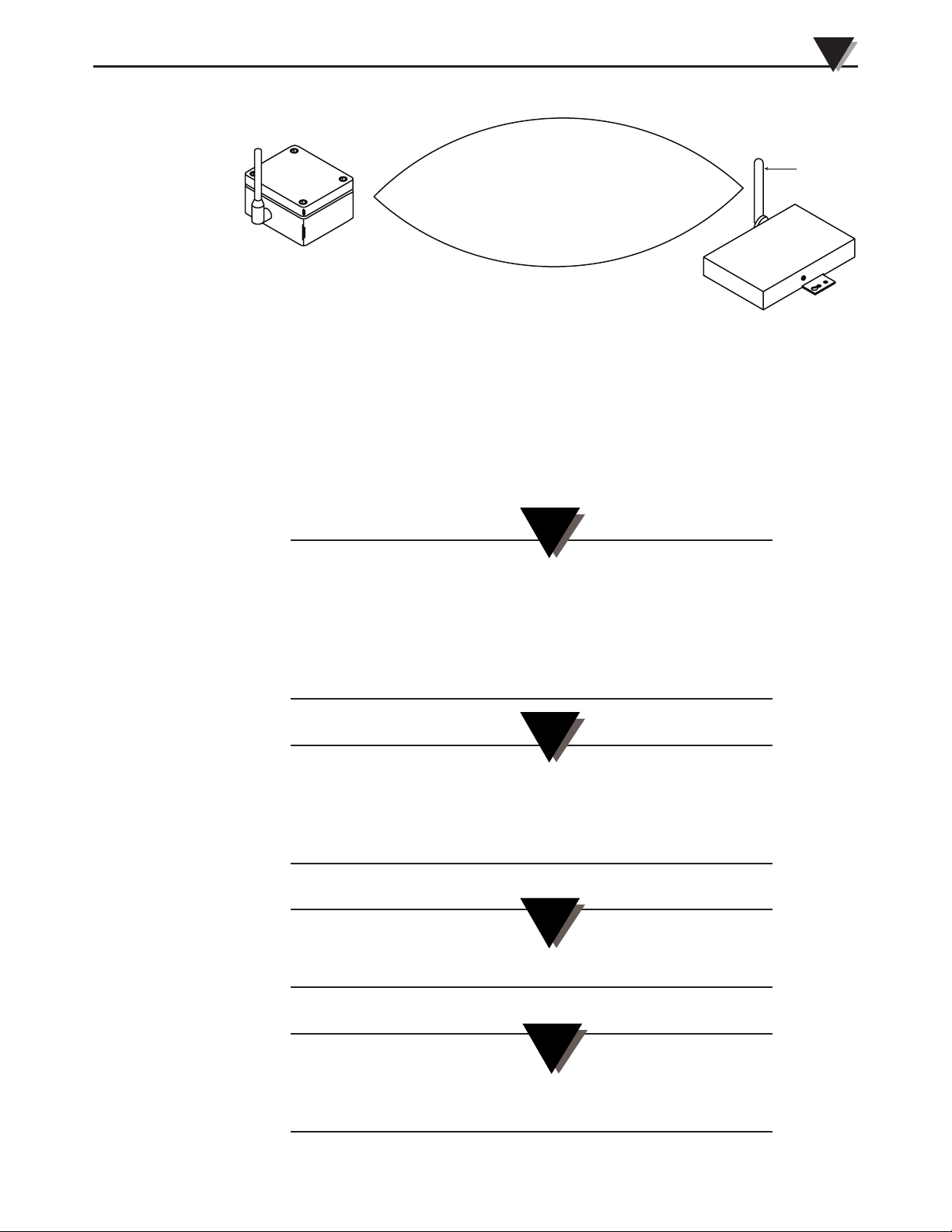

Section 5.2.1 17 Fresnel Zone .............................................................. 5-8

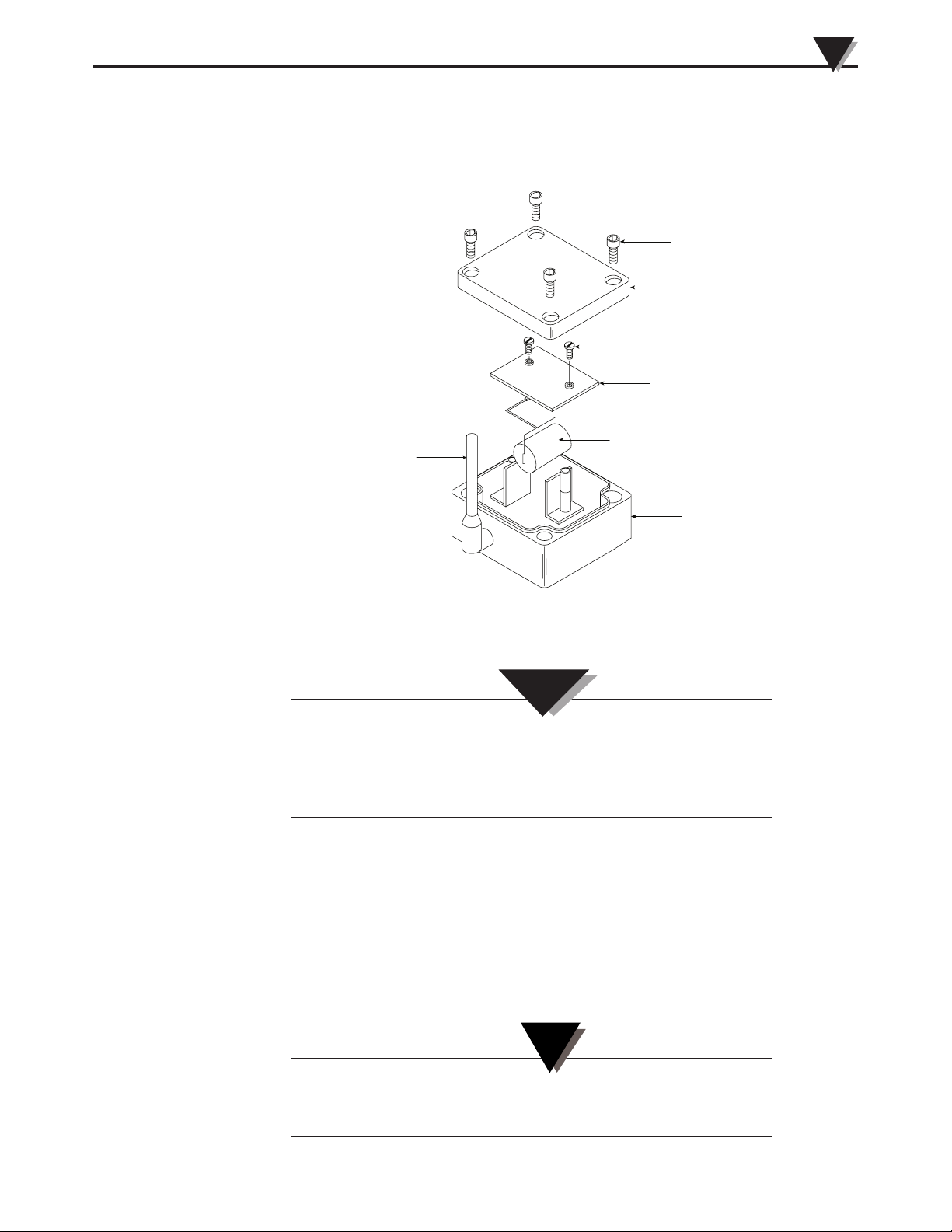

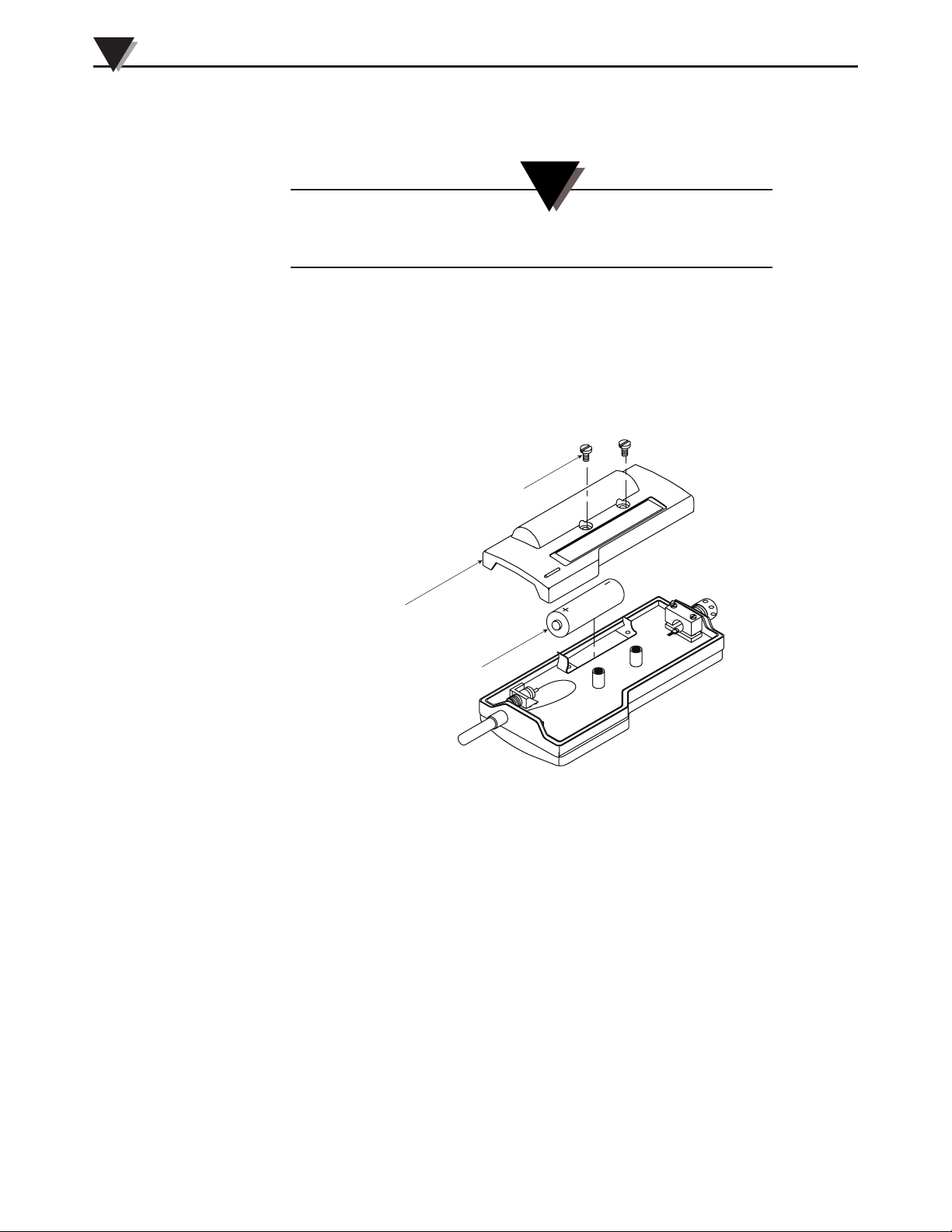

Section 5.3 18A Battery Replacement, UWRH-2 ............................... 5-9
Section 5.3 18B Battery Replacement, UWRH-2 ............................... 5-9

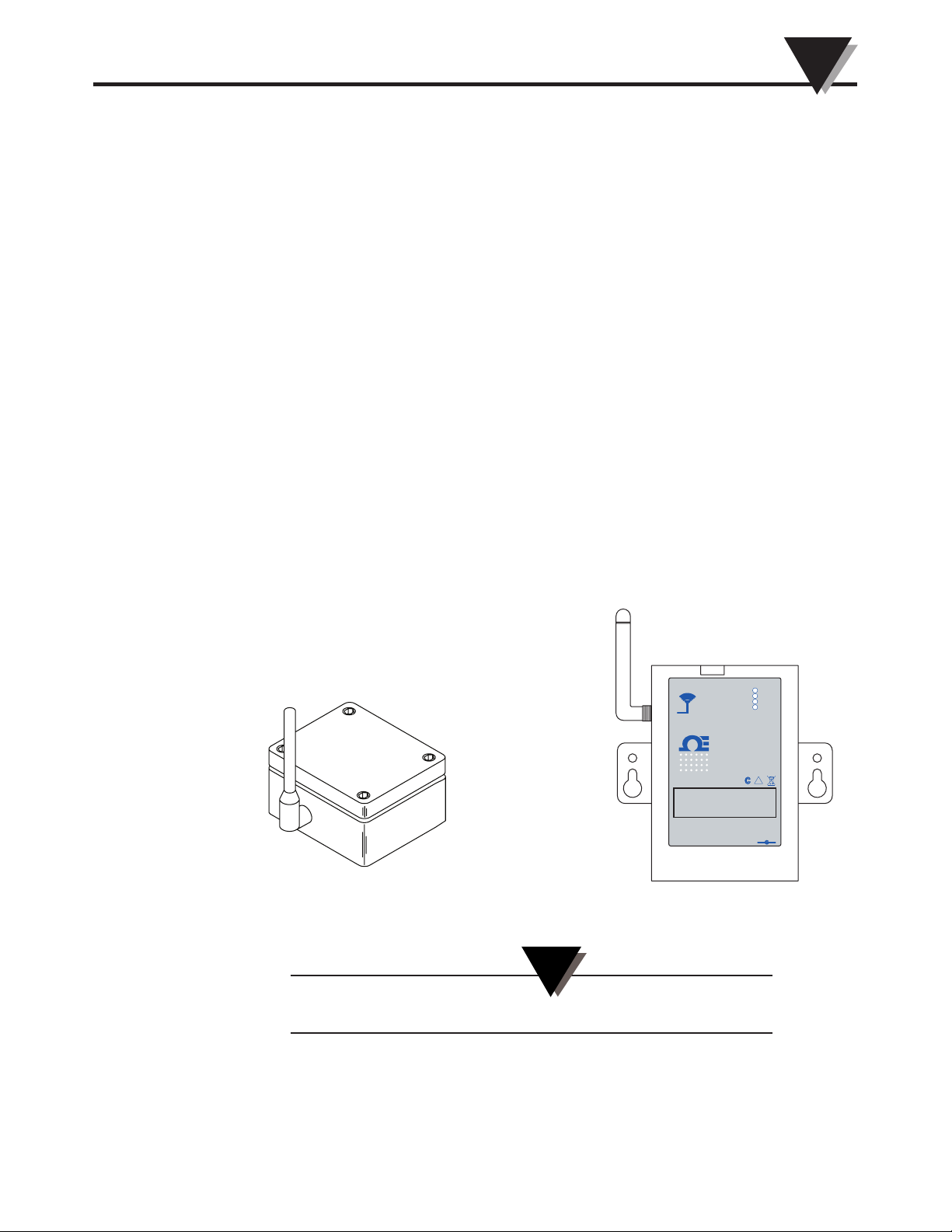

Section 6.3 19 End Device/Receiver ................................................ 6-1
ii
Page 5
Section 1 - Introduction
Please read this manual completely before installing and operating your
wireless end device and receiver system. It’s important read and follow all notes,
cautions, warnings and safety precautions before operating this device. “Device”
refers to your transmitter or receiver unit.
1.1 Precautions
• Thisdeviceisnotdesignedforuseinanymedicalornuclearapplications.
• Donotoperatethisdeviceinammableorexplosiveenvironments.
• Neveroperatewithapowersourceotherthantheonerecommendedinthis
manual.
• Thisdevicehasbeendesignedfordry,moisturefreeindoorapplicationsonly.
• Donotoperatethisdeviceoutsideoftherecommendeduseoutlinedinthis
manual.
• Noco-locationwithotherradiotransmittersisallowed.Bydenition,
co-location is when another radio device or it’s antenna is located within
20 cm of your connector/transmitter and can transmit simultaneously with
your UWRH unit.
Introduction
1
• Neverinstallwirelessconnector/transmitterswithin20cmorlessfromeach
other.
• Neverinstalland/oroperateyourUWRHconnectortransmittercloserthan
20 cm to nearby persons.
• NeveruseyourUWRHconnector/transmitterasaportabledevice.Yourunit
has been designed to be operated in a permanent installation only.
NOTE:
There are no user serviceable parts inside your device.
Attempting to repair or service your unit may void your
warranty:
1-1
Page 6
1
Introduction
1.2 Statement on FCC and CE Marking
1.2.1 FCC Marking
FCC ID: OUR-XBEEPRO IC #4214A-XBEEPRO
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1.) This device may not cause harmful interference.
2.) This device must accept any interference received, including interference that
may cause undesired operation.
1.3 General Description & System Components
1.3.1 General Description
The UWRH-2 and UWRH-2-NEMA Wireless Relative Humidity transmitters
feature a stand-alone, compact, battery powered design that transmits
measurements back to a host receiver up to 90 m (300') away. When activated the
wireless transmitter will transmit readings continuously at pre set time interval
that was programmed by the user during the initial setup. Each unit measures
and transmits: Relative Humidity Reading, Ambient Temperature, RF Signal
Strength and Battery Condition to the receiver and is displayed on your PC
screen in real time using the provided software.
The UWRH-2-USCA and UWRH-2-NEMA-USCA transmitter models offer the
same features as the original versions, with the exception of achieving a higher
RF output signal as well as a greater RF signal range.
1-2
Page 7
Section 2 – Hardware
It is important that you read this manual completely and follow all safety
precautions before operating this instrument.
2.1 Package Inspection
Remove the packing list and verify that you have received all your equipment.
If you have any questions about the shipment, please call our Customer Service
Department at
1-800-622-2378 or 203-359-1660.
We can also be reached on the Internet at omega.com
e-mail: [email protected]
When you receive the shipment, inspect the container and equipment for any
signs of damage. Note any evidence of rough handling in transit. Immediately
report any damage to the shipping agent.
NOTE:
Hardware
2
2.2 Included Items
The following items are supplied in the box.
• 1UWRH-2orUWRH-2-NEMAtransmitter
• 1User’sGuide
• 3.6VLithiumBattery
The carrier will not honor any damage claims unless all
shipping material is saved for inspection. After examining
and removing contents, save packing material and carton in
the event reshipment is necessary.
2-1
Page 8
3
Operation
Section 3 - Operation
3.1 Main Transmitter Operations
RH SENSOR
SETUP
POWER
PRESS
SETUP
PRESS
ON/OFF
UWRH
WIRELESS RH/TEMPERATURE TRANSMITTER
LOW BATTERY
TRANSMIT STATUS
R
TX
LOW BATT

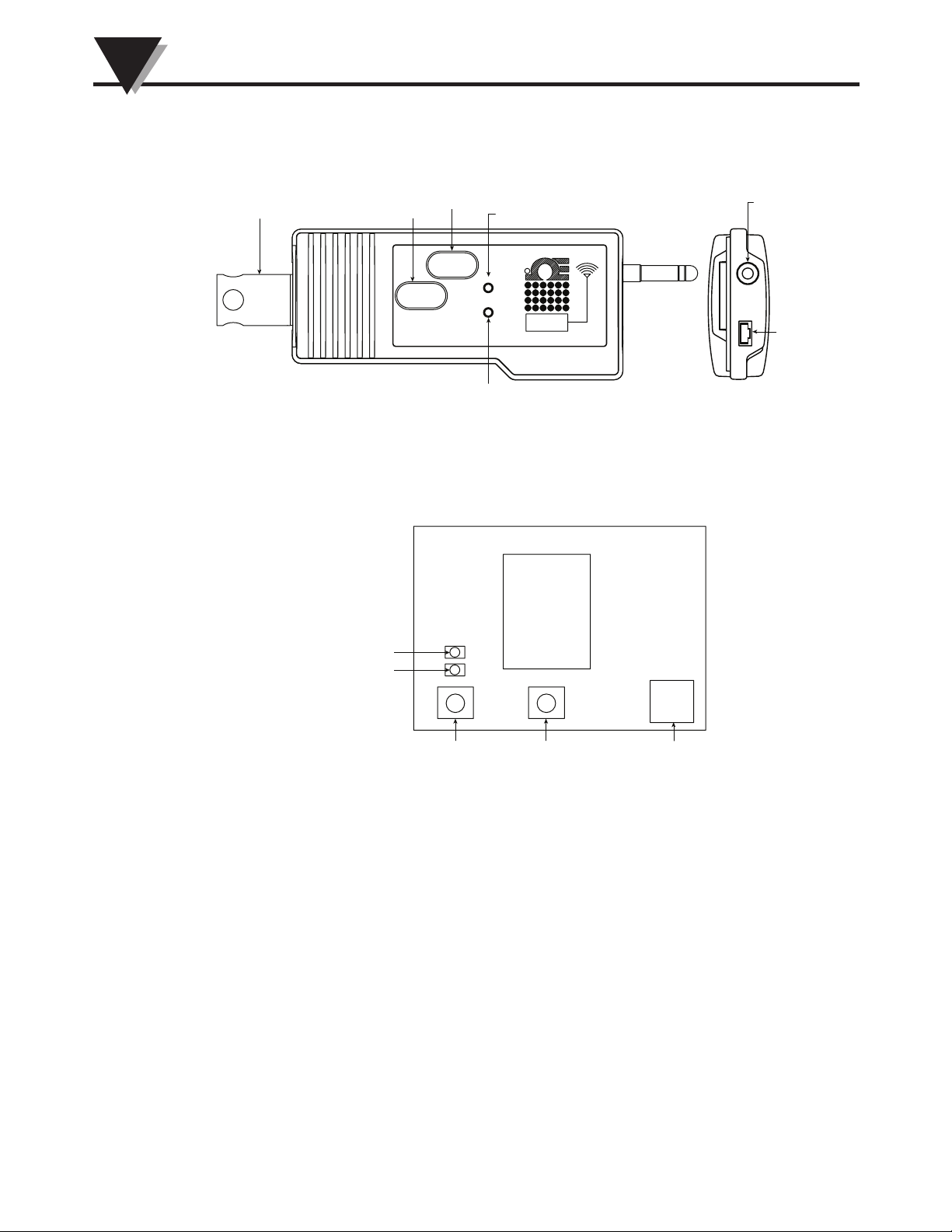

Figure 1A. Main Transmitter Operations, UWRH-2
ANTENNA
USB
CONNECTION
STATUS
LOW BATTERY
Figure 1B. Main Transmitter Board, UWRH-2-NEMA
ON/OFF
SETUP
USB
3-1
Page 9
Section 4 – Software
4.1 Getting Started
ThefollowingprogramlesareincludedontheTC-CentralUserSoftware
CDsuppliedwithyourReceiver.Theselescanalsobedownloadedfromthe
omega.com website should you misplace your CD.
•EndDeviceSetupUtilitySoftware
•Receiver/TransceiverSetupUtilitySoftware
•TC-CentralMeasurementandDataLoggingSoftware
4.2 Software Installation
4.2.1 System Requirements
YourPCshouldmeetthefollowingminimumrequirements:
•PentiumClassprocessor
•HardDriveSpace:210meg
Software
4
•Ram:256megorhigher
•1AvailableUSBPort
•1CD-ROMDrive
•Windows2000,XB,orVista(32bit)OperatingSystem
4.2.2 Software Installation
Insert the TC-Central User CD that was included with your receiver unit into the
CD-ROMdriveonyourPC.Yoursystemshouldbegintheinstallationprocess
automatically.

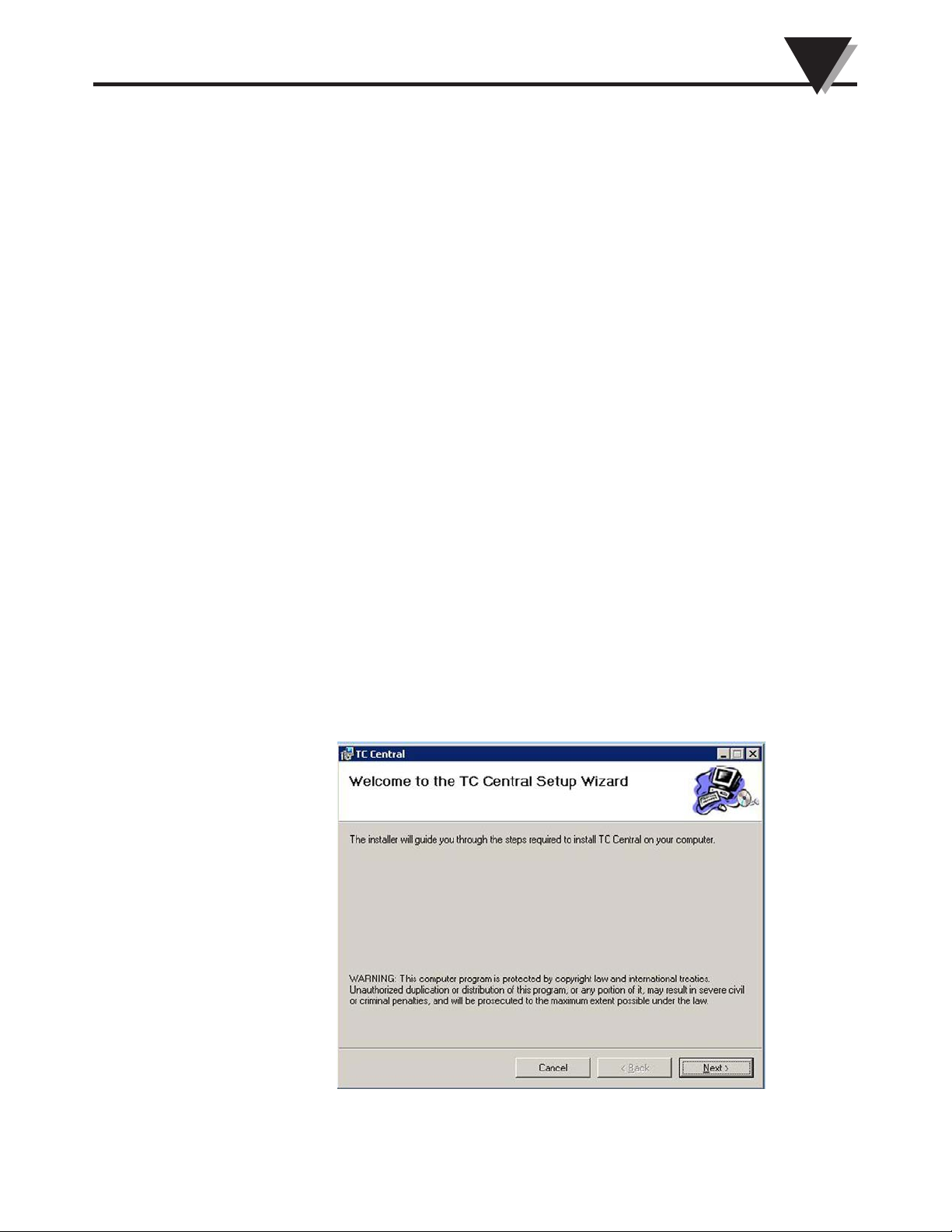

Figure 2. Software - Welcome Screen
4-1
Page 10
4
Software
This welcome screen should be visible on your computer screen. To continue
with installing the program, click the “Next >” button.

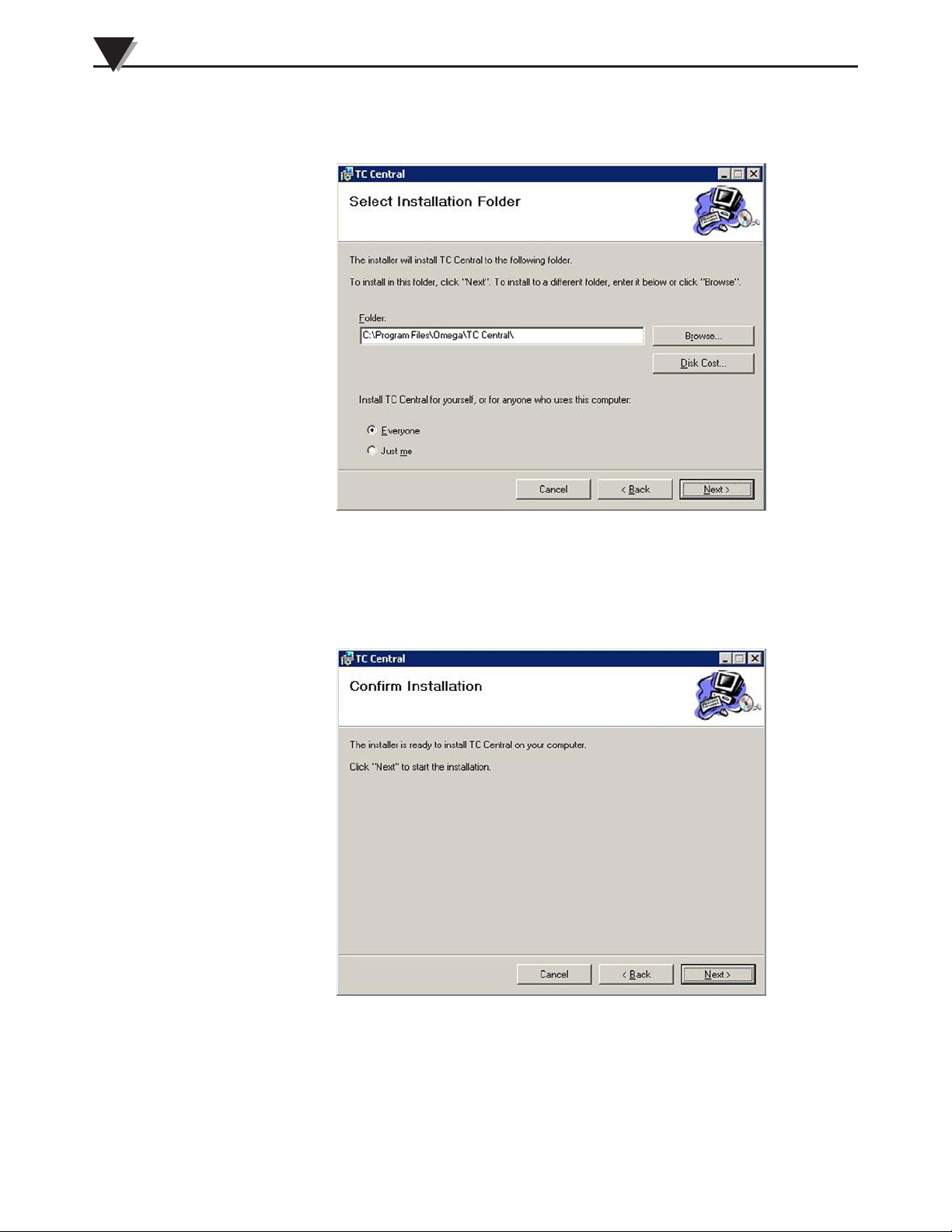

Figure 3. Software - Select Installation Screen
Fromthisscreenyouselectthefolderwereyouwanttheprogramlesinstalled
on your PC. The default setting will install the software under your “Program”
folders in a new folder named “Omega” To continue with installing the program
click the “Next >” button.
4-2
Figure 4. Software - Conrm Installation Screen
The setup wizard now has all the information to complete the installation of the
software on your PC. To continue with installing the program click the “Next >”
button.
Page 11

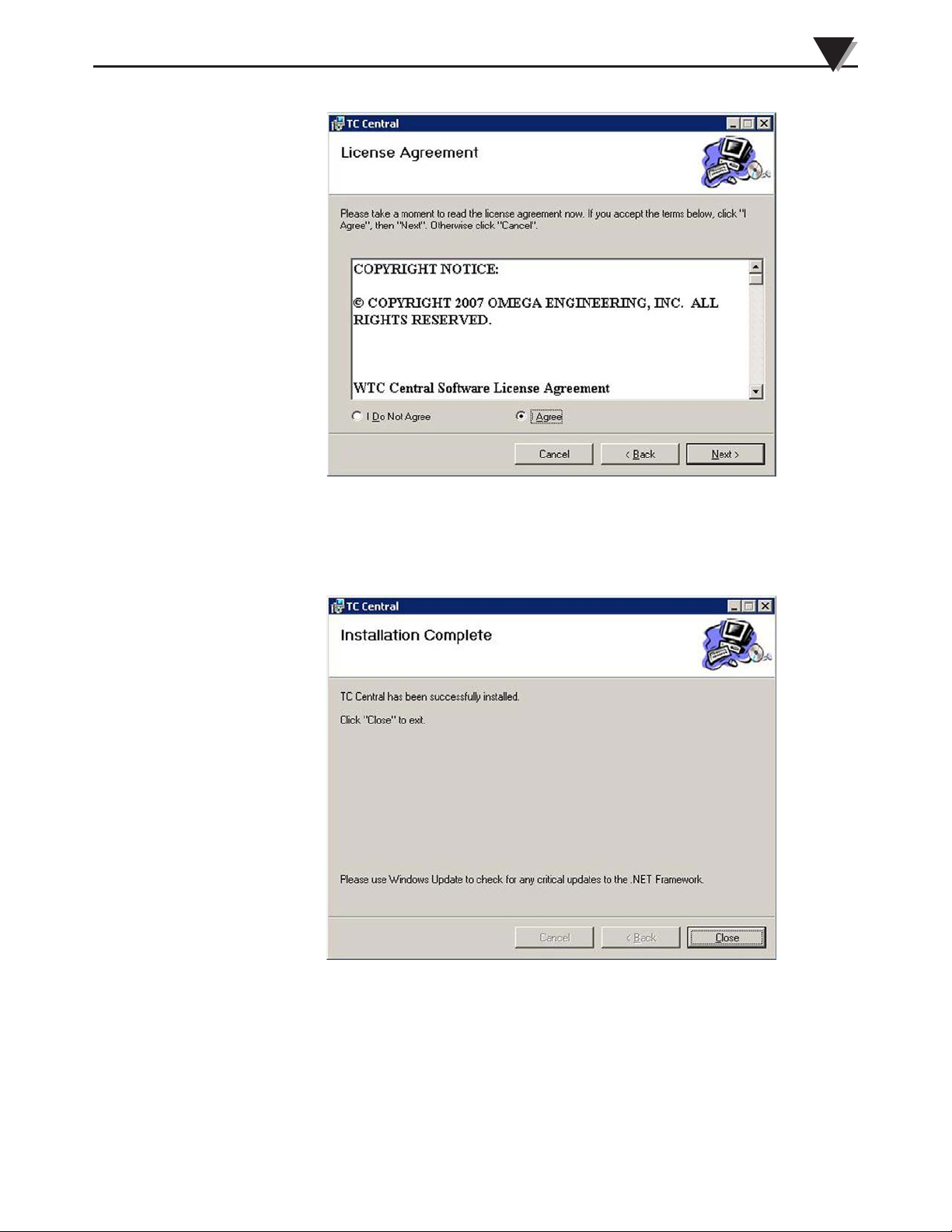

Figure 5. Software - License Agreement Screen
Software
4
From this screen you must select “Agree” to continue installing your program.
After making your selection click the “Next >” button. The setup wizard will
now install the software.
Figure 6. Software - Installation Complete Screen
Congratulations!YouhavejustsuccessfullyinstalledtheTC-CentralProgram
on your PC. To end installing the program and close the setup wizard click the
“Close” Button.
4-3
Page 12
5
End Device Operation
Section 5 - End Device Operation
5.1 Setup and Configuration
5.1.1 Connecting your device
Connect the USB cable to your connector/transmitter unit and also to an
availableUSBportonyourcomputer.Seegurebelow.Thiscablewasprovided
in the box with your receiver unit. This same cable is used for programming
your End Device and for receiver operation later.

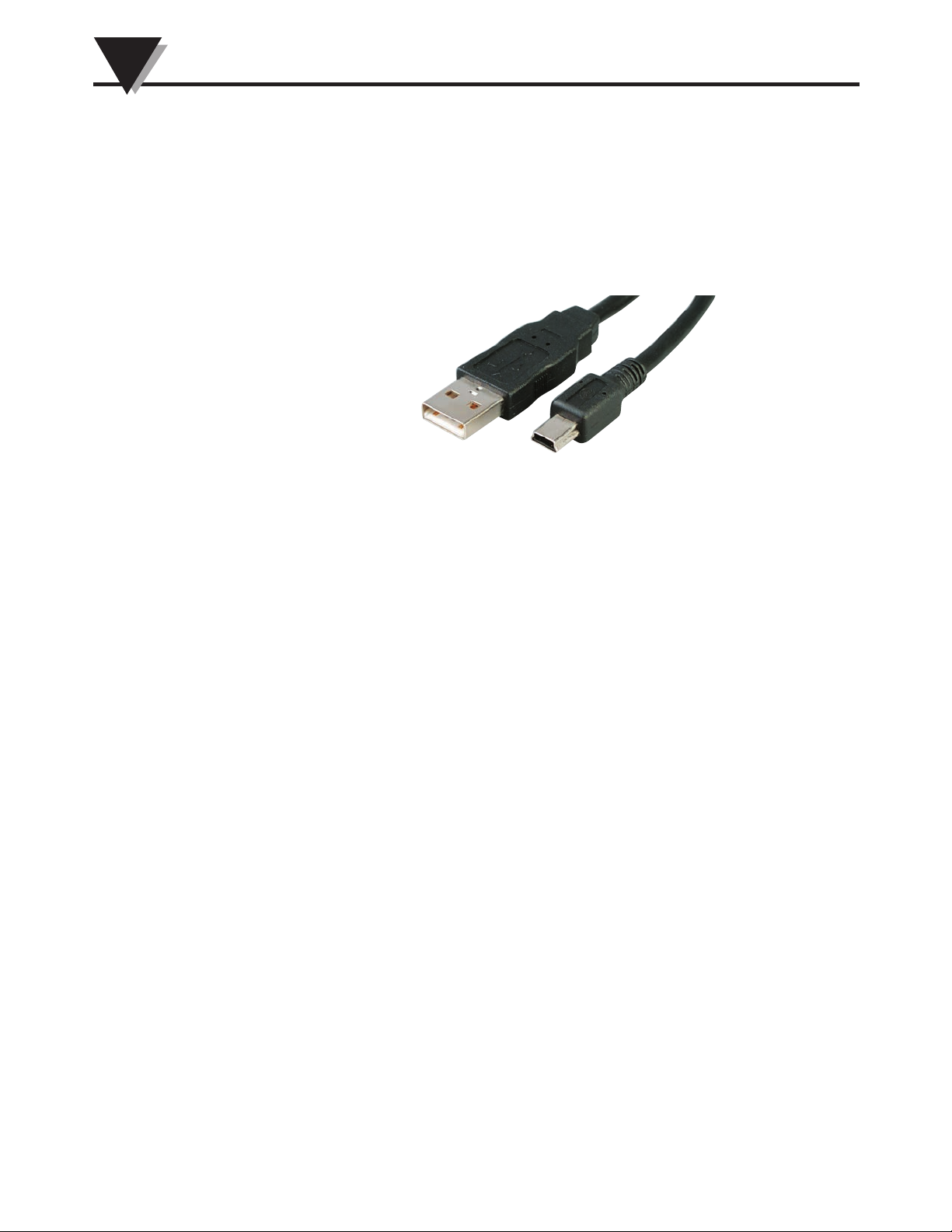

Figure 7. USB Cable
5.1.2 Congure Your End Device
Now that you have connected your USB cable to your PC and transmitter
youwillcompletethefollowingstepstocongureyourEndDevicebefore
placingtheunitintooperation.Youwillbeusingthecongurationsoftware
utility that you installed onto your PC in Section 4. If you have not installed the
congurationsoftwareutilityyoushoulddosonow.Duringthisprocedureyou
will be setting the following parameters in your transmitter.
5.1.3 Button Operation
(1.) “PRESS ON/OFF”
The “PRESS ON/OFF” button on the front of your connector/transmitter is used
to turn your unit “ON” or “OFF”
(2.) “PRESS SETUP”
The “PRESS SETUP” button on the front of your connector/transmitter is only
5.1.4 Indicator Lights
(1) Transmit (TX) Green Indicator Light
The green indicator light marked “TX” on the front of the connector/transmitter
will blink every time the unit sends data to the receiving unit. Example; If you
selected a 5 sec sample rate the green TX led will blink one time every 5 seconds.
(2) Low Battery (Low Bat) Red Indicator Light
5-1
The red indicator light marked “Low Bat” on the front of the connector/
transmitter will turn on when the battery reaches a level at or below the power
level required for normal operation. When this indicator turns on it’s time
to install a fresh battery in your unit. For procedures on how to change your
battery see Section 5.3.
Page 13
End Device Operation
Channel Number
This sets a unique address number into your transmitter. Later, when you set
up your measurement software you will again set channel numbers to receive
readings from the corresponding unit(s). Each unit must be set for a different
channel number for your system to operate correctly.
NOTE:
If you will be using more than one receiver unit in your area
it is important to set the transmitter address numbers to be a
corresponding number in your TC-Central software.
Example Rate
For the first receiver: Set the channels on your transmitters
to 101, 102, 103, 104, etc. Then set the channels in your
TC-Central user software to match.
For the second receiver: Set the channels on your transmitters
to 201, 202, 203, 204, etc.
Then set the channels in your TC-Central user software to
match.
This numbering scheme can be expanded to match the
number of receivers you are using.
5
Sample Rate
This will program your End Device to transmit 1 data reading to your receiver
ataspeciedtimeinterval.Availablesettingsare2,3,5,15,30,45,60,75or90
seconds
NOTE:
The sample rate you set will have the most direct effect on the
life of the battery in your End Device. It is recommended that
you set the longest sample time that your application can live
with to extend time between battery replacement. See
Section 5.3 for more information on battery
5-2
Page 14
5
End Device Operation
STEP 1. Enter the “SETUP” mode.
To place your transmitter into the “SETUP” mode for programming follow this
procedure.
Press and hold the “ON/OFF” button. While the “ON/OFF” button is being
held, press the “SETUP” button one time and then release the “ON/OFF”
button. The green (TX) indicator on the front of your device should be blinking
atasteadyrate.ThisindicatesyourEndDeviceisreadytoruntheconguration
utility software.
NOTE:
See Figures 1A and 1B for diagrams (Page 3-1).
STEP 2. Launch Setup Utility Program.
To launch the End Device setup utility program on your PC begin by accessing
the “Programs” list under your “Start Menu”.
ScrollthroughthelistoftondtheOmega“TC-Central”folder,thenselectthe
EndDeviceCongurationProgram.
5-3
Figure 9. Launch Setup Utility Screen
Page 15
End Device Operation
STEP 3. Programming your settings into your End Device
5

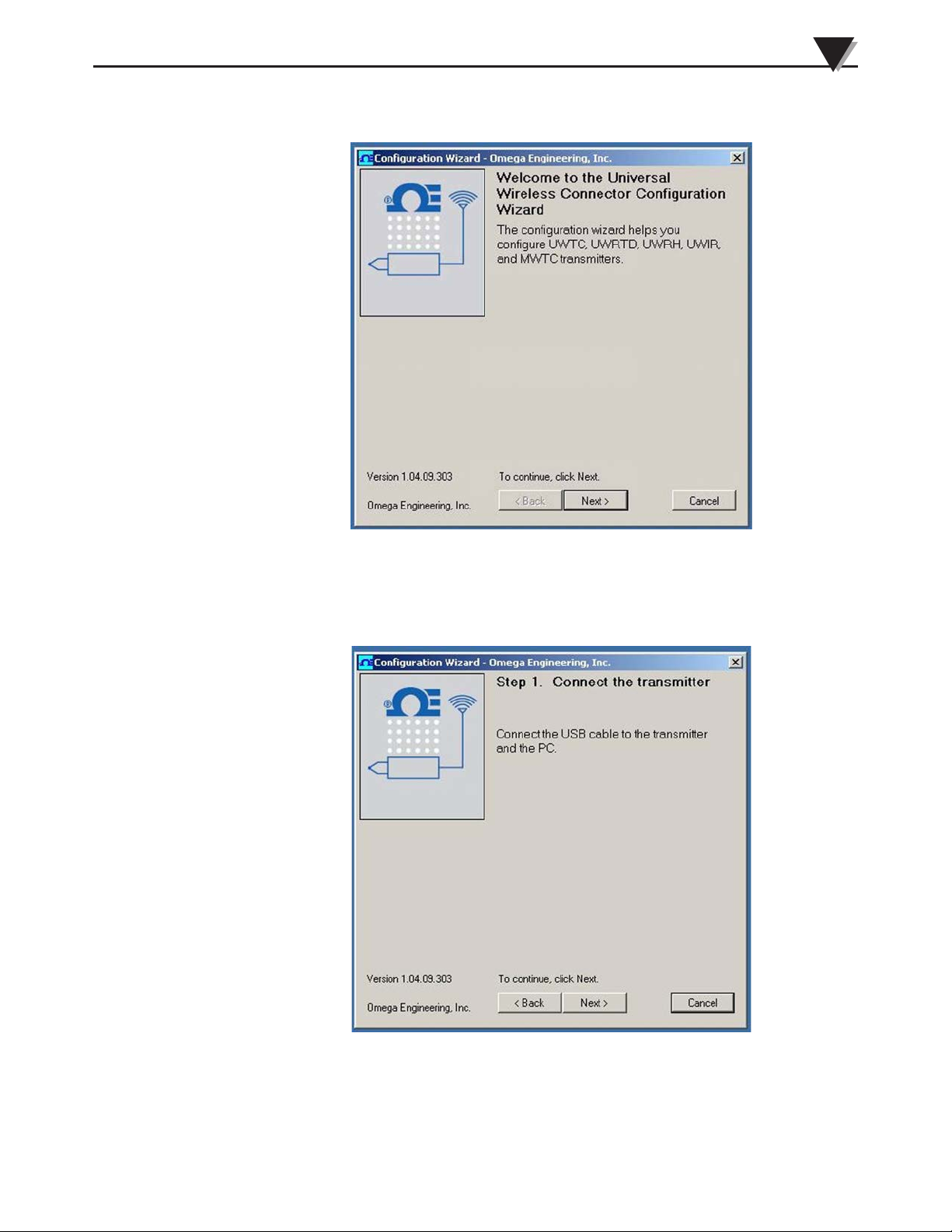

Figure 10. Utility Program - Welcome Screen
Afterstartingthesetuputilityprogramthiswillbetherstscreenyouwillsee.
Click the “Next >” button to proceed and continue setting up your End Device.
Each screen will provide instruction details on how to proceed.
Figure 11. Utility Program - Connect To Transmitter Screen
If you have not already connected your End Device to a USB port on your PC
you must do this now before continuing. After your unit has been connected
click the “Next >” button to proceed and continue setting up your unit.
5-4
Page 16
5
End Device Operation
Figure 12. Utility Program - Setup Transmitter Screen
If you have not already placed your End Device into the “Setup” mode you
should do this now before continuing. After your unit has been placed into the
“Setup” mode click the “Next >” button to proceed and continue setting up your
unit.
5-5
Figure 13. Utility Program - Establish Link Screen
After successful communication between your connector/transmitter has been
established you can click the “Next >” button to proceed and continue setting up
yourconnector/transmitter.Ifyoudidnotreceivethisconrmationofproper
communication you should click the “Back” button to try connecting again.
Page 17
End Device Operation
5
Figure 14. Utility Program - Choose Options Screen
From this screen you will select the main operating settings for your end device.
(Note: Each end device must have a different address number for proper
operation). After making your selections click the “Next >” button to proceed
and program your settings into your unit.
Figure 15. Utility Program - Send To Transmitter Screen
Congratulations!Youhavesuccessfullyprogrammedyourenddevice.After
your unit has been programmed click the “Finish” button to close the utility
program.
5-6
Page 18
5
End Device Operation
5.2 Mounting, Installation and Antenna Connection
MOUNTING PLATE
5.2.1 Mounting Bracket Installation, UWRH-2
A mounting bracket kit has been supplied with your connector/transmitter. The
diagram below shows dimensions and how to install your mounting bracket.
NOTE:
Use the plate as a template to mark the location of the
mounting holes you need to drill before installing the
mounting kit onto the connector transmitter.
57.2 (2.25)
18.8 (0.74)
4.1
(0.16)
24.4 (0.96)
Ø3.2
(0.125)
SPACERS
MOUNTING SCREWS DIMENSIONS mm (in)
Figure 16A. Mounting, UWRH-2
5.2.2 Enclosure Mounting, UWRH-2-NEMA
The UWRH-2-NEMA transmitter comes equipped with mounting holes
within the case. The diagram below shows dimensions and how to install your
mounting bracket.
4.3 (0.17)
95.3 (3.25)
DIMENSIONS mm (in.)
69.9 (2.75)
MOUNTING
HOLE
79.8 (3.14)
49.8 (1.96)
55 (2.17)
36.2
(1.42)
5-7
Figure 16B. Mounting, UWRH-2-NEMA
5.2.3 Installation
When installing your End Device it is important to position your device in such
a way as to optimize the antenna location within what’s known as the “Fresnel
Zone”.
The Fresnel Zone can be thought of as a football-shaped invisible tunnel between
two locations that provides a path for RF signals between your End Device and
your receiver.
Page 19
End Device Operation
END DEVICE
FRESNEL ZONE
Figure 17. Fresnel Zone
5
RECEIVER
ANTENNA
In order to achieve maximum range, the football-shaped path in which radio
waves travel must be free of all obstructions. Obstacles in the path (especially
metal) will decrease the communication range between your End Device and
receiver. Also, If the antennas are mounted just barely off the ground, over half
oftheFresnelzoneendsupbeingobstructedbytheearthresultinginsignicant
reduction in range. To avoid this problem, the antennas should be mounted high
enough off of the ground so that the earth does not interfere with the central
diameter of the Fresnel zone.
NOTE:
It is important to understand that the environment may
change over time due to new equipment or machinery being
installed, building construction, etc. If new obstacles exist
between your End Device and receiver, the devices can be
raised on one end or on both ends to hopefully clear the
Fresnel Zone of obstructions.
NOTE:
No co-location with other radio transmitters is allowed. By
definition, co-location is when another radio device or the
device’s antenna is located within 20 cm of your connector/
transmitter and can transmit simultaneously with your unit.
NOTE:
Never install multiple End Devices within 20 cm or less from
each other.
NOTE:
Never use your UWRH transmitter as a portable device.
Your unit has been designed to be operated in a permanent
installation only.
5-8
Page 20
5
End Device Operation
5.2.4 Antenna Connection
YourEndDevicehasbeenshippedtoyouwithastandardapprovedantenna.
5.3 Battery Replacement
5.3.1 Model UWRH-2
YourUWRH-2transmitterisequippedwithan“AA”sizelithiumbattery.
Omega Part Number: UWTC-BATT. To install a replacement battery, open the
rear of the enclosure, as shown below.
NOTE:
Use of any other antenna then what’s supplied with your End
Device will void all FCC, IC and CE regulatory compliance.
ENCLOSURE
SCREWS
ENCLOSURE
REAR
BATTERY
Figure 18A. Battery Replacement, UWRH-2
5.3.2 Model UWRH-2-NEMA
YourUWRH-2-NEMATransmitterisequippedwitha“C”sizelithiumpower
cell assembly. Omega Part Number: UWTC-BATT-C. To install a replacement
battery assembly follow steps outlined here.
A. Remove the two screws that secure the main circuit board assembly.
B. Lift the circuit board just high enough to allow you to unplug the connector
that attaches the battery assembly to the bottom of the circuit board.
C. Remove the old power cell.
D. Install your new battery assembly into the housing in the same position as the
old battery was located.
5-9
E. Connect the battery assembly connector to the mating connector on the
bottom of the circuit board.
Page 21
End Device Operation
5
F. Install the circuit board back into the housing and secure with the two screws
you removed in step one.
G. Installation complete.
LID SCREW
LID
PCB SCREW
PC BOARD
BATTERY
ANTENNA
ENCLOSURE
Figure 18B. Battery Replacement, UWRH-2-NEMA
CAUTION:
Installing your end device in an application were the unit will be
exposed to ambient temperatures above or below the operating
limits specified in this manual will damage your unit and cause
the unit to malfunction and produce incorrect operation.
5.3.3 Antenna Connection
Yourreceiverhasbeenshippedtoyouwithahighgainantennaalready
attached.
In some cases, a short RF cable may be used to connect an antenna to your end
device. Please note that RF extension cables will always add some loss to the
transmitting signal strength. The longer the cable the more signal will be lost
over that cable. Because of this the length of the cable should be kept as short as
possible.
NOTE:
Use of any other antenna then what’s supplied with your End
Device will void all FCC, IC and CE regulatory compliance.
5-10
Page 22
5
End Device Operation
NOTES:
5-11
Page 23
Section 6 - System Operation
6.1 Introduction
Compared to wired systems, a wireless system provides much simpler
installation. Based on the physical principle of the propagation of radio
waves, certain basic conditions should be observed. The following simple
recommendations are provided to ensure proper installation and correct
operation of your wireless system.
6.2 RF Communication Basics
The models UWRH-2 and UWRH-2-NEMA send wireless transmissions to
a receiver. The receiver checks the incoming data for accuracy and processes
this data for use by the measurement software on your PC. Radio signals are
electromagnetic waves, hence the signal becomes weaker the further it travels.
While radio waves can penetrate some solid materials like a wall, they are
dampened more than when a direct line-of-sight between the transmitting and
receiving antenna exist.
System Operation
6
6.3 Basic System Overview
A basic wireless RH system is comprised of only two main components; a signal
conditioner with a built-in battery powered 2.4 GHz radio transmitter, and a
USB powered 2.4 GHz radio receiver.
END DEVICE
Figure 19. End Device/Receiver
NOTE:
RECEIVER
USB
UWTC SERIES
ANTENNA
WIRELESS RF RECEIVER
®
FCC ID: OUR–XBEEPRO
IC #4214A–XBEEPRO
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference;
2) This device must accept any interference received,
including interference that may cause undesired
operation.
OMEGA ENGINEERING, INC.
Stamford, CT 06907
I/O
2.4 GHz
F
omega.com
Made in U.S.A.
TX
RX
SB
PWR
!
9–24 Vdc
-
+
Up to 48 end devices can be used with one receiver.
6-1
Page 24
6
System Operation
6.4 Environment/Operating Conditions
6.4.1 Environment (UWRH-2)
Omega’sUWRH-2transmittershavebeendesignedtobexed,mountedand
operated in a clean and dry indoor environment. Care should be taken to
prevent the components of your wireless system from being exposed to toxic
chemicalsandextremecoldorhottemperaturethatareoutsidethespecications
listed in this manual.
6.4.2 Environment (UWRH-2-NEMA)
TheUWRH-2-NEMAtransmittershavebeendesignedtobexedandoperated
in both indoor and outdoor environments; they are also weather-resistant. Care
should be taken to prevent the components of your wireless system from being
exposed to toxic chemicals and extreme cold or hot temperature that are outside
thespecicationslistedinthismanual.
6.4.3 Operating Conditions
The following is a list of basic good practices you should apply when operating
your wireless system.
• Neveroperateyourwirelessdeviceorreceiveroutsidetherecommended
environmentallimitsspeciedinthismanual.
• Neveroperateyourwirelessenddeviceorreceiverinammableor
explosive environments.
• Neveruseyourwirelessenddeviceorreceiverinmedical,nuclearor
other dangerous applications where an interruption of readings can
cause damage or harm.
• Neveroperateyourenddeviceorreceiverwithanyotherbatteryor
powersourcethanwhat’sspeciedinthismanualoronthebattery
compartment label.
• Noco-locationwithotherradiotransmittersisallowed.Bydenition,
co-location is when another radio device or it’s antenna is located
within 20 cm of your end device and can transmit simultaneously with
your end device.
• Neverinstallenddeviceswithin20cmorlessfromeachother.
• Neveruseyourenddeviceasaportabledevice.Yourunithasbeen
designed to be operated in a permanent installation.
• Neverinstalland/oroperateyourenddevicecloserthan20cmtonearby
persons.
• Neveroperateyourenddevicewithanyotherantennathanwhatis
supplied or listed here in this manual for approved use.
6-2
Page 25
6.5 Transmit Rate vs. Battery Life
Many factors such as ambient temperature conditions and transmitting rate can
have a big effect on the life of the battery used in your end device. Transmitting
data places a big demand of the battery in your unit. The transmit rate is the single
most contributing factor in the life of your battery. The slower the transmit rate
you set, the longer the battery in your device will last. The table below give some
estimates on how long the battery should last vs. the transmit rate you selected
when you setup your end device and under normal operating conditions.
For Model: UWRH-2
Transmit Time Estimated Battery Life
1 Sample/2 Seconds 6 days
1 Sample/3 Seconds 9 days
1 Sample/5 Seconds 15 days
1 Sample/10 Seconds 30 days
System Operation
6
1 Sample/15 Seconds 45 days
1 Sample/30 Seconds 90 days
1 Sample/45 Seconds 135 days
1 Sample/60 Seconds 180 days
For Model: UWRH-2-NEMA
Transmit Time Estimated Battery Life
1 Sample/2 Seconds 235 days
1 Sample/3 Seconds 341 days
1 Sample/4 Seconds 438 days
1 Sample/5 Seconds 530 days
1 Sample/10 Seconds 909 days
1 Sample/15 Seconds 1193 days
1 Sample/30 Seconds 1735 days
1 Sample/45 Seconds 2046 days
1 Sample/60 Seconds 2246 days
1 Sample/75 Seconds 2387 days
6-3
Page 26
7
Service and Calibration
Section 7 – Service & Calibration
YourUWRH-2/UWRH-2-NEMAWirelessRH/TempTransmitterhasbeenbuilt
andfactorycalibratedtomeetorexceedthespecicationslistedhereinthis
manual. Information is provided below on how to have your unit serviced.
7.1 Service and Calibration
If any of your wireless system components require service or re-calibration,
please call our Customer Service Department at 1-800-622-2378 or 203-359-1660.
They will assist you in arranging the return of your device. We can also be
reached on the Internet at www.omega.com, e-mail: [email protected]
7-1
Page 27
Section 8 – Specifications
Temperature Range: -17 to 49ºC (2 to 120ºF)
Accuracy: ±1ºC (±1.8°F)
Relative Humidity Range: 2 to 98% RH
Accuracy: ±2.5% RH from 20 to 80% RH; ±3.5% RH below 20
Specifications
and above 80% RH@ 25°C (76°F)
8
Operating Environment:
Computer Interface: USB (one interface cable included with receiver)
Transmit Sample Rate: Programmable from 1 sample/every 90 seconds to
Radio Frequency (RF)
Transceiver Carrier:
RF Output Power:
UWRH-2-NEMA:
UWRH-2-NEMA-USCA:
Range of RF Link:
UWRH-2-NEMA:
UWRH-2-NEMA-USCA:
RF Data Packet Standard: IEEE 802.15.4
Software (Included Free): Requires, Windows® 2000, XP, or Vista operating
Battery:
One 3.6V lithium, 8500 mAh capacity (C)
-10 to 70°C (14 to 158°F)
1 sample/every 2 seconds
ISM 2.4 GHz, direct sequence spread spectrum.
10dBm, (10 mW)
18dBm, (63 mW)
Up to 90m (300'): Outdoor line of sight
Up to 45m (130'): Indoor/Urban
Up to 1219m (4000'): Outdoor line of sight
Up to 82m (270'): Indoor/Urban
system
(included)
Battery Life (typical):
Data Transmitted to Host:
Enclosure:
UWRH-2
UWRH-2-NEMA:
Dimensions:
UWRH-2
UWRH-2-NEMA:
: ABS Plastic
: 100 L x 50 W x 25 mm H (without antenna)
(3 year) 1 sample/minute reading rate
NEMA 4X (IP65) Polycarbonate
80 L x 82 W x 50 mm (3.15 x 3.22 x 1.97")
@ 25°C (77°F)
Relative humidity, ambient temperature, RF
transmit strength and battery status
(4 x 2 x 1")
8-1
Page 28
9
Approvals, Regulatory Compliance
Section 9 – Approvals, Regulatory Compliance
NOTE:
All approvals outlined in this manual are based on testing
that was done with antennas that are supplied with your
UWTC Series System Components. Removing and or
installing a different antenna will void the product compliance
demonstrated in these documents.
9.1 FCC (Domestic Use)
For United States: FCC ID: OUR-XBEEPRO
For Canada: IC #4214A-XBEEPRO
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1.) This device may not cause harmful interference.
2.) This device must accept any interference received, including interference that
may cause undesired operation.
9-1
WARNING:
To satisfy FCC RF exposure requirements for mobile
transmitting devices, a separation distance of 20 cm or more
should be maintained between the antenna of this device
and persons during device operation. To ensure compliance,
operations at closer than this distance is not recommended.
The antenna used for this transmitter must not be co-located
in conjunction with any other antenna or transmitter.
9.2 FCC International Usage
NOTE:
It is your (the user’s) responsibility to insure that these
products are operated within the guidelines here in this
manual and in conformance with all local, state, federal or
national regulations and laws of the country they are being
operated in.
Transmitting Power —Your wireless end device has been
designed, manufactured and tested so that the transmitting
power of your connector transmitter will not exceed 10 dBm
10 mW. This excludes USCA versions of the units.
Page 29
NOTES:
UWRH-2/UWRH-2-NEMA
Wireless Humidity/Temperature Transmitter
9-2
Page 30
NOTES:
UWRH-2/UWRH-2-NEMA
Wireless Humidity/Temperature Transmitter
9-3
Page 31
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/D ISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2015 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
for current repair charges. Have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult OMEGA
Page 32
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
SM
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
DATA ACQUISITION
MU
Data Acquisition & Engineering Software
MU
Communications-Based Acquisition Systems
MU
Plug-in Cards for Apple, IBM & Compatibles
MU
Data Logging Systems
MU
Recorders, Printers & Plotters
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M4432-RH/0115
Loading...
