Section 1 - Introduction
Please read this manual completely before installing and operating your
wireless end device and receiver system. It’s important read and follow all notes,
cautions, warnings and safety precautions before operating this device. “Device”
refers to your transmitter or receiver unit.
1.1 Precautions
•Thisdeviceisnotdesignedforuseinanymedicalornuclearapplications.
•Donotoperatethisdeviceinammableorexplosiveenvironments.
•Neveroperatewithapowersourceotherthantheonerecommendedinthis
manual.
•Donotoperatethisdeviceoutsideoftherecommendeduseoutlinedinthis
manual.
•Noco-locationwithotherradiotransmittersisallowed.Bydenition,co-location
is when another radio device or it’s antenna is located within 20 cm of your
connector/transmitter and can transmit simultaneously with your UWPC unit.
Introduction
1
•Neverinstallwirelesstransmitterswithin20cmorlessfromeachother.
•Neverinstalland/oroperateyourUWPCtransmittercloserthan20cmto
nearby persons.
•NeveruseyourUWPCtransmitterasaportabledevice.Yourunithasbeen
designed to be operated in a permanent installation only.
There are no user serviceable parts inside your device.
Attempting to repair or service your unit may void your
warranty:
1.2 Safety Warnings and IEC Symbols
This device is marked with international safety and hazard symbols in
accordance with IEC standards. It is important to read and follow all precautions
and instructions in this manual before operating or commissioning this device as
it contains important information relating to safety and EMC. Failure to follow
all safety precautions may result in injury and or damage to your device. Use of
thisdeviceinamannernotspeciedwillvoidyourwarranty
IEC symbols Description
NOTE:
Caution, refer to accompanying documentation
EU’s Waste Electrical and Electronic Equipment
Compliance
Figure 1-1. IEC Symbols
1-1
Page 6
1
Introduction
1.3 Product Labeling
1.3.1 Product Labeling

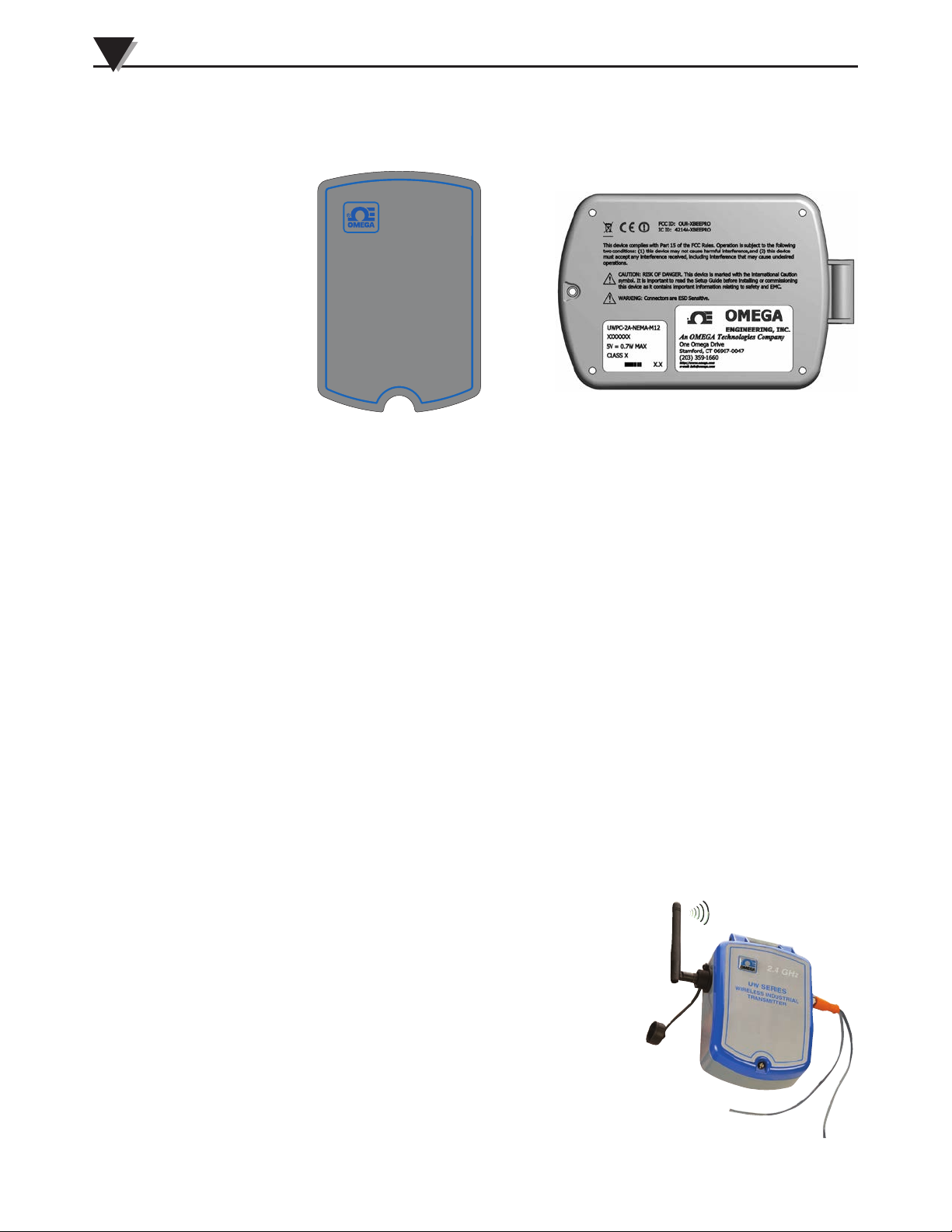

Figure 1-2. UWPC-2A-NEMA-M12, Figure 1-3. UWPC-2A-NEMA-M12,
Front View Rear View
2.4 GHz
UW SERIES
WIRELESS INDUSTRIAL
TRANSMITTER
1.4 Statement on FCC and CE Marking
1.4.1 FCC Marking
FCC ID: OUR-XBEEPRO IC #4214A-XBEEPRO
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1.) This device may not cause harmful interference.
2.) This device must accept any interference received, including interference that
may cause undesired operation.
1.4.2 CE Marking
It is the policy of OMEGA to comply with all worldwide safety and EMI/
EMCregulationsthatapply.OMEGAisconstantlypursuingcerticationofits
products to the European New Approach Directives. OMEGA will add the CE
marktoeveryappropriatedeviceuponcertication.
1.5 General Description and System Components
1.5.1 General Description
UWPC-2A-NEMA-M12 Temperature-to-Wireless Transmitters features a standalone, compact, battery powered NEMA design that
transmits measurements back to a host receiver up
to 120 m (400’) away. When activated the wireless
transmitter will transmit readings continuously at
pre set time interval that was programmed by the
user during the initial setup. Each unit measures
and transmits: Process Voltage or Current Readings,
RF Signal Strength and Battery Condition to the
Receiver and is displayed on your PC screen in real
time using the provided software.
1-2
Figure 1-4. Transmitter With Connectors
Page 7
Section 2 – Hardware
It is important that you read this manual completely and follow all safety
precautions before operating this instrument.
2.1 Package Inspection
Remove the packing list and verify that you have received all your equipment.
If you have any questions about the shipment, please call our Customer Service
Department at
1-800-622-2378 or 203-359-1660. We can also be reached on the Internet at
omega.com
e-mail: [email protected]
When you receive the shipment, inspect the container and equipment for any
signs of damage. Note any evidence of rough handling in transit. Immediately
report any damage to the shipping agent.
NOTE:
Hardware
2
2.2 Included Items
The following items are supplied in the box.
•1UWPC-2-NEMA-M12transmitter
•1User’sGuide
•3.6VLithiumBattery
The carrier will not honor any damage claims unless all
shipping material is saved for inspection. After examining
and removing contents, save packing material and carton in
the event reshipment is necessary.
2-1
Page 8
3
Operation
Section 3 - Operation
3.1 Main Transmitter Board
J4
WIRELESS
TRANSMITTER
MODULE
TX
USB
SETUP
ON/OFF
LOW BAT
Figure 3-1. Main Transmitter Board
3-1
Page 9
Section 4 – Software
4.1 Getting Started
ThefollowingprogramlesareincludedontheTC-CentralUserSoftware
CDsuppliedwithyourReceiver.Theselescanalsobedownloadedfromthe
omega.com website should you misplace your CD.
•EndDeviceSetupUtilitySoftware
•Receiver/TransceiverSetupUtilitySoftware
•TC-CentralMeasurementandDataLoggingSoftware
4.2 Software Installation
4.2.1 System Requirements
YourPCshouldmeetthefollowingminimumrequirements:
•PentiumClassprocessor
•HardDriveSpace:210meg
Software
4
•Ram:256megorhigher
•1AvailableUSBPort
•1CD-ROMDrive
•Windows2000,XB,orVista(32bit)OperatingSystem
4.2.2 Software Installation
Insert the TC-Central User CD that was included with your receiver unit into the
CD-ROMdriveonyourPC.Yoursystemshouldbegintheinstallationprocess
automatically.

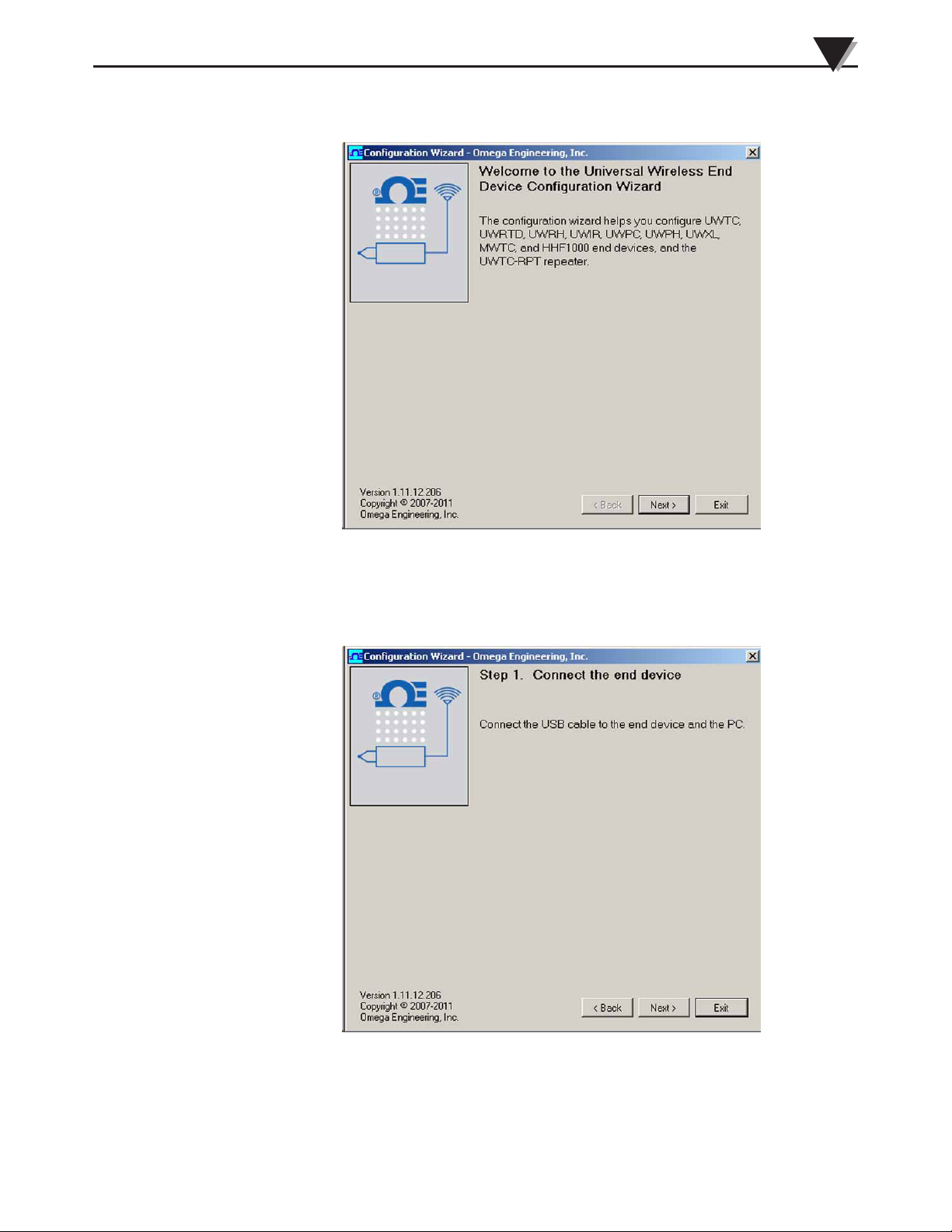

Figure 4-1. Software - Welcome Screen
4-1
Page 10
4
Software
This welcome screen should be visible on your computer screen. To continue
with installing the program, click the “Next >” button.

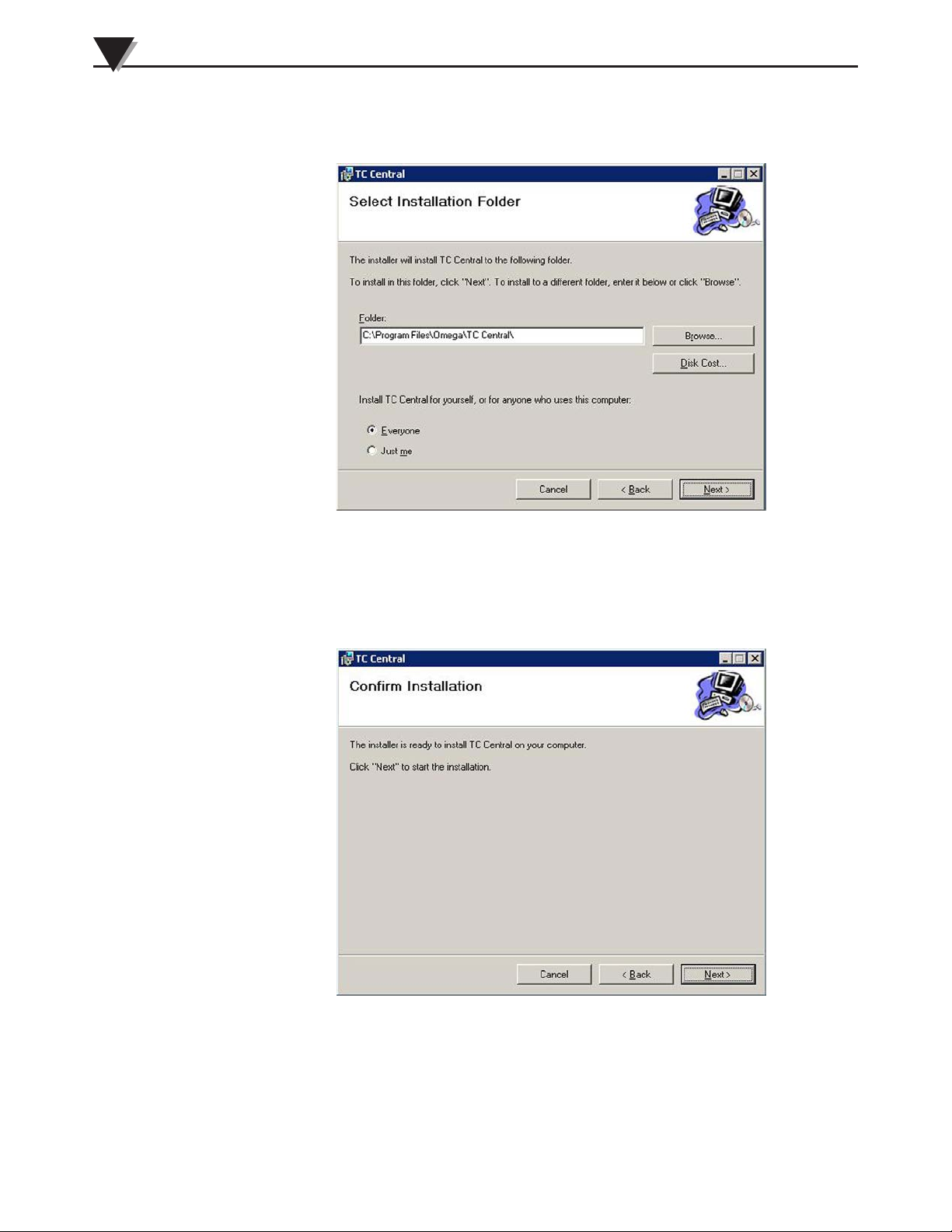

Figure 4-2. Software - Select Installation Screen
Fromthisscreenyouselectthefolderwhereyouwanttheprogramlesinstalled
on your PC. The default setting will install the software under your “Program”
folders in a new folder named “Omega” To continue with installing the program
click the “Next >” button.
4-2
Figure 4-3. Software - Conrm Installation Screen
The setup wizard now has all the information to complete the installation of the
software on your PC. To continue with installing the program click the “Next >”
button.
Page 11

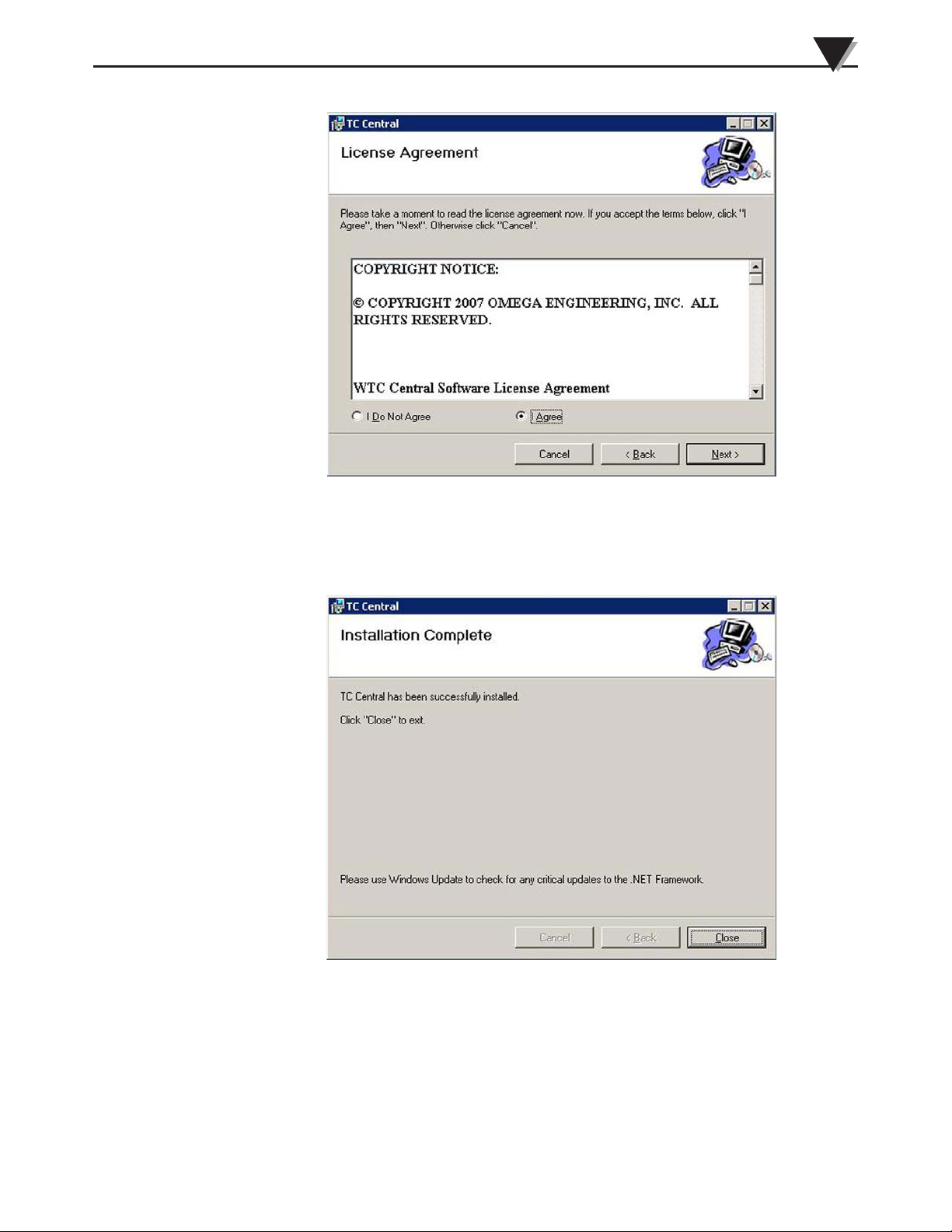

Figure 4-4. Software - License Agreement Screen
Software
4
From this screen you must select “Agree” to continue installing your program.
After making your selection click the “Next >” button. The setup wizard will
now install the software.
Figure 4-5. Software - Installation Complete Screen
Congratulations!YouhavejustsuccessfullyinstalledtheTC-CentralProgram
on your PC. To end installing the program and close the setup wizard click the
“Close” Button.
4-3
Page 12
5
End Device Operation
Section 5 - End Device Operation
5.1 Setup and Configuration
5.1.1 Connecting your device
Connect the USB cable to your connector/transmitter unit and also to an
availableUSBportonyourcomputer.Seegurebelow.Thiscablewasprovided
in the box with your receiver unit. This same cable is used for programming
your End Device and for receiver operation later.

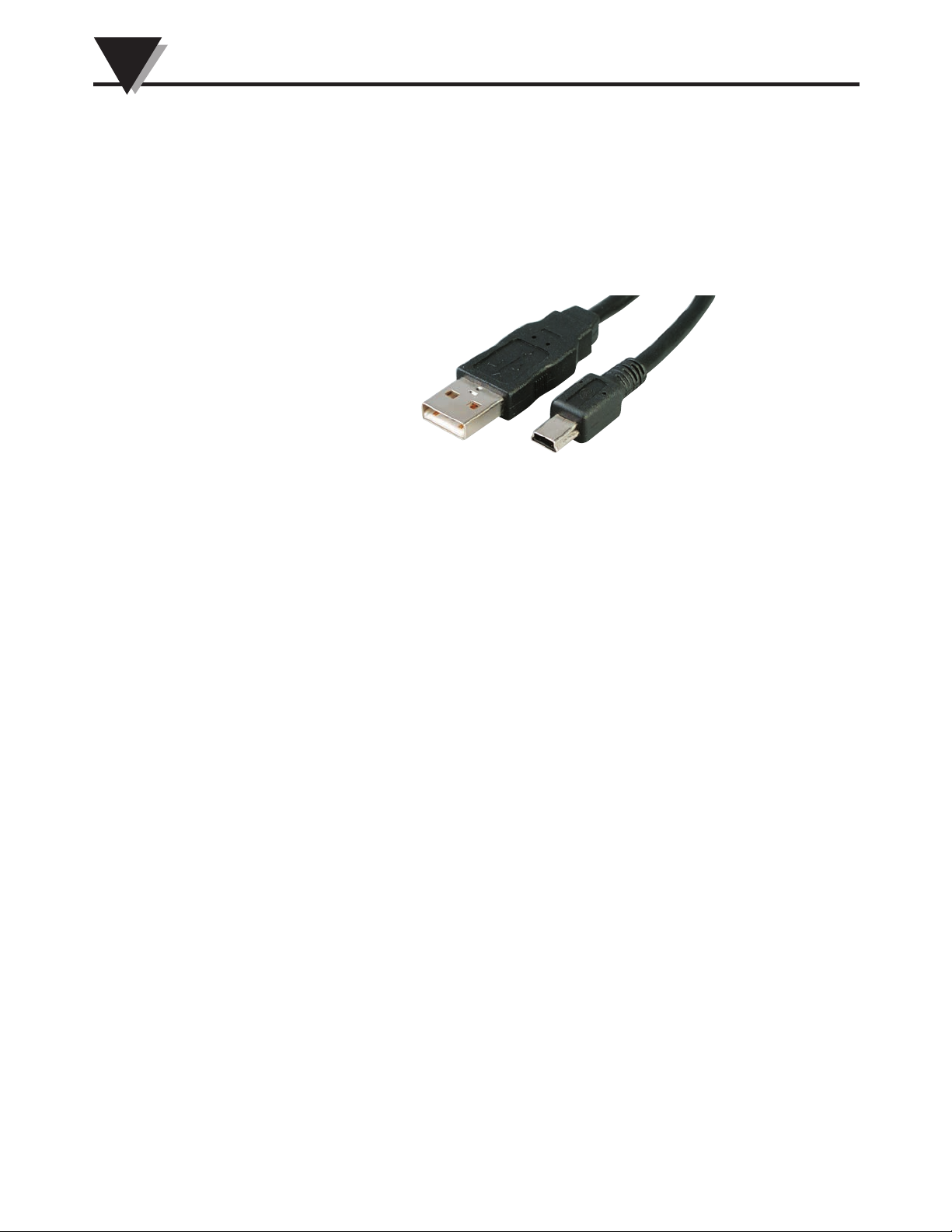

Figure 5-1. USB Cable
5.1.2 Congure Your End Device
Now that you have connected your USB cable to your PC and transmitter
youwillcompletethefollowingstepstocongureyourEndDevicebefore
placingtheunitintooperation.Youwillbeusingthecongurationsoftware
utility that you installed onto your PC in Section 4. If you have not installed the
congurationsoftwareutilityyoushoulddosonow.Duringthisprocedureyou
will be setting the following parameters in your transmitter.
5.1.3 Button Operation
(1.) “PRESS ON/OFF”
The “PRESS ON/OFF” button on the front of your connector/transmitter is used
to turn your unit “ON” or “OFF”
(2.) “PRESS SETUP”
The “PRESS SETUP” button on the front of your connector/transmitter is only
5.1.4 Indicator Lights
(1) Transmit (TX) Green Indicator Light
The green indicator light marked “TX” on the front of the connector/transmitter
will blink every time the unit sends data to the receiving unit. Example; If you
selected a 5 sec sample rate the green TX led will blink one time every 5 seconds.
(2) Low Battery (Low Bat) Red Indicator Light
5-1
The red indicator light marked “Low Bat” on the front of the connector/
transmitter will turn on when the battery reaches a level at or below the power
level required for normal operation. When this indicator turns on it’s time
to install a fresh battery in your unit. For procedures on how to change your
battery see Section 5.3.
Page 13
End Device Operation
Channel Number
This sets a unique address number into your transmitter. Later, when you set
up your measurement software you will again set channel numbers to receive
readings from the corresponding unit(s). Each unit must be set for a different
channel number for your system to operate correctly.
NOTE:
If you will be using more than one receiver unit in your area
it is important to set the transmitter address numbers to be a
corresponding number in your TC-Central software.
Example Rate
For the first receiver: Set the channels on your transmitters
to 101, 102, 103, 104, etc. Then set the channels in your
TC-Central user software to match.
For the second receiver: Set the channels on your transmitters
to 201, 202, 203, 204, etc.
Then set the channels in your TC-Central user software to
match.
This numbering scheme can be expanded to match the
number of receivers you are using.
5
Sample Rate
This will program your End Device to transmit 1 data reading to your receiver
ataspeciedtimeinterval.Availablesettingsare2,3,5,15,30,45,60,75or90
seconds
NOTE:
The sample rate you set will have the most direct effect on the
life of the battery in your End Device. It is recommended that
you set the longest sample time that your application can live
with to extend time between battery replacement. See
Section 5.3 for more information on battery
5-2
Page 14
5
End Device Operation
STEP 1. Enter the “SETUP” mode.
To place your transmitter into the “SETUP” mode for programming follow this
procedure.
J4
USB
WIRELESS
TRANSMITTER
MODULE
TX
LOW BAT
SETUP
ON/OFF
Figure 5-2. Main Transmitter Board
Press and hold the “ON/OFF” button. While the “ON/OFF” button is being
held, press the “SETUP” button one time and then release the “ON/OFF”
button. The green (TX) indicator on the front of your device should be blinking
atasteadyrate.ThisindicatesyourEndDeviceisreadytoruntheconguration
utility software.
STEP 2. Launch Setup Utility Program.
To launch the End Device setup utility program on your PC begin by accessing
the “Programs” list under your “Start Menu”.
ScrollthroughthelistoftondtheOmega“TC-Central”folder,thenselectthe
EndDeviceCongurationProgram.
5-3
Figure 5-3. Launch Setup Utility
Page 15
End Device Operation
STEP 3. Programming your settings into your End Device
5
Figure 5-4. Utility Program - Welcome Screen
Afterstartingthesetuputilityprogramthiswillbetherstscreenyouwillsee.
Click the “Next >” button to proceed and continue setting up your End Device.
Each screen will provide instruction details on how to proceed.
Figure 5-5. Utility Program - Connect To Transmitter Screen
If you have not already connected your End Device to a USB port on your PC
you must do this now before continuing. After your unit has been connected
click the “Next >” button to proceed and continue setting up your unit.
5-4
Page 16
5
End Device Operation
Figure 5-6. Utility Program - Setup Transmitter Screen
If you have not already placed your End Device into the “Setup” mode you
should do this now before continuing. After your unit has been placed into the
“Setup” mode click the “Next >” button to proceed and continue setting up your
unit.
5-5
Figure 5-7. Utility Program - Establish Link Screen
After successful communication between your connector/transmitter has been
established you can click the “Next >” button to proceed and continue setting up
yourconnector/transmitter.Ifyoudidnotreceivethisconrmationofproper
communication you should click the “Back” button to try connecting again.
Page 17
End Device Operation
5

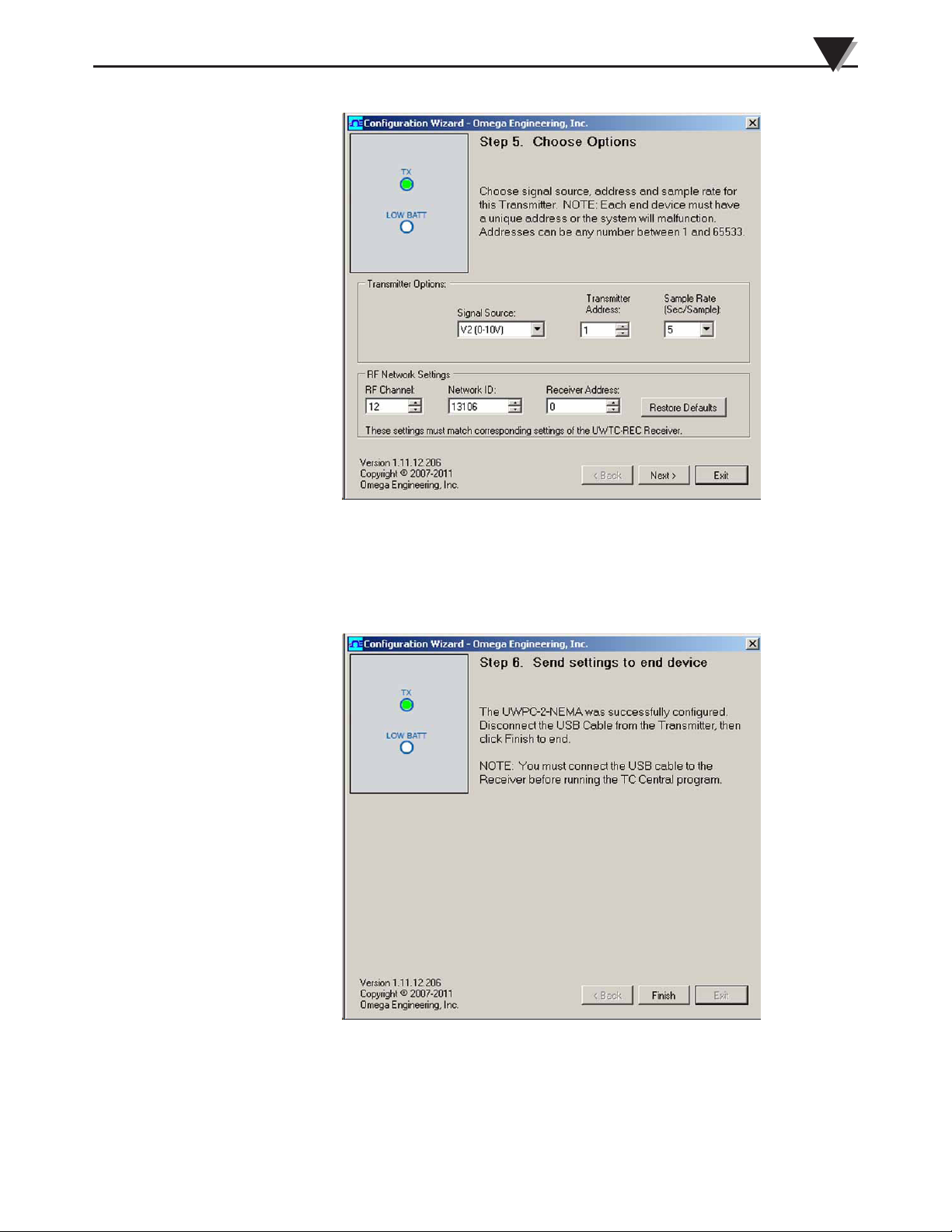

Figure 5-8. Utility Program - Choose Options Screen
From this screen you will select the main operating settings for your end device.
(Note: Each end device must have a different address number for proper
operation). After making your selections click the “Next >” button to proceed
and program your settings into your unit.
Figure 5-9. Utility Program - Send To Transmitter Screen
Congratulations!Youhavesuccessfullyprogrammedyourenddevice.After
your unit has been programmed click the “Finish” button to close the utility
program.
5-6
Page 18
5
End Device Operation
5.2 Mounting, Installation, Antenna Connection and DIN Rail Mounting
Bracket Installation
5.2.1 Mounting
3.81 (0.15)
MOUNTING
HOLES
50.80
(2.00)
DIMENSIONS mm (in)
146.35
(5.76)
25.30 (1.00)
104.18
(4.10)
9.11
(0.36)
78.30 (3.08)
96.52 (3.80)
Figure 5-10. Mounting
When mounting your end device, care should be taken to make sure it is as far
away from any metal objects. If nearby metal gets too close to your unit, it has
the potential to interfere with the way the unit radiates and may cause signal
loss or possibly even the inability to communicate at all with your receiver.
5.2.2 Installation
When installing your End Device it is important to position your device in such
a way as to optimize the antenna location within what’s known as the “Fresnel
Zone”.
The Fresnel Zone can be thought of as a football-shaped invisible tunnel between
two locations that provides a path for RF signals between your End Device and
your receiver.
RECEIVER
FRESNEL ZONE
END DEVICE
ANTENNA
5-7
Figure 5-11. Fresnel Zone
In order to achieve maximum range, the football-shaped path in which radio
waves travel must be free of all obstructions. Obstacles in the path (especially
metal) will decrease the communication range between your End Device and
receiver. Also, If the antennas are mounted just barely off the ground, over half
Page 19
End Device Operation
5
oftheFresnelzoneendsupbeingobstructedbytheearthresultinginsignicant
reduction in range. To avoid this problem, the antennas should be mounted high
enough off of the ground so that the earth does not interfere with the central
diameter of the Fresnel zone.
NOTE:
It is important to understand that the environment may
change over time due to new equipment or machinery being
installed, building construction, etc. If new obstacles exist
between your End Device and receiver, the devices can be
raised on one end or on both ends to hopefully clear the
Fresnel Zone of obstructions.
NOTE:
No co-location with other radio transmitters is allowed. By
definition, co-location is when another radio device or the
device’s antenna is located within 20 cm of your connector/
transmitter and can transmit simultaneously with your unit.
NOTE:
Never install multiple End Devices within 20 cm or less from
each other.
NOTE:
Never use your End Device as a portable device. Your unit
has been designed to be operated in a permanent installation
only.
5.2.3 Antenna Connection
YourEndDevicehasbeenshippedtoyouwithastandardapprovedantenna.
NOTE:
Use of any other antenna then what’s supplied with your End
Device will void all FCC, IC and CE regulatory compliance.
In some cases, a short RF cable may be used to connect an antenna to your end
device. Please note that RF extension cables will always add some loss to the
5-8
Page 20
5
End Device Operation
transmitting signal strength. The longer the cable, the more signal will be lost
over that cable. Because of this, the length of the cable should be kept as short as
possible.
5.2.4 DIN Rail Mounting Bracket Installation
To install the DIN Rail Mounting Bracket accessory (UWM-DINRAIL) you must
rstremovetheonescrewlocatedonthelidoftheenclosure.Thiswillallow
you access to the mounting holes.
Place all four #4-40 screws with threaded standoffs into each mounting hole.
Screw on the DIN Rail Mounting Bracket sub assembly including the DIN Rail
Adaptors to the bottom of the enclosure using the #4-40 screws.
Close the unit by threading the one screw located on the lid of the enclosure to
the bottom enclosure.
LID
SCREW
STANDOFF
#4-40
SCREW
DIN RAIL MOUNTING BRACKET
SUB ASSEMBLY
5-9
Figure 5-12. DIN Rail Mounting Bracket Installation
Page 21
5.3 Battery Replacement
5.3.1 Model UWPC-2A-NEMA-M12
ToinstallorreplacethebatteryinyourEndDeviceyoumustrstremovethe
one screw located on the Lid of the enclosure. This will allow you to access the
battery compartment.
SPACER
End Device Operation
5
PC
BOARD
BATTERY
ANTENNA
M12 4 PIN
CONNECTOR
ENCLOSURE
Figure 5-13. Battery Replacement
LID
LID
SCREW
YourEndDeviceisequippedwitha“C”sizelithiumpowercellassembly.To
install a replacement battery assembly follow steps outlined here.
A. Remove the old power cell from the battery holder.
B. Install your new battery assembly into the housing in the same position as the
old battery was located.
C. Installation complete
CAUTION:
Installing your end device in an application were the unit will be
exposed to ambient temperatures above or below the operating
limits specified in this manual will damage your unit and cause
the unit to malfunction and produce incorrect operation.
5-10
Page 22
5
End Device Operation
5.4 Input Connection
5.4.1 Model UWPC-2A-NEMA-M12
The UWPC version can provide fast, accurate reading from a Pressure
Transducer with a M12 4 pin connector.
0-5 Vdc/0-10 Vdc INPUT
TRANSMITTER HOUSING
MALE CONNECTOR
TRANSMITTER HOUSING
MALE CONNECTOR
3
4
2
1
4-10mA INPUT
3
4
2
1
+
V
–
+
mA
–
Figure 5-14. Input Diagram for M12 4 Pin Connector
5-11
Page 23
Section 6 - System Operation
6.1 Introduction
Compared to wired systems, a wireless system provides much simpler
installation. Based on the physical principle of the propagation of radio
waves, certain basic conditions should be observed. The following simple
recommendations are provided to Insure proper installation and correct
operation of your wireless system.
6.2 RF Communication Basics
The Model UWPC-2-NEMA-M12 sends wireless transmissions to a receiver. The
receiver checks the incoming data for accuracy and processes this data for use by
the measurement software on your PC. Radio signals are electromagnetic waves,
hence the signal becomes weaker the further it travels. While radio waves can
penetrate some solid materials like a wall, they are dampened more than when a
direct line-of-sight between the transmitting and receiving antenna exist.
6.3 Basic System Overview
System Operation
6
A basic wireless PC system is comprised of only two main components; a signal
conditioner with a built-in battery powered 2.4 GHz radio transmitter, and a
USB powered 2.4 GHz radio receiver.
RECEIVER
END DEVICE
Figure 6-1. End Device/Receiver
NOTE:
USB
UWTC SERIES
ANTENNA
WIRELESS RF RECEIVER
®
FCC ID: OUR–XBEEPRO
IC #4214A–XBEEPRO
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference;
2) This device must accept any interference received,
including interference that may cause undesired
operation.
OMEGA ENGINEERING, INC.
Stamford, CT 06907
I/O
2.4 GHz
F
omega.com
Made in U.S.A.
TX
RX
SB
PWR
!
9–24 Vdc
-
+
Up to 48 end devices can be used with one receiver.
6-1
Page 24
6
System Operation
6.4 Environment/Operating Conditions
6.4.1 Environment
Omega’s NEMA wireless end devices and receiver units have been designed to
bexedandoperatedinbothindoorandoutdoorenvironments;theyarealso
weather-resistant. Care should be taken to prevent the components of your
wireless system from being exposed to toxic chemicals and extreme cold or hot
temperaturethatareoutsidethespecicationslistedinthismanual.
6.4.2 Operating Conditions
The following is a list of basic good practice you should apply when operating
your wireless system.
•Neveroperateyourwirelessdeviceorreceiveroutsidetherecommended
environmentallimitsspeciedinthismanual.
•Neveroperateyourwirelessenddeviceorreceiverinammableor
explosive environments.
•Neveruseyourwirelessenddeviceorreceiverinmedical,nuclearor
other dangerous applications where an interruption of readings can
cause damage or harm.
•Neveroperateyourenddeviceorreceiverwithanyotherbatteryor
powersourcethanwhat’sspeciedinthismanualoronthebattery
compartment label.
•Noco-locationwithotherradiotransmittersisallowed.Bydenition,
co-location is when another radio device or it’s antenna is located
within 20 cm of your end device and can transmit simultaneously with
your end device.
•Neverinstallenddeviceswithin20cmorlessfromeachother.
•Neveruseyourenddeviceasaportabledevice.Yourunithasbeen
designed to be operated in a permanent installation.
•Neverinstalland/oroperateyourenddevicecloserthan20cmtonearby
persons.
•Neveroperateyourenddevicewithanyotherantennathanwhatis
supplied or listed here in this manual for approved use.
6-2
Page 25
6.5 Transmit Rate vs. Battery Life
Many factors such as ambient temperature conditions and transmitting rate
can have a large effect on the life of the battery used in your end device.
Transmitting data places a large demand on the battery in your unit. The
transmit rate is the single most contributing factor in the life of your battery. The
slower the transmit rate you set, the longer the battery in your device will last.
The table below give some estimates on how long the battery should last vs. the
transmit rate you selected when you setup your end device and under normal
operating conditions.
For Model: UWPC-2A-NEMA-M12
Transmission Interval Battery Life (Months)
2 Seconds 4
10 Seconds 7.5
30 Seconds 16.5
System Operation
6
60 Seconds 30
6-3
Page 26
7
Service and Calibration
Section 7 – Service & Calibration
YourUWPC-2A-NEMA-M12WeatherResistantWirelessProcessVoltage/
Current Transmitter has been built and factory calibrated to meet or exceed the
specicationslistedhereinthismanual.Informationisprovidedbelowonhow
to have your unit serviced.
7.1 Service and Calibration
If any of your wireless system components require service or re-calibration,
please call our Customer Service Department at 1-800-622-2378 or 203-359-1660.
They will assist you in arranging the return of your device. We can also be
reached on the Internet at www.omega.com, e-mail: [email protected]
7-1
Page 27
Section 8 – Specifications
Input Range: 0-1 Vdc, 0-5 Vdc, 0-10 Vdc, or 4-20mA
Accuracy: ±0.04% of range
Input Connection: Panel connector (mating connector supplied)
Computer Interface: USB (for setup only)
Transmit Sample Rate: Programmable, 1 sample/every 2 min.
Radio Frequency (RF)
Transceiver Carrier:
RF Output Power: 10Bm (10 mW)
Range of RF Link: Up to 120 m (400') outdoor line of sight
Specifications
to 1 sample/every 2 sec.
ISM 2.4 GHz, direct sequence spread spectrum
Up to 40 m (130') indoor/urban
8
RF Data Packet Standard:
Software (Included Free): Requires Windows® 2000, XP or Vista (32bit)
Power:
Battery Life (Typical): 2.5 years at 1 sample/minute reading rate @ 25°C
Enclosure: NEMA, Polycarbonate
Dimensions: 145.8 L x 94.7 W x 50.8 mm H (5.74 x 3.73 x 2")
One 3.6 V, lithium C cell (included)
IEEE 802.15.4, open communication architecture
operation system
8-1
Page 28
9
Approvals, Regulatory Compliance
Section 9 – Approvals, Regulatory Compliance
NOTE:
All approvals outlined in this manual are based on testing
that was done with antennas that are supplied with your
Wireless Series System Components. Removing and or
installing a different antenna will void the product compliance
demonstrated in these documents.
9.1 FCC (Domestic Use)
For United States: FCC ID: OUR-XBEEPRO
For Canada: IC #4214A-XBEEPRO
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1.) This device may not cause harmful interference.
2.) This device must accept any interference received, including interference that
may cause undesired operation.
WARNING:
To satisfy FCC RF exposure requirements for mobile
transmitting devices, a separation distance of 20 cm or more
should be maintained between the antenna of this device
and persons during device operation. To ensure compliance,
operations at closer than this distance is not recommended.
The antenna used for this transmitter must not be co-located
in conjunction with any other antenna or transmitter.
9.2 FCC International Usage and CE Marking
Model: UWPC-2A-NEMA-M12 is CE marked.
NOTE:
It is your (the user’s) responsibility to insure that these
products are operated within the guidelines here in this
manual and in conformance with all local, state, federal or
national regulations and laws of the country they are being
operated in.
Transmitting Power —Your wireless end device has been
designed, manufactured and tested so that the transmitting
power of your connector transmitter will not exceed 10 dBm
10 mW.
9-1
Page 29
NOTES:
9-2
Page 30
NOTES:
9-3
Page 31
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/D ISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
for current repair charges. Have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult OMEGA
Page 32
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
SM
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
DATA ACQUISITION
MU
Data Acquisition & Engineering Software
MU
Communications-Based Acquisition Systems
MU
Plug-in Cards for Apple, IBM & Compatibles
MU
Data Logging Systems
MU
Recorders, Printers & Plotters
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M5044-PC/0712
Loading...
