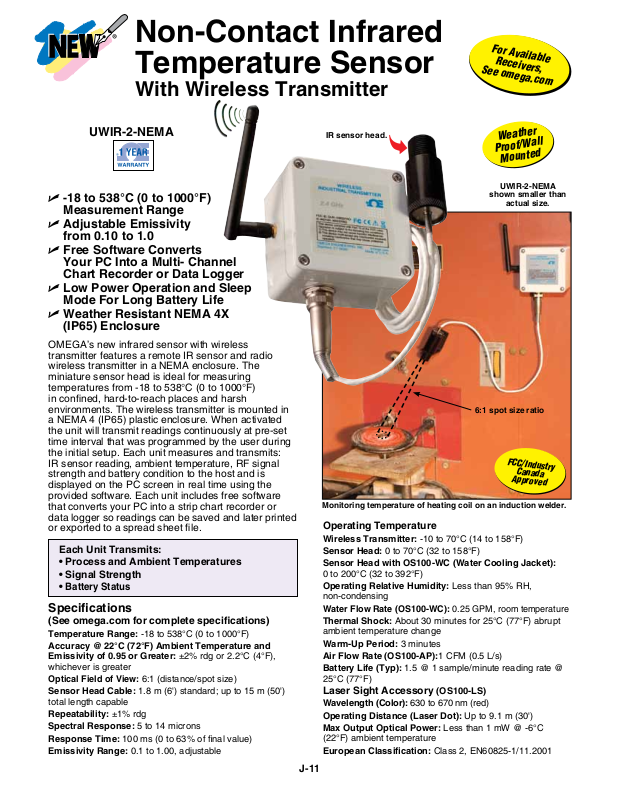

Non-Contact Infrared
Temperature Sensor
With Wireless Transmitter
For Available
Receivers,
See omega.com
UWIR-2-NEMA
U -
18 to 538°C (0 to 1000°F)
Measurement Range
U
Adjustable Emissivity
from 0.10 to 1.0
U
Free Software Converts
Your PC Into a Multi- Channel
Chart Recorder or Data Logger
U
Low Power Operation and Sleep
Mode For Long Battery Life
U
Weather Resistant NEMA 4X
(IP65) Enclosure
OMEGA’s new infrared sensor with wireless
transmitter features a remote IR sensor and radio
wireless transmitter in a NEMA enclosure. The
miniature sensor head is ideal for measuring
temperatures from -18 to 538°C (0 to 1000°F)
in confined, hard-to-reach places and harsh
environments. The wireless transmitter is mounted in
a NEMA 4 (IP65) plastic enclosure. When activated
the unit will transmit readings continuously at pre-set
time interval that was programmed by the user during
the initial setup. Each unit measures and transmits:
IR sensor reading, ambient temperature, RF signal
strength and battery condition to the host and is
displayed on the PC screen in real time using the
provided software. Each unit includes free software
that converts your PC into a strip chart recorder or
data logger so readings can be saved and later printed
or exported to a spread sheet file.
Each Unit Transmits:
• Process and Ambient Temperatures
• Signal Strength
Battery Status
•
Specifications
(See omega.com for complete specifications)
Temperature Range: -18 to 538°C (0 to 1000°F)
Accuracy @ 22°C (72°F) Ambient Temperature and
Emissivity of 0.95 or Greater: ±2% rdg or 2.2°C (4°F),
whichever is greater
Optical Field of View:
Sensor Head Cable: 1.8 m (6') standard; up to 15 m (50')
total length capable
Repeatability: ±1% rdg
Spectral Response: 5 to 14 microns
Response Time: 100 ms (0 to 63% of final value)
Emissivity Range: 0.1 to 1.00, adjustable
6:1 (distance/spot size)
IR sensor head.
Weather
Proof/Wall
Mounted
UWIR-2-NEMA
shown smaller than
actual size.
6:1 spot size ratio
FCC/Industry
Canada
Approved

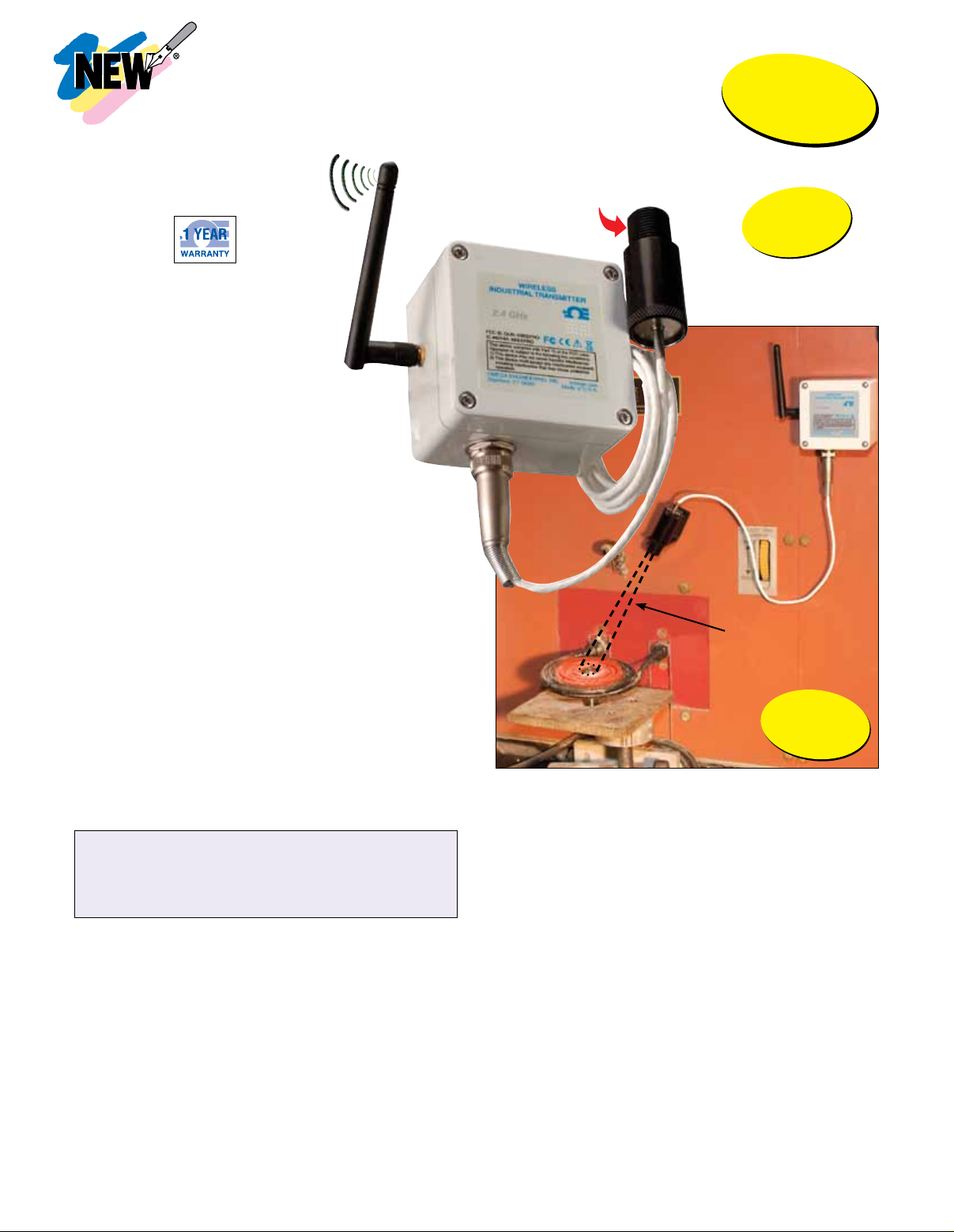

Monitoring temperature of heating coil on an induction welder.
Operating Temperature
Wireless Transmitter: -10 to 70°C (14 to 158°F)
Sensor Head: 0 to 70°C (32 to 158°F)
Sensor Head with OS100-WC (Water Cooling Jacket):
0 to 200°C (32 to 392°F)
Operating Relative Humidity: Less than 95% RH,
non-condensing
Water Flow Rate (OS100-WC): 0.25 GPM, room temperature
Thermal Shock: About 30 minutes for 25°C (77°F) abrupt
ambient temperature change
Warm-Up Period: 3 minutes
Air Flow Rate (OS100-AP):1 CFM (0.5 L/s)
Battery Life (Typ): 1.5 @ 1 sample/minute reading rate @
25°C (77°F)
Laser Sight Accessory (OS100-LS)
Wavelength (Color): 630 to 670 nm (red)
Operating Distance (Laser Dot): Up to 9.1 m (30')
Max Output Optical Power: Less than 1 mW @ -6°C
(22°F) ambient temperature
European Classification: Class 2, EN60825-1/11.2001
J-11
Page 2

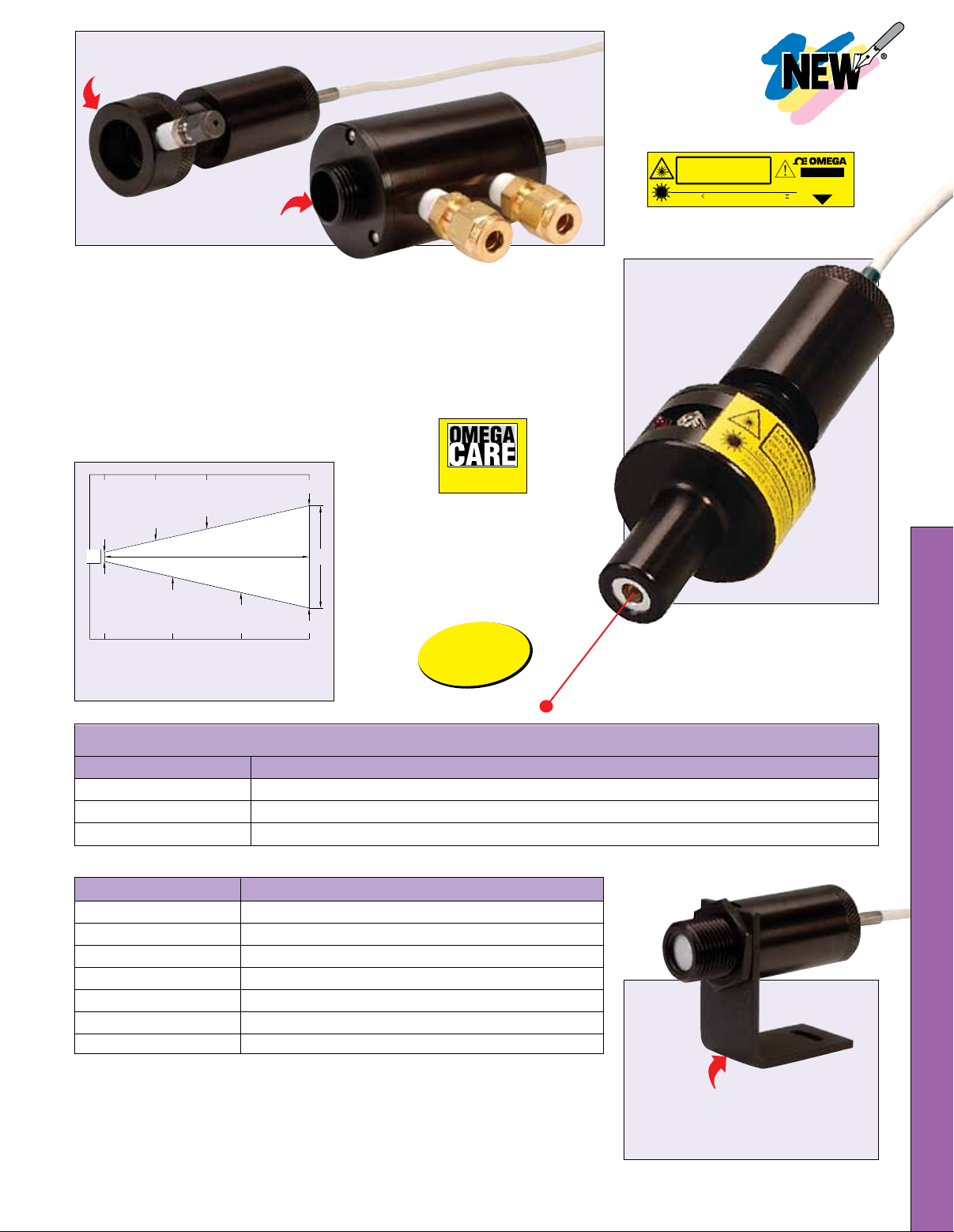

OS100-AP air purge collar to
Shahin Baghai
X7896
5/22/03
L-1615 SqLabelColorComp.eps
200%
For Reference Only
ACTUAL SIZE
Bleed
Bleed
LASER RADIATION - DO NOT STARE INTO BEAM
LASER RADIATION DO NOT STARE
INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS. CLASS 2
LASER PRODUCT.
MAX. OUTPUT 1mW, WAVELENGTH 630-670 nm, CLASS II (2)
LASER PRODUCT. COMPLIES WITH FDA 21CFR 1040.10
®
CAUTION
AVOID EXPOSURE. LASER
RADIATION IS EMITTED
FROM THIS APERTURE
LASER RADIATION - DO NOT STARE INTO BEAM
LASER RADIATION DO NOT STARE
INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS. CLASS 2
LASER PRODUCT.
MAX. OUTPUT 1mW, WAVELENGTH 630-670 nm, CLASS II (2)
LASER PRODUCT. COMPLIES WITH FDA 21CFR 1040.10
®
CAUTION
AVOID EXPOSURE. LASER
RADIATION IS EMITTED
FROM THIS APERTURE
TYPE AND RULES PRINT BLACK 100%
BACKGROUND YELLOW 100%
keep the lens free of particles
or debris.
OS100-WC water cooling
jacket for use to 200°C.
Both shown smaller
than actual size.
Maximum Operating Current:
45 mA @ 3 Vdc
FDA Classification: Complies with
21 CFR 1040.10, Class II laser product
Beam Diameter: 5 mm (0.20")
Beam Divergence: <2 mrad
Operating Temperature: 0 to 50°C
(32 to 122°F)
Operating Relative Humidity:
Less than 95% RH, non-condensing
DISTANCE: SENSOR TO OBJECT (IN)
0"
SPOT DIA.* (IN)
0.4"
1cm
SPOT DIA.* (CM)
0
12"
2.0"
DISTANCE: SENSOR TO OBJECT (CM)
* SPOT DIAMETER MEASURED AT 90% ENERGY
6:1 DISTANCE TO SPOT SIZE RATIO
6:1 distance to spot size ratio.
24"
4.0"
48"
D:S=6:1
122 cm
6.6
40
13.0
80
8.0"
20.0
48"
122
Optical Field of View
Power Switch: On/off slide switch on
the battery pack
Power Indicator: Red LED
Power: Battery pack, 3 Vdc (consists
of two 1.5 Vdc “AA” lithium batteries)
Dimensions: 38 diameter x 50.8 mm L
(1.5 x 2")
Extended Warranty
Program
OMEGACARESM extended warranty program
is available for models shown on this page.
Ask your sales representative for full details
8"
when placing an order. OMEGACARE
20 cm
covers parts, labor and equivalent loaners.
Laser Sight
Option
OS100-LS laser sight
fits in front of the IR
head for accurate
positioning.
SM
SM
Shown
actual size.
J
To Order Visit omega.com/uwir-2 for Pricing and Details
Model No. Description
UWIR-2-NEMA Non-contact wireless infrared transmitter with remote sensor, 1.8 m (6') cable
UWTC-BATT-C Replacement 3.6V lithium “C” battery assembly
UWTC-CABLE Spare programing cable (one included with receivers)
Accessories
Model No. Description
OS100-MB Mounting bracket
OS100-DR DIN rail mounting adaptor
OS100-AP Air purge collar
OS100-WC Water cool jacket, up to 200°C (392°F)
OS100-LS Laser sighting accessory
OS100-CA15FT Sensor head extension cable, 4.6 m (15')
OS100-CA25FT Sensor head extension cable, 7.6 m (25')
Comes complete with operator’s manual, software, mounting nut, and 3.6V lithium “C”
battery assembly.
Ordering Examples: UWIR-2-NEMA, wireless infrared transmitter, UWTC-REC1, 48-channel
USB receiver, UWTC-BATT-C, spare battery, and OS100-MB, sensor head bracket.
UWIR-2-NEMA, wireless infrared transmitter,
host
with 1-channel 4 to 20 mA analog output, alarm and local display, UWTC-BATT-C, spare
battery, and OS100-MB, sensor head bracket.
warranty to a total of 4 years.
OS100-MB,
UWTC-REC2-D-MA, 48-channel transceiver/
OCW-3, OMEGACARE
SM
extends standard 1-year
J-12
mounting bracket.
Shown
smaller than
actual size.
