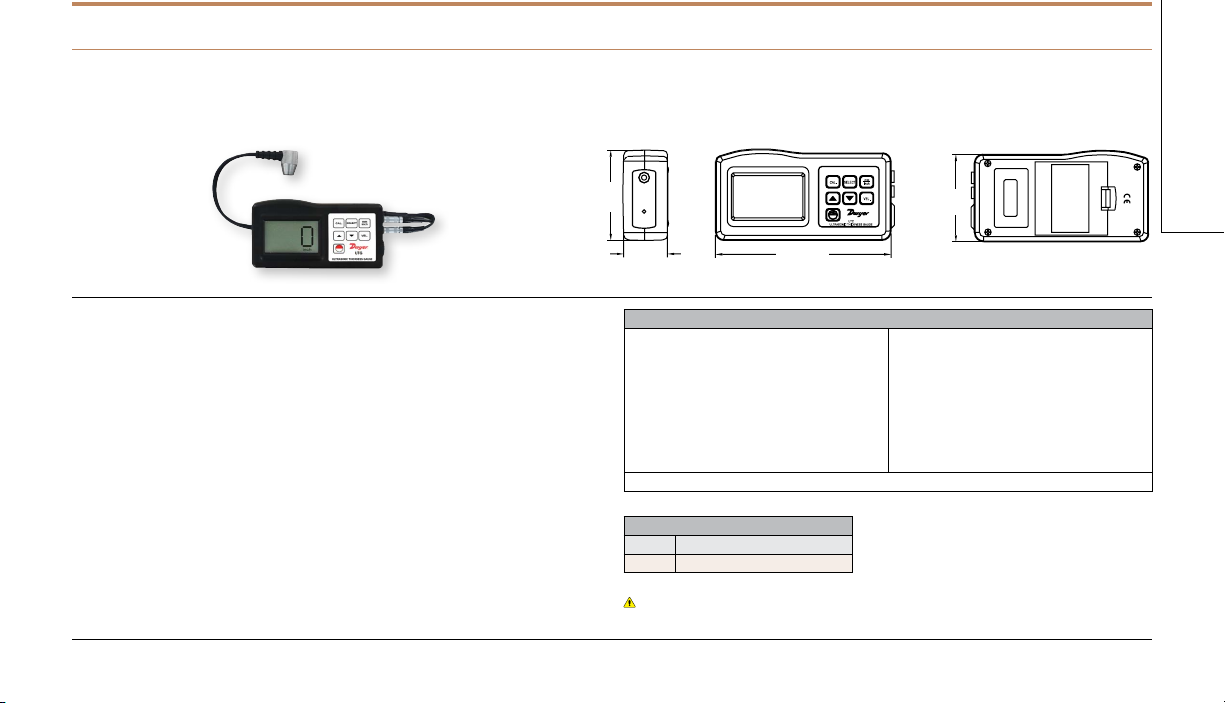

MODEL UTG
[48.90]
[47.00]
1-27/32
16.4´ [5 M]

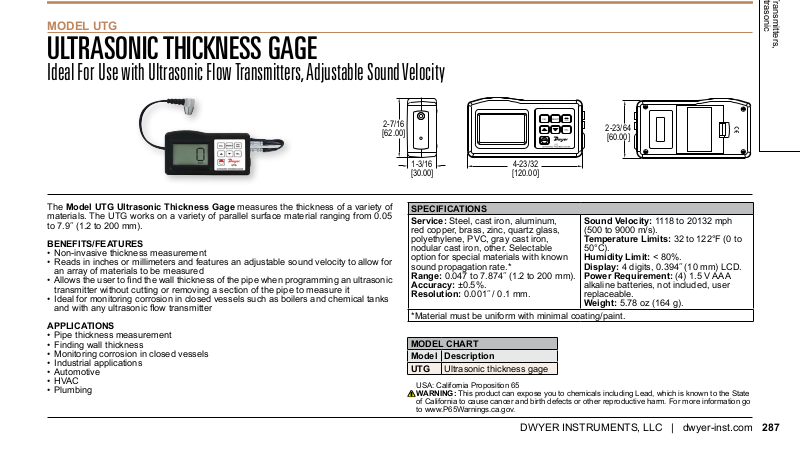

ULTRASONIC THICKNESS GAGE
Ideal For Use with Ultrasonic Flow Transmitters, Adjustable Sound Velocity
2-23/64
[60.00]
The Model UTG Ultrasonic Thickness Gage measures the thickness of a variety of
materials. The UTG works on a variety of parallel surface material ranging from 0.05
to 7.9˝ (1.2 to 200 mm).
BENEFITS/FEATURES
• Non-invasive thickness measurement
• Reads in inches or millimeters and features an adjustable sound velocity to allow for
an array of materials to be measured
• Allows the user to nd the wall thickness of the pipe when programming an ultrasonic
transmitter without cutting or removing a section of the pipe to measure it
• Ideal for monitoring corrosion in closed vessels such as boilers and chemical tanks
and with any ultrasonic ow transmitter
APPLICATIONS
• Pipe thickness measurement
• Finding wall thickness
• Monitoring corrosion in closed vessels
• Industrial applications
• Automotive
• HVAC
• Plumbing
1-3/16
[30.00]
SPECIFICATIONS
Service: Steel, cast iron, aluminum,
red copper, brass, zinc, quartz glass,
polyethylene, PVC, gray cast iron,
nodular cast iron, other. Selectable
option for special materials with known
sound propagation rate.*
Range: 0.047 to 7.874˝ (1.2 to 200 mm).
Accuracy: ±0.5%.
Resolution: 0.001˝ / 0.1 mm.
*Material must be uniform with minimal coating/paint.
MODEL CHART
Model Description
UTG Ultrasonic thickness gage
USA: California Proposition 65
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
4-23/32
[120.00]
Sound Velocity: 1118 to 20132 mph
(500 to 9000 m/s).
Temperature Limits: 32 to 122°F (0 to
50°C).
Humidity Limit: < 80%.
Display: 4 digits, 0.394˝ (10 mm) LCD.
Power Requirement: (4) 1.5 V AAA
alkaline batteries, not included, user
replaceable.
Weight: 5.78 oz (164 g).
