Omega ULT User guide

3 29/32

[204.79]

4 9/32

TEMPERATURE/PRESSURE DERATING

TEMPERATURE °C

OPERATING PRESSURE PSI

SERIES ULT

E

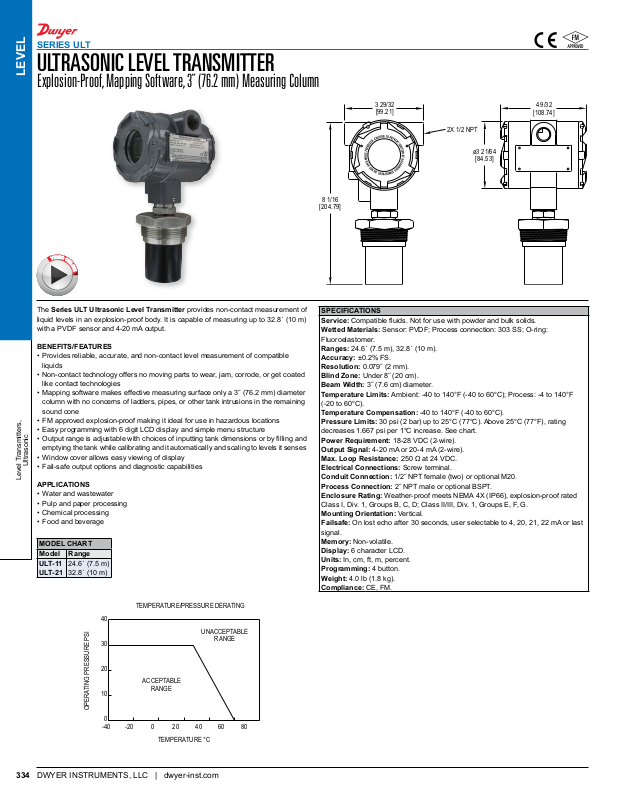

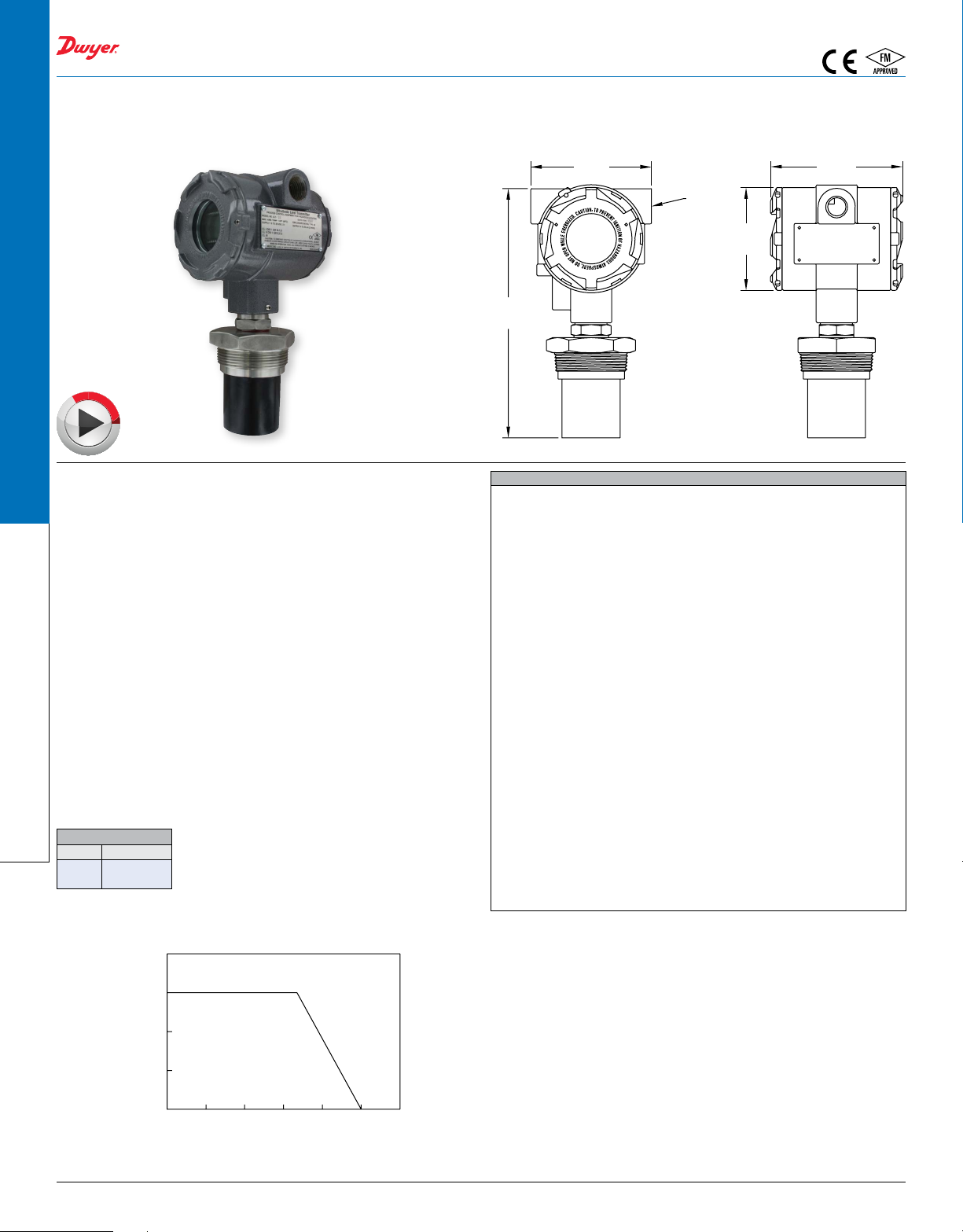

ULTRASONIC LEVEL TRANSMITTER

LEVEL

Explosion-Proof, Mapping Software, 3˝ (76.2 mm) Measuring Column

E

O

D

I

V

O

N

L

I

N

The Series ULT Ultrasonic Level Transmitter provides non-contact measurement of
liquid levels in an explosion-proof body. It is capable of measuring up to 32.8´ (10 m)
with a PVDF sensor and 4-20 mA output.

BENEFITS/FEATURES

• Provides reliable, accurate, and non-contact level measurement of compatible
liquids

• Non-contact technology offers no moving parts to wear, jam, corrode, or get coated
like contact technologies

• Mappingsoftwaremakeseffectivemeasuringsurfaceonlya3˝(76.2mm)diameter

column with no concerns of ladders, pipes, or other tank intrusions in the remaining
sound cone

• FM approved explosion-proof making it ideal for use in hazardous locations

• Easyprogrammingwith6digitLCDdisplayandsimplemenustructure

• Outputrangeisadjustablewithchoicesofinputtingtankdimensionsorbyllingand

emptying the tank while calibrating and it automatically and scaling to levels it senses

• Window cover allows easy viewing of display

Ultrasonic

• Fail-safe output options and diagnostic capabilities

LevelTransmitters,

APPLICATIONS

• Water and wastewater

• Pulp and paper processing

• Chemicalprocessing

• Food and beverage

MODEL CHART
Model Range
ULT-11

24.6´(7.5m)

ULT-21

32.8´ (10 m)

[99.21]

2X 1/2 NPT

ø3 21/64

[84.53]

8 1/16

SPECIFICATIONS
Service: Compatibleuids.Notforusewithpowderandbulksolids.
Wetted Materials: Sensor: PVDF; Process connection: 303 SS; O-ring:

Fluoroelastomer.

Ranges: 24.6´(7.5m),32.8´(10m).
Accuracy: ±0.2% FS.
Resolution: 0.079˝(2mm).
Blind Zone: Under8˝(20cm).
Beam Width: 3˝(7.6cm)diameter.
Temperature Limits: Ambient:-40to140°F(-40to60°C);Process:-4to140°F

(-20to60°C).

Temperature Compensation: -40to140°F(-40to60°C).
Pressure Limits: 30psi(2bar)upto25°C(77°C).Above25°C(77°F),rating

decreases1.667psiper1°Cincrease.Seechart.

Power Requirement: 18-28VDC(2-wire).
Output Signal: 4-20 mA or 20-4 mA (2-wire).
Max. Loop Resistance: 250Ωat24VDC.
Electrical Connections: Screw terminal.
Conduit Connection: 1/2˝NPTfemale(two)oroptionalM20.
Process Connection: 2˝NPTmaleoroptionalBSPT.
Enclosure Rating: Weather-proofmeetsNEMA4X(IP66),explosion-proofrated

ClassI,Div.1,GroupsB,C,D;ClassII/III,Div.1,GroupsE,F,G.

Mounting Orientation: Vertical.
Failsafe: On lost echo after 30 seconds, user selectable to 4, 20, 21, 22 mA or last

signal.

Memory: Non-volatile.
Display:6characterLCD.
Units: In, cm, ft, m, percent.
Programming: 4 button.
Weight: 4.0 lb (1.8 kg).
Compliance: CE,FM.

[108.74]

DWYERINSTRUMENTS,LLC|dwyer-inst.com334

40

30

20

ACCEPTABLE

10

0

-40 -20 0 20 40 60 80

RANGE

UNACCEPTABLE

RANGE
