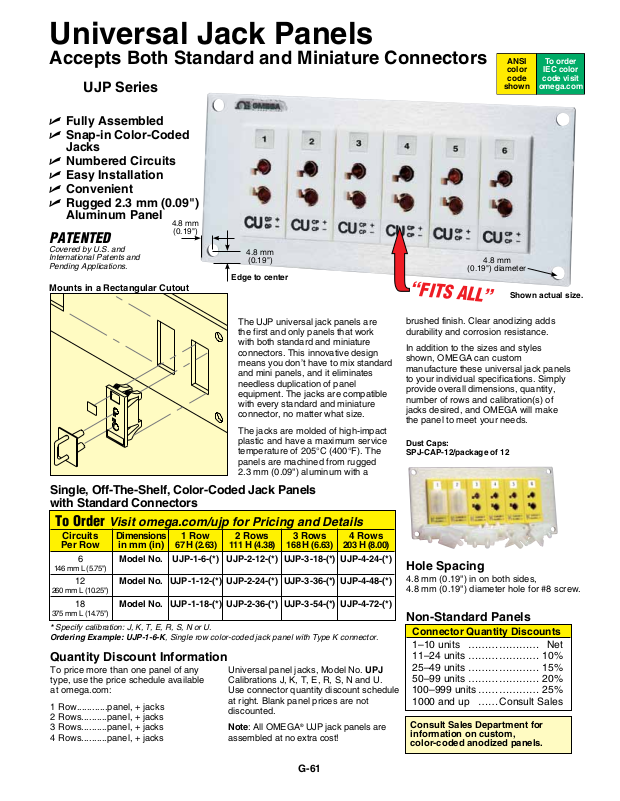

Universal Jack Panels
Accepts Both Standard and Miniature Connectors
UJP Series
U Fully Assembled
U Snap-in Color-Coded
Jacks
U Numbered Circuits
U Easy Installation
U Convenient
U Rugged 2.3 mm (0.09")
Aluminum Panel
PAtented
Covered by U.S. and
International Patents and
Pending Applications.
Mounts in a Rectangular Cutout
4.8 mm
(0.19")
4.8 mm
(0.19")
Edge to center

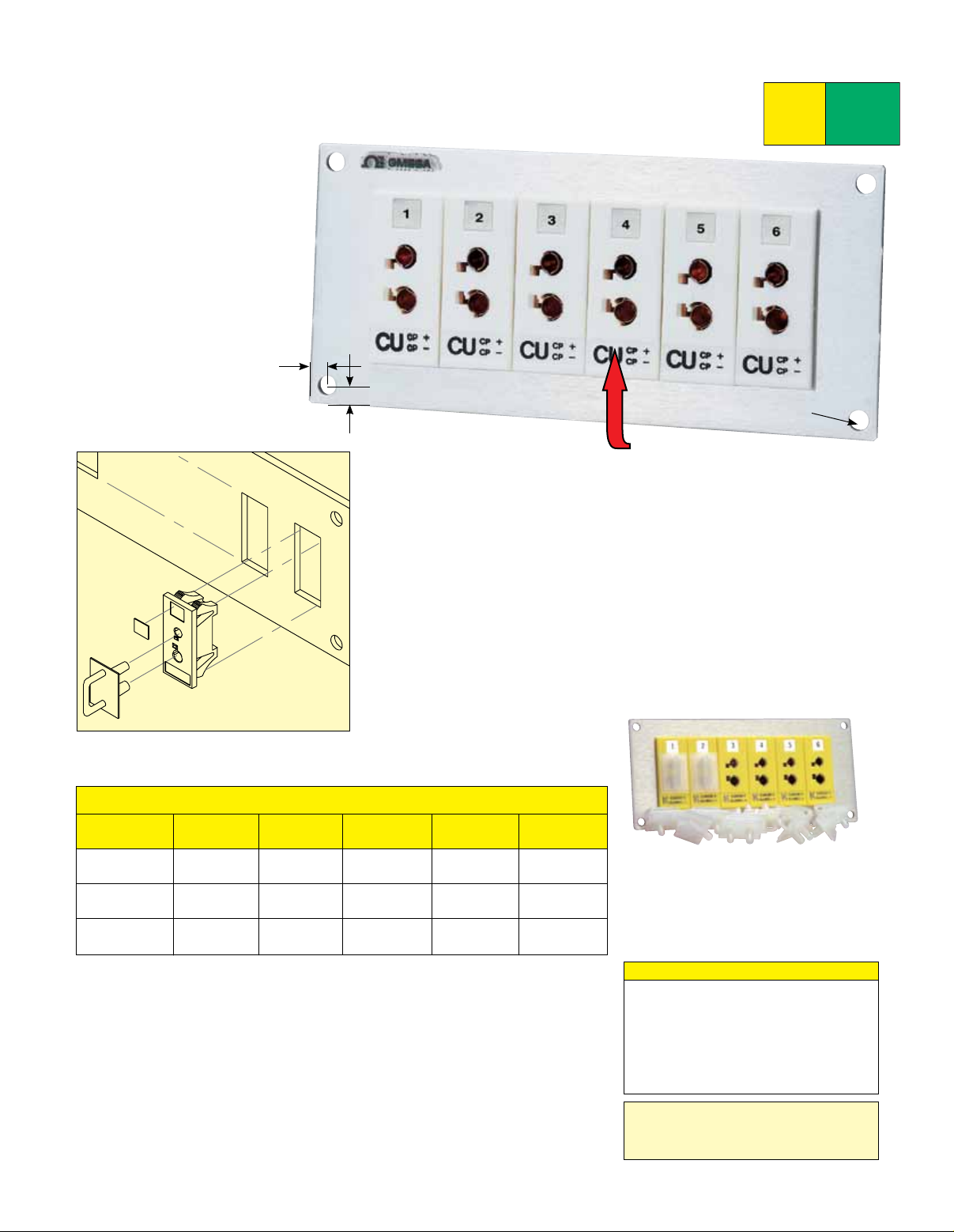

The UJP universal jack panels are
the first and only panels that work
with both standard and miniature
connectors. This innovative design
means you don’t have to mix standard
and mini panels, and it eliminates
needless duplication of panel
equipment. The jacks are compatible
with every standard and miniature
connector, no matter what size.
The jacks are molded of high-impact
plastic and have a maximum service
temperature of 205°C (400°F). The
panels are machined from rugged
2.3 mm (0.09") aluminum with a
(0.19") diameter
“Fits All”
brushed finish. Clear anodizing adds
durability and corrosion resistance.
In addition to the sizes and styles
shown, OMEGA can custom
manufacture these universal jack panels
to your individual specifications. Simply
provide overall dimensions, quantity,
number of rows and calibration(s) of
jacks desired, and OMEGA will make
the panel to meet your needs.
Dust Caps:
SPJ-CAP-12/package of 12
ANSI
color
code
shown
4.8 mm
Shown actual size.
To order
IEC color
code visit
omega.com
Single, Off-The-Shelf, Color-Coded Jack Panels
with Standard Connectors
To Order Visit omega.com/ujp for Pricing and Details
Circuits Dimensions 1 Row 2 Rows 3 Rows 4 Rows
Per Row in mm (in)
6 Model No. UJP-1-6-(*) UJP-2-12-(*) UJP-3-18-(*) UJP-4-24-(*)
146 mm L (5.75")
12 Model No. UJP-1-12-(*) UJP-2-24-(*) UJP-3-36-(*) UJP-4-48-(*)
260 mm L (10.25")
18 Model No. UJP-1-18-(*) UJP-2-36-(*) UJP-3-54-(*) UJP-4-72-(*)
375 mm L (14.75")
* Specify calibration: J, K, T, E, R, S, N or U.
Ordering Example: UJP-1-6-K, Single row color-coded jack panel with Type K connector.
Quantity Discount Information
To price more than one panel of any
type, use the price schedule available
at omega.com:
1 Row............panel, + jacks
2 Rows..........panel, + jacks
3 Rows..........panel, + jacks
4 Rows..........panel, + jacks
67 H (2.63) 111 H (4.38) 168 H (6.63) 203 H (8.00)
Universal panel jacks, Model No. UPJ
Calibrations J, K, T, E, R, S, N and U.
Use connector quantity discount schedule
at right. Blank panel prices are not
discounted.
Note: All OMEGA
assembled at no extra cost!
®
UJP jack panels are
G-61
Hole Spacing
4.8 mm (0.19") in on both sides,
4.8 mm (0.19") diameter hole for #8 screw.
Non-Standard Panels
Connector Quantity Discounts
1–10 units ………………… Net
11–24 units ………………… 10%
25–49 units ………………… 15%
50–99 units ………………… 20%
100–999 units ……………… 25%
1000 and up …… Consult Sales
Consult Sales Department for
information on custom,
color-coded anodized panels.
