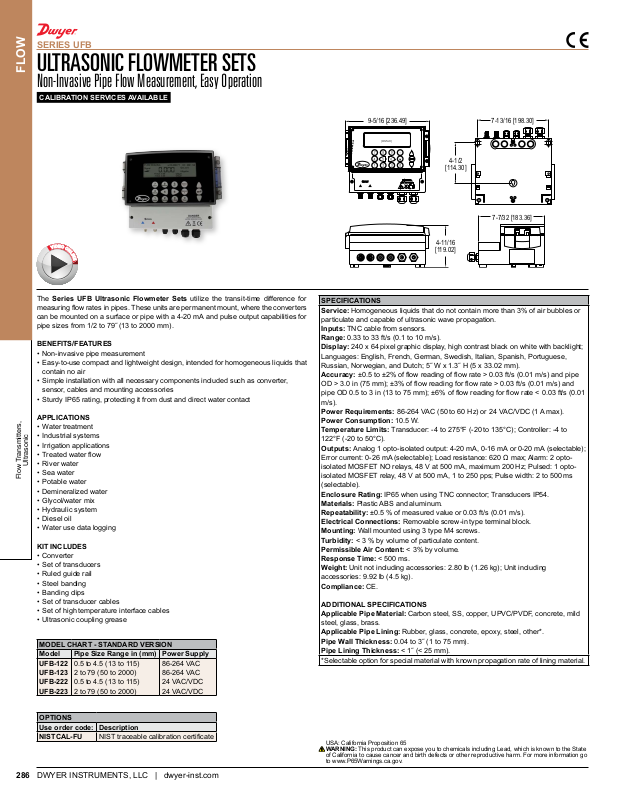

SERIES UFB
E
ULTRASONIC FLOWMETER SETS
FLOW
Non-Invasive Pipe Flow Measurement, Easy Operation
CALIBRATION SERVICES AVAILABLE
E
O
D
I
V
O
N
L
I
N
The Series UFB Ultrasonic Flowmeter Sets utilize the transit-time difference for
measuring ow rates in pipes. These units are permanent mount, where the converters
can be mounted on a surface or pipe with a 4-20 mA and pulse output capabilities for
pipe sizes from 1/2 to 79˝ (13 to 2000 mm).
BENEFITS/FEATURES
• Non-invasive pipe measurement
• Easy-to-use compact and lightweight design, intended for homogeneous liquids that
contain no air
• Simple installation with all necessary components included such as converter,
sensor, cables and mounting accessories
• Sturdy IP65 rating, protecting it from dust and direct water contact
APPLICATIONS
• Water treatment
• Industrial systems
• Irrigation applications
• Treated water ow
• River water
Ultrasonic
• Sea water
Flow Transmitters,
• Potable water
• Demineralized water
• Glycol/water mix
• Hydraulic system
• Diesel oil
• Water use data logging
KIT INCLUDES
• Converter
• Set of transducers
• Ruled guide rail
• Steel banding
• Banding clips
• Set of transducer cables
• Set of high temperature interface cables
• Ultrasonic coupling grease
MODEL CHART - STANDARD VERSION
Model Pipe Size Range in (mm) Power Supply
UFB-122
UFB-123
UFB-222
UFB-223
0.5 to 4.5 (13 to 115)
2 to 79 (50 to 2000)
0.5 to 4.5 (13 to 115)
2 to 79 (50 to 2000)
86-264 VAC
86-264 VAC
24 VAC/VDC
24 VAC/VDC

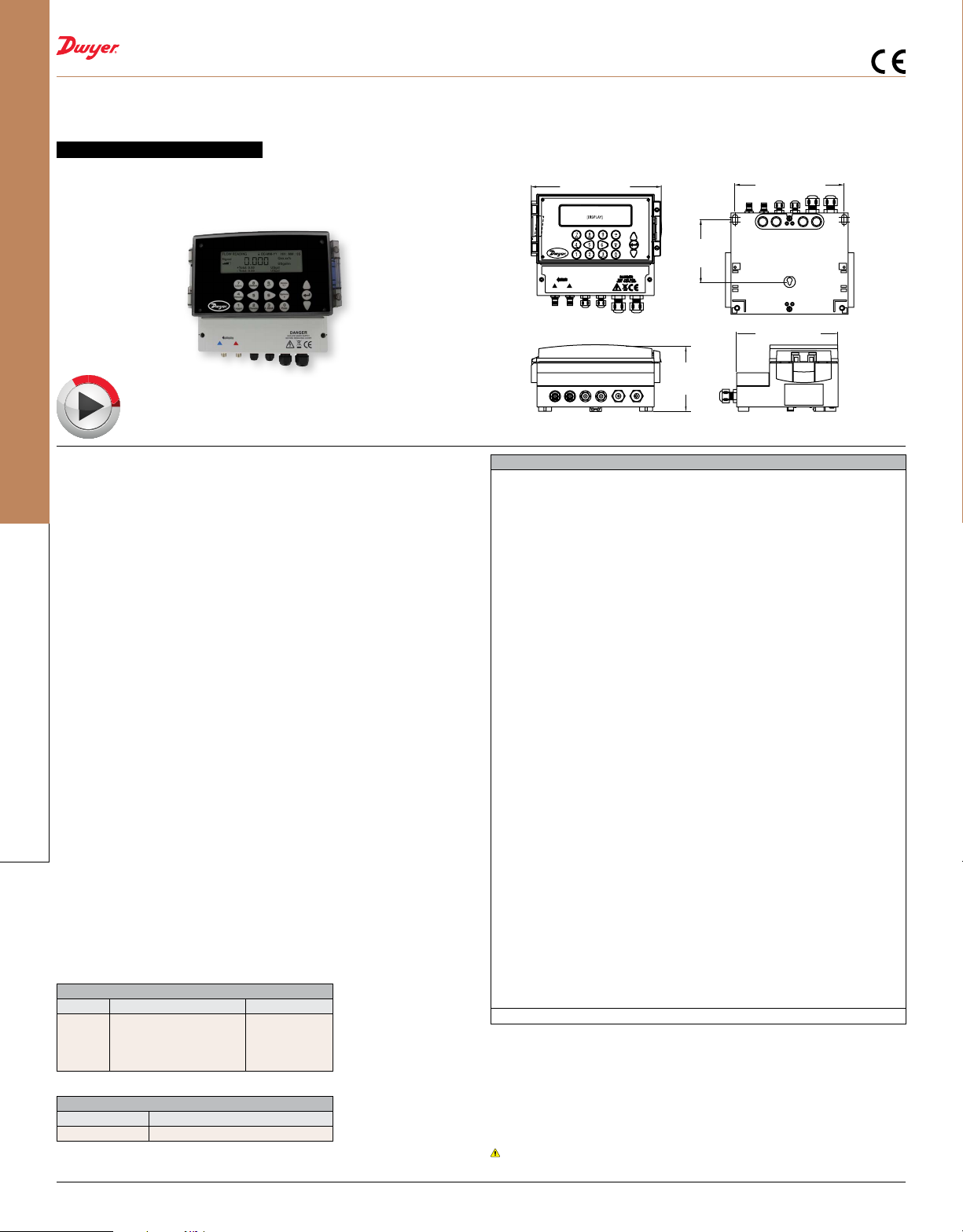

9-5/16 [236.49]
4-1/2
[114.30]
7-13/16 [198.30]
7-7/32 [183.36]
4-11/16
[119.02]
SPECIFICATIONS
Service: Homogeneous liquids that do not contain more than 3% of air bubbles or
particulate and capable of ultrasonic wave propagation.
Inputs: TNC cable from sensors.
Range: 0.33 to 33 ft/s (0.1 to 10 m/s).
Display: 240 x 64 pixel graphic display, high contrast black on white with backlight;
Languages: English, French, German, Swedish, Italian, Spanish, Portuguese,
Russian, Norwegian, and Dutch; 5˝ W x 1.3˝ H (5 x 33.02 mm).
Accuracy: ±0.5 to ±2% of ow reading of ow rate > 0.03 ft/s (0.01 m/s) and pipe
OD > 3.0 in (75 mm); ±3% of ow reading for ow rate > 0.03 ft/s (0.01 m/s) and
pipe OD 0.5 to 3 in (13 to 75 mm); ±6% of ow reading for ow rate < 0.03 ft/s (0.01
m/s).
Power Requirements: 86-264 VAC (50 to 60 Hz) or 24 VAC/VDC (1 A max).
Power Consumption: 10.5 W.
Temperature Limits: Transducer: -4 to 275°F (-20 to 135°C); Controller: -4 to
122°F (-20 to 50°C).
Outputs: Analog 1 opto-isolated output: 4-20 mA, 0-16 mA or 0-20 mA (selectable);
Error current: 0-26 mA (selectable); Load resistance: 620 Ω max; Alarm: 2 optoisolated MOSFET NO relays, 48 V at 500 mA, maximum 200 Hz; Pulsed: 1 optoisolated MOSFET relay, 48 V at 500 mA, 1 to 250 pps; Pulse width: 2 to 500 ms
(selectable).
Enclosure Rating: IP65 when using TNC connector; Transducers IP54.
Materials: Plastic ABS and aluminum.
Repeatability: ±0.5 % of measured value or 0.03 ft/s (0.01 m/s).
Electrical Connections: Removable screw-in type terminal block.
Mounting: Wall mounted using 3 type M4 screws.
Turbidity: < 3 % by volume of particulate content.
Permissible Air Content: < 3% by volume.
Response Time: < 500 ms.
Weight: Unit not including accessories: 2.80 lb (1.26 kg); Unit including
accessories: 9.92 lb (4.5 kg).
Compliance: CE.
ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Carbon steel, SS, copper, UPVC/PVDF, concrete, mild
steel, glass, brass.
Applicable Pipe Lining: Rubber, glass, concrete, epoxy, steel, other*.
Pipe Wall Thickness: 0.04 to 3˝ (1 to 75 mm).
Pipe Lining Thickness: < 1˝ (< 25 mm).
*Selectable option for special material with known propagation rate of lining material.
OPTIONS
Use order code: Description
NISTCAL-FU NIST traceable calibration certicate
