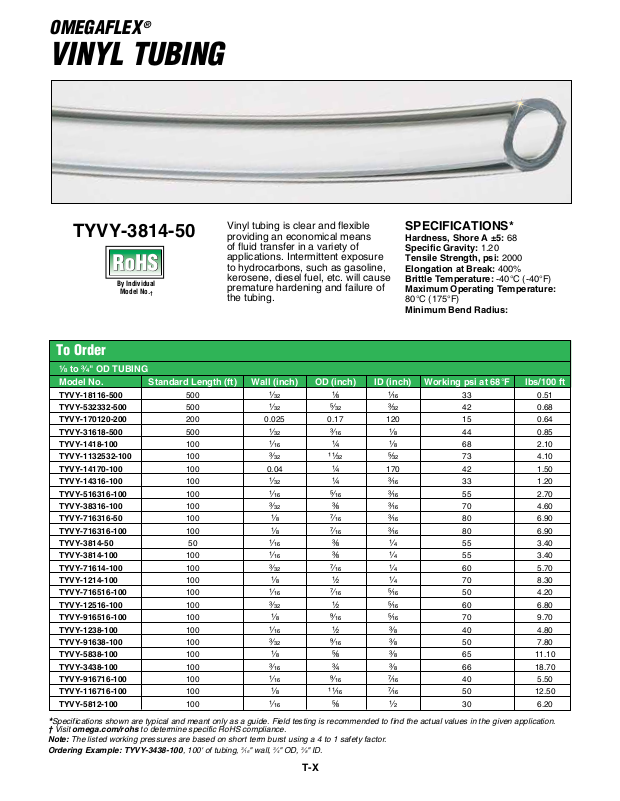

OMEGAFLEX®
VinyL TubinG
TYVY-3814-50
By Individual
Model No.
†

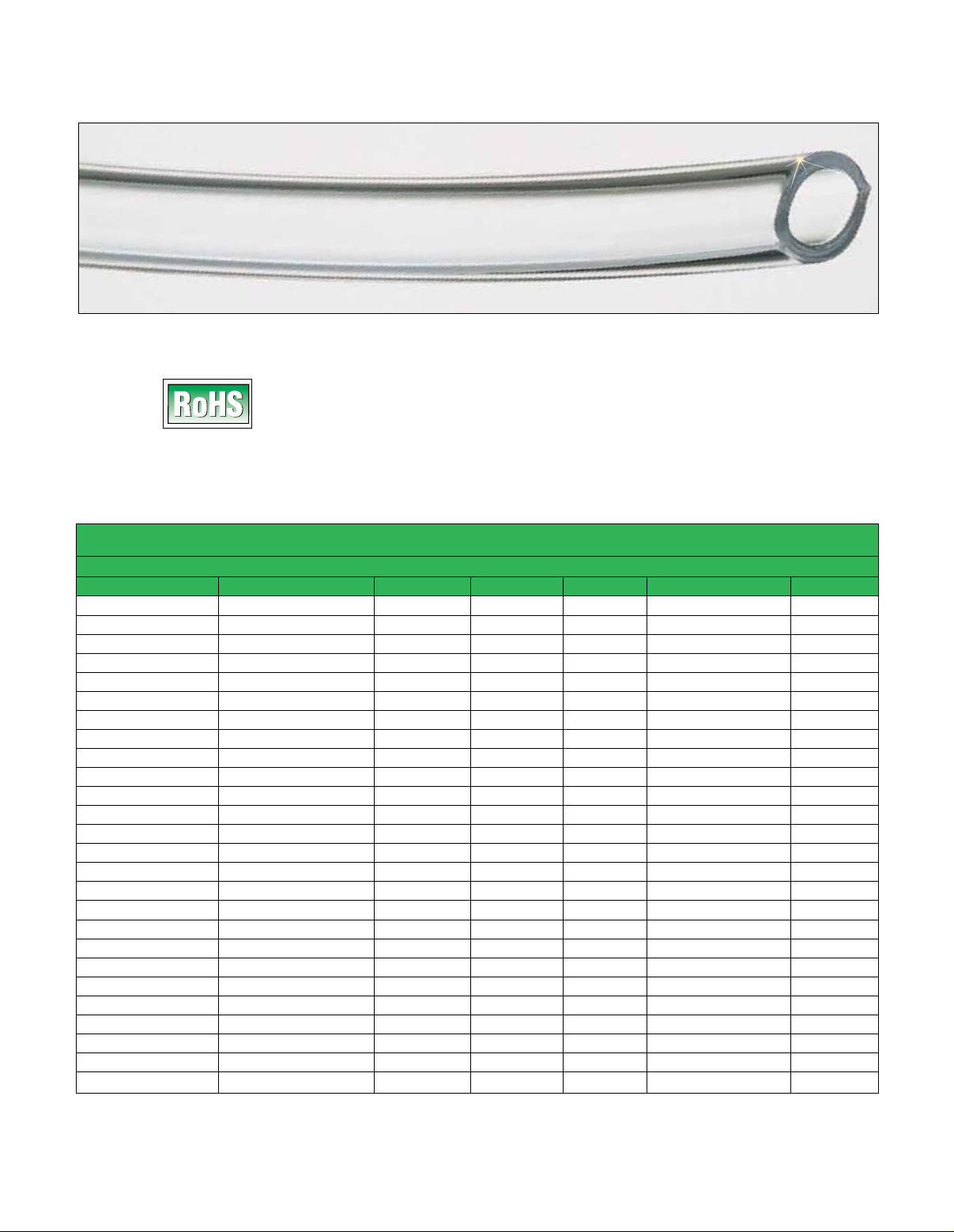

Vinyl tubing is clear and flexible
providing an economical means
of fluid transfer in a variety of
applications. Intermittent exposure
to hydrocarbons, such as gasoline,
kerosene, diesel fuel, etc. will cause
premature hardening and failure of
the tubing.
SPECIFICATIONS*
Hardness, Shore A ±5: 68
Specific Gravity: 1.20
Tensile Strength, psi: 2000
Elongation at Break: 400%
Brittle Temperature: -40°C (-40°F)
Maximum Operating Temperature:
80°C (175°F)
Minimum Bend Radius:
To Order
¹⁄₈ to ³⁄₄" OD TUBING
Model No. Standard Length (ft) Wall (inch) OD (inch) ID (inch) Working psi at 68°F lbs/100 ft
TYVY-18116-500 500 ¹⁄₃₂ ¹⁄₈ ¹⁄₁₆ 33 0.51
TYVY-532332-500 500 ¹⁄₃₂ ⁵⁄₃₂ ³⁄₃₂ 42 0.68
TYVY-170120-200 200 0.025 0.17 120 15 0.64
TYVY-31618-500 500 ¹⁄₃₂ ³⁄₁₆ ¹⁄₈ 44 0.85
TYVY-1418-100 100 ¹⁄₁₆ ¹⁄₄ ¹⁄₈ 68 2.10
TYVY-1132532-100 100 ³⁄₃₂ ¹¹⁄₃₂ ⁵⁄₃₂ 73 4.10
TYVY-14170-100 100 0.04 ¹⁄₄ 170 42 1.50
TYVY-14316-100 100 ¹⁄₃₂ ¹⁄₄ ³⁄₁₆ 33 1.20
TYVY-516316-100 100 ¹⁄₁₆ ⁵⁄₁₆ ³⁄₁₆ 55 2.70
TYVY-38316-100 100 ³⁄₃₂ ³⁄₈ ³⁄₁₆ 70 4.60
TYVY-716316-50 100 ¹⁄₈ ⁷⁄₁₆ ³⁄₁₆ 80 6.90
TYVY-716316-100 100 ¹⁄₈ ⁷⁄₁₆ ³⁄₁₆ 80 6.90
TYVY-3814-50 50 ¹⁄₁₆ ³⁄₈ ¹⁄₄ 55 3.40
TYVY-3814-100 100 ¹⁄₁₆ ³⁄₈ ¹⁄₄ 55 3.40
TYVY-71614-100 100 ³⁄₃₂ ⁷⁄₁₆ ¹⁄₄ 60 5.70
TYVY-1214-100 100 ¹⁄₈ ¹⁄₂ ¹⁄₄ 70 8.30
TYVY-716516-100 100 ¹⁄₁₆ ⁷⁄₁₆ ⁵⁄₁₆ 50 4.20
TYVY-12516-100 100 ³⁄₃₂ ¹⁄₂ ⁵⁄₁₆ 60 6.80
TYVY-916516-100 100 ¹⁄₈ ⁹⁄₁₆ ⁵⁄₁₆ 70 9.70
TYVY-1238-100 100 ¹⁄₁₆ ¹⁄₂ ³⁄₈ 40 4.80
TYVY-91638-100 100 ³⁄₃₂ ⁹⁄₁₆ ³⁄₈ 50 7.80
TYVY-5838-100 100 ¹⁄₈ ⁵⁄₈ ³⁄₈ 65 11.10
TYVY-3438-100 100 ³⁄₁₆ ³⁄₄ ³⁄₈ 66 18.70
TYVY-916716-100 100 ¹⁄₁₆ ⁹⁄₁₆ ⁷⁄₁₆ 40 5.50
TYVY-116716-100 100 ¹⁄₈ ¹¹⁄₁₆ ⁷⁄₁₆ 50 12.50
TYVY-5812-100 100 ¹⁄₁₆ ⁵⁄₈ ¹⁄₂ 30 6.20
Specifications shown are typical and meant only as a guide. Field testing is recommended to find the actual values in the given application.
*
† Visit omega.com/rohs to determine specific RoHS compliance.
Note: The listed working pressures are based on short term burst using a 4 to 1 safety factor.
Ordering Example: TYVY-3438-100, 100' of tubing, 3⁄16" wall, 3⁄4" OD, 3⁄8" ID.
T-X
Page 2
OMEGAFLEX®
VinyL TubinG
To Order
¹¹⁄₁₆ to 4³⁄₄" OD TUBING
Std Length Wall OD ID Working psi lbs/
Model No.
TYVY-111612-100 100 ³⁄₃₂ ¹¹⁄₁₆ ¹⁄₂ 40 9.90
TYVY-3412-100 100 ¹⁄₈ ³⁄₄ ¹⁄₂ 45 13.90
TYVY-34916-100 100 ³⁄₃₂ ³⁄₄ ⁹⁄₁₆ 40 11.00
TYVY-3458-100 100 ¹⁄₁₆ ³⁄₄ ⁵⁄₈ 48 7.60
TYVY-131658-100 100 ³⁄₃₂ ¹³⁄₁₆ ⁵⁄₈ 35 12.00
TYVY-7858-50 50 ¹⁄₈ ⁷⁄₈ ⁵⁄₈ 40 16.60
TYVY-7858-100 100 ¹⁄₈ ⁷⁄₈ ⁵⁄₈ 40 16.60
TYVY-7834-100 100 ¹⁄₁₆ ⁷⁄₈ ³⁄₄ 19 9.00
TYVY-134-50 50 ¹⁄₈ 1 ³⁄₄ 35 19.40
TYVY-134-100 100 ¹⁄₈ 1 ³⁄₄ 35 19.40
TYVY-11834-100 100 ³⁄₁₆ 1¹⁄₈ ³⁄₄ 44 31.20
TYVY-11434-100 100 ¹⁄₄ 1¹⁄₄ ³⁄₄ 44 44.30
TYVY-11878-50 50 ¹⁄₈ 1¹⁄₈ ⁷⁄₈ 30 22.10
TYVY-11878-100 100 ¹⁄₈ 1¹⁄₈ ⁷⁄₈ 30 22.10
TYVY-1141-100 100 ¹⁄₈ 1¹⁄₄ 1 28 25.00
TYVY-1381-100 100 ³⁄₁₆ 1³⁄₈ 1 45 39.40
TYVY-1121-50 50 ¹⁄₄ 1¹⁄₂ 1 50 55.00
TYVY-1121-100 100 ¹⁄₄ 1¹⁄₂ 1 50 55.00
TYVY-112114-100 100 ¹⁄₈ 1¹⁄₂ 1¹⁄₄ 22 30.50
TYVY-158114-50 50 ³⁄₁₆ 1⁵⁄₈ 1¹⁄₄ 31 47.80
TYVY-158114-100 100 ³⁄₁₆ 1⁵⁄₈ 1¹⁄₄ 31 47.80
TYVY-134114-50 50 ¹⁄₄ 1³⁄₄ 1¹⁄₄ 45 66.50
TYVY-134112-100 100 ¹⁄₈ 1³⁄₄ 1¹⁄₂ 19 36.00
TYVY-178112-100 100 ³⁄₁₆ 1⁷⁄₈ 1¹⁄₂ 26 56.10
TYVY-2112-50 50 ¹⁄₅ 2 1¹⁄₂ 40 77.50
TYVY-2134-50 50 ¹⁄₈ 2 1³⁄₄ 16 41.50
TYVY-214134-50 50 ¹⁄₄ 2¹⁄₄ 1³⁄₄ 29 80.00
TYVY-2142-50 50 ¹⁄₈ 2¹⁄₄ 2 14 47.10
TYVY-2122-50 50 ¹⁄₄ 2¹⁄₂ 2 35 99.70
TYVY-234214-50 50 ¹⁄₄ 2³⁄₄ 2¹⁄₄ 24 111.00
TYVY-3212-50 50 ¹⁄₄ 3 2¹⁄₂ 22 122.00
TYVY-3123-50 50 ¹⁄₄ 3¹⁄₂ 3 19 144.00
TYVY-4344-50 50 ³⁄₈ 4³⁄₄ 4 21 300.00
Ordering Example: TYVY-1121-100, 100' of tubing, 1⁄4" wall, 11⁄2" OD, 1" ID.
(ft) (inch) (inch) (inch)
at 68°F 100 ft
T-X

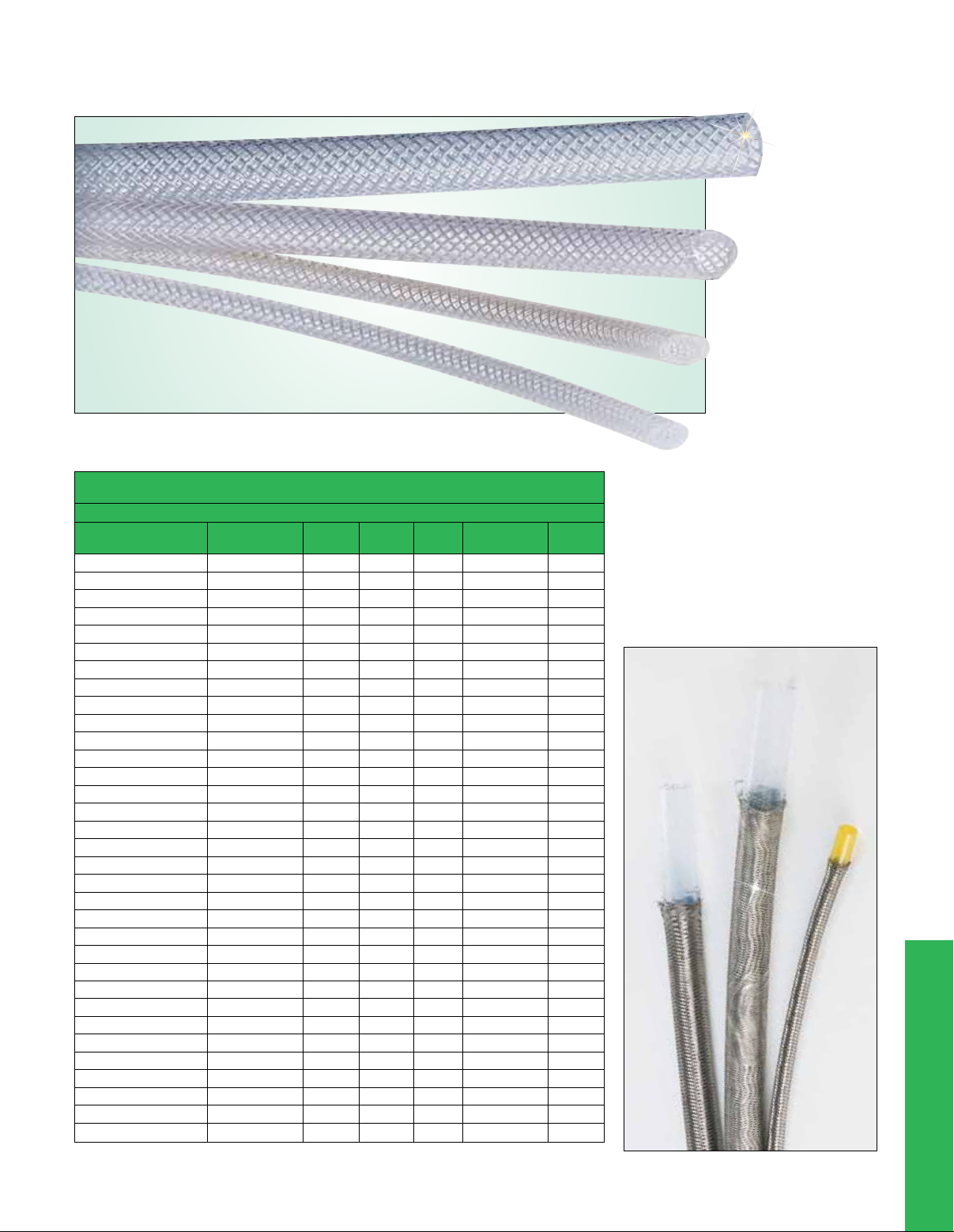

Stainless steel overbraided, coiled, and
other specialty tubing available!
Contact OMEGA’s Flow Engineering
Department.
