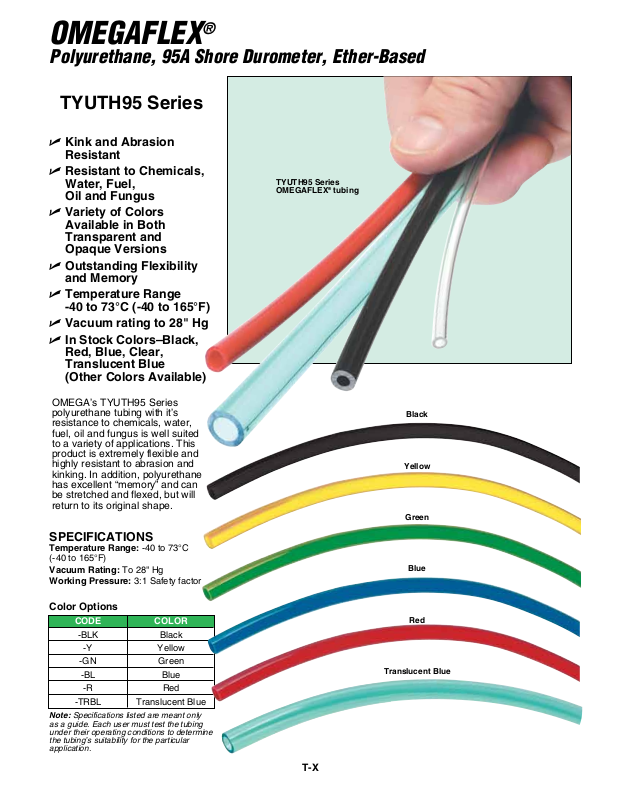

Page 1
OMEGAFLEX®
Polyurethane, 95A Shore Durometer, Ether-Based
TYUTH95 Series
U Kink and Abrasion
Resistant
U Resistant to Chemicals,
Water, Fuel,
Oil and Fungus
U Variety of Colors
Available in Both
Transparent and
Opaque Versions
U Outstanding Flexibility
and Memory
U Temperature Range
-40 to 73°C (-40 to 165°F)
U Vacuum rating to 28" Hg
U In Stock Colors–Black,
Red, Blue, Clear,
Translucent Blue
(Other Colors Available)
TYUTH95 Series
OMEGAFLEX
®
tubing
OMEGA’s TYUTH95 Series
polyurethane tubing with it’s
resistance to chemicals, water,
fuel, oil and fungus is well suited
to a variety of applications. This
product is extremely flexible and
highly resistant to abrasion and
kinking. In addition, polyurethane
has excellent “memory” and can
be stretched and flexed, but will
return to its original shape.
SPECIFICATIONS
Temperature Range: -40 to 73°C
(-40 to 165°F)
Vacuum Rating: To 28" Hg
Working Pressure: 3:1 Safety factor
Color Options
CODE COLOR
-BLK Black
-Y Yellow
-GN Green
-BL Blue
-R Red
-TRBL Translucent Blue
Note: Specifications listed are meant only
as a guide. Each user must test the tubing
under their operating conditions to determine
the tubing’s suitability for the particular
application.
Black
Yellow
Green
Blue
Red
Translucent Blue
T-X
Page 2
Longer Lengths
Available, Consult
Sales
To Order
Polyurethane Ether Tubing, 95A Shore Durometer
Standard Working
Dia. Coil PSI @
OD ID Tol. Length Wall 24°C Weight
Model No. (inch) (inch) (inch) (ft) (inch) (75°F) (lbs)
TYUTH95-18066-100 0.125 0.066 ±0.005 100 0.030 255 0.44
TYUTH95-18066-50 0.125 0.066 ±0.005 50 0.030 255 0.22
TYUTH95-532332-100 0.156 0.094 ±0.005 100 0.031 210 0.62
TYUTH95-532332-50 0.156 0.094 ±0.005 50 0.031 210 0.31
TYUTH95-316107-100 0.188 0.107 ±0.005 100 0.041 220 0.92
TYUTH95-316107-50 0.188 0.107 ±0.005 50 0.041 220 0.46
TYUTH95-1418-100 0.250 0.125 ±0.005 100 0.063 265 1.83
TYUTH95-1418-50 0.250 0.125 ±0.005 50 0.063 265 0.92
TYUTH95-14160-100 0.250 0.160 ±0.005 100 0.045 175 1.44
TYUTH95-14160-50 0.250 0.160 ±0.005 50 0.045 175 0.72
TYUTH95-38245-100 0.375 0.245 ±0.005 100 0.065 170 3.15
TYUTH95-38245-50 0.375 0.245 ±0.005 50 0.065 170 1.58
Polyurethane Ether Tubing, 95A Shore Durometer, Metric Sizes
Standard Working
Dia. Coil PSI @
OD ID Tol. Length Wall 24°C Weight
Model No. (mm) (mm) (mm) (meters) (mm) (75°F) (lbs)
TYUTH95-318-30 3.0 1.8 ±0.127 30 0.6 230 0.44
TYUTH95-318-15 3.0 1.8 ±0.127 15 0.6 230 0.22
TYUTH95-424-30 4.0 2.4 ±0.127 30 0.8 210 0.62
TYUTH95-424-15 4.0 2.4 ±0.127 15 0.8 210 0.31
TYUTH95-64-30 6.0 4.0 ±0.127 30 1.0 160 0.92
TYUTH95-64-15 6.0 4.0 ±0.127 15 1.0 160 0.46
TYUTH95-85-30 8.0 5.0 ±0.127 30 1.5 190 1.44
TYUTH95-85-15 8.0 5.0 ±0.127 15 1.5 190 0.72
Standard color is natural (clear).
See Color Option Table for color availability and ordering codes.
Ordering Examples: TYUTH95-18066-100-BL, 100 feet of blue tubing, 0.125" OD x 0.066" ID, ether-based polyurethane tubing with working
pressure of 255 psi.
TYUTH95-38245-100-BLK, 100 feet of black tubing,
3
" OD x 0.245" ID, ether-based polyurethane tubing with working pressure of 170 psi.
⁄
8
