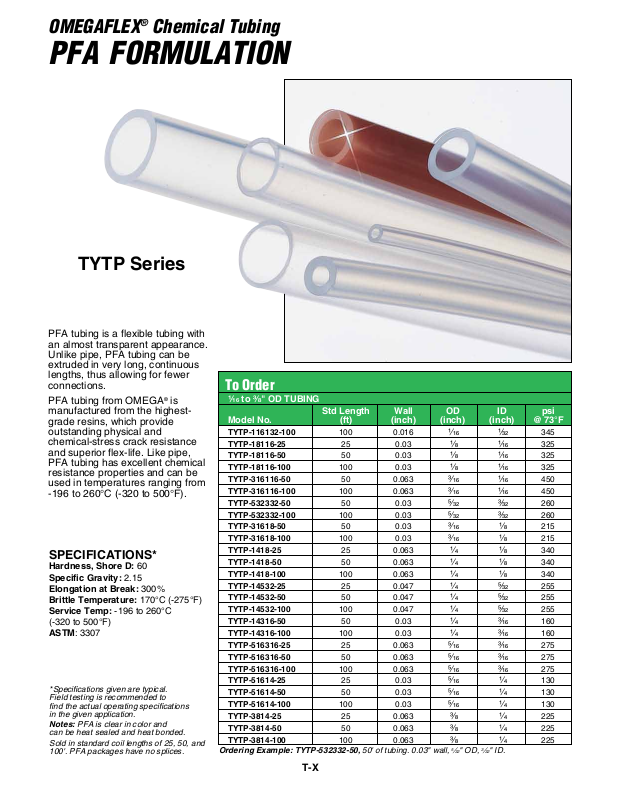

OMEGAFLEX® Chemical Tubing
PFA FORMULATION
TYTP Series

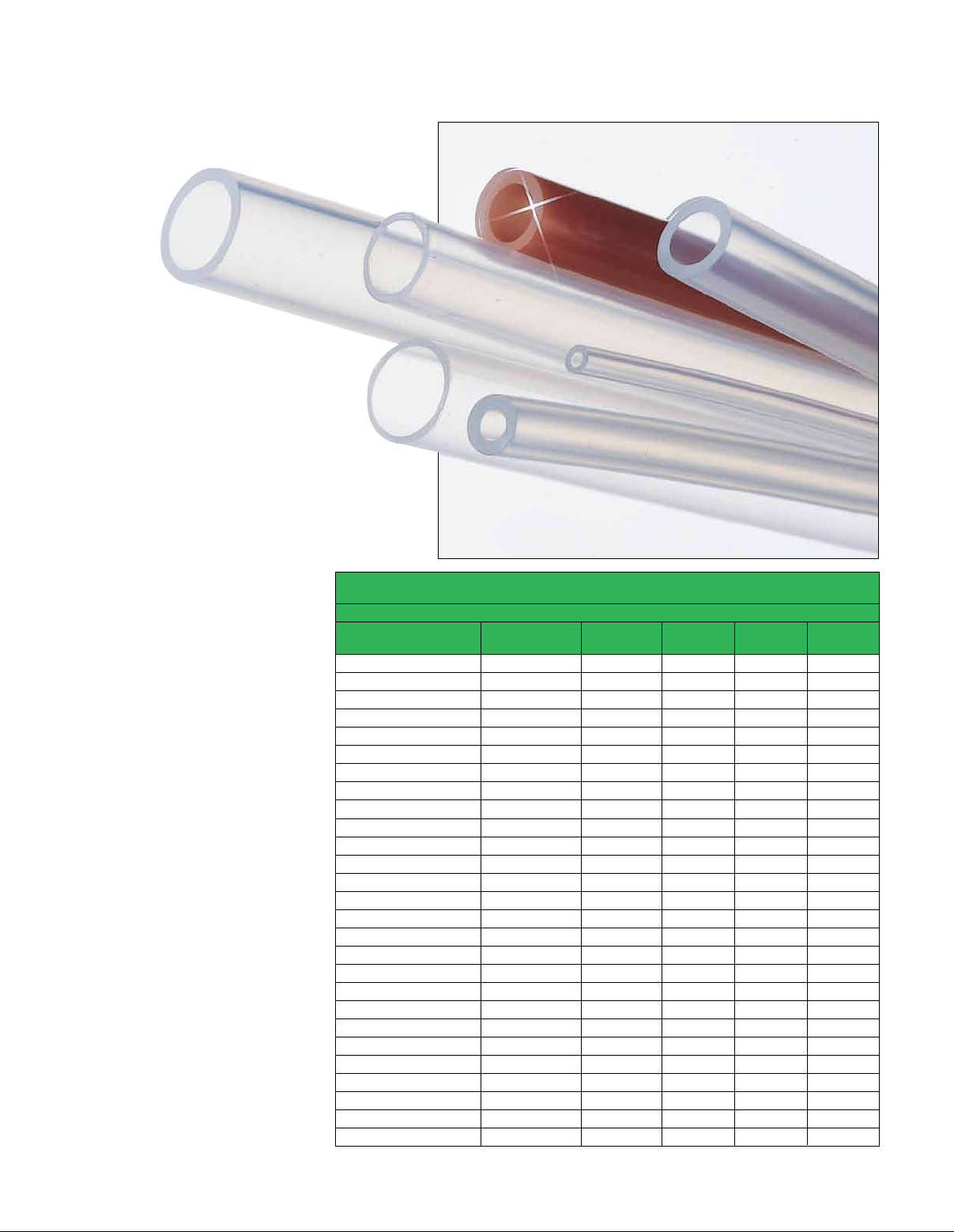

PFA tubing is a flexible tubing with
an almost transparent appearance.
Unlike pipe, PFA tubing can be
extruded in very long, continuous
lengths, thus allowing for fewer
connections.
PFA tubing from OMEGA® is
manufactured from the highestgrade resins, which provide
outstanding physical and
chemical-stress crack resistance
and superior flex-life. Like pipe,
PFA tubing has excellent chemical
resistance properties and can be
used in temperatures ranging from
-196 to 260°C (-320 to 500°F).
SPECIFICATIONS*
Hardness, Shore D: 60
Specific Gravity: 2.15
Elongation at Break: 300%
Brittle Temperature: 170°C (-275°F)
Service Temp: -196 to 260°C
(-320 to 500°F)
ASTM: 3307
*Specifications given are typical.
Field testing is recommended to
find the actual operating specifications
in the given application.
Notes: PFA is clear in color and
can be heat sealed and heat bonded.
Sold in standard coil lengths of 25, 50, and
100'. PFA packages have no splices.
To Order
¹⁄₁₆ to ³⁄₈" OD TUBING
Std Length Wall OD ID psi
Model No. (ft) (inch) (inch) (inch) @ 73°F
TYTP-116132-100 100 0.016 ¹⁄₁₆ ¹⁄₃₂ 345
TYTP-18116-25 25 0.03 ¹⁄₈ ¹⁄₁₆ 325
TYTP-18116-50 50 0.03 ¹⁄₈ ¹⁄₁₆ 325
TYTP-18116-100 100 0.03 ¹⁄₈ ¹⁄₁₆ 325
TYTP-316116-50 50 0.063 ³⁄₁₆ ¹⁄₁₆ 450
TYTP-316116-100 100 0.063 ³⁄₁₆ ¹⁄₁₆ 450
TYTP-532332-50 50 0.03 ⁵⁄₃₂ ³⁄₃₂ 260
TYTP-532332-100 100 0.03 ⁵⁄₃₂ ³⁄₃₂ 260
TYTP-31618-50 50 0.03 ³⁄₁₆ ¹⁄₈ 215
TYTP-31618-100 100 0.03 ³⁄₁₆ ¹⁄₈ 215
TYTP-1418-25 25 0.063 ¹⁄₄ ¹⁄₈ 340
TYTP-1418-50 50 0.063 ¹⁄₄ ¹⁄₈ 340
TYTP-1418-100 100 0.063 ¹⁄₄ ¹⁄₈ 340
TYTP-14532-25 25 0.047 ¹⁄₄ ⁵⁄₃₂ 255
TYTP-14532-50 50 0.047 ¹⁄₄ ⁵⁄₃₂ 255
TYTP-14532-100 100 0.047 ¹⁄₄ ⁵⁄₃₂ 255
TYTP-14316-50 50 0.03 ¹⁄₄ ³⁄₁₆ 160
TYTP-14316-100 100 0.03 ¹⁄₄ ³⁄₁₆ 160
TYTP-516316-25 25 0.063 ⁵⁄₁₆ ³⁄₁₆ 275
TYTP-516316-50 50 0.063 ⁵⁄₁₆ ³⁄₁₆ 275
TYTP-516316-100 100 0.063 ⁵⁄₁₆ ³⁄₁₆ 275
TYTP-51614-25 25 0.03 ⁵⁄₁₆ ¹⁄₄ 130
TYTP-51614-50 50 0.03 ⁵⁄₁₆ ¹⁄₄ 130
TYTP-51614-100 100 0.03 ⁵⁄₁₆ ¹⁄₄ 130
TYTP-3814-25 25 0.063 ³⁄₈ ¹⁄₄ 225
TYTP-3814-50 50 0.063 ³⁄₈ ¹⁄₄ 225
TYTP-3814-100 100 0.063 ³⁄₈ ¹⁄₄ 225
Ordering Example: TYTP-532332-50, 50' of tubing. 0.03" wall, 5⁄32" OD, 3⁄32" ID.
T-X
Page 2
OMEGAFLEX® Chemical Tubing
PFA FORMULATION
To Order
4 to 16 mm OD Metric Diameters
Std Length Wall OD ID psi
Model No. (ft) (mm) (mm) (mm) @73°F
TYTP-42-50 50 1 4 2 400
TYTP-42-100 100 1 4 2 400
TYTP-64-25 25 1 6 4 265
TYTP-64-50 50 1 6 4 265
TYTP-64-100 100 1 6 4 265
TYTP-86-25 25 1 8 6 200
TYTP-86-50 50 1 8 6 200
TYTP-86-100 100 1 8 6 200
TYTP-108-25 25 1 10 8 160
TYTP-108-50 50 1 10 8 160
TYTP-108-100 100 1 10 8 160
TYTP-1210-25 25 1 12 10 130
TYTP-1210-50 50 1 12 10 130
TYTP-1210-100 100 1 12 10 130
Sold in standard lengths of 25, 50, and 100'.
Ordering Example: TYTP-86-50, 50' of tubing, 1 mm wall, 8 mm OD, 6 mm ID.

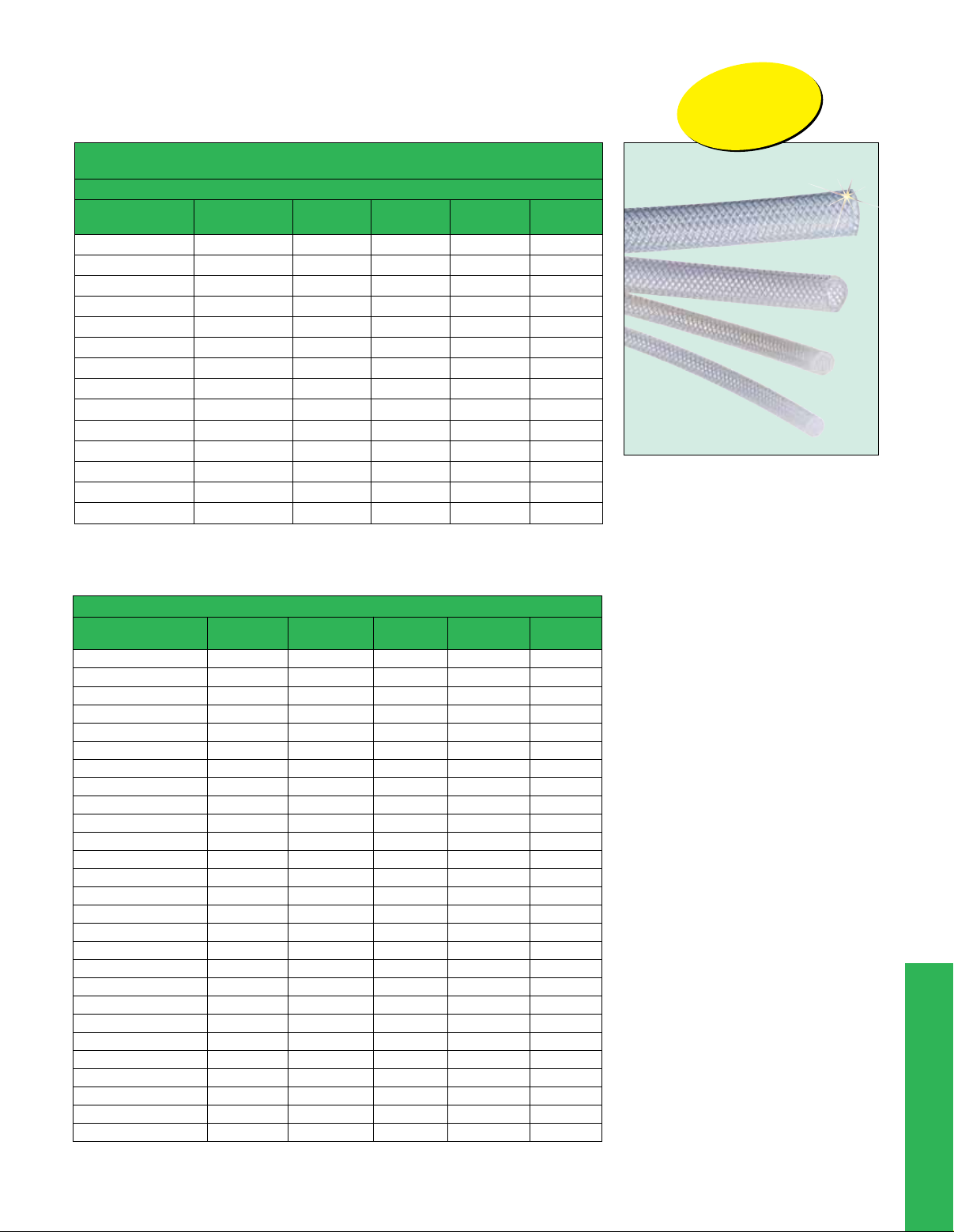

Specialty Tubing
Available!
³⁄₈ to 2 ¹⁄₈" OD TUBING
Length Wall OD ID psi
Model No. (ft) (inch) (inch) (inch) @ 73°F
TYTP-38516-25 25 0.03 ³⁄₈ ⁵⁄₁₆ 105
TYTP-38516-50 50 0.03 ³⁄₈ ⁵⁄₁₆ 105
TYTP-38516-100 100 0.03 ³⁄₈ ⁵⁄₁₆ 105
TYTP-716516-25 25 0.063 ⁷⁄₁₆ ⁵⁄₁₆ 195
TYTP-716516-50 50 0.063 ⁷⁄₁₆ ⁵⁄₁₆ 195
TYTP-716516-100 100 0.063 ⁷⁄₁₆ ⁵⁄₁₆ 195
TYTP-71638-25 25 0.03 ⁷⁄₁₆ ³⁄₈ 90
TYTP-71638-50 50 0.03 ⁷⁄₁₆ ³⁄₈ 90
TYTP-71638-100 100 0.03 ⁷⁄₁₆ ³⁄₈ 90
TYTP-1238-25 25 0.063 ¹⁄₂ ³⁄₈ 425
TYTP-1238-50 50 0.063 ¹⁄₂ ³⁄₈ 425
TYTP-1238-100 100 0.063 ¹⁄₂ ³⁄₈ 425
TYTP-916716-25 25 0.063 ⁹⁄₁₆ ⁷⁄₁₆ 150
TYTP-916716-50 50 0.063 ⁹⁄₁₆ ⁷⁄₁₆ 150
TYTP-916716-100 100 0.063 ⁹⁄₁₆ ⁷⁄₁₆ 150
TYTP-91612-25 25 0.03 ⁹⁄₁₆ ¹⁄₂ 70
TYTP-91612-50 50 0.03 ⁹⁄₁₆ ¹⁄₂ 70
TYTP-91612-100 100 0.03 ⁹⁄₁₆ ¹⁄₂ 70
TYTP-5812-25 25 0.063 ⁵⁄₈ ¹⁄₂ 135
TYTP-5812-50 50 0.063 ⁵⁄₈ ¹⁄₂ 135
TYTP-5812-100 100 0.063 ⁵⁄₈ ¹⁄₂ 135
TYTP-3458-25 25 0.063 ³⁄₄ ⁵⁄₈ 115
TYTP-3458-50 50 0.063 ³⁄₄ ⁵⁄₈ 115
TYTP-3458-100 100 0.063 ³⁄₄ ⁵⁄₈ 115
TYTP-178-25 25 0.063 1 ⁷⁄₈ 85
TYTP-1101-5 5 Straight 0.05 1.10 1 60
TYTP-1181-5 5 Straight 0.063 1¹⁄₈ 1 75
Ordering Example: TYTP-5812-100, 100', 0.063” wall, 5⁄8" OD, 1⁄2" ID.
