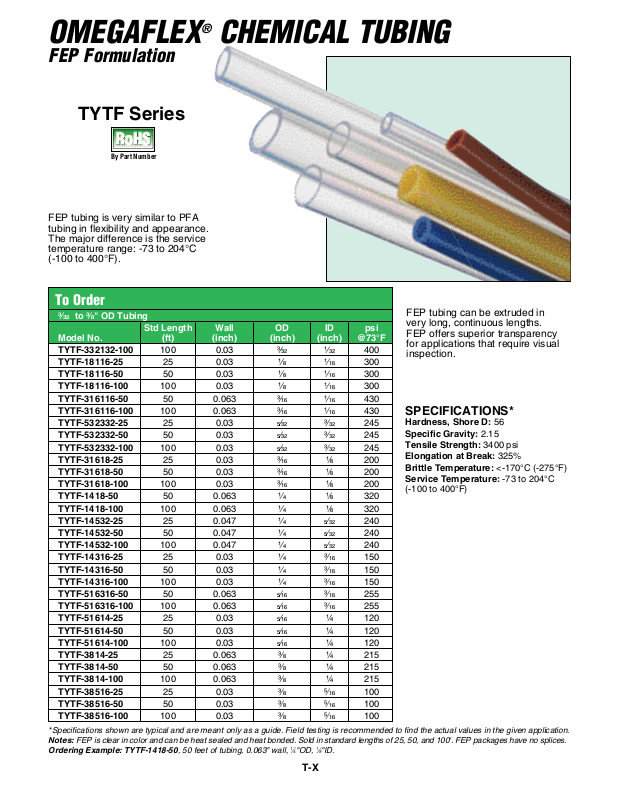

OMEGAFLEX® CHEMICAL TUBING
FEP Formulation
TYTF Series
By Part Number
FEP tubing is very similar to PFA
tubing in flexibility and appearance.
The major difference is the service
temperature range: -73 to 204°C
(-100 to 400°F).
To Order
³⁄₃₂ to ³⁄₈" OD Tubing
Std Length Wall OD ID psi
Model No. (ft) (inch) (inch) (inch) @73°F
TYTF-332132-100 100 0.03 ³⁄₃₂ ¹⁄₃₂ 400
TYTF-18116-25 25 0.03 ¹⁄₈ ¹⁄₁₆ 300
TYTF-18116-50 50 0.03 ¹⁄₈ ¹⁄₁₆ 300
TYTF-18116-100 100 0.03 ¹⁄₈ ¹⁄₁₆ 300
TYTF-316116-50 50 0.063 ³⁄₁₆ ¹⁄₁₆ 430
TYTF-316116-100 100 0.063 ³⁄₁₆ ¹⁄₁₆ 430
TYTF-532332-25 25 0.03 ₅⁄₃₂ ³⁄₃₂ 245
TYTF-532332-50 50 0.03 ₅⁄₃₂ ³⁄₃₂ 245
TYTF-532332-100 100 0.03 ₅⁄₃₂ ³⁄₃₂ 245
TYTF-31618-25 25 0.03 ³⁄₁₆ ¹⁄₈ 200
TYTF-31618-50 50 0.03 ³⁄₁₆ ¹⁄₈ 200
TYTF-31618-100 100 0.03 ³⁄₁₆ ¹⁄₈ 200
TYTF-1418-50 50 0.063 ¹⁄₄ ¹⁄₈ 320
TYTF-1418-100 100 0.063 ¹⁄₄ ¹⁄₈ 320
TYTF-14532-25 25 0.047 ¹⁄₄ ₅⁄₃₂ 240
TYTF-14532-50 50 0.047 ¹⁄₄ ₅⁄₃₂ 240
TYTF-14532-100 100 0.047 ¹⁄₄ ₅⁄₃₂ 240
TYTF-14316-25 25 0.03 ¹⁄₄ ³⁄₁₆ 150
TYTF-14316-50 50 0.03 ¹⁄₄ ³⁄₁₆ 150
TYTF-14316-100 100 0.03 ¹⁄₄ ³⁄₁₆ 150
TYTF-516316-50 50 0.063 ₅⁄₁₆ ³⁄₁₆ 255
TYTF-516316-100 100 0.063 ₅⁄₁₆ ³⁄₁₆ 255
TYTF-51614-25 25 0.03 ₅⁄₁₆ ¹⁄₄ 120
TYTF-51614-50 50 0.03 ₅⁄₁₆ ¹⁄₄ 120
TYTF-51614-100 100 0.03 ₅⁄₁₆ ¹⁄₄ 120
TYTF-3814-25 25 0.063 ³⁄₈ ¹⁄₄ 215
TYTF-3814-50 50 0.063 ³⁄₈ ¹⁄₄ 215
TYTF-3814-100 100 0.063 ³⁄₈ ¹⁄₄ 215
TYTF-38516-25 25 0.03 ³⁄₈ ⁵⁄₁₆ 100
TYTF-38516-50 50 0.03 ³⁄₈ ⁵⁄₁₆ 100
TYTF-38516-100 100 0.03 ³⁄₈ ⁵⁄₁₆ 100
*Specifications shown are typical and are meant only as a guide. Field testing is recommended to find the actual values in the given application.
Notes: FEP is clear in color and can be heat sealed and heat bonded. Sold in standard lengths of 25, 50, and 100'. FEP packages have no splices.
Ordering Example: TYTF-1418-50, 50 feet of tubing, 0.063" wall, 1⁄4"OD, 1⁄8"ID.
FEP tubing can be extruded in
very long, continuous lengths.
FEP offers superior transparency
for applications that require visual
inspection.
SPECIFICATIONS*
Hardness, Shore D: 56
Specific Gravity: 2.15
Tensile Strength: 3400 psi
Elongation at Break: 325%
Brittle Temperature: <-170°C (-275°F)
Service Temperature: -73 to 204°C
(-100 to 400°F)
T-X
Page 2
To Order
4 to 16 mm OD Tubing, Metric Diameters
Std Length Wall OD ID psi
Model No. (ft) (mm) (mm) (mm) @73°F
TYTF-42-50 50 1 4 2 320
TYTF-42-100 100 1 4 2 320
TYTF-64-50 50 1 6 4 210
TYTF-64-100 100 1 6 4 210
TYTF-86-50 50 1 8 6 160
TYTF-86-100 100 1 8 6 160
TYTF-108-25 25 1 10 8 125
TYTF-108-50 50 1 10 8 125
TYTF-108-100 100 1 10 8 125
TYTF-1210-25 25 1 12 10 105
TYTF-1210-50 50 1 12 10 105
TYTF-1210-100 100 1 12 10 105
TYTF-1412-25 25 1 14 12 90
TYTF-1412-50 50 1 14 12 90
TYTF-1412-100 100 1 14 12 90
* Specifications on previous page are typical and are meant only as a guide. Field testing is
recommended to find the actual values in the given application.
Notes: FEP is clear in color and can be heat sealed and heat bonded.
Sold in standard coil lengths of 5, 50, and 100'. FEP packages have no splices.
Consult Sales for available non-standard colors.
Ordering Example: TYTF-1210-100, 100 feet of tubing, 1 mm wall, 12 mm OD, 10 mm ID.
Specialty Tubing
Available!
To Order
⁷⁄₁₆ to 2¹⁄₈" OD Tubing
Length Wall OD ID psi
Model No. (ft) (inch) (inch) (inch) @73°F
TYTF-716516-25 25 0.063 ⁷⁄₁₆ ⁵⁄₁₆ 185
TYTF-716516-50 50 0.063 ⁷⁄₁₆ ⁵⁄₁₆ 185
TYTF-716516-100 100 0.063 ⁷⁄₁₆ ⁵⁄₁₆ 185
TYTF-71638-25 25 0.03 ⁷⁄₁₆ ³⁄₈ 85
TYTF-71638-50 50 0.03 ⁷⁄₁₆ ³⁄₈ 85
TYTF-71638-100 100 0.03 ⁷⁄₁₆ ³⁄₈ 85
TYTF-1238-25 25 0.063 ¹⁄₂ ³⁄₈ 160
TYTF-1238-50 50 0.063 ¹⁄₂ ³⁄₈ 160
TYTF-1238-100 100 0.063 ¹⁄₂ ³⁄₈ 160
TYTF-12716-25 25 0.03 ¹⁄₂ ⁷⁄₁₆ 75
TYTF-12716-50 50 0.03 ¹⁄₂ ⁷⁄₁₆ 75
TYTF-12716-100 100 0.03 ¹⁄₂ ⁷⁄₁₆ 75
TYTF-91612-25 25 0.03 ₉⁄₁₆ ¹⁄₂ 65
TYTF-91612-50 50 0.03 ₉⁄₁₆ ¹⁄₂ 65
TYTF-91612-100 100 0.03 ₉⁄₁₆ ¹⁄₂ 65
TYTF-5812-25 25 0.063 ⁵⁄₈ ¹⁄₂ 130
TYTF-5812-50 50 0.063 ⁵⁄₈ ¹⁄₂ 130
TYTF-5812-100 100 0.063 ⁵⁄₈ ¹⁄₂ 130
TYTF-3458-25 25 0.063 ³⁄₄ ⁵⁄₈ 105
TYTF-3458-50 50 0.063 ³⁄₄ ⁵⁄₈ 105
TYTF-3458-100 100 0.063 ³⁄₄ ⁵⁄₈ 105
TYTF-178-25 25 0.063 1 ₇⁄₈ 80
TYTF-7834-5 5 Straight 0.063 ₇⁄₈ ³⁄₄ 90
TYTF-1101-5 5 Straight 0.05 1.10 1 55
TYTF-1181-5 5 Straight 0.063 1¹⁄₈ 1 70
TYTF-158112-5 5 Straight 0.063 1⁵⁄₈ 1¹⁄₂ 50
*Specifications on previous page are typical and are meant only as a guide. Field testing is recommended to find the actual values in the
given application.
Notes: FEP is clear in color and can be heat sealed and heat bonded. Sold in standard coil lengths of 25, 50, and 100'. FEP packages have no splices.
T-X
Specialty Tubing
Available!
