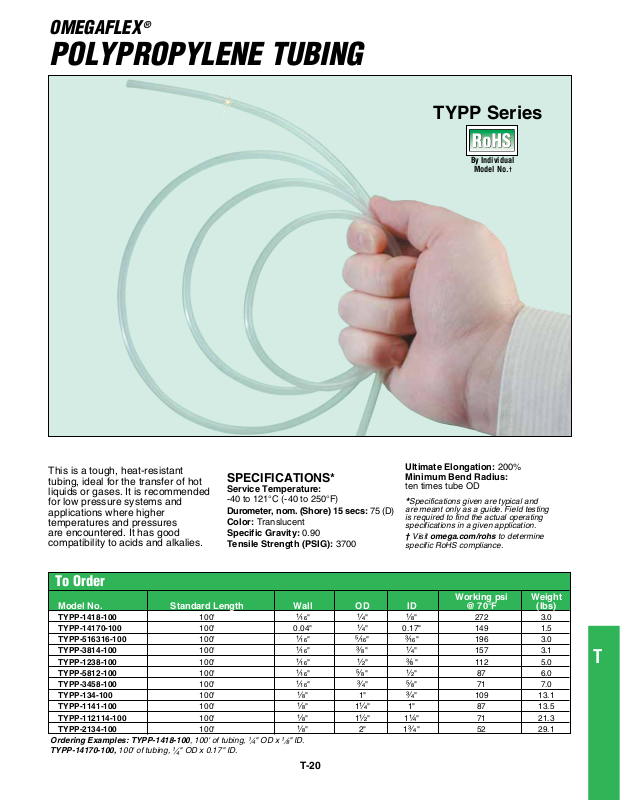

OMEGAFLEX
®
POLyPrOPyLEnE TubinG
TYPP Series
By Individual
Model No.
†
This is a tough, heat-resistant
tubing, ideal for the transfer of hot
liquids or gases. It is recommended
for low pressure systems and
applications where higher
temperatures and pressures
are encountered. It has good
compatibility to acids and alkalies.
SPECIFICATIONS*
Service Temperature:
-40 to 121°C (-40 to 250°F)
Durometer, nom. (Shore) 15 secs: 75 (D)
Color: Translucent
Specific Gravity: 0.90
Tensile Strength (PSIG): 3700
Ultimate Elongation: 200%
Minimum Bend Radius:
ten times tube OD
Specifications given are typical and
*
are meant only as a guide. Field testing
is required to find the actual operating
specifications in a given application.
† Visit omega.com/rohs to determine
specific RoHS compliance.
To Order
Working psi Weight
Model No. Standard Length Wall OD ID @ 70°F (lbs)
TYPP-1418-100 100' ¹⁄₁₆" ¹⁄₄" ¹⁄₈" 272 3.0
TYPP-14170-100 100' 0.04" ¹⁄₄" 0.17" 149 1.5
TYPP-516316-100 100' ¹⁄₁₆" ⁵⁄₁₆" ³⁄₁₆" 196 3.0
TYPP-3814-100 100' ¹⁄₁₆" ³⁄₈ " ¹⁄₄" 157 3.1
TYPP-1238-100 100' ¹⁄₁₆" ¹⁄₂" ³⁄₈ " 112 5.0
TYPP-5812-100 100' ¹⁄₁₆" ⁵⁄₈ " ¹⁄₂" 87 6.0
TYPP-3458-100 100' ¹⁄₁₆" ³⁄₄" ⁵⁄₈" 71 7.0
TYPP-134-100 100' ¹⁄₈" 1" ³⁄₄" 109 13.1
TYPP-1141-100 100' ¹⁄₈" 1¹⁄₄" 1" 87 13.5
TYPP-112114-100 100' ¹⁄₈" 1¹⁄₂" 1¹⁄₄" 71 21.3
TYPP-2134-100 100' ¹⁄₈" 2" 1³⁄₄ " 52 29.1
Ordering Examples: TYPP-1418-100, 100' of tubing,
TYPP-14170-100, 100' of tubing,
1
" OD x 0.17" ID.
⁄
4
1
" OD x
⁄
4
1
" ID.
⁄
8
T-20
