TXUN-FD

Hart Temperature Transmitter

Field Display

omega.com [email protected]

Servicing North America:

U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)

Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.

Table of

Contents

TXUN-FD

Section 1 Warning ............................................................................... 4

Section 2 Applications ........................................................................... 5

Section 3 Order .................................................................................. 6-8

Accessories .................................................................................. 6

Technical data ................................................................................ 6-8

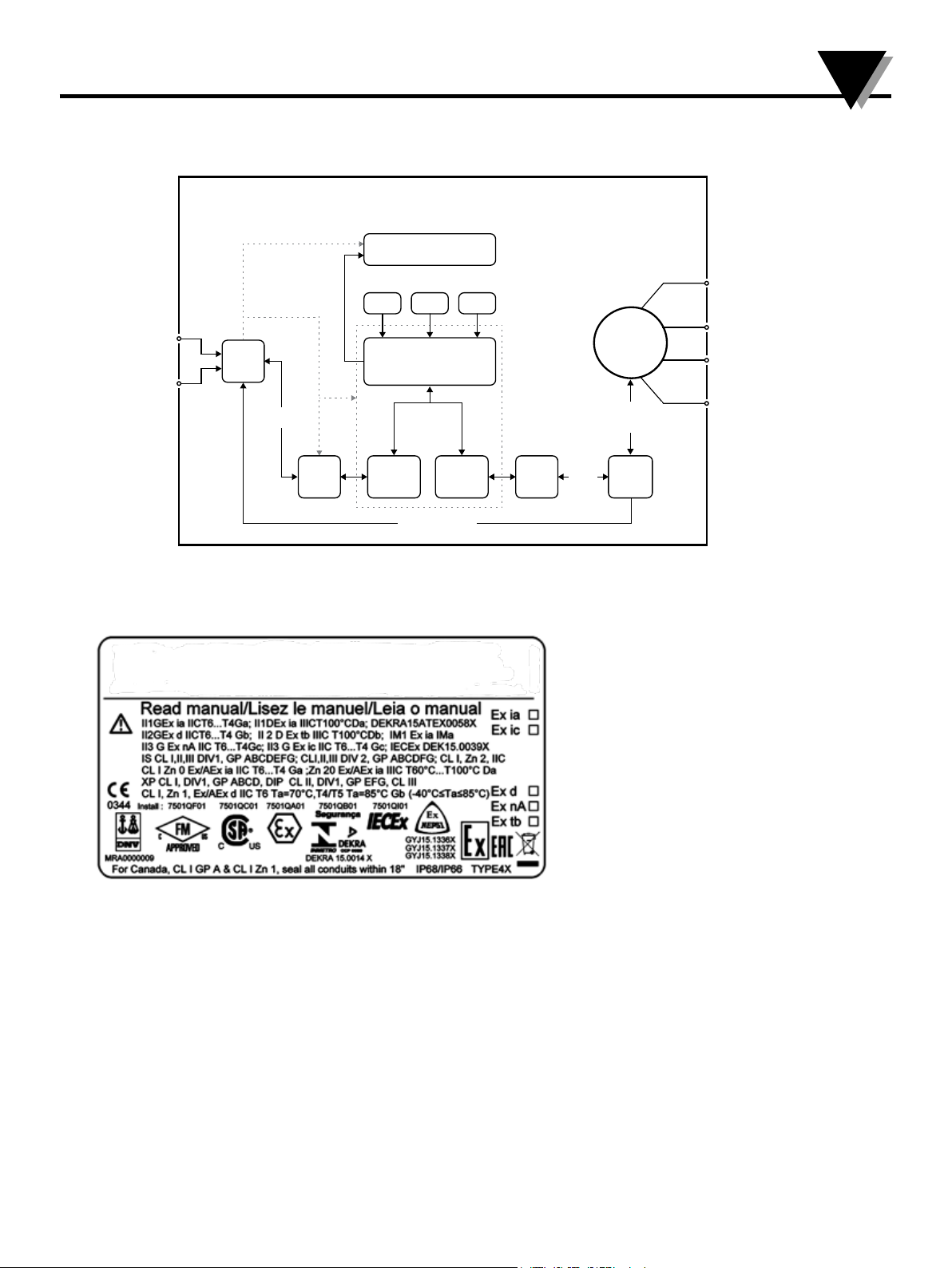

Section 4 Block diagram ......................................................................... 9

Marking ..................................................................................... 9

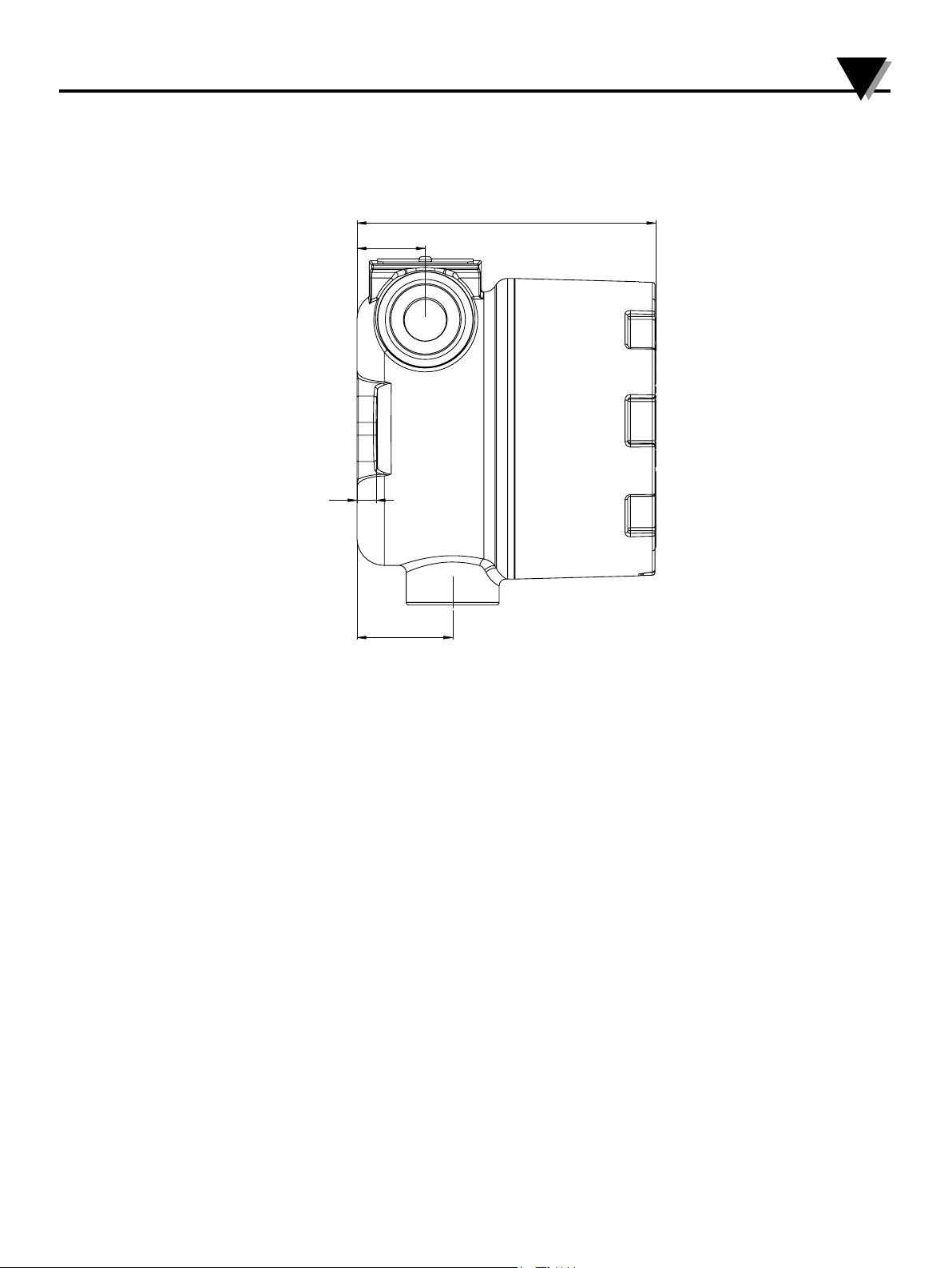

Section 5 Mechanical specications ................................................................ 10-11

Section 6 Mounting .............................................................................. 12-13

Section 7 Protection degree ....................................................................... 14

Section 8 Assembly and disassembly .............................................................. 15-19

Section 9 Connections ............................................................................ 20

Section 10 Optical buttons ........................................................................ 21

Operating the optical buttons................................................................... 21

Display...................................................................................... 21

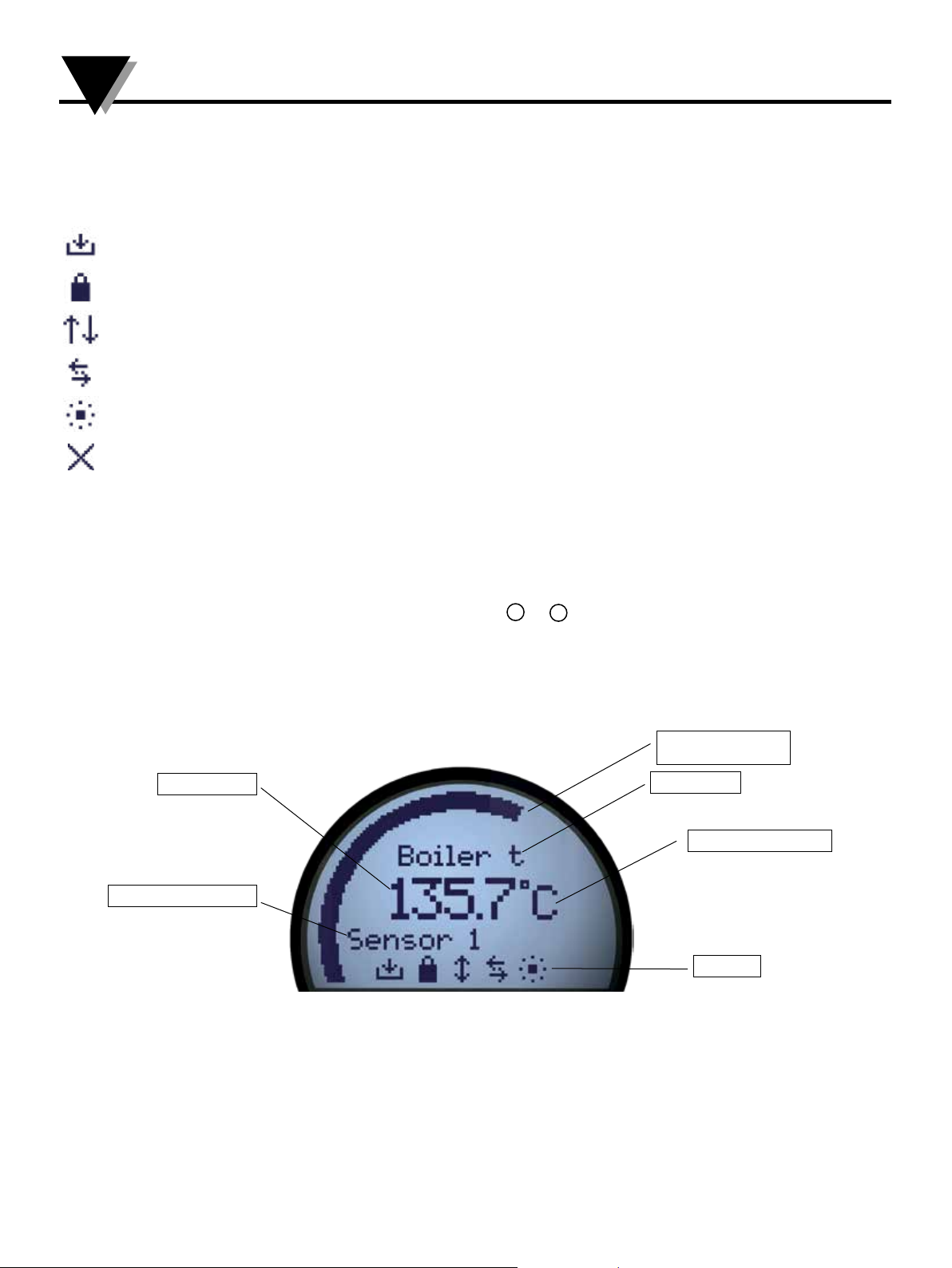

Section 11 Monitor View ......................................................................... 22-23

Section 12 Device and sensor status indication ...................................................... 24

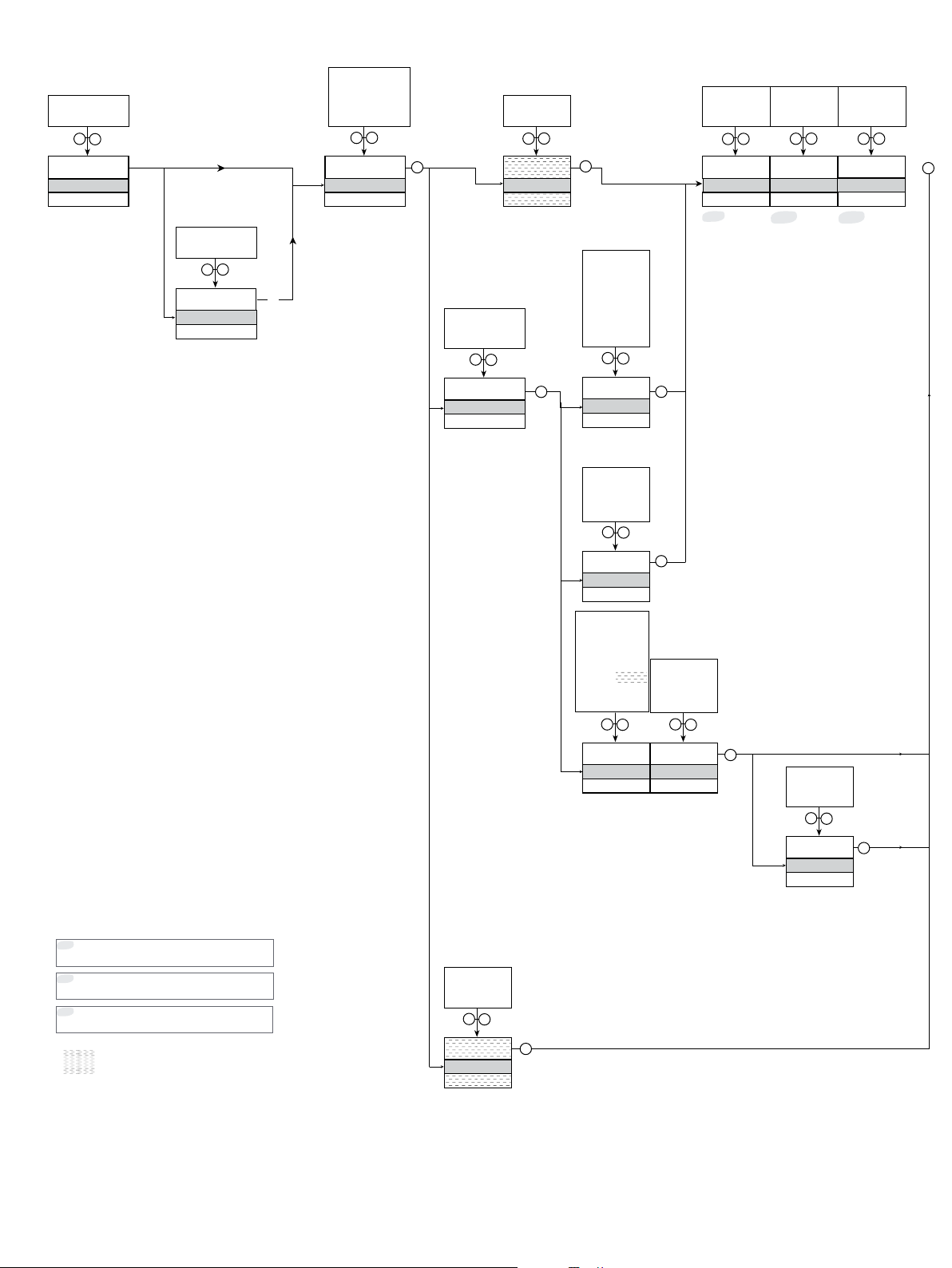

Section 13 Display menu ......................................................................... 25-32

Display ...................................................................................... 28

Tags ......................................................................................... 28

Calibration................................................................................... 29

Simulation ................................................................................... 30

Sensor ....................................................................................... 31

HART ....................................................................................... 31

Write-protect ................................................................................. 32

Language .................................................................................... 32

HART Revision............................................................................... 32

Section 14 Help text overview ..................................................................... 33-34

Section 15 Programming.......................................................................... 37

Section 16 Changing the HART protocol version .................................................... 38

Section 17 Connection of transmitter in multidrop mode ............................................. 38

Section 18 Retrot ............................................................................... 40

Section 19 Appendix ............................................................................. 41

ATEX Installation Drawing .................................................................... 42

IECEx Installation Drawing .................................................................... 48

FM Installation Drawing ...................................................................... 54

CSA Installation Drawing ..................................................................... 59

Desenho de instalaçao INMETRO .............................................................. 62

Section 20 Document history...................................................................... 71

2

1

Warning

Section 1 - Warning

Only technicians, who are familiar with the technical terms, warnings, and instructions in the manual
and who are able to follow these, should connect the device.

Should there be any doubt as to the correct handling of the device, please contact Omega Engineering
Tech Suppor t A/S.

Mounting and connection of the device should comply with national legislation for mounting of electric
materials.

Repair of the device must be done by Omega Team A/S only.

Do not remove the transmitter cover in explosive atmospheres when the circuit is live.

The transmitter cover must be fully engaged to meet the explosion proof requirements.

If installed under high-vibration conditions, the transmitter may require supplementary support.

For installation in hazardous area the corresponding installation drawing must be followed in detail.

Take care not to generate mechanical sparking when accessing the instrument and peripheral devices in
a hazardous location.

3

Field mounted HART temperature transmitter TXUN-FD

• RTD, TC, Ohm, and bipolar mV input and analog output

• High definition local operator interface (LOI) with 3 optical buttons

• Selectable red or white backlight

• Ex d explosion proof / flameproof in aluminum or 316 stainless steel version

• HART 7 functionality with HART 5 compatibility

Section 2.1 - Applications

High defintion display

• 0, 90, 180, & 270 degree position adjustments.

• Monitoring, programming and diagnostics view.

• Extensive diagnostics with flashing red or white backlight

• Supports 7 languages.

Local operator interface (LOI)

• 3 optical buttons; up, down and enter.

• Dynamically adaptive to wear or accumulation of dirt.

• Immune to interference from ambient light sources.

• Useable with or without gloves.

Configuration

• From the LOI through the Omega guided menu.

• OMset and HART modem.

• HHC, DCS or AMS via HART.

Input signals:

RTD to 4...20 mA

TC to 4...20 mA

Application

+

-

2

Mounting / installation

• For installation in zone 0, 1, 2 and zone 20, 21, 22,and in
Class 1, Division 1 and 2 applications.

• Hardware assessed for use in SIL 2 applications.

• Mounting on 1.5”–2” pipe bracket or on wall / bulkhead.

Application

• Linearized temperature measurement with TC and RTD
sensors e.g. Pt100 and Ni100.

• HART communication and 4...20 mA analog PV output for
individual, difference or average temperature
measurement of up to two RTD or TC input sensors.

• Conversion of linear resistance to a standard analog
current signal, e.g from valves or Ohmic level sensors.

• Amplification of bipolar mV signals to standard 4...20 mA
current signals.

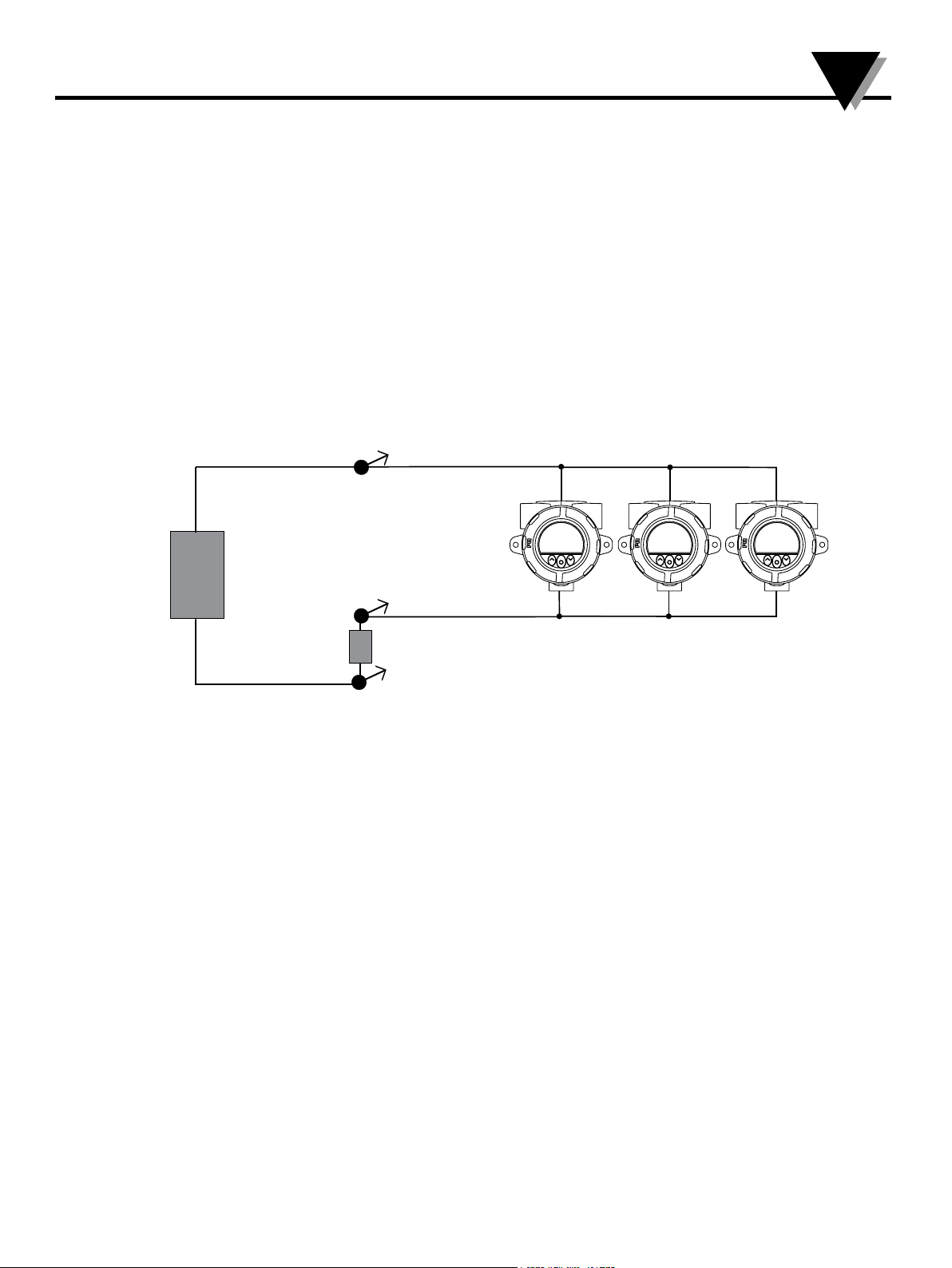

• Up to 63 transmitters (HART 7) can be connected in a
multidrop communication setup.

Technical characteristics

• NAMUR NE43 and NE89.

• HART protocol revision can be changed by user
configuration to either HART 5 or HART 7 protocol.

Resistance to 4...20 mA

mV to 4...20 mA

Difference or average

RTD, TC or mV

2-wire output and HART:

1

2

+

-

2

-

+

21

1

-

+

21

+-

+-

Ex ia: 10...30 VDC

(12...30 VDC with back­light)

Other: 10...35 VDC

(12...35 VDC with back­light)

4...20 mA

4

3

Order

Order

Type Housing

TXUN-FDLow copper

aluminum (AL)

TXUN-FD316 Stainless

steel (RF)

Local operator

interface

Optical
buttons

: A No

No

Yes

Yes Yes : 3 Yes : 1 Hazardous area: 2 Gray: GY

: B No

Yes

Display

No

Yes

Yes

Yes

Yes

: 1

: 2

: 3

: 2

: 3

O-ring

-40 to +85°C
silicone rubber

-20 to +85°C
FKM rubber

-40 to +85°C
silicone rubber

-20 to +85°C
FKM rubber

(D1, D2 & D3)

: A

M20x1.5 6H : 1

: B

½ NPT mod. : 2

: A

M20x1.5 6H : 1

: B

½ NPT mod. : 2

Conduit

thread

Paint

type

Epoxy : A

Epoxy + poly­urethane : B

None : N Ye s

Yes

No (comes with
a connection kit)

No (comes with
a connection kit)

Transmitter Approvals

: 1

General
purpose: 1

: 2

Hazardous area: 2

: 1

General purpose: 1

Hazardous area: 2

: 2

Cover color

Red: -

Steel: -

Examples: TXUN-FDA1B1A22 = Aluminum, blind cover, FKM rubber O-ring, M20x1.5 6H conduit, epoxy, connection kit,

hazardous installation, red

TXUN-FDA3A1A12GY = Aluminum, Local Operator Interface, silicone rubber O-ring, M20x1.5 6H conduit,

Accessories

epoxy, HART TT, hazardous installation, gray

8550 = TXUN-FD M20 plug text alu encl. silicone O-ring
8550-F = TXUN-FD M20 plug text alu encl. FKM O-ring
8550-S = TXUN-FD M20 plug text stainless steel encl. silicone O-ring
8550-SF = TXUN-FD M20 plug text stainless steel encl. FKM O-ring
8551 = TXUN-FD NPT plug alu encl.
8551-S = TXUN-FD NPT plug text stainless steel encl.
8552 = Pipe-mounting bracket P5-B-N (1½”-2”)
8555 = Display spare part with LOI
8556 = Display spare part without LOI
1117 = 5-point calibration certificate

Technical data

Environmental conditions:

Operating tempeature

with silicone O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C

with FKM O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20°C to +85°C

Reduced LCD performance below -20°C and above +70°C

Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C

Calibration temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20...28°C

Relative humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...100% RH (condensing)

Protection degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP54 / IP66 / IP68 / type 4X

Mechanical specifications:

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ø 110 mm

Dimensions, H x W x D, aluminum / stainless steel . . . . . . . . . . . . . 109.3 x 145 x 126 mm / 107.4 x 145 x 124

Weight approx., aluminum / stainless steel . . . . . . . . . . . . . . . . . . 1.3 / 2.8 kg

Wire size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.13...1.5 mm

2

/ AWG 26...16 stranded wire

Screw terminal torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 Nm

Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IEC 60068-2-6

2...25 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1.6 mm

25...100 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±4 g

Display:

Display resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 x 64 pixels

Number of digits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Response time, button to display . . . . . . . . . . . . . . . . . . . . . . . . < 150 ms

Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Selectable ON / OFF

Backlight color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Selectable white or red

Error indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Selectablewhiteorred(ashing)

5

Common electrical specifications:
Supply voltage, DC:

Ex ia, intrinsically safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10...30 VDC

(12...30 VDC with backlight)

Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10...35 VDC

(12...35 VDC with backlight)

Isolation - test / working . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 kVAC / 50 VAC

Signal / noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 60 dB

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HART

Start-up time (transmitter to display) . . . . . . . . . . . . . . . . . . . . . Max. 5 s

Response time (programmable). . . . . . . . . . . . . . . . . . . . . . . . . . 1...60 s

Long term stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1% of span / year

Accuracy, the greater of general and basic values:

1

TC B

accuracyspecicationrange . . . . . . . . . . . . . . . . . . . . . . . > 400°C

General values

Input type Absolute accuracy Temperaturecoecient

All ≤±0.05%ofspan ≤±0.005%ofspan/°C

Basic values

Input type Basic accuracy Temperaturecoecient

Pt50 - Pt1000 ≤±0.1°C ≤±0.005°C/°C

Ni50 - Ni1000 ≤±0.2°C ≤±0.005°C/°C

Lin. R ≤±0.1Ω ≤±5mΩ/°C

Volt ≤±10μV ≤±0.5µV/°C

TC type: E, J, K, L, N, T, U ≤±0.5°C ≤±0.025°C/°C

1

TC type: B

TC type:B

TC type:B

TC type:B

2

TC B

, Lr, R, S, W3, W5 ≤±1°C ≤±0.1°C/°C

2

3

4

≤±3°C ≤±0.3°C/°C

≤±8°C ≤±0.8°C/°C

notspecied notspecied

accuracyspecicationrange . . . . . . . . . . . . . . . . . . . . . . . > 160°C < 400°C

TC B3 accuracyspecicationrange . . . . . . . . . . . . . . . . . . . . . . . > 85°C < 160°C

4

TC B

accuracyspecicationrange . . . . . . . . . . . . . . . . . . . . . . . < 85°C

TC cold junction compensation . . . . . . . . . . . . . . . . . . . . . . . . . < ±1.0°C

Max.osetoninputsignal . . . . . . . . . . . . . . . . . . . . . . . . . . . 50% of selec. max. value

Input specifications:

EMC-immunityinuence . . . . . . . . . . . . . . . . . . . . . < ±0.1% of span

Extended EMC immunity:

NAMUR NE 21, A criterion, burst . . . . . . . . . . . . . . . . . < ±1% of span

RTD input types:
Pt50, Pt100, Pt200, Pt500, Pt1000, Ni50, Ni100, Ni120, Ni1000

Cable resistance per wire (max.) . . . . . . . . . . . . . . . . . . . . . . . . 5Ω

RTD

type

Pt100
Ni100
Lin. R

Min.

value

-200°C

-60°C

0Ω

Max.

value

+850°C
+250°C

7000Ω

Min.
span

10°C
10°C

25Ω

Standard

IEC 60751

DIN 43760

6

-----

3

Order

(upto50Ωperwireispossiblewithreducedmeasurementaccuracy)

Sensor current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 0.2 mA

TC input types:

Type

B
E

J

K

L

Lr

N
R

S
T
U

W3
W5

Cold junction compensation (CJC): Constant, internal or external via a Pt100 or Ni100 sensor

mV inp u t :

Voltage input range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -800...+800 mV

Min. span . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 mV

Input resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10MΩ

Output specifications:

Signal range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4...20 mA

Min. signal range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 mA

Updating time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 440 ms

Load resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ≤(Vsupply-10)/0.023[Ω]

with backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤(Vsupply-12)/0.023[Ω]

Sensor error detection, programmable . . . . . . . . . . . . . . . . . . . . . 3.5...23 mA

(shorted sensor error detection is ignored at TC and mV input)

NAMUR NE43 Upscale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 mA

NAMUR NE43 Downscale . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 mA

HART protocol revisions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . HART 7 and HART 5

Marine approval:

EU RO Mutual Recognition Type Approval . . . . . . . . . . . . . . . . . . MRA0000009

Ex approvals:

ATEX 2014/34/EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DEKRA 15 ATEX 0058 X

IECEx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IECEx DEK 15.0039 X

cFMus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FM16US0009X / FM16CA0010X

cCSAus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70024231

INMETRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DEKRA 15.0014 X

NEPSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GYJ15.1336X, GYJ15.1337X and

GYJ15.1338X

EAC Ex TR-CU 012/2011 . . . . . . . . . . . . . . . . . . . . . . . . . . . . RU C-DK.GB08.V.01316

Observed authority requirements:

EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/30/EU

RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2011/65/EU

EAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 020/2011

Functional Safety:
Hardware assessed for use in SIL 2 applications

Min.

temperature

0°C

-100°C

-100°C

-180°C

-200°C

-200°C

-180°C

-50°C

-50°C

-200°C

-200°C
0°C
0°C

Max.

temperature

+1820°C
+1000°C
+1200°C
+1372°C

+900°C

+800°C
+1300°C
+1760°C
+1760°C

+400°C

+600°C
+2300°C
+2300°C

Min.
span

100°C

50°C
50°C
50°C
50°C
50°C

50°C
100°C
100°C

50°C

50°C
100°C
100°C

Standard

IEC584
IEC584
IEC584
IEC584

DIN 43710

GOST 3044-84

IEC584
IEC584
IEC584
IEC584

DIN 43710
ASTM E988-90
ASTM E988-90

7

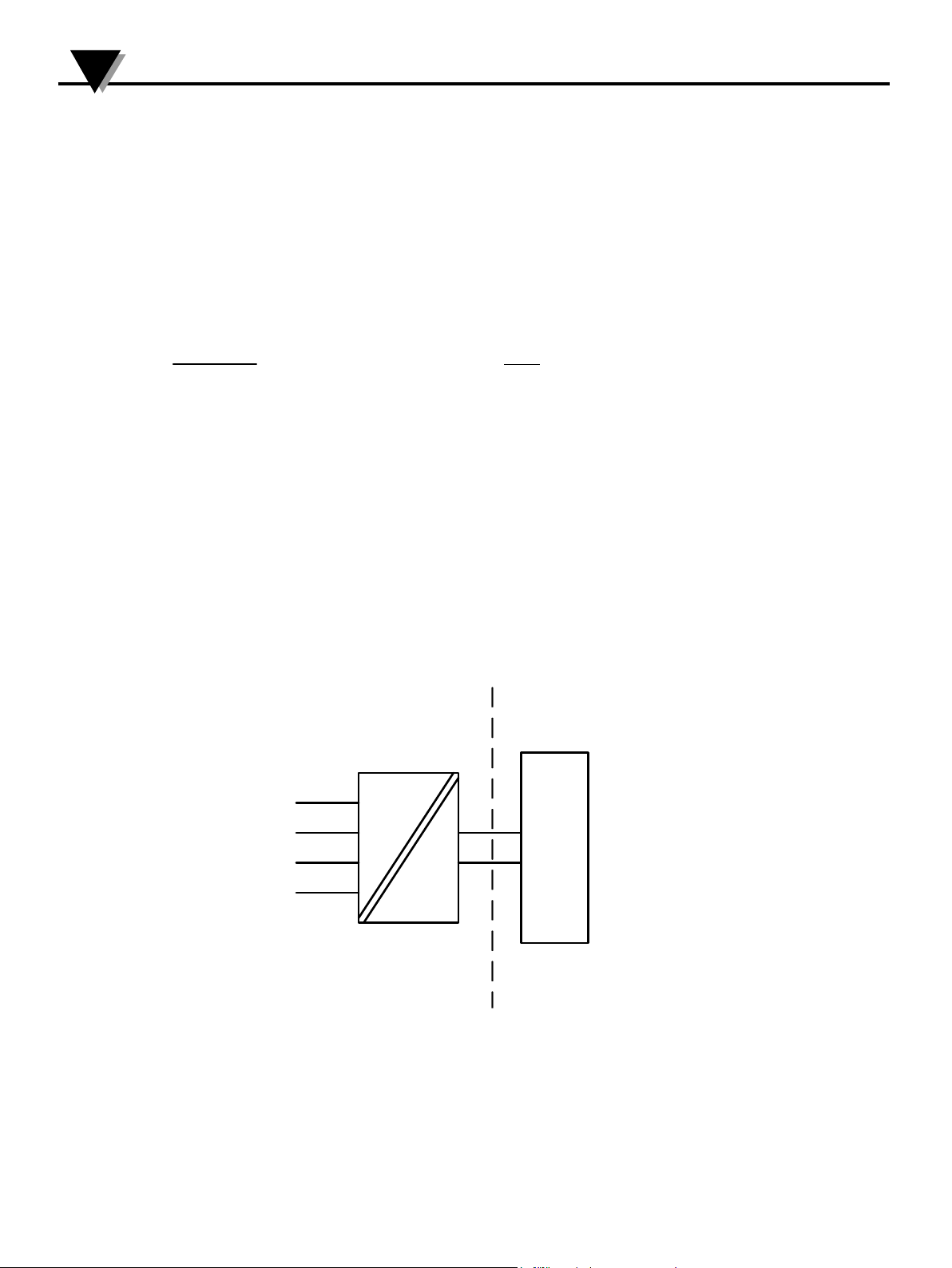

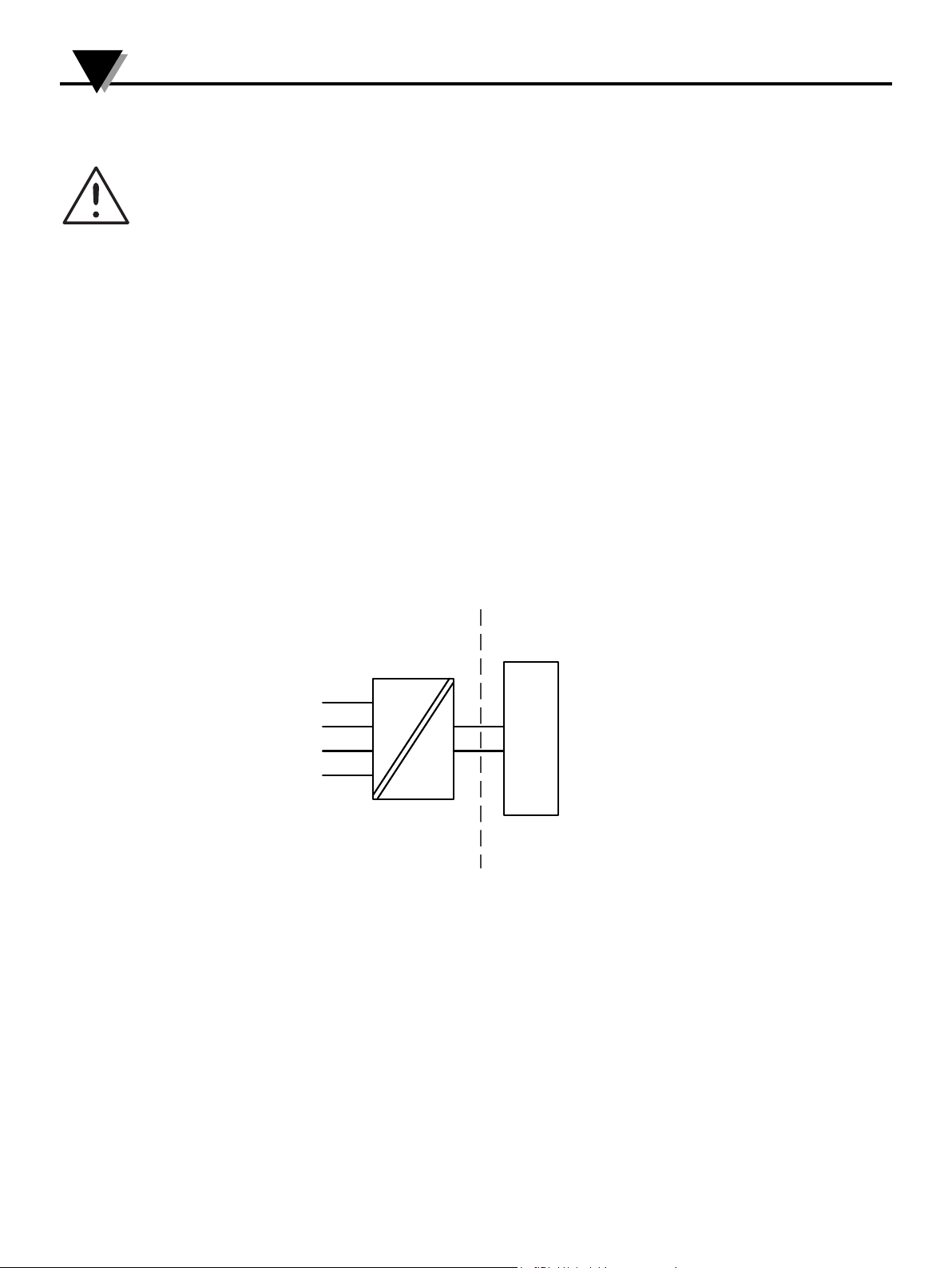

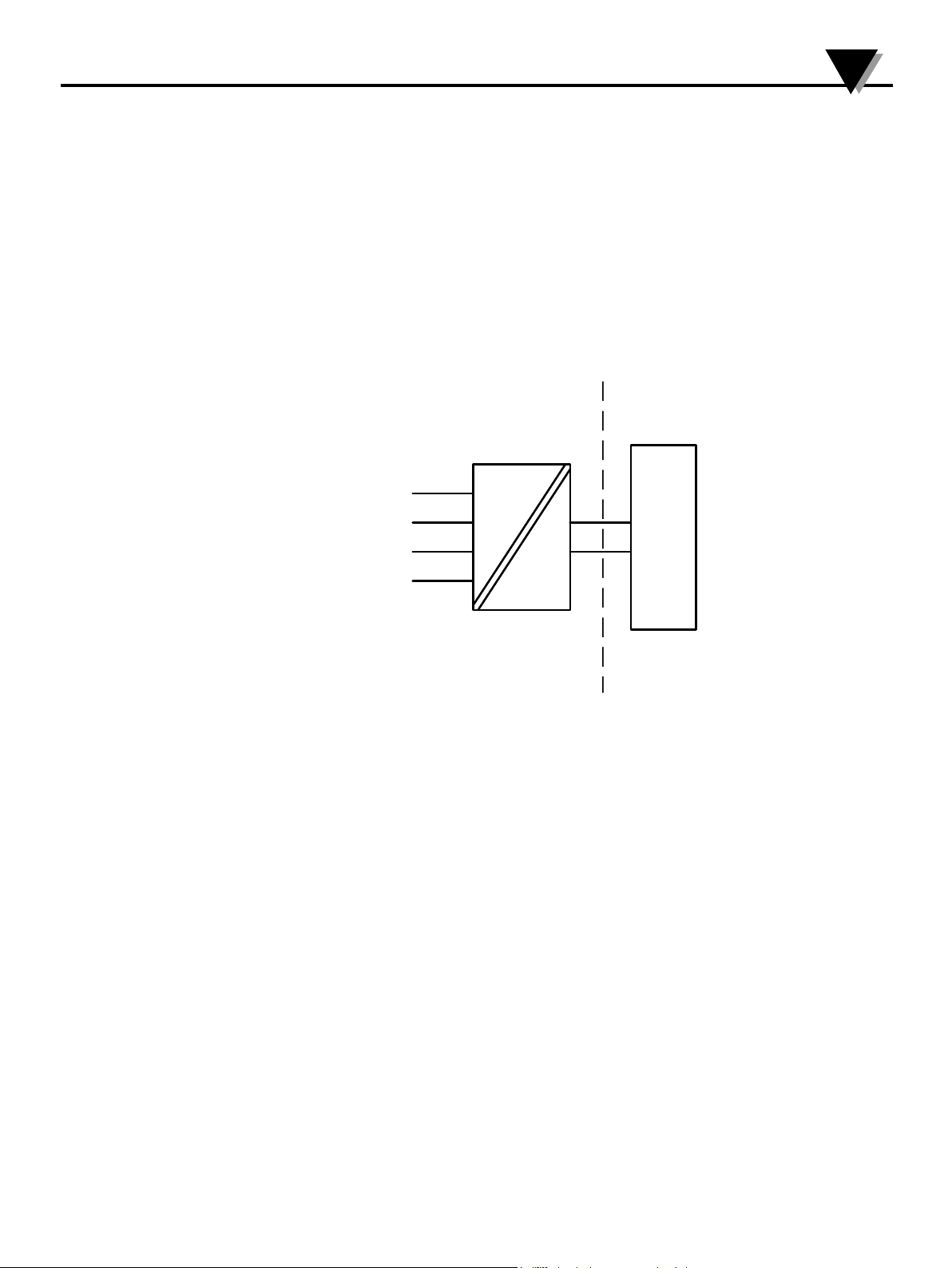

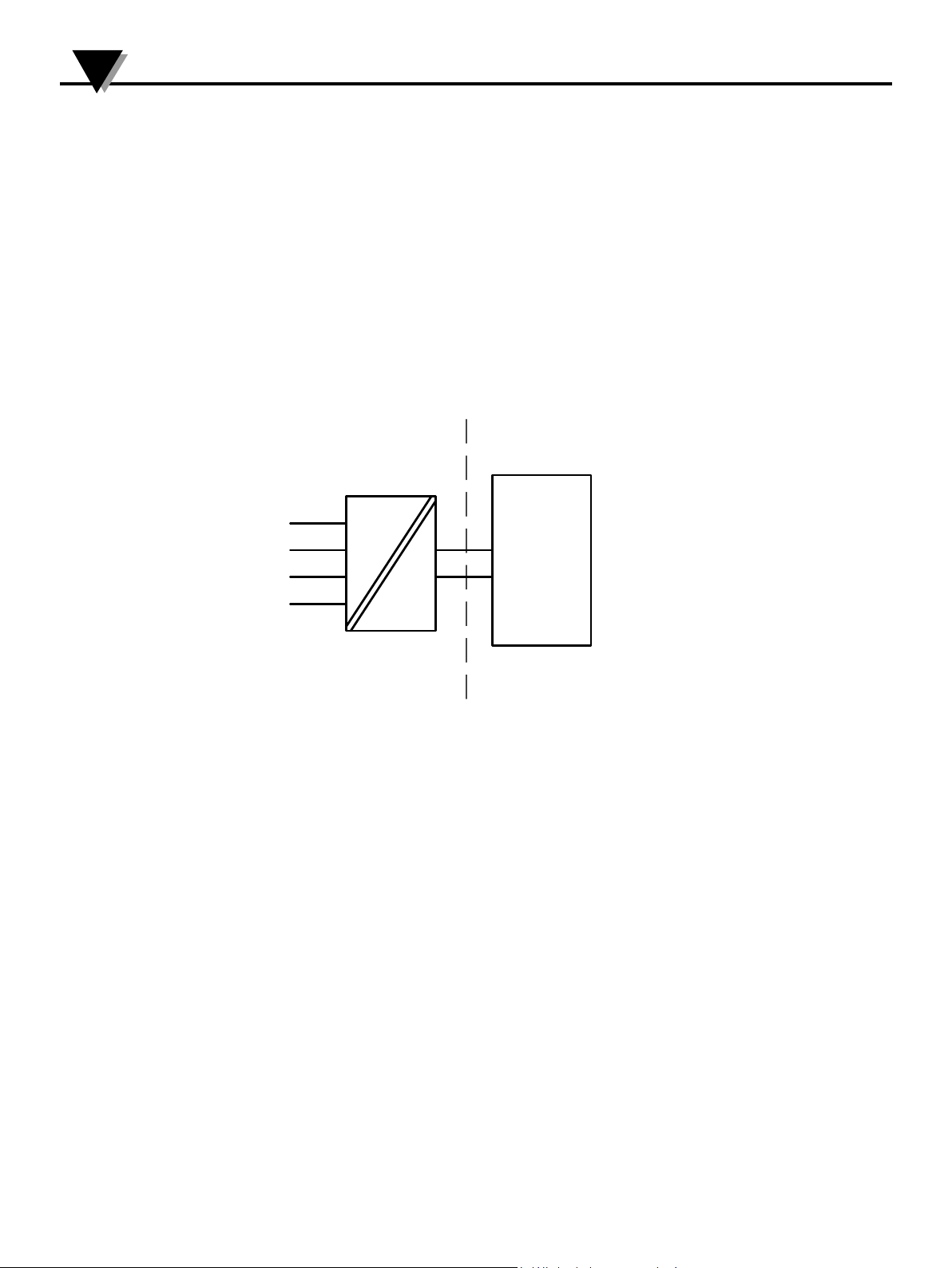

Section 4.1 - Block diagram

TXUN-FD

UP DOWN ENTER

T1

4...20 mA
+ HART

T2

Supply

HART

Display

Application

TXUN-HT

HART

transmitter

4...20 mA
+ HART

Block Diagram

T3

T4

Sensor

T5

T6

4

HART

modem

HART

slave

8 V / 4...20 mA

HART

“master”

HART

modem

HART

Filter

Caution

The ambient temperature range depends on T rating, type of protection and sealing materials, see the installation drawing.

8

145

5

Mechanical specifications

Section 5.1 - Mechanical specifications

It is important to be careful when screwing the cover on or off. The thread surface must be free of any grains,
pellets or other impurities as these can cause the cover to seize or damage the threads.

! Never use force to screw on the cover.

Should it be necessary to open the connection head cover after operation in maximum temperature, please be
aware that the cover may be blocked (does not give when attempting to open it by hand). In this case, keep the
cover under tension with your hand and hit the cover gently with a rubber hammer.

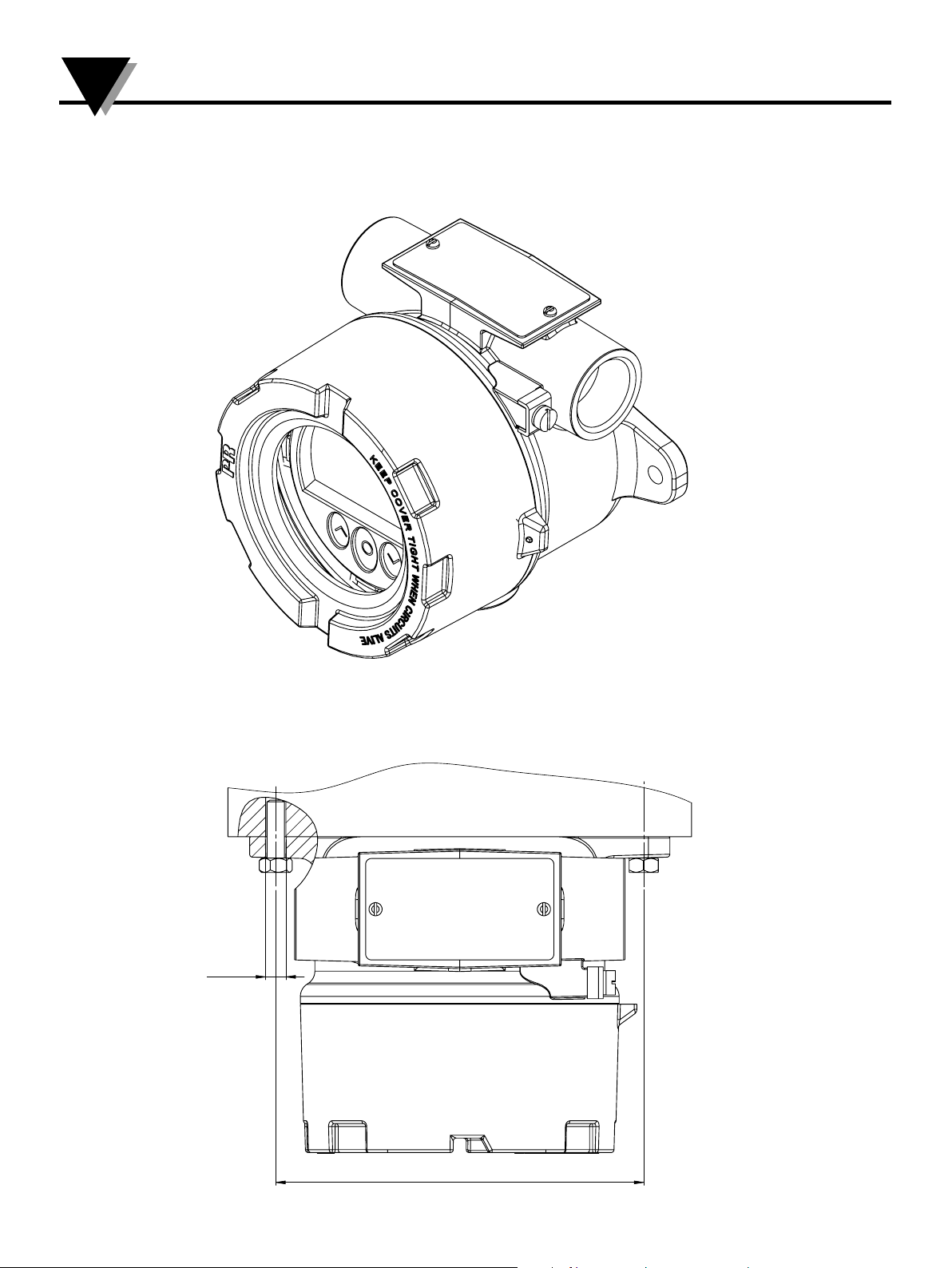

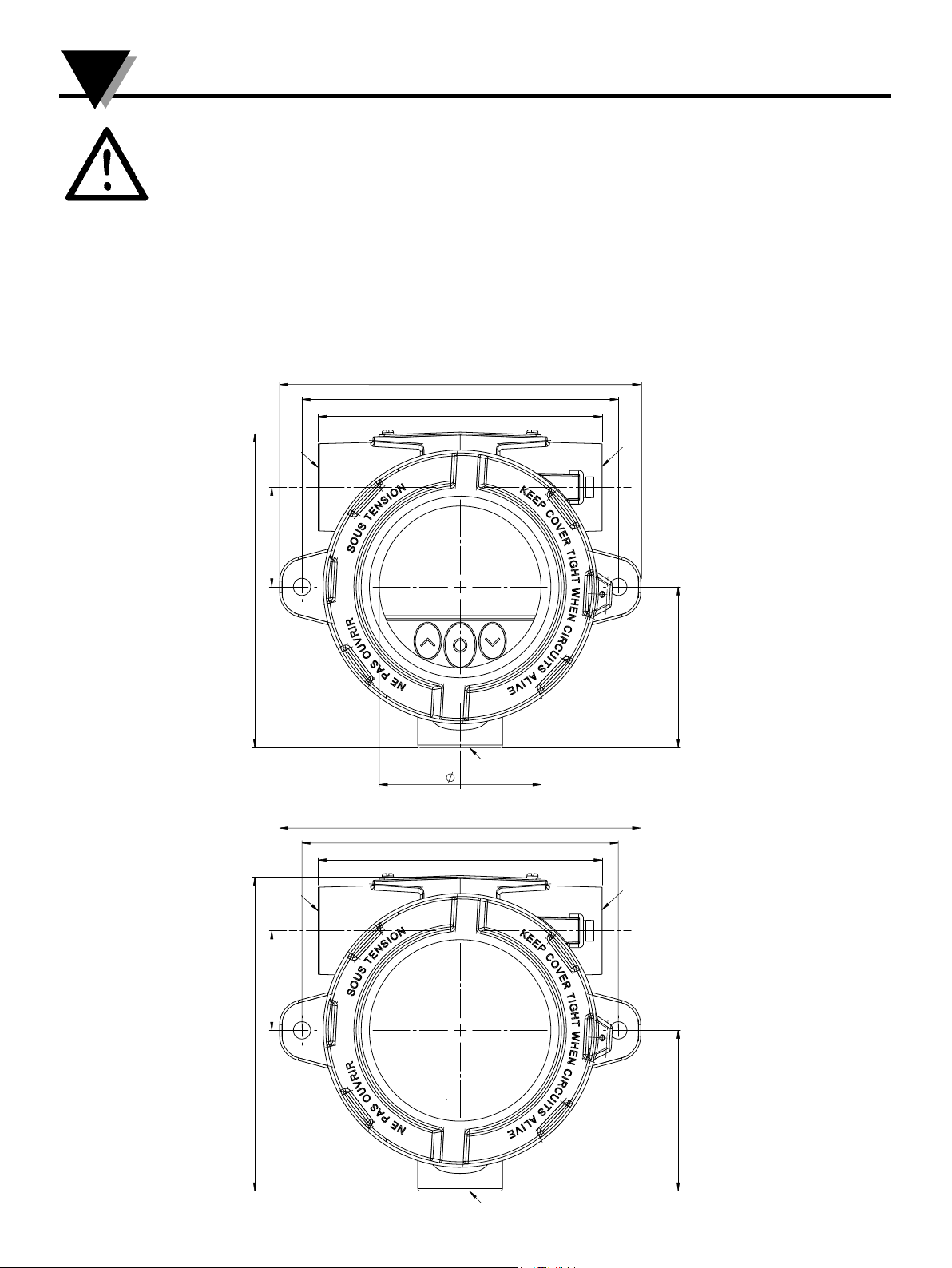

All dimensions below in mm. AL = aluminum version and RF = stainless steel version.

Front view – with buttons and display

145
127

114

D3

40

RF: 124

AL: 126

Front view – no buttons or display

D3

127
114

D2

64,50

D1

65

D2

RF: 124

AL: 126

40

64,50

D1

9

AL: 7

RF: 34

RF: 6

AL: 25 / RF: 24

AL: 109.3

RF: 107.4

Mechanical specifications

5

AL: 35

10

6

Front view – with buttons and display

Mounting

Front view – no buttons or display

2 x Ø 7

127

11

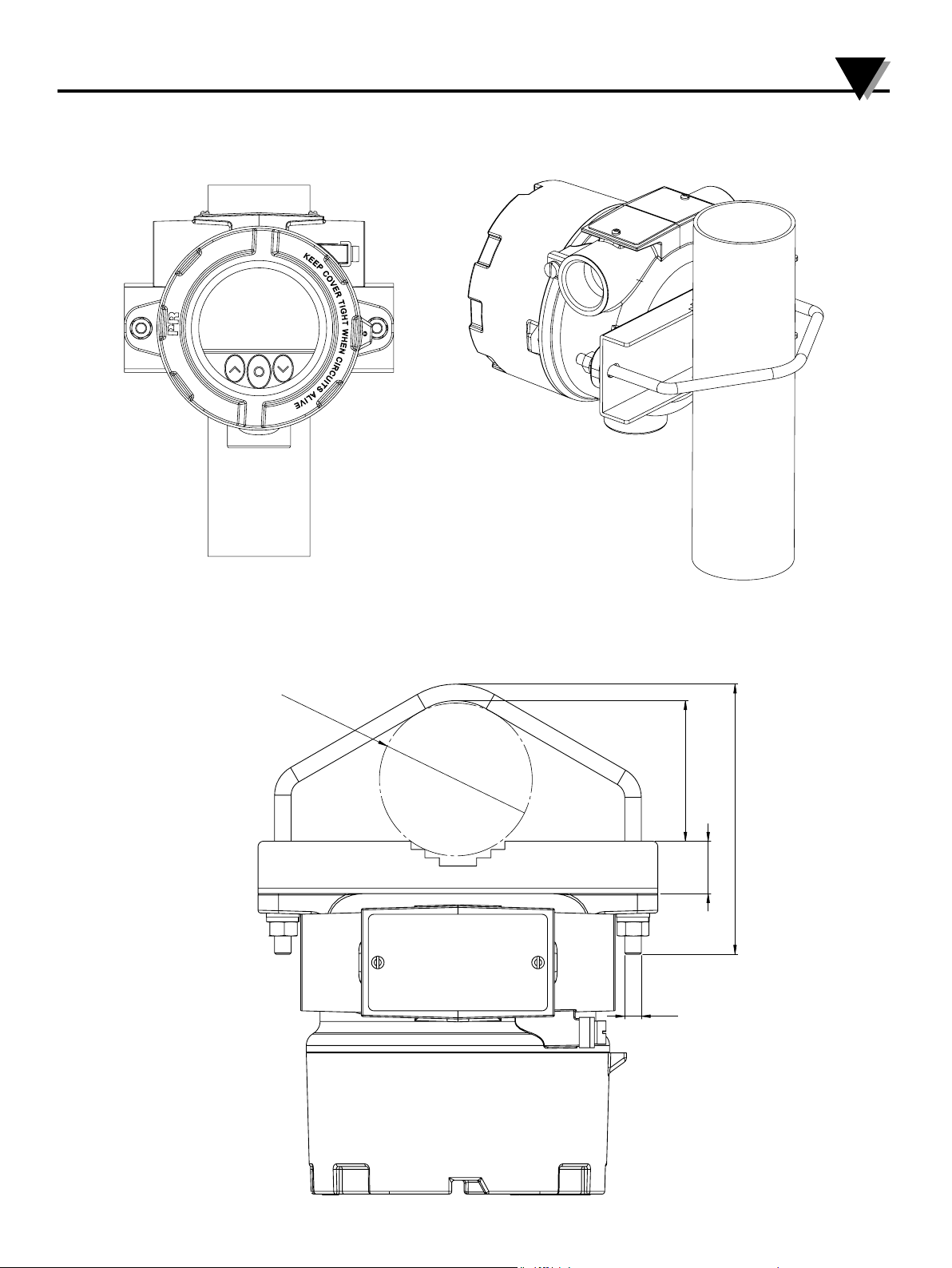

Pipe-mounting – front and back view

Mounting

6

Pipe-mounting – top view

D = 1½" - 2"

51

98

19

M6

12

7

Protection Degree

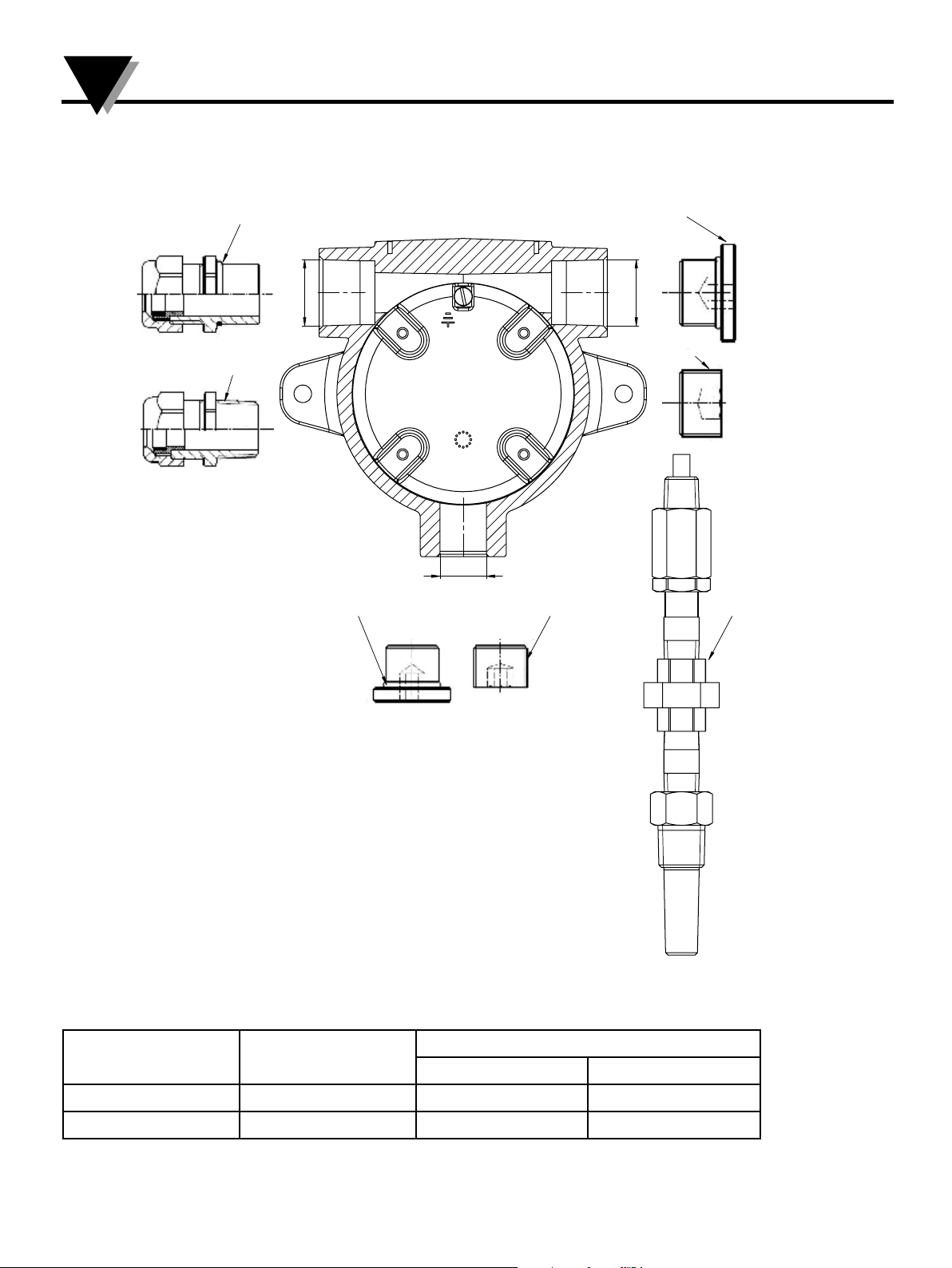

Section 7 - Protection Degree

Cable glands

Sealing washer

Threaded sealant

D3

D1

Threaded sealant

Threaded sealant

Blanking elements

Sealing washer

D2

20 x 1.5

½ NPTmod

SensorSealing washer

20 x 1.5

½ NPTmod

Blind plug M20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP54

With O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP66 - IP68

Blind plug ½” NPT MOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP54

With locktite 577 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP66 - IP68

ProtectiondegreeisdenedbytheconnectionwiththelowestIPrating.
It is optional to connect a sensor to any of the three conduit openings.
Blind plugs are Ex approved only when used together with TXUN-FD.

Earth terminal and protection terminal

Cablecrosssection[mm2]

Placement Typ e

Stranded wire Solid wire

Inside Protection terminal 1.5 2.5

Outside Earth terminal 4.0 6.0

13

A-F = 2mm

Assembly & Disassembly

8

Section 8 - Protection Degree

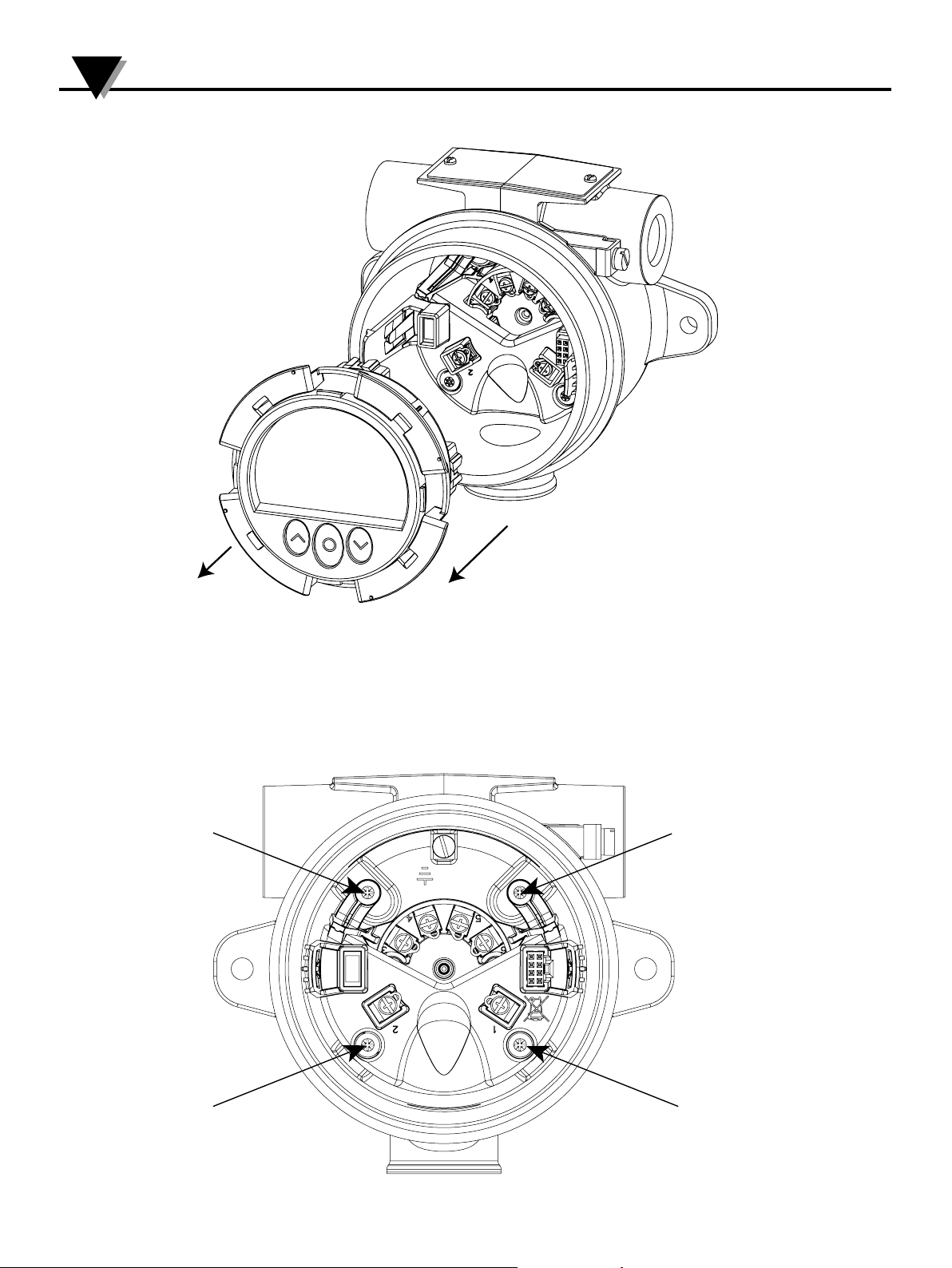

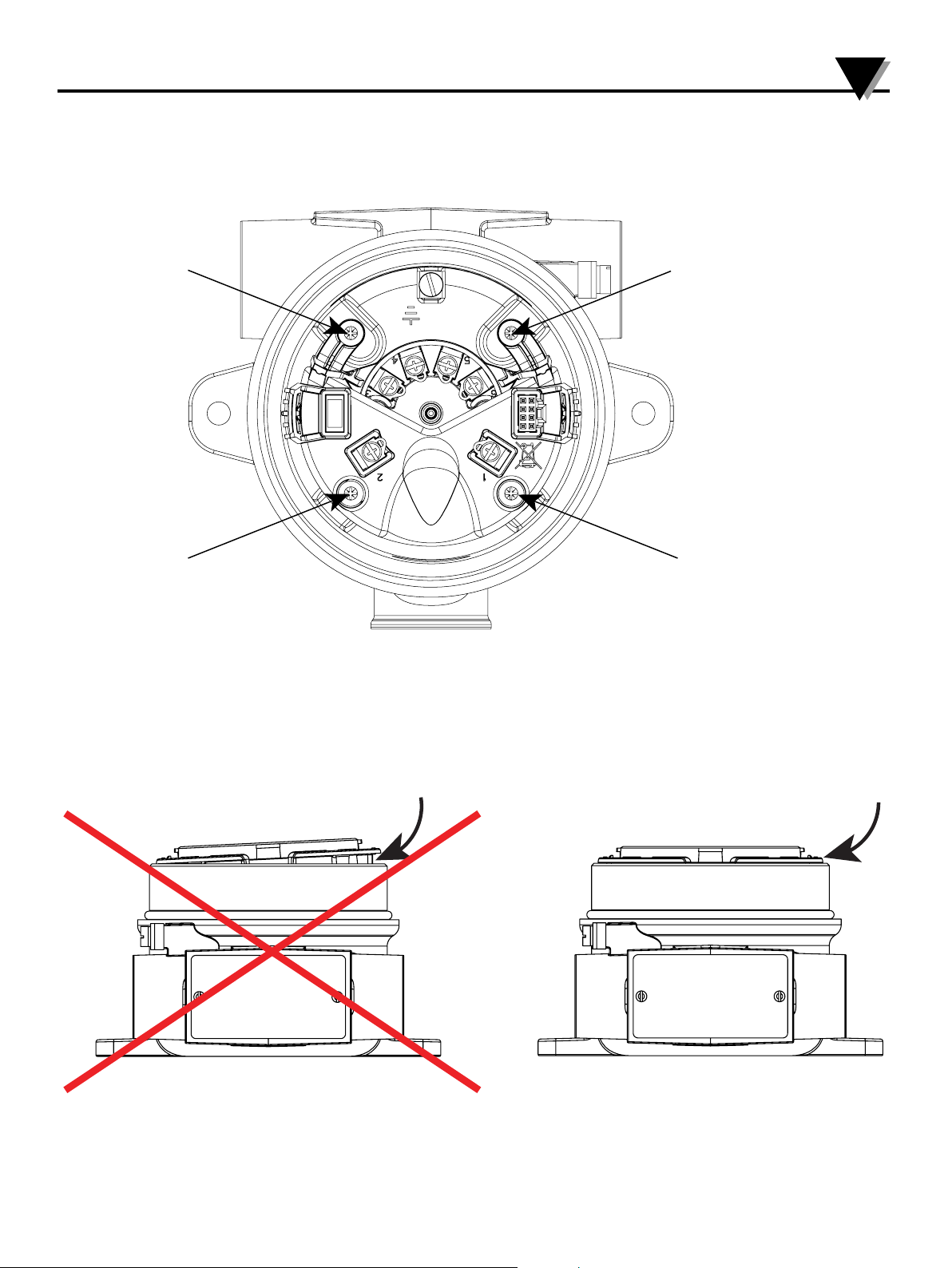

To connect sensor wires to the TXUN-FD or change the orientation of the display, the housing must be disassembled and the
internal device must be extracted.

!! Disconnect power to the device before disassembly.

1 2

Locking screw

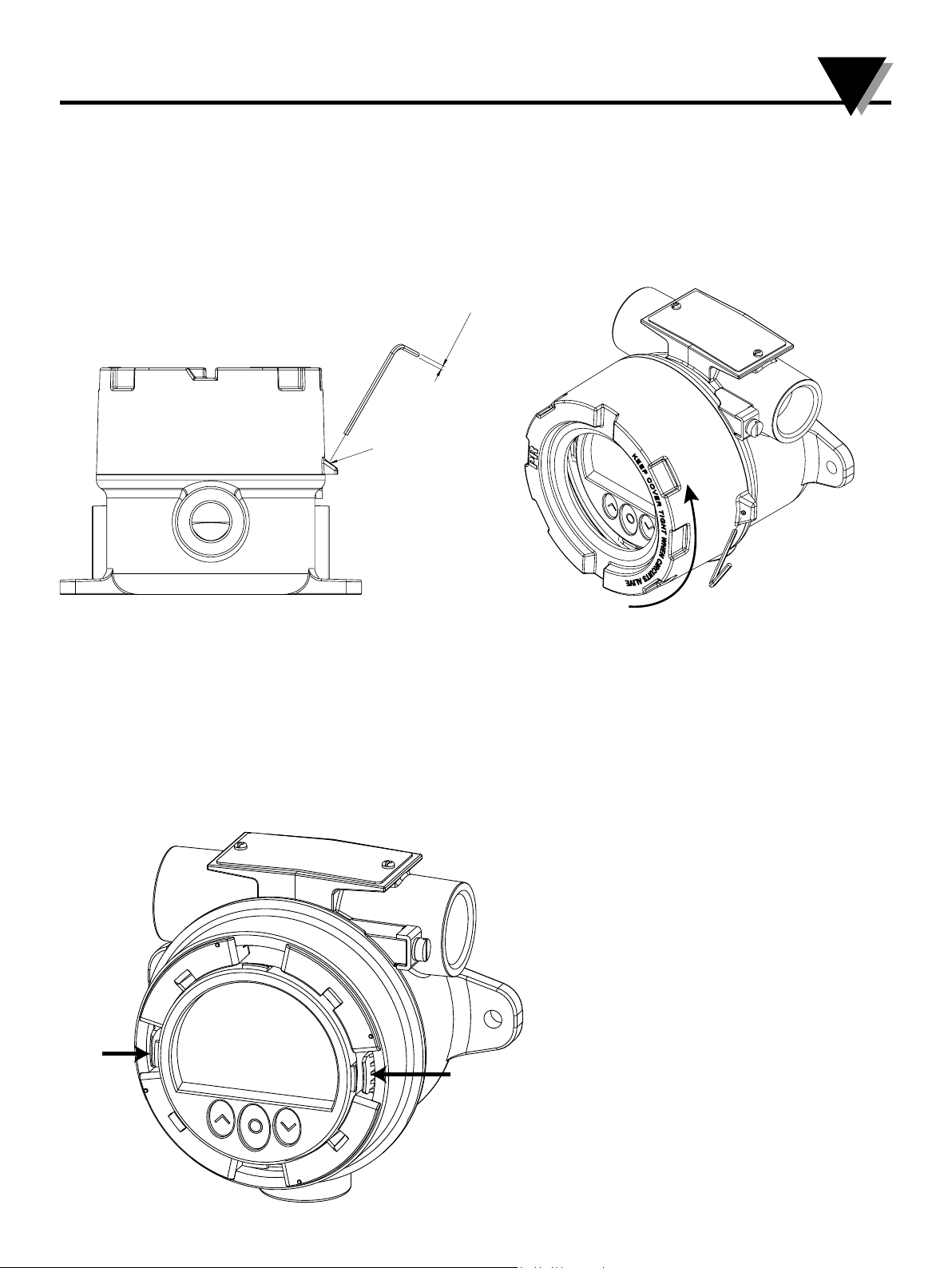

1. Releasethelockingscrew,usingahexspannerwithacross-flatof2[mm].Thisscrewissituatedonthehousingtop.

2. Unscrew the housing lid by turning it counterclockwise.

Point 3 and 4 only apply to devices with buttons and display.

3. Press and hold the two clamps located on the left and right side of the display unit.

3 3

14

8

Assembly & Disassembly

4. While holding the clamps, pull the display unit outwards to remove it.

5. The display can now be turned in steps of 90 degrees for best viewing angle.

6. For easy connection of sensor wires, we recommend extracting the transmitter from the housing (see the section
Connections for information on connecting sensors to the internal 5337).

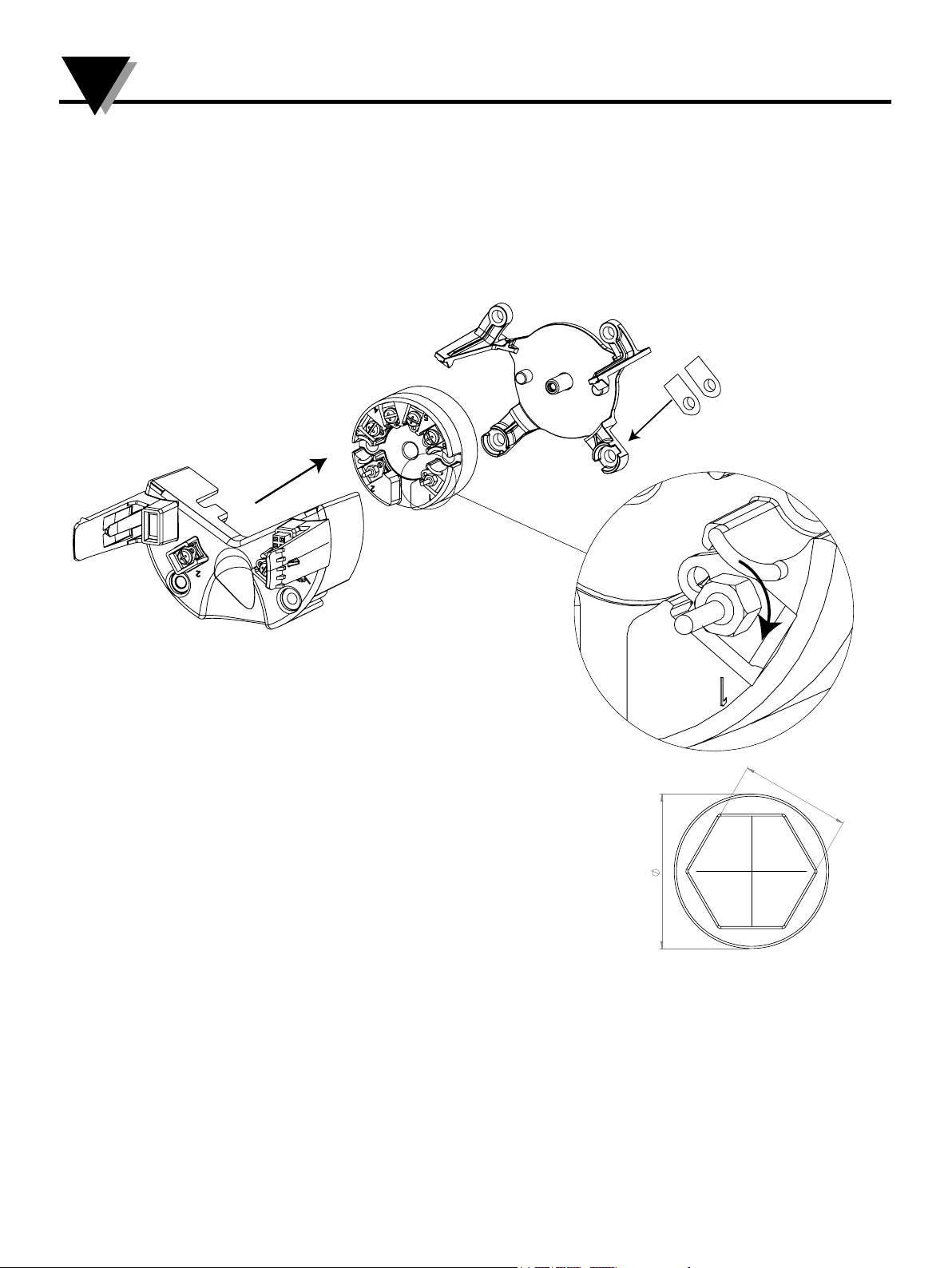

7. Unscrew the two screws (a) fastening the connector bracket to the housing, using a Posidriv form Z screwdriver.

b b

a a

8. Unscrew the two screws (b) fastening the fixation bracket to the housing, and pull out the entire assembly.

15

Assembly & Disassembly

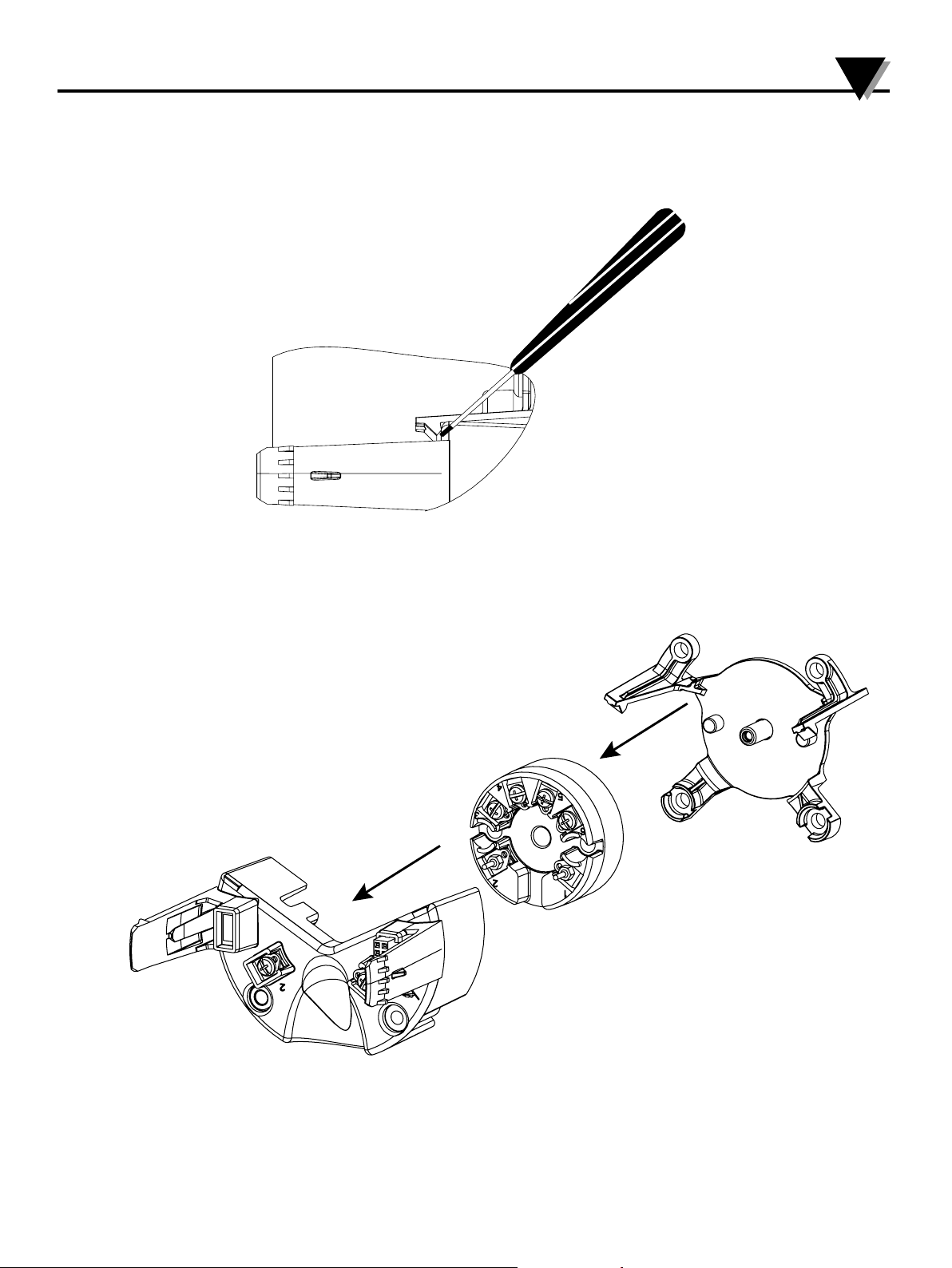

9. Use a screwdriver (or your fingers) to lever the taps (one on each side) on the fixation bracket to release it from the
transmitter connector bracket.
NB! Do not use excessive force.

8

10. Separate the connector bracket, transmitter and fixation bracket.

16

8

Assembly & Disassembly

Assembly

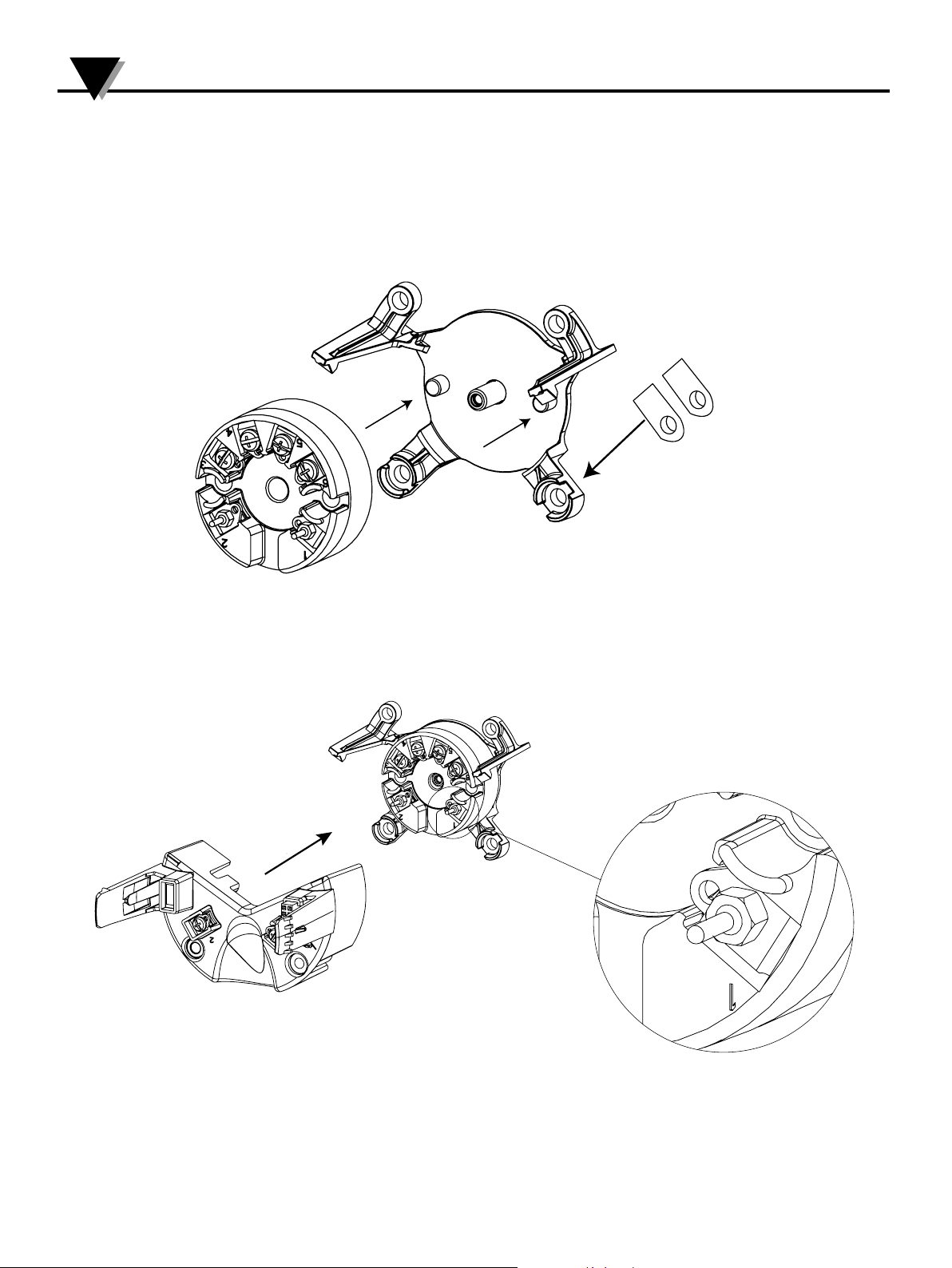

1. Place the transmitter in the fixation bracket using the guidance taps on the bracket. Make sure terminals 1 and
2 are facing downwards.
NB. The fixation bracket is not interchangeable between the aluminum and stainless steel housing. Check the
bottom right-hand corner for identifier (Al for aluminum and RF for stainless steel).

Al

RF

2. Slide the connector bracket onto the transmitter using the dovetails as guides. Make sure the golden connector pins
on terminal 1 and 2 on the transmitter slide into place in the corresponding terminals on the connector bracket.
Press the bracket into place until you hear a distinct click.

17

Assembly & Disassembly

3. Slide the assembly back into the housing and refasten the 4 screws (a + b), using the 28 mm
screws for the connector bracket (a) and the 10 mm screws for the fixation bracket (b).

b b

8

a a

4. Finally, click the display unit back into place and screw the cover back on.

Correct mounting of display unit

18

9

Connections

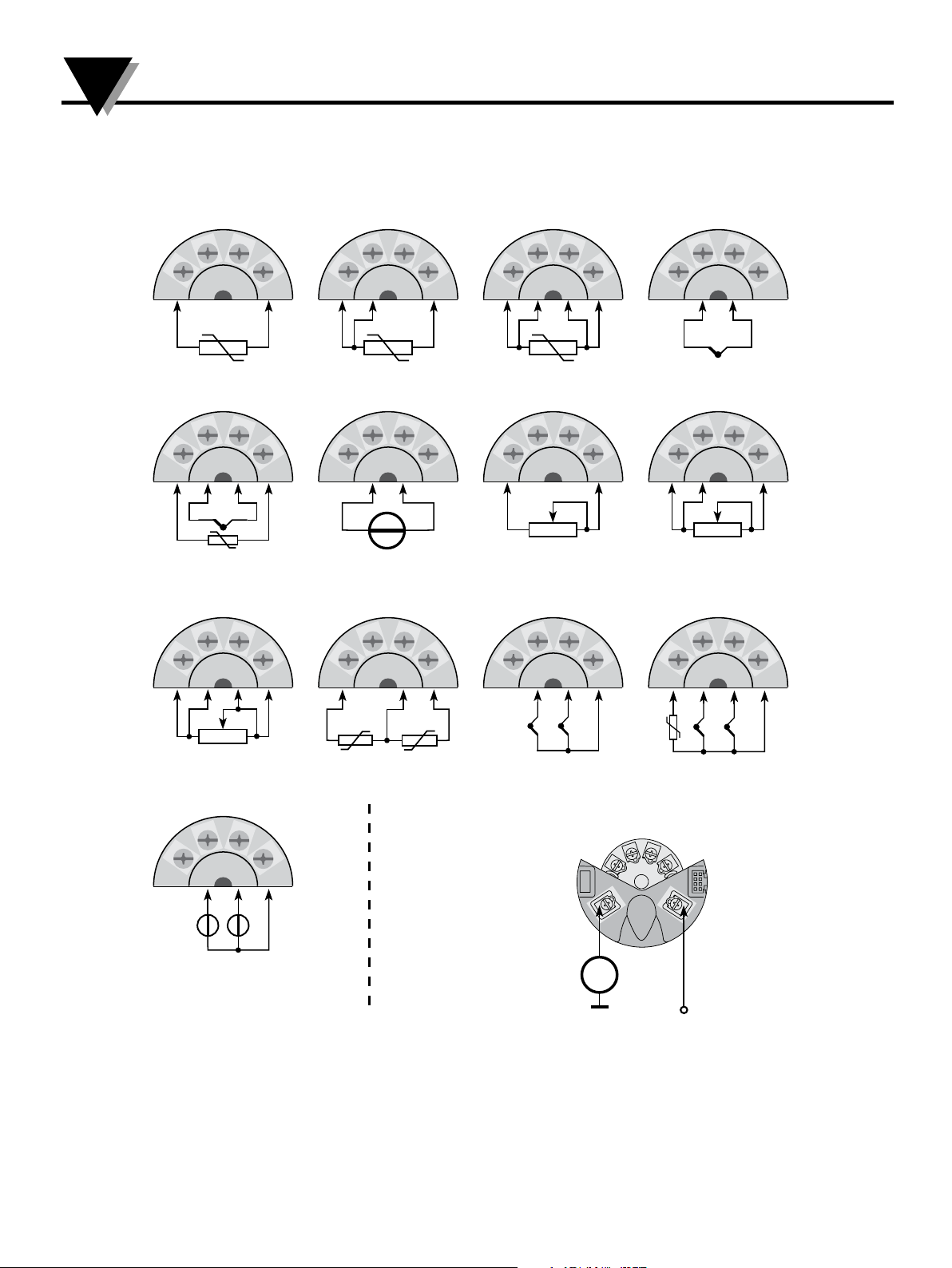

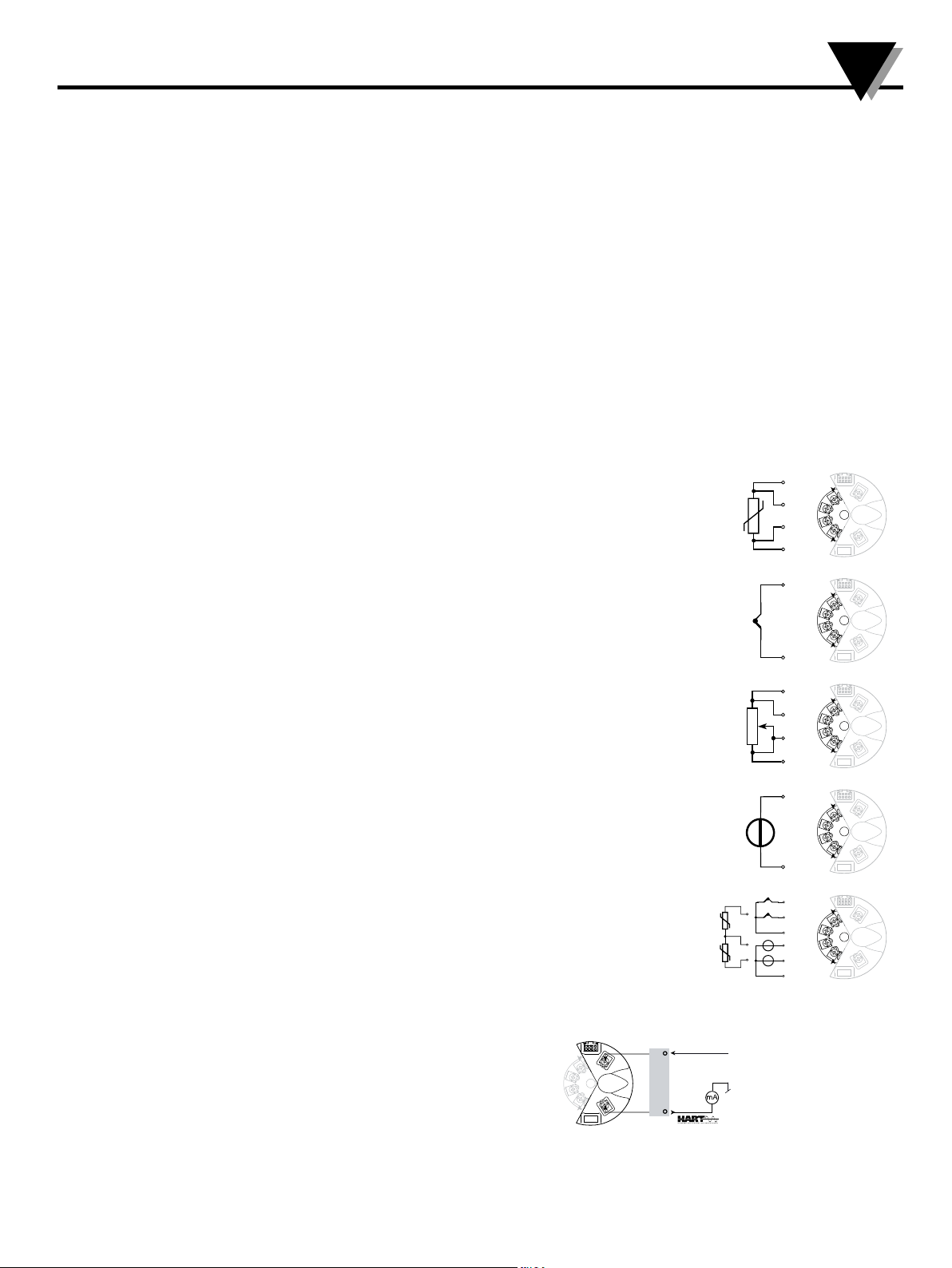

Input:

RTD, 2-wire RTD, 3-wire RTD, 4-wire

TC, internal CJC

4

3

TC, external CJC mV

4

3

-

Resistance, 4-wire

4

3

5

6

5

6

+

5

6

4

3

4

3

-

RTD, dierence

or average

4

3

5

6

5

6

4

3

Resistance, 2-wire

4

3

5

6

4

3

-

Resistance, 3-wire

5

6

4

3

5

6

+

5

6

+

TC, dierence

or average,

with internal CJC

5

6

12

4

3

5

6

+

+

1

2

-

-

TC, dierence

or average,

with external CJC

+

2 1

-

5

+

-

4

3

6

mV, dierence

or average

4

3

+-+

12

Output:

5

6

-

m

A

19

12

-

+

Optical Buttons

10

Section 10.1 - Optical buttons

The user interface features 3 optical buttons: , and . The buttons can be operated both with or without gloves1.
The buttons are immune to interference from ambient light sources and other panel meters (e.g. other TXUN-FD devices
mounted in close proximity).
Additionally, the optical buttons are adaptive, meaning that they will adapt to wear and e.g. dirt left on the surface.
The buttons work both with and without a front cover mounted.
If a rapid increase in optical reflection occurs, e.g. from mounting the cover or from dust/dirt on the glass, the buttons may
activate. If a key-press is detected for a period of more than 70 seconds, it is assumed to be a failure key-press and the
adaptive functionality will re-initialize in order to restore correct keypad functionality. This re-initialization can also be done
by repowering the device.

^

^

Operating the optical buttons

The optical buttons are used for operating and programming the TXUN-FD. They offer multi-functionality depending on
whether you press or long-press them. With the exception of the calibration and simulation menus (see the section Display
menu), the display will return to the monitor view if no key-press is registered within one minute.

In monitor view: switch to next process variable.

^

Elsewhere: increase the value of the selected parameter (except if device is write-protected).

^

In monitor view: switch to previous process variable.

Elsewhere: decrease the value of the selected parameter (except if device is write-protected).

Accept chosen value and proceed to next parameter

Hold Progressively increase (scroll) the numerical value (except if device is write-protected)

^

^

Hold Progressively decrease (scroll) the numerical value (except if device is write-protected)

Hold Ignore the chosen value and return to previous parameter

^

Hold + Unlock the monitor view and enter configuration menu

^

Key presses are reflected in the symbols bar with the following symbols:

Up button is pressed

Down button is pressed

Enter button is pressed

2

Display

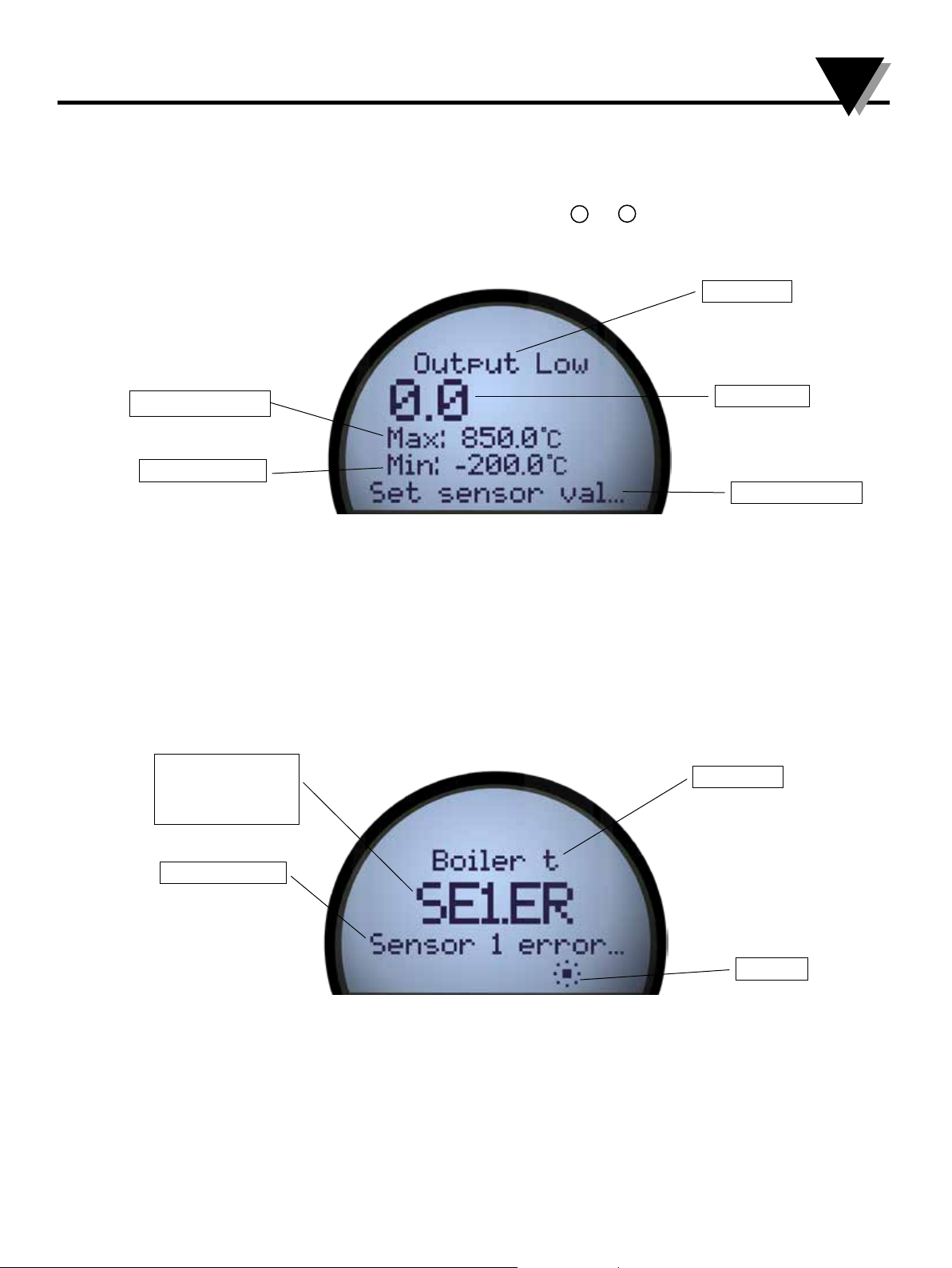

The 96 x 64 pixel display can be rotated in 90-degree increments for easy vertical or horizontal viewing. The adjustable
backlight enables you to view process values in all lighting conditions without an external light source, and it can be
configured to flash if an error occurs. Both the optional backlight and the flashing error backlight can be selected as red or
white, or turned off completely.

Display views

The appearance of the display will change to reflect the state of the TXUN-FD. This allows for easy and intuitive operation,
status indication and guides you in configuring the device.

1 Dark colored gloves can cause reduced sensitivity.
2 If error color (see the section Display menu) is set to red or white and the display backlight is flashing, the first key press cancels the

flashing backlight.

20

11

Symbol identification

The symbols bar provides information on the state of the device. Information such as HART communication, write protection
and process value tendency is shown.

Monitor view

Saving configuration to internal memory

Device is locked or write-protected

Current process value tendency indicators

External HART communication indicator

Internal communication indicator

External HART communication error

Monitoring view

Through the housing glass, you can easily monitor the process value in the configured units. A bar graph indicates the
process magnitude at a glance. The device tag is shown at the top of the display. The device tag makes it easy to identify the
displayed process value and it can be changed by pressing either the or optical button. At the bottom of the display,
the symbols present information on the current state of the device.

^

^

Monitoring view

Bar graph

Process value

Shown process value

Device TAG

Process value unit

Symbols

21

Montior view

Programming view

To enter the programming view, press and hold the 1 and 2 optical buttons. The programming views will guide you in a fast
and intuitive way when setting up the device. The name of the selected parameter is shown at the top of the display with the
currently selected value just below. The value can be changed by pressing the or optical buttons. Where applicable,
information on legal range and currently configured units will also be displayed. At the bottom, a scrolling help text will give
you information on the parameter you are modifying.

^

^

Menu name

11

Maximum value

Minimum value

Programming view

Diagnostics view

If a sensor error or device error occur, the display can be configured to flash in red or white backlight. The display will show
the type of status/error in large letters and a scrolling help text will present you with further information. The device tag is
shown at the top of the display and at the bottom the symbols bar indicates the state of the device. For a detailed description
of the different types of diagnostics messages shown please refer to the section Device and sensor status indication.

Error type
indication
Flashing

Actual value

Scrolling helptext

Device TAG

Scrolling helptext

Symbols

Diagnostics view

Configuration

When configuring the TXUN-FD, you will be guided through all parameters and you can choose the settings which fit the
application. For each menu there is a scrolling help text which is automatically shown in the display. Configuration is
carried out by use of the three optical buttons. When configuration is completed, or the display times out, the display will
return to monitor view.

22

12

Device and Sensor Status Indication

Section 12 - Device and sensor status indication

The TXUN-FD is capable of displaying diagnostics information for the sensors and the device. These diagnostics can be
divided into 4 categories: Sensor status, sensor errors, device status and device errors.

Sensor status

Sensor 1 exceeds upper sensor limit IN.HI

Sensor 1 exceeds lower sensor limit IN.LO

Sensor 2 exceeds upper sensor limit IN.HI

Sensor 2 exceeds lower sensor limit IN.LO

CJC sensor exceeds upper CJC sensor limit IN.HI

CJC sensor exceeds lower CJC sensor limit IN.LO

3

3

3

3

3

3

3

Sensor errors

Sensor 1 error SE1.ER

Sensor 2 error SE2.ER

CJC sensor error CJC.ER

Internal temperature sensor error CJC.ER

Device status

Congurationisbeingre-synchronized SYNC.DEV

Newdeviceattachedandcongurationisbeingupdated NEW.DEV

Last process calibration failed CA.ER

4

4

4

5

5

6

Device errors

A/D converter error ADC.ER

EEPROM memory error EE.ER

RAM memory error RA.ER

Flash memory error FL.ER

Exception error during code execution SW.ER

Internal communication error COM.ER

3 The scrolling help text will inform you of the affected sensor.
4 Check wiring and replace sensor if necessary.
5 This message will disappear after a few seconds and the display will enter monitoring view.
6 Perform a new process calibration or reset the calibration to cancel this error. See the section Display.
7 A device malfunction has occurred. To clear this error, repower the device or reconfigure using the display. If the error is persistent, it will

reappear and the device may have to be replaced.

7

7

7

7

7

7

7

23

Display Menu

13

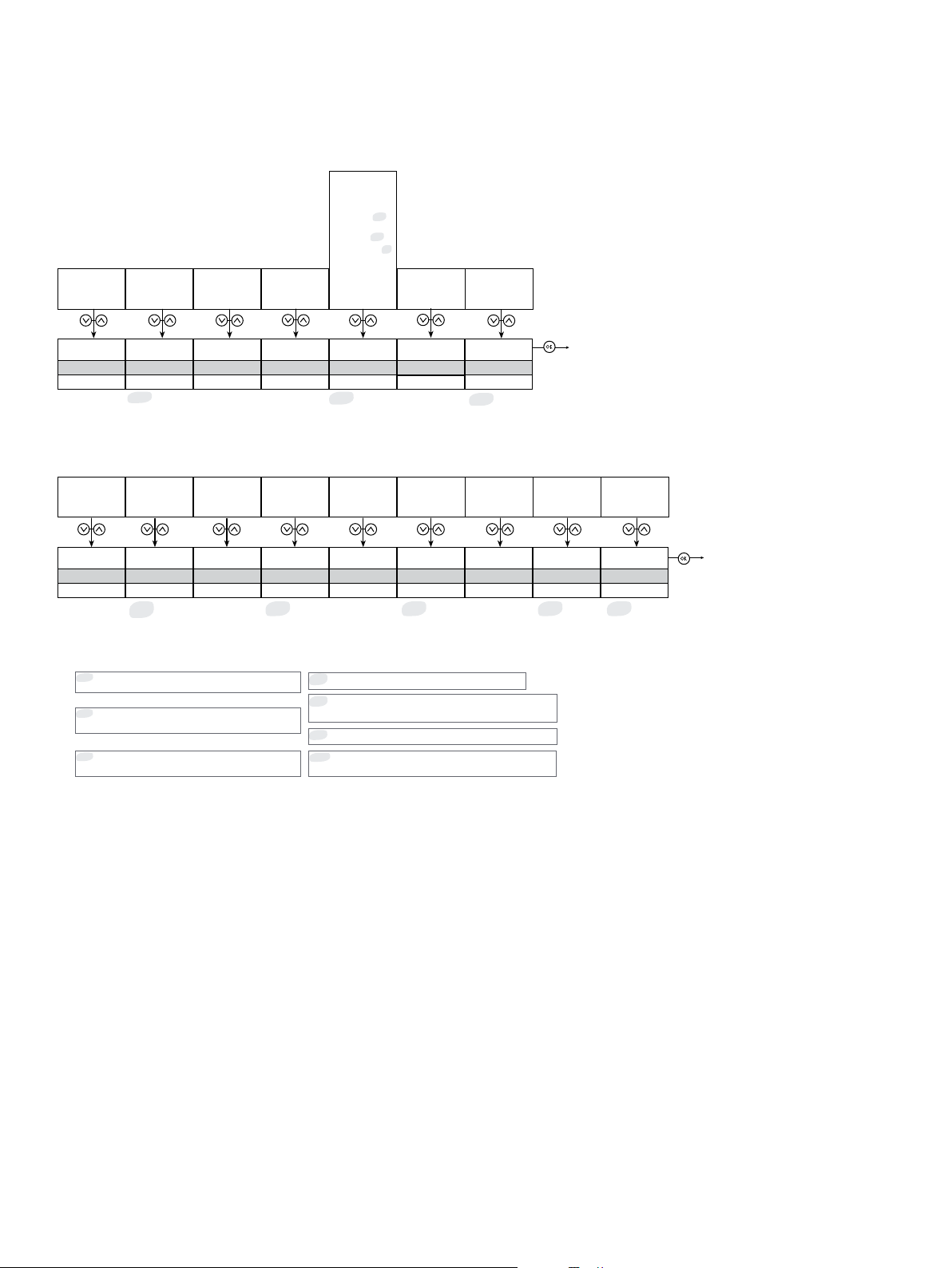

Section 13 - Display Menu

Exiting the monitor view allows you to configure the TXUN-FD, using the optical buttons (see the section Operating the
optical buttons). The display menu is divided into 2 sections: Basic configuration and Advanced configuration. The
advanced configuration menu is sub-divided into 9 sections: Display, Tags, Calibration, Simulation, Sensor, HART, Write­protect, Language and HART Revision.

If the TXUN-FD menu has been PIN code-protected by setting a PIN code different from 0000 in the display menu, the
correct PIN code must be entered to proceed to the desired configuration menu. The code 2008 will always give access to
the menu.

The menu can be temporarily locked because it is receiving a configuration on the HART interface or because it is
synchronizing configuration parameters with the internal device.

If the TXUN-FD has been write-protected it is still possible to proceed to the menu, but no changes can be made, and it is
not possible to save the configuration.
It is possible to change the write-protection state (enabled/disabled), but the correct write-protect password must be
entered when prompted.

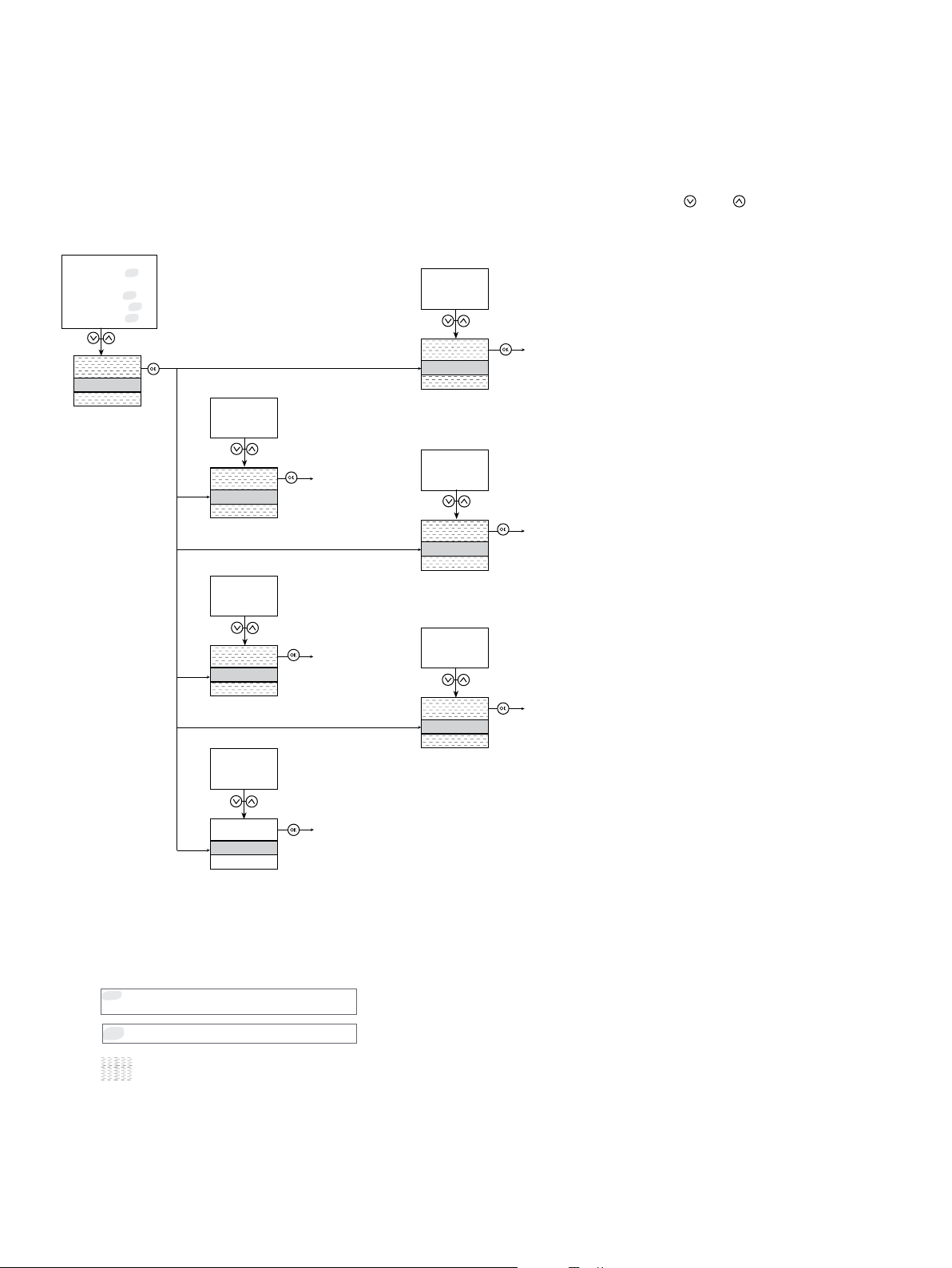

Power up

Device tag

123.45°C

Sensor 1 - °C

*1

^

and toggles the

^

process variable shown
in line 2 and 3.

(Thevaluecongured

in display setup is
restored after 30
seconds.)

^

Long
press

^

9999
0000

^

^

0000

PIN code

Txt 76

*28

^

^

Long
press

Correct

OK

No
Yes

^

^

Yes

Adv Setup?

Txt 2

OK

No - continued on the
next page

SW.ER

FL.ER

EE.ER

ADC.ER

RA.ER

COM.ER

Device tag

COM.ER

SE1.ER

Txt 100

*17

*1

If no keys are pressed for 60 s in any menu
(except for Sim and Cal), no parameters are
saved and the ”Monitor” menu is shown.
If Display Scaling is enabled, Display Scaling
value is also available, and is displayed by
default on the Monitor view.

*18

NEW.DEV
SYNC.DEV
SE1.ER *19
SE2.ER*19
CJC.ER*19
CA.ER *19
IN.HI
IN.LO

Device tag

Txt 100

Display
Tags
Calibration *15
Simulation *15
Sensor
HART
Write-protect
Language
HART revision *24

^

^

HART

Setup

Txt 4

Only shown if Write-protection is disabled.

*15

Will be forced into this state if any device

*17

error occurs (from any other menu).

Warning state: will be forced into this state

*18

if sensor error or overrange is present. Only
from ”Monitor” menu.

24

OK

Continued on
page 34

*19

First long press of 1 and 2 simultaneously
will stop backlight flash but not exit view.
Second long press will enter configuration
menu (if allowed).

Only shown if change of protocol is possible.

*24

Only shown if pin-code is > 0000

*28

Single Sens

Dual Sens

^

^

Single Sens

Sensor Func

Txt 3

Dual sensor

Single sensor

Average

Differential

^

^

Differential

Meas setup

Txt 68

Voltage

Linear Res

Temperature

^

^

Temperature

Input Type

Txt 69

Lin. R

OK

TC

^

Pt

Ni

kOhm

Ohm

Res Type

Txt 5

^

Ohm

^

If connection is 3- or 4-wire, the max. cable
resistance is set to 10 Ohm.
This can be overwritten in the Advanced Menu.

2-wire
3-wire

^

OK

4-wire

^

3-wire

Connection

Txt 7

*3

^

100.0

0.0

^

^

5

S1 Wire Res

Txt 8

100.0

0.0

^

^

0

S2 Wire Res

Txt 8

*5*4

OK

Pt50
Pt100
Pt200
Pt500

Pt1000

Custom

^

^

Temperature

Pt

Sensor Type

Txt 70

OK

Pt100

Pt

Pt Type

OK

Txt 6

Ni50

Ni100
Ni120

Ni1000

^

^

Ni100

Ni

Ni Type

OK

Txt 71

TC S

TC B

TC T

TC E

TC U

TC J

TC W3

TC K

TC W5

TC Lr

Custom

^

Internal

Ext Pt100

Ext Ni100

Fixed

^

^

Ext Pt100
CJC Type

Txt 10

Ext Pt 100 / Ni 100

Internal / Fixed

OK

100.0

0.0

^

^

0

CJC Wire Res

OK

TC L
TC N
TC R

^

TC K

TC

TC Type

Txt 72

Txt 8

*3

Only shown if single sensor function is
selected.

*4

Only shown if 2-wire sensor connection is
selected.

*5

Only shown if dual sensor function is
selected.

Not available in
HART 5 mode

Voltage

uV

mV

V

^

^

mV

Voltage Type

Txt 5

25

OK

°C

°F

°R

K

^

^

°C

Temp Unit

Txt 5

*29

No
Yes

^

^

Yes

Disp Scaling?

Txt 82

*30

-40.0

135.0

^

0

Fix CJC val

Txt 12

*21

No

OK

Yes

^

*29

Display Unit

-7000
7000

(Sensor
specific)

^

200

Max Diff

Txt 15

*6

All units

^

^

%

Txt 78

^

0

6975

(Sensor

specific)

^

0

Input Low

Txt 21

*30

11111

1111.1

111.11

11.111

1.1111

^

^

111.11

Decimal Pt

Txt 79

(Sensor specific)

^

Input High

*30

-999.99

999.99

0.00

Display Low

Txt 80

25

7000

^

150

Txt 22

^

^

^

OK

-999.99

999.99

100.00

Display High

Txt 81

If HART revision = 5, units for S1, S2, Average and

DierenceareforcedtoeithermVorOhm.

Units for CJC are forced to the same units as S1.
If S1 is not = Temperature Type, Unit is set to °C.

All device variable units can be overwritten in the
Advanced menu.

^

^

OK

1.0

60.0

^

^

0.4

PV Resp

Txt 9

3.50

23.00

^

^

3.50

Out Rng Lo

Txt 23

Disabled

Broken

Shorted

*

Both

23

^

^

Broken

Sens Error

Txt 27

1.0

60.0

^

0.4

S1 Resp

Txt 9

3.50

23.00

^

23.00

Out Rng Hi

Txt 24

*

3.50

23

23.00

^

23.00

Out Broken

Txt 28

*8 *9

^

^

^

1.0

60.0

^

^

0.4

S2 Resp

Txt 9

*5 *6*7

3.50

23.00

^

^

3.50

Out Lim Lo

Txt 25

3.50

23.00

^

^

23.00

Out Shorted

Txt 29

1.0

60.0

^

^

0.4

Avg Resp

Txt 9

3.50

23.00

^

^

23.00

Out Lim Hi

Txt 26

-200.0

850.0

^

^

0.0

Temp Low

Txt 21

*29 *29

1.0

60.0

^

^

0.4

Diff Resp

Txt 9

OK

-200.0

850.0

^

^

150.0

Temp High

Txt 22

OK

Yes

No

^

Yes

Save ?
Txt 16

*15

^

OK

“Monitor”

Not available in
HART 5 mode

Not available in
HART 7 mode

*5

Only shown if dual sensor function is
selected.

*6

Only shown if differential sensor function
is selected.

*7

Only shown if average sensor function is
selected.

*8

Only shown if sensor breakage detection is
activated.

*9

Only shown if sensor shortage detection is
activated.

Only shown if Write-protection is disabled.

*15

Only shown if TC, fixed CJC is selected.

*21

26

Selection not available for Voltage Input Type

*23

and TC Sensor Type with internal/fixed CJC.

*29

Only shown if Temperature input is selected.

*30

Only shown if Temperature input is NOT
selected.

Display

Off

White

Red

Off

White

Red

0
9

Loop Curr

% Range

Sensor 1
Sensor 2 *5
CJC Sensor
Average *7
Differential *6
Loop Curr
% Range

9999
0000

Yes

No

White

Backlight

Txt 42

White

Contrast

Txt 73

*25

Tags

No

(Char list)

Yes

Yes

L Tag Setup?

Txt 64

*5

*6

*7

Text

Long Tag

Txt 38

*16

Only shown if dual sensor function is selected.

Only shown if differential sensor function is
selected.

Only shown if average sensor function is
selected.

Tag Setup?

3

Txt 43

No

Yes

Yes

Txt 65

% Range

Bar graph

Txt 44

(Char list)

Text

Txt 39

*16 *16 *16

Tag

Sensor 2

Monitor

Txt 45

*31

No
Yes

Yes

Descr Setup?

Txt 66

*15

Only shown if Write-protection is disabled.

*16

Only shown if ”Yes” was selected in the previous
menu.

*25

Not shown if backlight is off.

*31

Only shown if Display Scaling input is disabled.

0000

PIN code

Txt 77

(Char list)

Text

Descriptor

Txt 34

Yes

Save ?
Txt 16

*15

No

Yes

Yes

Msg Setup?

Txt 67

“Monitor”

(Char list)

Text

Message

Txt 35

Yes

No

Yes

Save ?

Txt 16

*15

“Monitor”

27

Calibration

(only if Write-protection is disabled)

The device can be process-calibrated in two points to fit a given input signal. A low input signal (not necessarily 0%) is
applied and the actual value is entered. Secondly a high input signal (not necessarily 100%) is applied and the actual value
is entered. If you accept to use the calibration (by selecting Yes in the Save menu) the device will work according to the
new adjustments. You can return the device to factory calibration points by selecting Reset Calibration from the
Calibration menu. Please note that while performing a calibration the programming mode will not time out.

Sensor 1
Sensor 2 *5
CJC sensor

Loop Curr *26

Reset Calib

Do Calib

Sensor 2

Calibration

Txt 53

Sensor 1

Sensor 2

CJC sensor

Reset Calib

Do Calib

Do Calib

S2 Calib

Txt 54

*5

Reset Calib

Do Calib

S1 Calib

“Monitor”

Set S2 Low

Txt 74

*27 *14

Do Calib

Txt 54

-200°C
850°C

0.0

S2 Cal Low

Txt 55

Reset Calib

Do Calib

Reset Calib

Do Calib

Set S2 High

Txt 75

*27

“Monitor”

Set S1 Low

Txt 74

*27 *14

-200°C
850°C

100.0

S2 Cal High

Txt 56

*14

-200°C
850°C

0.0

S1 Cal Low

Txt 55

Set S1 High

Txt 75

*27

“Monitor”

-200°C
850°C

100.0

S1 Cal High

Txt 56

*14

“Monitor”

Reset Calib

Do Calib

Do Calib

Loop Curr

Only shown if dual sensor function is

*5

selected.

4 mA fixed output configured internally.

*12

20 mA fixed output configured internally.

*13

Loop Calib

*26

Txt 54

Reset Calib

Do Calib

*14

*26

*27

Reset Calib

Do Calib

CJC Calib

Txt 54

“Monitor”

Do Calib

3.50 mA

23.00 mA

4.00

Calib 4 mA

Txt 55

*12 *13

Default value is current input value.
No timeout in this menu.

Not possible if Loop Current is not active.

No timeout in this menu.

3.50 mA

23.00 mA

20.00

Calib 20 mA

Txt 56

“Monitor”

Set CJC Low

Txt 74

*27 *14

“Monitor”

-40.0

135.0

0.0

CJC Cal Low

Txt 55

Not available in
HART 5 mode

Set CJC High

Txt 75

*27

-40.0

135.0

100.0

CJC Cal Hi

Txt 56

*14

“Monitor”

28

Simulation

(only if Write-protection is disabled)

The TXUN-FD allows you to simulate process values by entering the simulation menu. Using the and optical buttons, the
simulated value can be increased and decreased (see the section Operating the optical buttons). Please note that while
performing a calibration the display will not time out.

Sensor 1

Sensor 2 *5

CJC Sensor

Average *5

Differential *5

Loop Curr *26

-200.0

850.0

Sensor 2

Simulation

Txt 57

CJC sensor

Dierential

Sensor 1

Sensor 2

Average

-200.0

850.0

20.0

S2 Simul

Txt 59

-200.0

850.0

20.0

Avg Simul

Txt 61

3.5 mA

23.0 mA

“Monitor”

“Monitor”

20.0

S1 Simul

Txt 58

-40.0

135.0

20.0

CJC Simul

Txt 60

-200.0

850.0

20.0

Diff Simul

Txt 62

“Monitor”

“Monitor”

“Monitor”

20.00

Loop Test

*5

Only shown if dual sensor function is selected.

Not possible if Loop Current is not active.

*26

Not available in
HART 5 mode

Loop Test

Txt 63

“Monitor”

29

Sensor

The sensor menu allows you to make more detailed configuration of your sensor values, which are not available in the basic
configuration menu. These involve selecting from a large amount of process variable units, changing the sensor assignment
to PV, SV, TV and QV and specifying the CJC response time. Please note that performing a basic configuration (see the
section Basic configuration) will overwrite these changes.

°C

All units

All units

All units

°F

K

°R

All units

All units

mV

PV Unit

Txt 5

Sensor 2

Assign PV

S1 Unit

Txt 5

Sensor 1

Sensor 2 *5

CJC Sensor

Average *5

Differential *5

Txt 17

mV

Sensor 2 *5
CJC Sensor
Average *5

Differential *5

Sensor 2

Assign SV

S2 Unit

Sensor 1

Txt 18

mV

Txt 5

Sensor 2 *5
CJC Sensor
Average *5

Differential *5

Sensor 2

Assign TV

CJC Unit

Sensor 1

Txt 19

°F

Txt 5

Differential *5

Sensor 2

Assign QV

Avg Unit

Txt 5

*5*5 *5

Sensor 1
Sensor 2 *5
CJC Sensor
Average *5

Txt 20

mV

CJC Resp

Diff Unit

60.0

1.0

0.4

Txt 9

mV

Txt 5

100.0

0.0

0

Max Wire Res

Txt 14

*22

Yes

No

Yes

Save ?
Txt 16

*15

*20

“Monitor”

HART

Under this menu you will find special parameters pertaining to HART. It will provide you with general information
regarding number of request preambles, software and hardware revisions, device and manufacture IDs and HART
revision. The menu will also allow you to specify number of response preambles, polling address, assembly number
and date.

Req Preamb

SW Rev

HW Rev
Device ID
Manuf ID

HART Rev

20

5

63

0

0

16777215

DD-MM-YYYY

No

Yes

Yes
No

Req preamb

Dev info

Txt 50

*5

Only shown if dual sensor function is
selected.

*11

Range is 0...15 in HART 5 mode.

*15

Only shown if Write-protection is disabled.

5

Resp Preamb

Txt 31

Poll Addr

Txt 32

*11

0

0

Assembly Nr

Txt 37

Values may be owerwritten when normal

*20

menu is saved.

Only shown if 3- or 4-wire connection is

*22

selected.

01-06-2015

Date

Txt 36

Yes

Loop Enable

Txt 33

30

Yes

Save ?

Txt 16

*15

“Monitor”

Not available in
HART 5 mode

Not available in
HART 7 mode

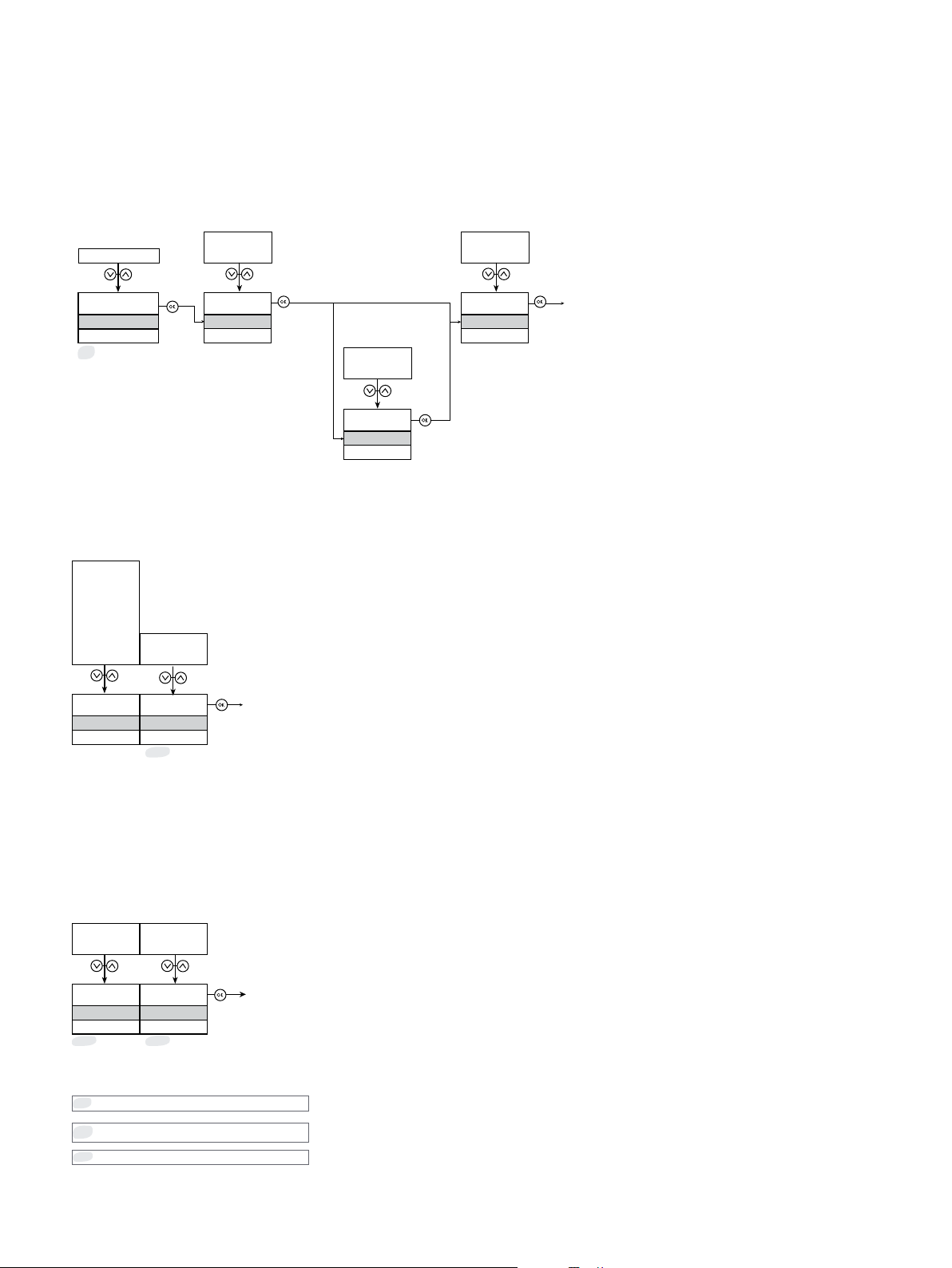

Write-protect

Here you can choose to enable or disable write protection using a password. If write-protection is already enabled, the correct
password must be entered to get access. The password must consist of exactly 8 characters, available in the Latin 1 character set,
and will protect the device against unauthorized modifications to the configuration. The device is delivered default with write­protection disabled. The password 00002008 always allows access to the write-protection menu.

(Char list)

********

Password

Txt 1

*2

Correct

Yes

No

Yes

Enable WP

Txt 47

No

(Char list)

Yes

No

Yes

Save ?
Txt 16

“Monitor”

********

New Password

Yes

Txt 48

Language

In this menu you can choose between seven different language versions of the help text that will appear in the menu (see the
section Display). You may choose from the following languages: English, Dansk, Deutsch, Français, Svenska, Italiano and
Español.

English

Dansk
Deutsch
Français
Svenska

Italiano
Español

Yes

No

Dansk

Language

Txt 41

Yes

Save ?
Txt 16

*15

“Monitor”

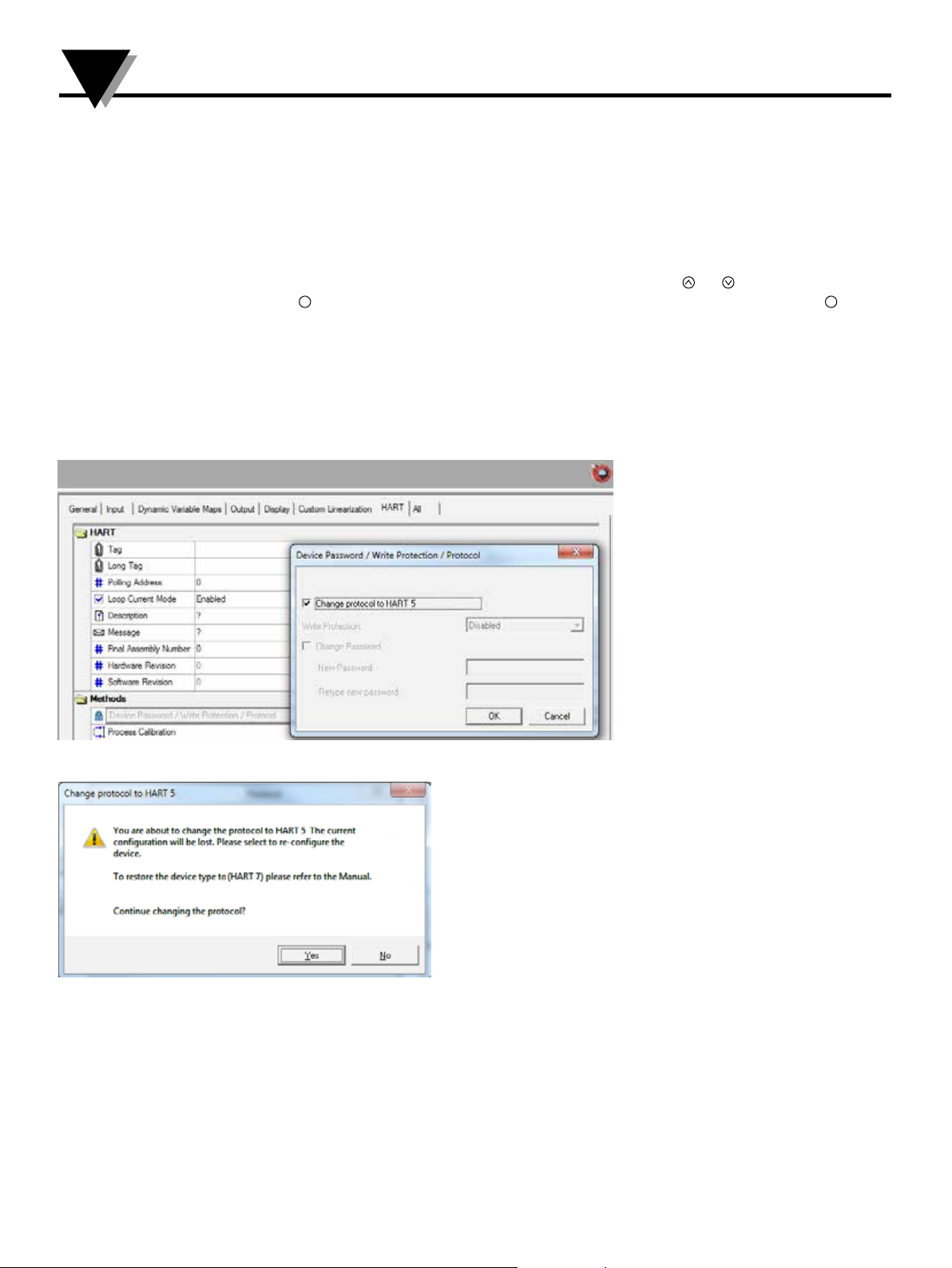

HART Revision

ChangingtheHARTrevisionisdonefromthismenu.SelectthedesiredHARTrevisionandpressthebutton.Select

Yes to effect the change in the Save menu. Please note that changing the HART revision will reboot the device, during
which time the display may become blank for a few seconds. If HART 7 is selected the device will appear as TXUN-FD
in the HART interface.
If HART 5 is selected the device will appear as TXUN-FD in the HART interface.

HART 7
HART 5

HART 7

HART Rev

Txt 51

*24

Only shown if Write-protection is enabled.

*2

Only shown if Write-protection is disabled.

*15

*24

Only shown if change of protocol is possible

Yes

No

Yes

Save ?
Txt 16

*15

“Monitor”

31

Help Text Overview

Set correct password

[01]

Enter Advanced setup menu?

[02]

Select single sensor functionality

[03]

Select dual sensor functionality
Enter Display setup

[04]

Enter Tags setup
Enter Process calibration
Enter Simulation mode
Enter Advanced sensor setup
Enter HART setup
Enter Write-protect setup
Enter Language setup
Enter HART Revision setup
Select measurement unit

[05]

Select custom RTD as sensor type

[06]

Select Pt50 as sensor type
Select Pt100 as sensor type
Select Pt200 as sensor type
Select Pt500 as sensor type
Select Pt1000 as sensor type
Select 2-Wire sensor connection

[07]

Select 3-Wire sensor connection
Select 4-Wire sensor connection
Set actual cable resistance in 2 wires

[08]

Set response time

[09]

Select Internal CJC sensor

[10]

Select Pt100 as external CJC sensor type
Select Ni100 as external CJC sensor type
Select Fixed CJC
Set fixed CJC value

[12]

Disable sensor 2

[13]

Enable sensor 2
Set maximum cable resistance in 2 wires

[14]

Set max. value for individual sensors for

[15]

differential measurement
Save configuration?

[16]

Map sensor1 to PV and output loop current

[17]

Map sensor2 to PV and output loop current
Map CJC sensor to PV and output loop current
Map Internal temperature to PV and output loop
current
Map Avg measument to PV and output loop current
Map differential measurement to PV and output loop
current
Map sensor1 to SV

[18]

Map sensor2 to SV
Map CJC sensor to SV
Map Internal temperature to SV
Map Avg measument to SV
Map differential measurement to SV
Map sensor1 to TV

[19]

Map sensor2 to TV
Map CJC sensor to TV
Map Internal temperature to TV
Map Avg measument to TV
Map differential measurement to TV

Help Text Overview

Map sensor1 to QV

[20]

Map sensor2 to QV
Map CJC sensor to QV
Map Internal temperature to QV
Map Avg measument to QV
Map differential measurement to QV
Set sensor value for analog output low

[21]

Set sensor value for analog output high

[22]

Set output current at 0% input range

[23]

Set output current at 100% input range

[24]

Set output current lower limit

[25]

Set output current upper limit

[26]

Disable sensor error detection

[27]

Enable sensor wire breakage detection
Enable sensor shortage detection
Enable both sensor wire breakage and sensor
shortage detection
Set output current in case of sensor wire breakage

[28]

Set output current in case of sensor shortage

[29]

Set number of preambles in HART response frames

[31]

Set polling address

[32]

Disable loop current signal (no analog output)

[33]

Enable loop current signal (analog output)
Write description of the device

[34]

Write message on the device

[35]

Set user date on device

[36]

Set the final assembly number

[37]

Write long tag

[38]

Write tag

[39]

Select language

[41]

Disable LCD backlight

[42]

Select white LCD backlight
Select red LCD backlight
Adjust LCD contrast

[43]

Select loop current for bar graph indicator

[44]

Select % of range for bar graph indicator
Select Sensor1 for process monitor view

[45]

Select Sensor2 for process monitor view
Select CJC Sensor for process monitor view
Select Average measurement for process monitor
view
Select differential measurement for process monitor
view
Select loop current for process monitor view
Select % of range for process monitor view
Enable write protection?

[47]

Set new password

[48]

Minimum number of preambles in requests

[50]

Software revision level
Hardware revision level
Device identification
Manufacturerer identification
HART protocol revision level
Set HART protocol revision 7

[51]

Set HART protocol revision 5

14

32

14

Help Text Overview

[53]

Enter sensor1 calibration menu
Enter sensor2 calibration menu
Enter CJC sensor calibration menu
Enter output loop current calibration menu

[54]

Reset calibration to factory default
Perform process calibration

[55]

Set value for low calibration point

[56]

Set value for high calibration point

[57]

Simulate sensor1 input
Simulate sensor2 input
Simulate CJC sensor input
Simulate average measurement
Simulate differential measurement
Simulate output loop current

[58]

Set sensor1 simulation value

[59]

Set sensor2 simulation value

[60]

Set CJC sensor simulation value

[61]

Set average measurement simulation value

[62]

Set differential measurement simulation value

[63]

Set output loop current simulation value

[64]

Edit the long tag?

[65]

Edit the tag?

[66]

Edit the descriptor?

[67]

Edit the message?

[68]

Select averaging of sensor 1 and sensor 2
Select differential measurement:
sensor 1 - sensor 2

[69]

Select voltage input
Select linear resistance input
Select temperature input

[70]

Select Pt sensor type
Select Ni sensor type
Select TC sensor type

[71]

Select Ni50 as sensor type
Select Ni100 as sensor type
Select Ni120 as sensor type
Select Ni1000 as sensor type

[72]

Select Custom TC as sensor type
Select TC-B as sensor type
Select TC-E as sensor type
Select TC-J as sensor type
Select TC-K as sensor type
Select TC-L as sensor type
Select TC-N as sensor type
Select TC-R as sensor type
Select TC-S as sensor type
Select TC-T as sensor type
Select TC-U as sensor type
Select TC-W3 as sensor type
Select TC-W5 as sensor type
Select TC-Lr as sensor type

[73]

Disable LCD error backlight
Select white LCD error backlight
Select red LCD error backlight

[74]

Apply low calibration point value and wait until
stable

[75]

Apply high calibration point value and wait until
stable

[76]
[77]
[78]
[79]
[80]
[81]
[82]

[100]
SW.ER
FL.ER
EE.ER
ADC.ER
RA.ER
COM.ER
NEW.DEV

CONF.ER
SE1.ER

SE2.ER

CJC.ER

CJC.ER
CA.ER

IN.HI /
IN.LO
IN.HI /
IN.LO
IN.HI /
IN.LO
IN.HI /
IN.LO

33

Set menu access PIN-code
Set menu access PIN-code (0000 will disable)
Select display unit
Select decimal point position
Set display range low
Set display range high
Use display scaling (overrules configured process
monitor view)

Exception error during code execution
Flash memory error
EEPROM memory error
A/D converter error
RAM memory error
Internal communication error
New device attached – configuration is being
updated – please wait
Configuration is being re-synchronized - please wait
Sensor 1 error, check wiring and replace sensor if
necessary
Sensor 2 error, check wiring and replace sensor if
necessary
CJC Sensor error, check wiring and replace sensor if
necessary
Internal temperature sensor error
Last process calibration failed to succeed - please
retry
Sensor 1 is out of range
Sensor 2 is out of range
CJC sensor is out of range
Sensor 1 or Sensor 2 measurement is out of range

Available units

The following table lists the available units. Please note that most of these are only available from the Sensor menu or from
the Display scaling menu (see the section Display menu).

Sensor

menu #

HART # Disp.

scaling

Tex t Type

menu #

0 32 0 °C <- Tempetature units

1 33 1 °F

2 34 2 °R

3 35 3 K

4 37 4 Ohm <- Resistance units

5 163 5 kOhm

6 240 6 µV <- Electromotive

force units

7 36 7 mV

8 58 8 V

— — 9 kV

— 171 10 µA <- Current units

9 39 11 mA

— 172 12 A

— — 13 kA

11 1 15 inH

O <- Pressure units

2

12 2 16 inHg

13 3 17 ftH

14 4 18 mmH

O

2

O

2

15 5 19 mmHg

16 6 20 psi

17 7 21 bar

18 8 22 mbar

19 9 23 g/cm

2

20 11 24 Pa

— 174 25 hPa

21 12 26 kPa

22 13 27 torr

23 14 28 atm

24 237 29 MPa

25 17 32 l/min <-Volume ow units

3

— 131 35 m

26 19 36 m

/min

3

/h

27 22 38 gal/s

— 16 39 gal/min

28 24 31 l/s

29 25 30 ml/d

3

3

/s

3

/h

3

/d

3

/s

3

/d

n/h

30 26 42 ft

31 130 43 ft

32 27 44 ft

33 28 34 m

34 29 37 m

35 121 45 m

36 132 46 bbl/s

Sensor

menu #

HART # Disp.

scaling

Tex t Type

menu #

37 134 47 bbl/h

38 135 48 bbl/d

39 136 40 gal/h

40 138 33 l/h

41 235 41 gal/d

42 20 57 ft/s <-Velocity units

— 116 58 ft/min

— — 59 ft/h

— — 49 mm/s

43 21 50 m/s

— — 51 m/min

— — 53 ips

44 114 54 in/s

— 115 55 in/min

— — 56 in/h

45 120 52 m/h

46 40 62 gal <- Volume units

47 41 60 l

48 43 61 m

3

49 46 67 bbl

50 110 68 bush

51 111 63 yd

52 112 64 ft

53 113 65 in

3

3

3

54 166 66 m3n

55 167 69 ln

56 236 70 hl

57 44 76 ft <- Length units

58 45 71 m

59 47 77 in

60 48 72 cm

61 49 73 mm

— — 74 µm

— — 75 yd

— — 78 mils

62 50 80 min <-Time units

63 51 79 s

64 52 81 h

65 53 82 d

66 60 83 g <- Mass units

67 61 84 kg

68 62 85 t

69 63 87 lb

70 64 88 ShTon

34

Sensor

menu #

HART # Disp.

scaling

Tex t Type

menu #

71 65 89 LTon

72 125 87 oz

— — 149 mol

73 70 90 g/s <- Mass ow units

74 71 91 g/min

75 72 92 g/h

76 73 93 kg/s

77 75 94 kg/h

78 76 95 kg/d

79 77 96 t/min

80 78 97 t/h

81 79 98 t/d

82 80 99 lb/s

83 82 100 lb/h

84 83 101 lb/d

85 90 102 SGU <- Mass per volume

units

86 91 103 g/cm

87 92 104 kg/m

3

3

88 95 105 g/ml

89 96 106 kg/l

90 97 107 g/l

91 146 108 µg/L

92 147 109 µg/m

3

93 54 110 cSt <- Viscosity units

94 55 111 cP

95 69 112 N/m <- Energy (work)

units

— — 113 Wh

96 128 114 kW/h

— — 115 MWh

97 162 116 Mcal

— — 117 kJ

98 164 118 MJ

99 165 119 Btu

— 175 120 W <- Power units

100 127 121 kW

— 170 122 MW

— — 123 GW

101 129 124 hp

102 141 125 MJ/h

103 142 126 Btu/h

104 117 127 deg/s <- Angular velocity

units
105 118 128 rev/s

106 119 129 rpm

Sensor

menu #

HART # Disp.

scaling

Tex t Type

menu #

— — 133 S <- Conductance

units

— — 134 µS

— — 137 m/s

2

<- Acceleration units

10 57 14 % <- Miscellaneous

107 38 130 Hz

108 56 131 µMho

109 59 132 pH

110 66 135 mS/cm

111 67 136 µS/cm

112 68 138 N

113 139 139 ppm

114 143 140 deg

115 144 141 rad

116 148 142 %Cs

117 149 143 Vol%

118 153 144 pF

119 154 145 ml/l

120 155 146 µl/l

121 161 147 %LEL

122 169 148 ppb

123 251 150 <blank>* <- Special units

124 252 151 ?

125 253 152 Spcl

*No characters shown

35

Section 15.1 - Programming

The TXUN-FD can be configured in one of the following 3 ways:

• Via the optical buttons and the display (see the section Display menu).

• With a HART modem and the OMset software.

1: HART modem

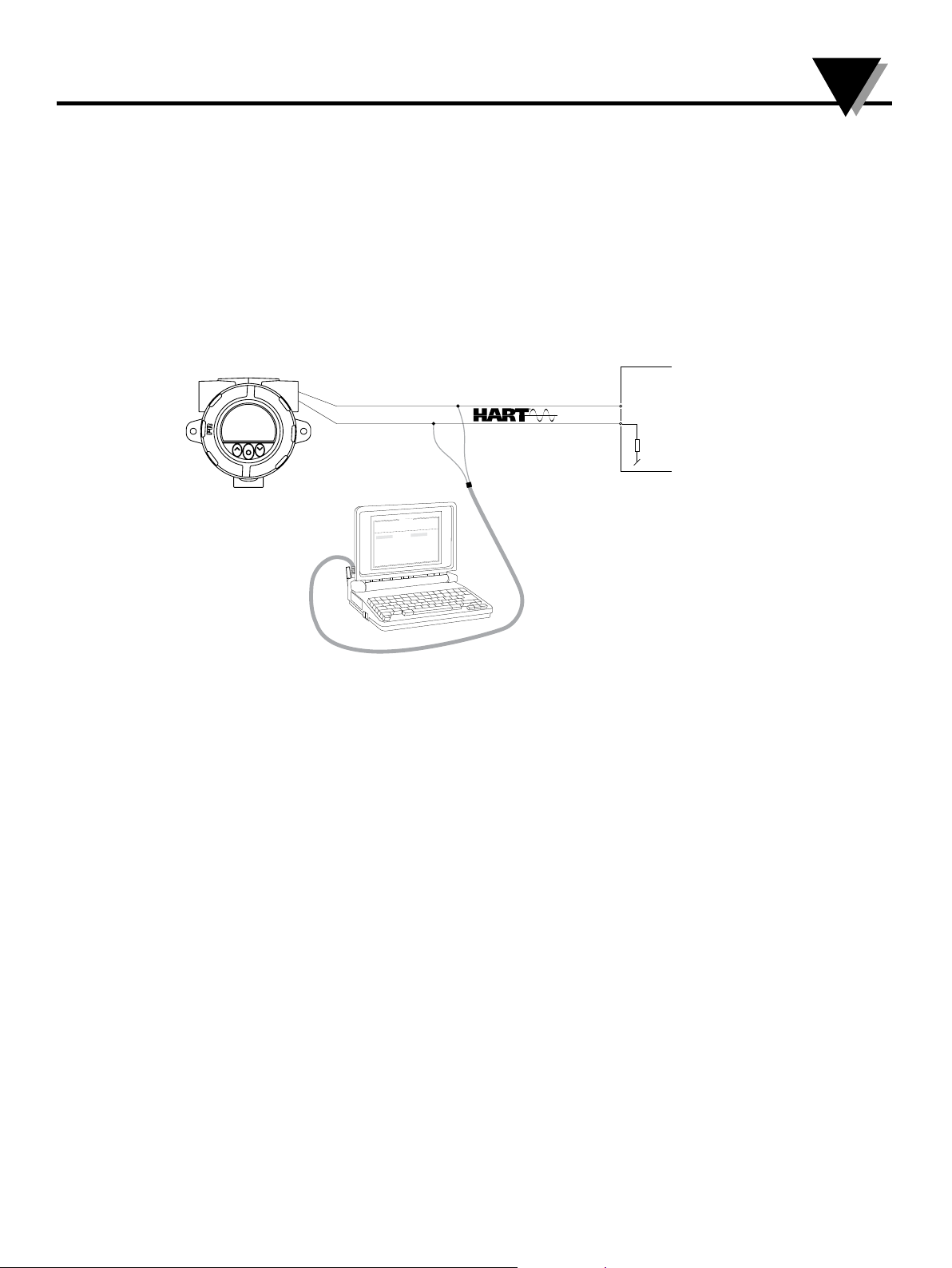

For programming please refer to the drawing below.

1

2

250 W <

TXUN-FD

0
:

0

0

3
:
8

0

n
o

i
t

p

O

e

g
a
u

g
n
a

L

n
o

i

at
c

i

n

u

m
m
o

C
t
u

p
t

u

O

t

u

p
n
I

t

c

u
d
o

r

P
e
l

i

F

TXUN-FD

0

1

-

8

­4
9

9

1
:
e

t
a

D

4

9

5

1
0
2

3

4

9

:

o

n
i

al

r
e

S

Omega Engineering

:

o
n

ag

HART modem

T

n
I

n
I

C
C
R

t

u
p
t

u
o

g
l

o

a
n

A

t

u

p

i

n

g

l

o

a

n

A

:

e
p
y

t
t
u

p

e

g
n
a

r
t
u

p

i

o

ct

e
n

n
o

i

t

c

n

j

u

l

d

o

e

s

n

o
p

s
e

A

m
0
2

-

4

:
e
p

y
t

t
u
p

t

u

O

C
I

E

/

N

I

D

0

0
1

t

P

e

l

ca

s

p

U
:

r

o
r
r

e

r

so

n

e

S

C

0

.

0
0
5

-

0
.

0

0

:

e

i

r

-

w

3
:
n

-

-

-

-

-

­:
p

m
o
c

n
o

c
e

s

0
.

0

1

:

e
m
i

t

Rload<1100 W

Programming

Receiving
equipment

+Vsupply

Input

15

36

16

Changing the HART protocol version

Changing the HART protocol version

It is possible to change the HART protocol revision of the device by means of the display, utilizing the OMset software and a
HART modem or other HART configuration tools such as handheld HART terminals.

Changing the HART revision using the display and the optical buttons

Changing the revision is done from the HART revision view under the Advanced menu. Use the or optical buttons to select
the desired HART revision. Press the button to accept the revision and change to the Save view. Select Yes and press to
acknowledge the change or No to cancel.

Changing the HART revision using the OMset software

Select either TXUN-FDH5 or TXUN-FDH7 depending on which protocol revision the TXUN-FD is currently running. Click on the
HART tab and then on Device Password / Write Protection / Protocol…. In the newly opened window check the “Change
protocol to HART #” (# being the desired revision) then acknowledge by pressing the OK button.

The following warning appears:

Click Yes to accept the changes.

Changing the HART revision using a handheld terminal

• Drive the TXUN-FD device Online and enter Device setup – Diag/Service.

• Select Write protection and Write protect by entering “********” (eight stars).

• Select New password - type “********” (eight stars) and then “HARTREV5” or “HARTREV7” depending on the desired
revision

• Select Write enable and enter “-CHANGE-”.

37

-

+

Connection of transmitters in multidrop mode

17

Connection of transmitters in multidrop mode

The outputs of maximum 63 transmitters can be connected in parallel for a digital HART 7 communication on 2-wires. For HART
5 the outputs of maximum 15 transmitters can be connected in the same way.

Before they are connected, each transmitter must be configured with a unique polling address ranging from one to 63 (HART 7) or
15 (HART 5). If two transmitters are configured with the same address, both will be excluded. The transmitter must be configured
for multidrop mode (with a fixed output signal of 4 mA). The maximum current in the loop is therefore 252 mA (HART 7) or 60
mA (HART 5).

The communication is done by means of either a HART communicator or a HART modem.

The OMset configuration software can configure the individual transmitter for multidrop mode and provide it with a unique
polling address.

+

Power

supply

R

A

TXUN-FD

B

-

Rload

> 250 W, < 1100 W

Max. 63 transmitters (HART 7)
or max. 15 transmitters (HART 5)

C

The HART communicator or HART modem can be connected across AB or BC.

TXUN-FD

TXUN-FD

38

18

G

F

E

1

7 5 3

H

Retrofit

Retrofit

The TXUN-FD can be retrofitted with any TXUN transmitter. This allows for easy use of existing devices. The following gives you
a short guide on how to perform this task.

Before proceeding please refer to the section Assembly and disassembly for information on extracting and reassembling the
main unit. Then follow the three easy steps below.

Al

RF

B

A

NB. The fixation bracket (marked B on the drawing) is not interchangeable between
the aluminum and stainless steel housing. Check the bottom right-hand corner for
identifier (Al for aluminum and RF for stainless steel).

1. On the TXUN, remove the terminal 1 and 2 screws using a screwdriver.

2. Attach the connector pins to the TXUN connector 1 and 2.
Tighten the screws using a nutdriver or a socket wrench with Across Flats (A/F) of

5 mm and an outer diameter of no more than 7 mm.
Screw torque on connector pins = 0.4 Nm.

3. Mount the device in the main unit, making sure the connectors meet.

The first time power is applied to the retrofitted TXUN-FD, it will synchronize with
the configuration parameters from the attached TXUN. This process will take
approximately 30 seconds and during this NEW.DEV will appear in the display.

A/F = 5

7

Nutdriver / socket wrench head

Warning:

For Ex installation the customer must assure that the installed transmitter has all the
necessary approvals applicable for the place of installation.
Once a TXUN unit which has been fitted into the TXUN-FD, it must not be taken out
and used in other applications.

39

Appendix

ATEX Installation Drawing

IECEx installation drawing

FM Installation Drawing

CSA Installation Drawing

Appendix

19

Desenho de Instalaçao INMETRO

40

7501QA01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

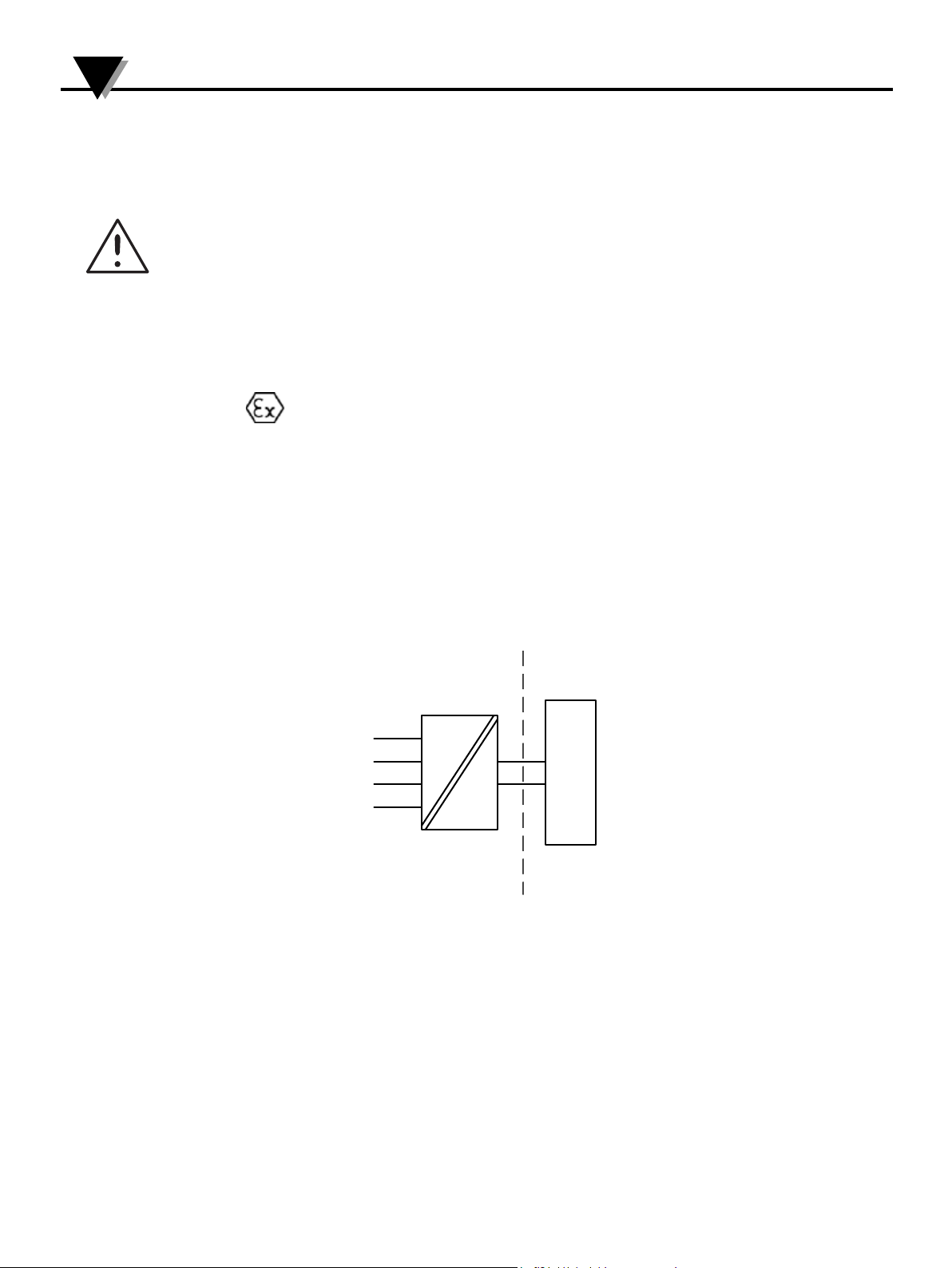

7501 ATEX Installation

For safe installation of TXUN-FD t he following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards (EN60079-14) that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.

Standards: EN 60079-0: 2012, EN 60079-11: 2012

Ex ia installation:

ATEX Certificate

Marking

Hazardous area

Zone 0, 1, 2, 20, 21, 22, (Mines)

T4: -40 ≤ Ta ≤ 85ºC T100 ºC ( TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T100 ºC ( TXUN-FD)

T5: -40 ≤ Ta ≤ 60ºC T75 ºC
T6: -40 ≤ Ta ≤ 45ºC T60 ºC

Sensor
Terminal: 3,4,5,6

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF

DEKRA 15ATEX0058 X

II 1 G Ex ia IIC T6...T4 Ga
II 1 D Ex ia IIIC T100°C Da
I M1 Ex ia I Ma (TXUN-FD)

6

5

4

3

TXUN-FD

+

1

-

2

TXUN-FD

Supply
Terminal: 1,2

Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W

Li: 0 μH

Ci: 2 nF

Non Hazardous Area

41

7501QA01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Ex ia installation

General installation instructions

.

The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the
galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1
minute.

The enclosure must be connected to the potential matching line

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by
mounting to a process pipe or a temperature sensor, the temperature at the point of connection
shall be within the ambient temperature range as given in the certificate or this manual.

Cable entries and blanking elements shall be used that are suitable for the application and correctly
installed.

For installalation of TXUN-FD in zo
the event of rare incidents, ignition sources due to impact and friction, sparks are excluded.

Protection degree of IP 54 according to EN 60529 is achieved if certified cable glands or conduit
entry devices are used that are suitable for the application and correctly installed.

Protection degree of IP 68 according to EN 60529 is only achieved if certified cable glands or
conduit entry devices are used that are suitable for the application and correctly installed with
sealing washers or Loctite sealant added to the threads of the sensor, blanking elements and cable

.

glands

For group III (dust), electrostatic charging of the paint layer shall be avoided

ne 0 / EPL Ga, the transmitter must be installed such, that even in

Appendix

19

42

7501QA01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

Ex nA, ic installation:

Certificate

II 3 G Ex ic IIC T6...T4 Gc

Standards: EN 60079-0:2012, EN 60079-11:2012, EN60079-15:2010

Marking II 3 G Ex nA IIC T6…T4 Gc

Type of protection Ex nA

O-ring Sealing : Silicone

T4: -40 ≤ Ta ≤ 85ºC T4 (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T4 (TXUN-FD)

T6: -40 ≤ Ta ≤ 60ºC T6

O-ring Sealing : FKM

T4: -20 ≤ Ta ≤ 85ºC (TXUN-FD)
T4: -20 ≤ Ta ≤ 80ºC (TXUN-FD)
T6: -20 ≤ Ta ≤ 60ºC

DEKRA 15ATEX0058 X

II 3 D Ex ic IIIC T100°C Dc

Type of protection Ex ic

T4: -40 ≤ Ta ≤ 85ºC T100ºC (TXUN-FD)
T4; -40 ≤ Ta ≤ 80ºC T100ºC (TXUN-FD)

T6: -40 ≤ Ta ≤ 60ºC T85 ºC

Hazardous area
Zone 2, 22

Sensor
Terminal: 3,4,5,6
Ex ic

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 45 mH
Co: 28 μF

6

5

4

3

TXUN-FD

Non Hazardous Area

+

1

-

2

Supply

Supply
Terminal: 1,2
Ex ic

Ui: 35 VDC

Li: 0 μH

Supply
Terminal: 1,2
Ex nA

U : 35 VDC

Ci: 2 nF

43

7501QA01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Ex nA, ic installation:

For an ambient temperature exceeding 70 °C, heat resistant cables and cable glands suitable for at
least 90°C shall be used.

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by
mounting to a process pipe or a temperature sensor, the temperature at the point of connection
shall be within the ambient temperature range as given in the certificate.

Cable entries and blanking elements shall be used that are suitable for the application and correctly
installed.

The enclosure must be connected to the potential matching line

Applied screw terminal torque is max 0.4 Nm on all terminals.

Protection degree of IP 54 according to EN 60529 is achieved if certified cable glands or conduit
entry devices are used that are suitable for the application and correctly installed.

Protection degree of IP 68 according to EN 60529 is only achieved if certified cable glands or
conduit entry devices are used that are suitable for the application and correctly installed with
sealing washers or Loctite sealant added to the threads of the sensor, blanking elements and cable
glands.

For group III (dust), electrostatic charging of the paint layer shall be avoided

Appendix

19

44

7501QA01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

TXUN-FD

Type of protection Ex tb

O-ring Sealing : Silicone

-40 ≤ Ta ≤ 85ºC T100°C (TXUN-FD )

-40 ≤ Ta ≤ 80ºC T100°C (TXUN-FD )

-40 ≤ Ta ≤ 70ºC T85°C

O-ring Sealing : FKM

-20 ≤ Ta ≤ 85ºC T100°C (TXUN-FD )

-20 ≤ Ta ≤ 80ºC T100°C (TXUN-FD )

-20 ≤ Ta ≤ 70ºC T85°C

Non Hazardous Area

+

1

-

2

TXUN-FD

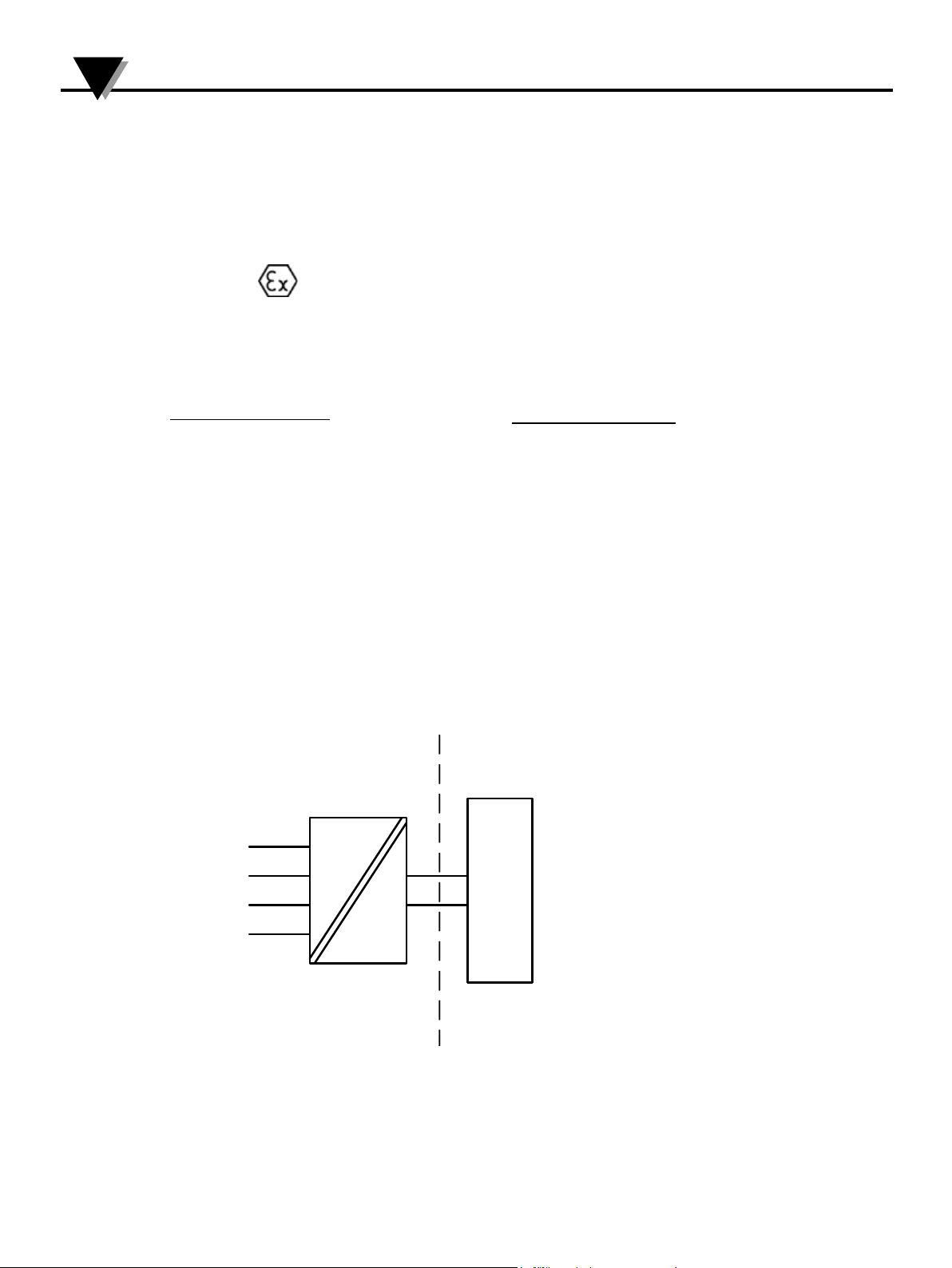

Ex d, tb installation:

Standards: EN 60079-0:2012, EN 60079-1:2007, EN60079-31:2014

ATEX Certificate

Marking

TXUN-FD of protection Ex d

T4,T5: -40 ≤ Ta ≤ 85ºC (TXUN-FD )
T4,T5: -40 ≤ Ta ≤ 80ºC (TXUN-FD )

T6: -40 ≤ Ta ≤ 70ºC

Hazardous area
Zone 1, 2, 21, 22

DEKRA 15ATEX0058 X

II 2 G Ex d IIC T6…T4 Gb
II 2 D Ex tb IIIC T100°C Db

6

5

4

3

Terminal: 3,4,5,6
Sensor: RTD or TC

Terminal: 1,2

Umax: 35 VDC

45

7501QA01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Ex d, tb installation:

The transmitter is intended, either to be connected via a cable, or to be mounted directly onto a
temperature sensing probe.
Only ATEX/IECEx equipment certified sensors, suitable for the application and correctly installed,
may be mounted directly onto the Transmitter without additional certification of the combination.

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by mounting
to a process pipe or a temperature sensor, the temperature at the point of connection shall be within
the ambient temperature range as given in the certificate. The sensor shall be suitable for use as
entry device on an Ex d enclosure and shall not add volume to the TXUN-FD enclosure. T
sensor must be in compliance with EN60079-1 / EN60079-31.

Unused cable entries must be sealed by the blanking elements 8550-xxx and 8551-xxx supplied with
the TXUN-FD or other Ex d and/or Ex

Only Ex d and/or Ex tb certified cable and cable glands shall be used that are suitable for the
application and correctly installed.

Protection degree of IP 54 according to EN 60529 is achieved if Ex d certified cable glands or
conduit entry devices are used that are suitable for the application and correctly installed.

Protection degree of IP 68 according to EN 60529 is only achieved if Ex d certified cable glands or
conduit entry devices are used that are suitable for the application and correctly installed with sealing
washers or Loctite sealant added to the threads of the sensor, blanking elements and cable glands.

The display cover must be scre
putting into service. Do not open display cover until 30 minutes after disconnecting power to the
equipment allowing internal capacitors to discharge, or do not open display cover unless area is
known to be safe

For an ambient temperature exceeding 70 °C, heat resistant cables and cable glands suitable for at
least 90°C shall be used.

The enclosure must be connected to the potential matching line.

When the process temperature range exceeds the service temperature range it shall be verified by
on-site temperature measurements, taking the worst case conditions into account, that the service
temperature does not exceed the range of the module.

For group III (dust), electrostatic charging of the paint layer shall be avoided

No modification to the enclosure is allowed by the customer except as mentioned in the manual or
installation drawing.

tb certified blanking elements suitable for the application. .

wed all the way in and the safety catch must be fastened before

Appendix

he thread of the

19

46

7501QI01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

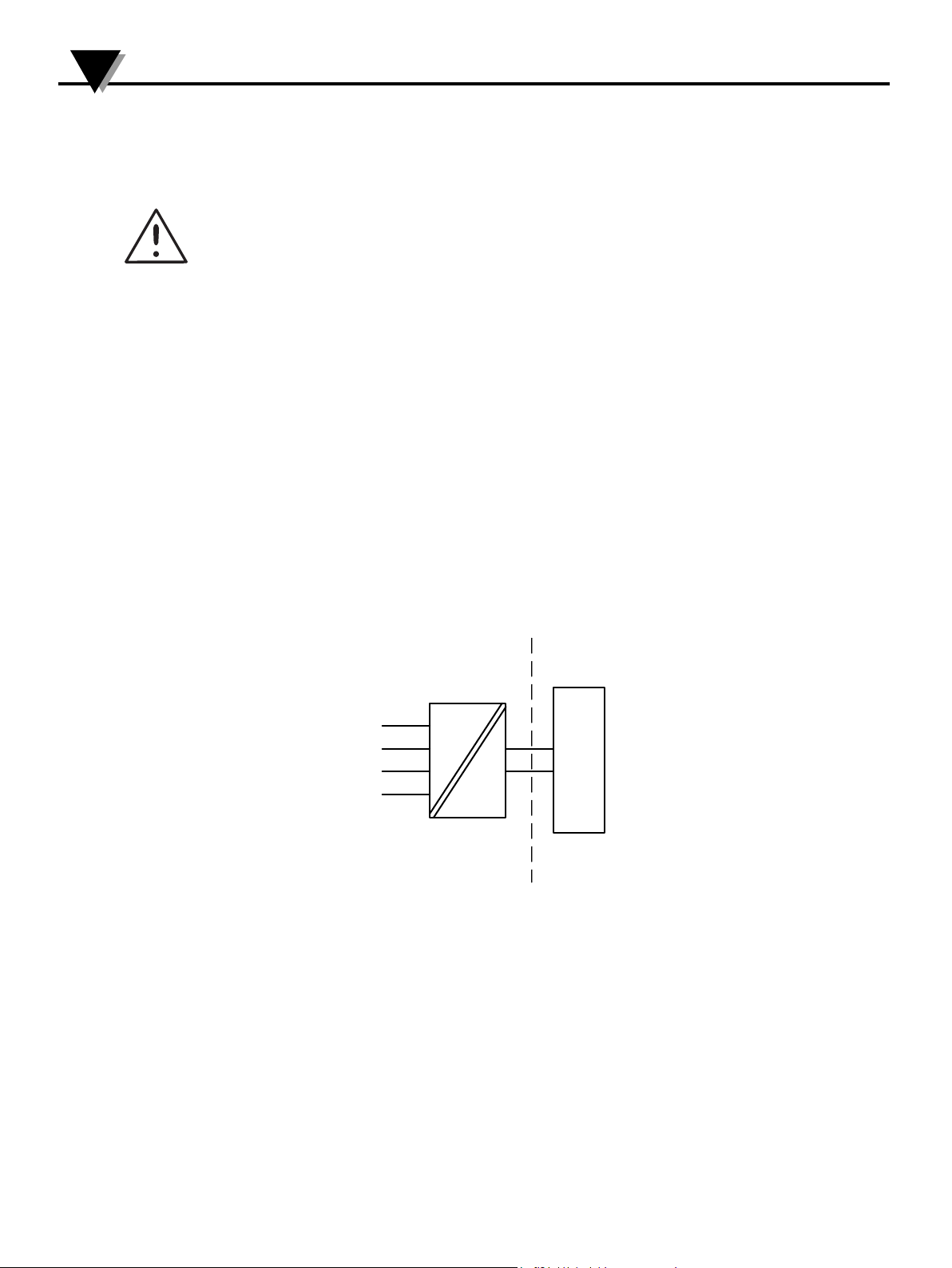

7501 IECEx Installation

For safe installation of TXUN-FD the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards (IEC60079-14) that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.

Certificate IECEx DEK 15.0039 X

Standards: IEC 60079-0: 2011, IEC 60079-11: 2011, IEC 60079-26: 2007

Ex ia installation:

Marking

Hazardous area
Zone 0, 1, 2, 20, 21, 22, Mines

T4: -40 ≤ Ta ≤ 85ºC T100 ºC (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T100 ºC (TXUN-FD)

T5: -40 ≤ Ta ≤ 60ºC T75 ºC
T6: -40 ≤ Ta ≤ 45ºC T60 ºC

Sensor
Terminal: 3,4,5,6

Uo: 9.6 VDC

Ex ia IIC T6...T4 Ga
Ex ia IIIC T100°C Da
Ex ia I Ma (TXUN-FD)

6

5

4

3

TXUN-FD

+

1

-

2

Barrier

Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF

Non Hazardous Area

Supply
Terminal: 1,2

Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W

Li: 0 μH

Ci: 2 nF

47

7501QI01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Appendix

Ex ia installation

General installation instructions

The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the
galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1
minute.

The enclosure must be connected to the potential matching line.

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by
mounting to a process pipe or a temperature sensor, the temperature at the point of connection
shall be within the ambient temperature range as given in the certificate or in this manual.

Cable entries and blanking elements shall be used that are suitable for the application and correctly
installed.

For installalation of TXUN-FD in zo
the event of rare incidents, ignition sources due to impact and friction, sparks are excluded.

Protection degree of IP 54 according to IEC 60529 is achieved if certified cable glands or conduit
entry devices are used that are suitable for the application and correctly installed.

Protection degree of IP 68 according to IEC 60529 is only achieved if certified cable glands or
conduit entry devices are used that are suitable for the application and correctly installed with
sealing washers or Loctite sealant added to the threads of the sensor, blanking elements and cable
glands.

For group III (dust), electros

ne 0 / EPL Ga, the transmitter must be installed such, that even in

tatic charging of the paint layer shall be avoided.

19

48

7501QI01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

Ex nA, ic installation:

Certificate IECEx DEK 15.0039 X

Standards: IEC 60079-0: 2011, IEC 60079-11: 2011, IEC 60079-15: 2010

Marking Ex nA IIC T6…T4 Gc

Ex ic IIC T6…T4 Gc
Ex ic IIIC T100°C Dc

Type of protection Ex nA

O-ring Sealing : Silicone

T4: -40 ≤ Ta ≤ 85ºC T4 (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T4 (TXUN-FD)

T6: -40 ≤ Ta ≤ 60ºC T6

O-ring Sealing : FKM

T4: -20 ≤ Ta ≤ 85ºC (TXUN-FD)
T4: -20 ≤ Ta ≤ 80ºC (TXUN-FD)
T6: -20 ≤ Ta ≤ 60ºC

TXUN-FD area
Zone 2, 22

6

5

4

3

TXUN-FD

1

2

Type of protection Ex ic

T4: -40 ≤ Ta ≤ 85ºC T100ºC (TXUN-FD)
T4; -40 ≤ Ta ≤ 80ºC T100ºC (TXUN-FD)

T6: -40 ≤ Ta ≤ 60ºC T85 ºC

Non Hazardous Area

+

-

TXUN-FD

Sensor
Terminal: 3,4,5,6
Ex ic

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 45 mH
Co: 28 μF

49

Supply
Terminal: 1,2
Ex ic

Ui: 35 VDC

Li: 0 μH

Ci: 2 nF

Supply
Terminal: 1,2
Ex nA

Umax : 35 VDC

7501QI01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Ex nA, ic installation:

For an ambient temperature exceeding 70°C, heat resistant cables and cable glands suitable for at
least 90°C shall be used.

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by
mounting to a process pipe or a temperature sensor, the temperature at the point of connection
shall be within the ambient temperature range as given in the certificate.

Cable entries and blanking elements shall be used that are suitable for the application and correctly
installed.

The enclosure must be connected to the potential matching line

Applied screw terminal torque is max 0.4 Nm on all terminals.

Protection degree of IP 54 according to EN 60529 is achieved if certified cable glands or conduit
entry devices are used that are suitable for the application and correctly installed.

Protection degree of IP 68 according to EN 60529 is only achieved if certified cable glands or
conduit entry devices are used that are suitable for the application and correctly installed with
sealing washers or Loctite sealant added to the threads of the sensor, blanking elements and cable
glands.

For group III (dust), electrostatic charging of the paint layer shall be avoided

Appendix

19

50

7501QI01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

Ex d, tb installation:

Certificate IEC DEK 15.0039 X

Marking

Standards:IEC 60079-0: 2011, IEC 60079-1: 2007, IEC 60079-31: 2013

Type of protection Ex d

T4,T5: -40 ≤ Ta ≤ 85ºC (TXUN-FD)
T4,T5: -40 ≤ Ta ≤ 80ºC (TXUN-FD)

T6: -40 ≤ Ta ≤ 70ºC

Hazardous area
Zone 1, 2, 21, 22

Ex d IIC T6…T4 Gb
Ex tb IIIC T100°C Db

6

+

5

4

3

TXUN-FD

1

-

2

Type of protection Ex tb

O-ring Sealing : Silicone

-40 ≤ Ta ≤ 85ºC T100°C (TXUN-FD)

-40 ≤ Ta ≤ 80ºC T100°C (TXUN-FD)

-40 ≤ Ta ≤ 70ºC T85°C

O-ring Sealing : FKM

-20 ≤ Ta ≤ 85ºC T100°C (TXUN-FD)

-20 ≤ Ta ≤ 80ºC T100°C (TXUN-FD)

-20 ≤ Ta ≤ 70ºC T85°C

Non Hazardous Area

Supply

Terminal: 3,4,5,6
Sensor: RTD or TC

Terminal: 1,2

Umax: 35 VDC

51

7501QI01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Ex d, tb installation

The transmitter is intended, either to be connected via a cable, or to be mounted directly onto a temperature
sensing probe.
Only IECEx equipment certified sensors, suitable for the application and correctly installed, may be mounted
directly onto the Transmitter without additional certification of the combination.

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by mounting to a
process pipe or a temperature sensor, the temperature at the point of connection shall be within the ambient
temperature range as given in the certificate. The sensor shall be suitable for use as entry device on an Ex d
enclosure and shall not add volume to the TXUN-FD enclosure. The t
with IEC60079-1/IEC60079-31

Unused cable entries must be sealed by the blanking elements 8550-xxx and 8551-xxx supplied with the
TXUN-FD or other Ex d and/or Ex tb c

Only Ex d and/or Ex tb certified cable and cable glands shall be used that are suitable for the application and
correctly installed.

Protection degree of IP 54 according to IEC 60529 is achieved if Ex d certified cable glands or conduit entry
devices are used that are suitable for the application and correctly installed.

Protection degree of IP 68 according to IEC 60529 is only achieved if Ex d certified cable gl
entry devices are used that are suitable for the application and correctly installed with sealing washers or
Loctite sealant added to the threads of the sensor, blanking elements and cable glands.

The display cover must be screwed all the way in and the safety catch must be fastened before putting into
service. Do not open display cover until 30 minutes after disconnecting power to the equipment allowing
internal capacitors to discharge, or do not open display cover unless area is known to be safe

For an ambient temperature exceeding 70 °C, heat resistant cables and cable glands suitable for at least
90°C shall be used.

The enclosure must be connected to the potential matching line.

When the process temperature range exceeds the service temperature range it shall be verified by on-site
temperature measurements, taking the worst case conditions into account, that the service temperature does
not exceed the range of the module.

For group III (dust), electrostatic charging of the paint layer shall be avoided

No modification to the enclosure is allowed by the customer except as mentioned in the manual or

installation drawing.

ertified blanking elements suitable for the application.

hread of the sensor must be in compliance

Appendix

ands or conduit

19

52

7501QF01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

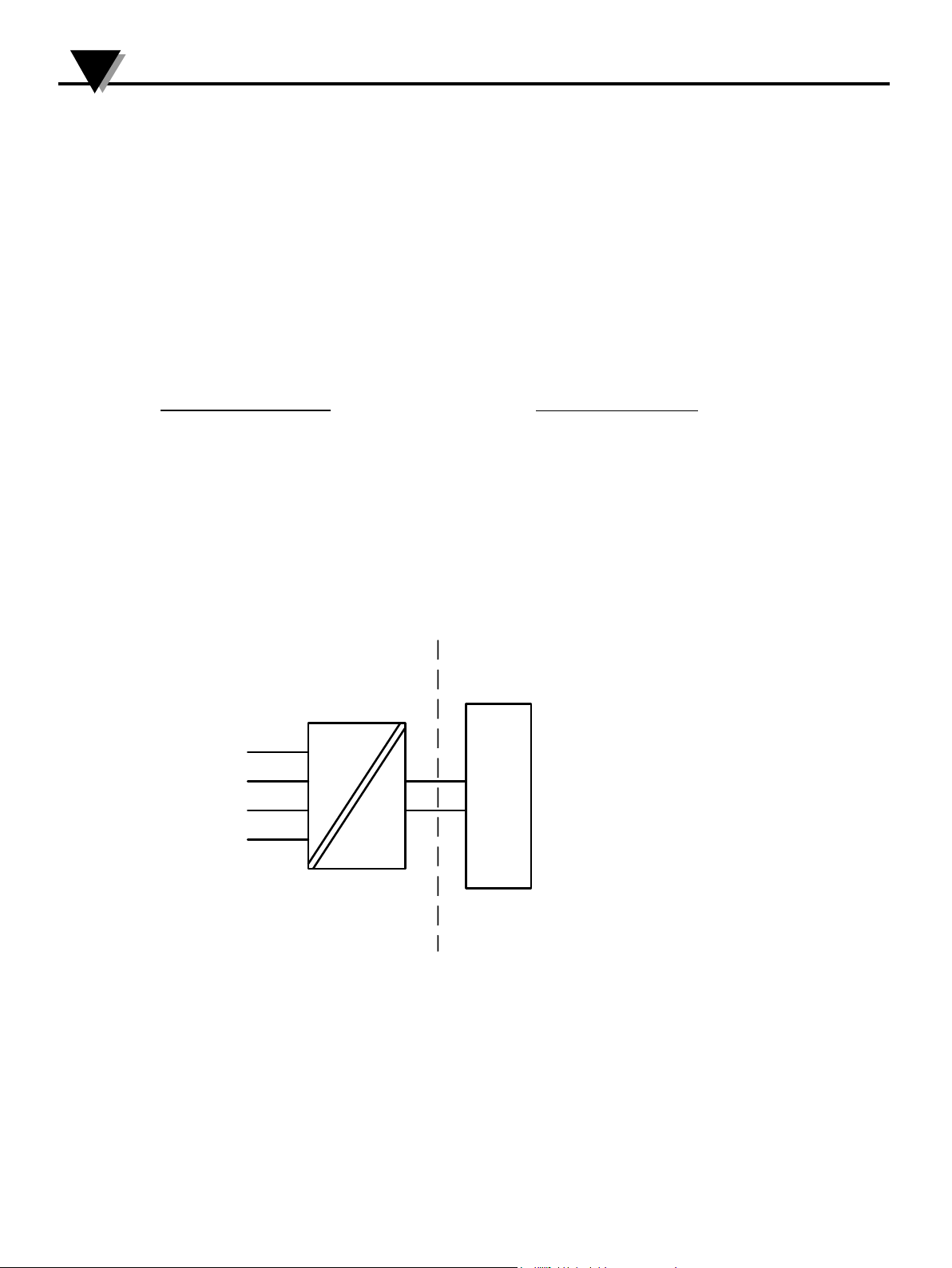

19

Appendix

FM Installation drawing 7501

For safe installation of TXUN-FD the following must be observed. The module shall only be installed
by qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.

Pour une mise en œuvre du TXUN-FD en toute sécurité, les préconisa
observées. Le module doit être mis en œuvre par du personnel qualifié familier avec les Lois,
Directives et Normes, nationales et internationales, qui s’appliquent à la zone d’installation.

Intrinsic safe installation:

Hazardous classified Location
Class I,II,II Division1 Groups, ABCDEFG
Class I, Zone 0, IIC, Zone 20

T4: -40 ≤ Ta ≤ 85ºC
T5: -40 ≤ Ta ≤ 60ºC

T6: -40 ≤ Ta ≤ 40ºC

Zone 20 Temperature Class:

-40 ≤ Ta ≤ 85ºC T100 ºC

-40 ≤ Ta ≤ 60ºC T75 ºC

-40 ≤ Ta ≤ 40ºC T60 ºC

Terminal: 1,2

Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W

Li: 0 μH

Ci: 2 nF

Terminal: 3,4,5,6

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF

6

5

4

3

TXUN-FD

+

1

-

2

Non classified Location

TXUN-FD

tions ci-dessous doivent être

The barrier must not
be connected to any
associated apparatus
which uses or
generates more than
250 VRMS

UM < 250V
Voc or Uo < Vmax or Ui
Isc or Io < Imax or Ii
Po < Pi
Ca or Co > Ci + Ccable
La or Lo > Li + Lcable

53

7501QF01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Appendix

The entity concept

The Transmitter must be installed according to National Electrical Code (ANSI-NFPA 70) and shall be
installed with the enclosure, mounting, and spacing segregation requirement of the ultimate application.

Equipment that is FM-approved for intrinsic safety may be connected to barriers based on the ENTITY
CONCEPT. This concept permits interconnection of approved transmitters, meters and other devices in
combinations which have not been specifically examined by FM, provided that the agency's criteria are
met. The combination is then intrinsically safe, if the entity concept is acceptable to the authority having
jurisdiction over the installation.

The entity concept criteria are as follows:

ices, other than barriers, must not be a source of power.

The maximum voltage Ui(V

) and current Ii(I

MAX

), and maximum power Pi(Pmax), which the device can

MAX

receive and remain intrinsically safe, must be equal to or greater than the voltage (Uo or V
current (Io or I

or It) and the power Po which can be delivered by the barrier.

SC

The sum of the maximum unprotected capacitance (C
ing wiring must be less than the capacitance (C

) for each intrinsically device and the interconnect-

i

) which can be safely connected to the barrier.

a

The sum of the maximum unprotected inductance (L
wiring must be less than the inductance (L

) which can be safely connected to the barrier.

a

) for each intrinsically device and the interconnecting

i

The entity parameters Uo,V

or Vt and Io,ISC or It, and Ca and La for barriers are provided by the barrier

OC

manufacturer.

For Class II and Class III installations where rigid conduit is not used, seal cable entries against dust and
fibres using a NRTL listed cable gland fitting.

or Vt) and

OC

19

54

7501QF01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

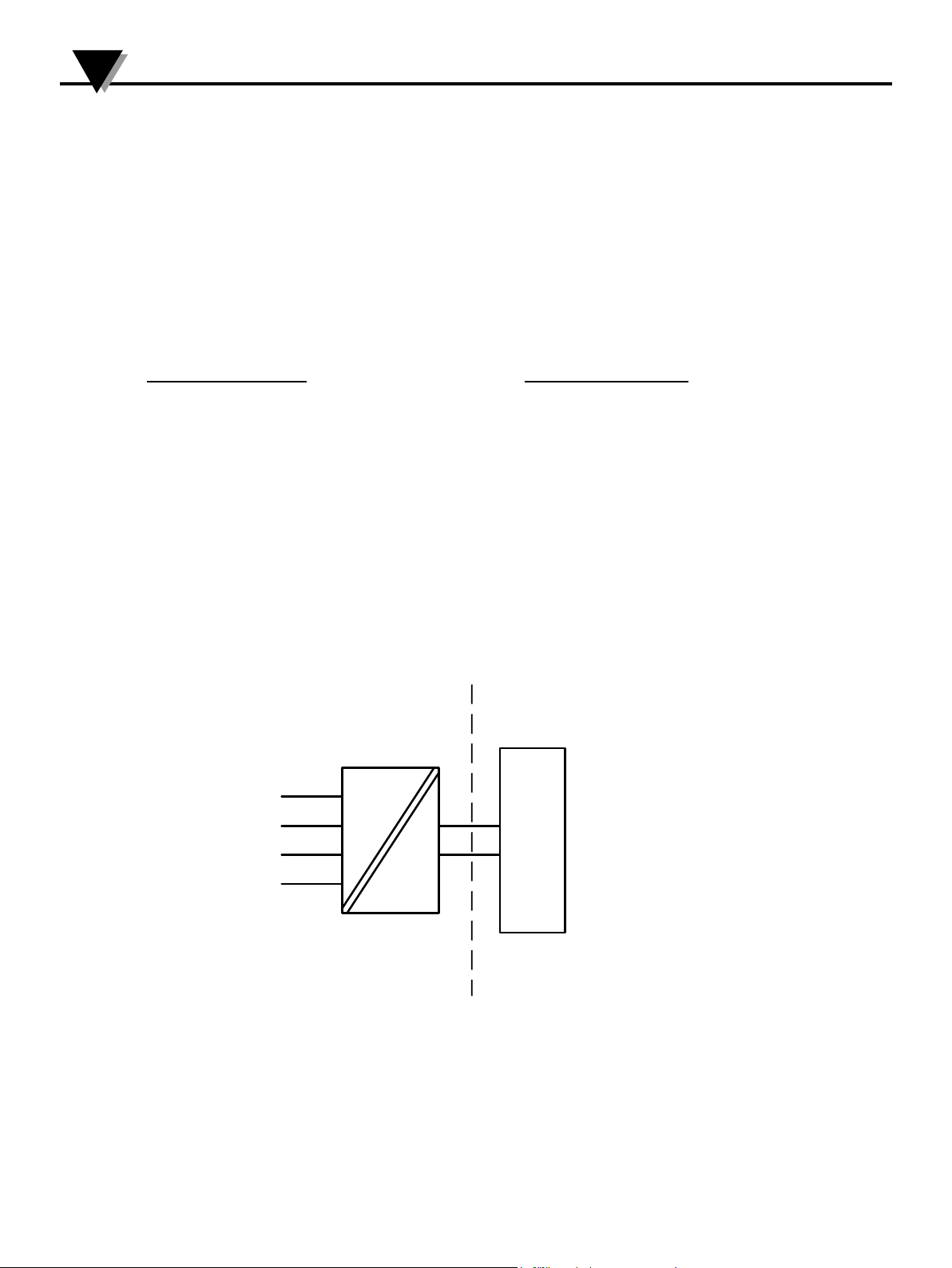

19

Appendix

Non Incendive installation:

Hazardous classified Location
Class I,II,III ,Division 2, Groups, ABCDFG

Non classified Location

Class I, Zone 2, IIC

T4: -20/-40 ≤ Ta ≤ 85ºC
T6: -20/-40 ≤ Ta ≤ 60ºC

Terminal: 3,4,5,6
Sensor: RTD or TC

O-ring Sealings

Silicone rubber:-40°C ≤Ta ≤ +85°C
FKM rubber: -20°C ≤Ta ≤ +85°C

Protection: Indoor and Outdoor TYPE 4X or IP66

6

5

4

3

TXUN-FD

+

1

-

2

TXUN-FD

35V

Terminal: 1,2

Vmax: 35 VDC

55

7501QF01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

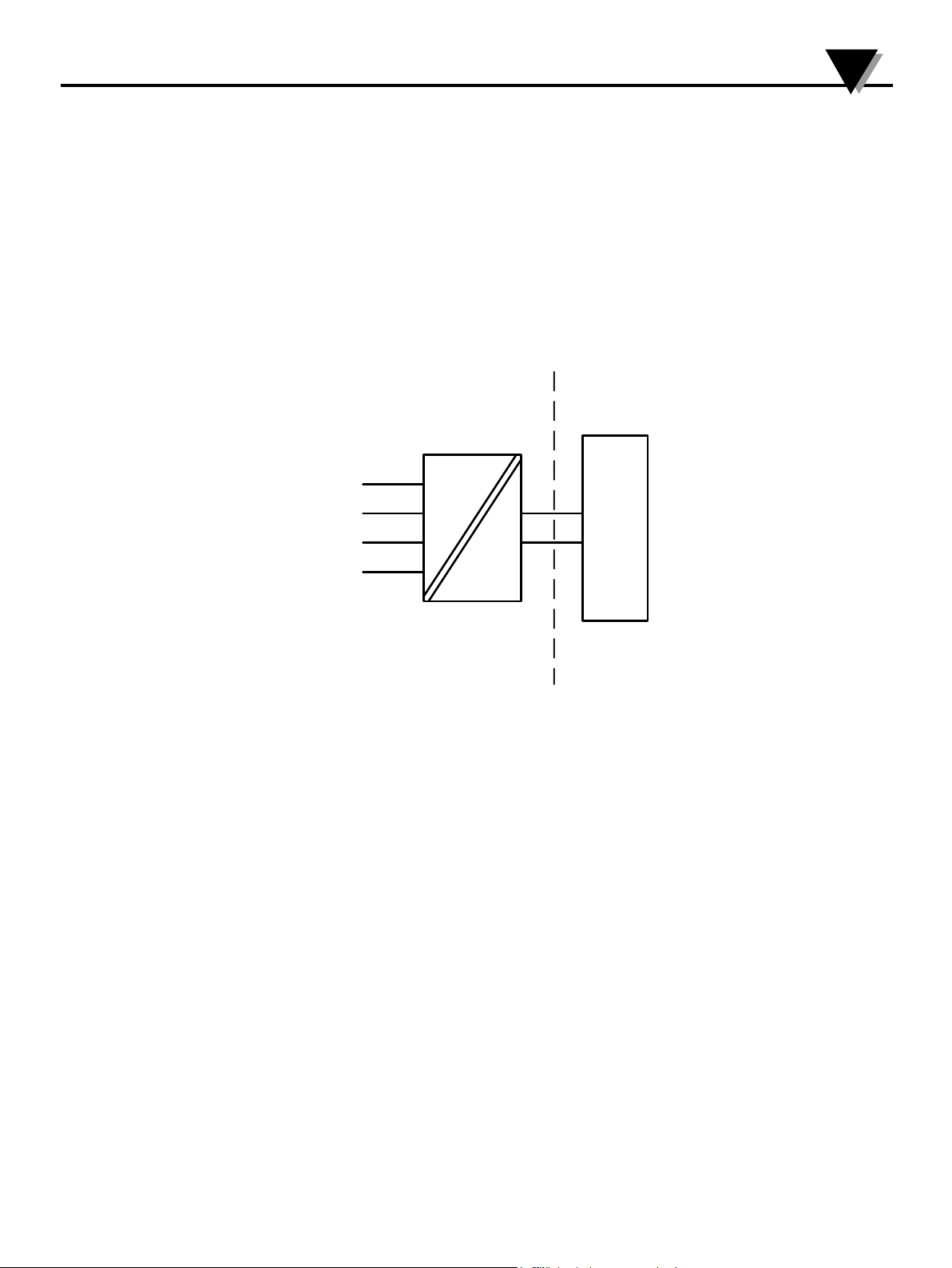

Appendix

Explosion proof / Dust ignition proof installation

TXUN-FD area
Class I, II, III Division 1, Groups ABCDEFG
Class I Zone 1, Ex/AEx d IIC T6

Non Hazardous Area

T6: -20 /-40 ≤ Ta ≤ 70ºC
T5, T4: -20 /-40 ≤ Ta ≤ 85ºC

6

5

4

3

TXUN-FD

+

1

-

2

TXUN-FD

Terminal: 3,4,5,6
Sensor: RTD or TC

Terminal: 1,2

Umax: 35 VDC

19

O-ring Sealings

Silicone rubber:-40°C ≤Ta ≤ +85°C
FKM rubber: -20°C ≤Ta ≤ +85°C

Protection: Indoor and Outdoor Type 4X or IP66

56

7501QF01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

Explosion proof / Dust ignition proof installation

The enclosure must be installed such, that even in the event of rare incidents, ignition sources due to impact
and friction, sparks are excluded.

Unused cable entries must be sealed by approved sealing plugs.

Certified cable and cable glands shall be used that are suitable for the application and correctly installed or
the cables must be run in conduit.

For an ambient temperature exceeding 70 °C, heat resistant cables and cable glands suitable for at least
90°C shall be used.

For process temperatures above 85°C or below -20/-40°C installer must verify by measurements that the
service temperature of the TXUN-FD

The display cover must be screwed all the way in and the safety catch must be fastened before operation.

Protection degree of IP 66 or TYPE4X is only achieved if certified cable glands or conduit entry devices are

used that are suitable for the application and correctly installed with sealing washers or Loctite sealant is
added to the threads of the sensor, blanking elements and cable glands.

The enclosure must be connected to the potential matching line.

module is held within this range taking worst conditions into account.

57

7501QF01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Explosion proof / Dust ignition proof installation

The enclosure must be installed such, that even in the event of rare incidents, ignition sources due to impact
and friction, sparks are excluded.

Unused cable entries must be sealed by approved sealing plugs.

Certified cable and cable glands shall be used that are suitable for the application and correctly installed or
the cables must be run in conduit.

For an ambient temperature exceeding 70 °C, heat resistant cables and cable glands suitable for at least
90°C shall be used.

For process temperatures above 85°C or below -20/-40°C installer must verify by measurements that the
service temperature of the TXUN-FD

module is held within this range taking worst conditions into account.

The display cover must be screwed all the way in and the safety catch must be fastened before operation.

Protection degree of IP 66 or TYPE4X is only achieved if certified cable glands or conduit entry devices are

used that are suitable for the application and correctly installed with sealing washers or Loctite sealant is
added to the threads of the sensor, blanking elements and cable glands.

The enclosure must be connected to the potential matching line.

Appendix

Warning.
Do not open display cover unless area is known to be safe.

For installation in Canada the following must be taken into account:
All openings for conduit and sensor connection must
For Class I Group A installation, conduit seal is required within 18 inches of the enclosure.
For Class I Zone I installation, conduit seal is required within 18 inches of the enclosure.

Attention.

Ne pas ouvrir le couvercle de l’afficheur tant que la zone n’est pas réputée non explosible.

Pour une mise en œuvre au Canada, les préconisations ci-dessous doivent être observées :

Toutes les ouvertures d’entrée process et connexion de capteur doivent être munies de filetage
NPT.
Pour une mise en œuvre en Classe I, Groupe A, des joints d’étanchéité doivent être mises en
place à moins de 18 pouces du boîtier.
Pour une mise en œuvre en Classe I, Zone I, des joints d’étanchéité doivent être mises en place à
moins de 18 pouces du boîtier.

be in NPT threads.

19

58

7501QC01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

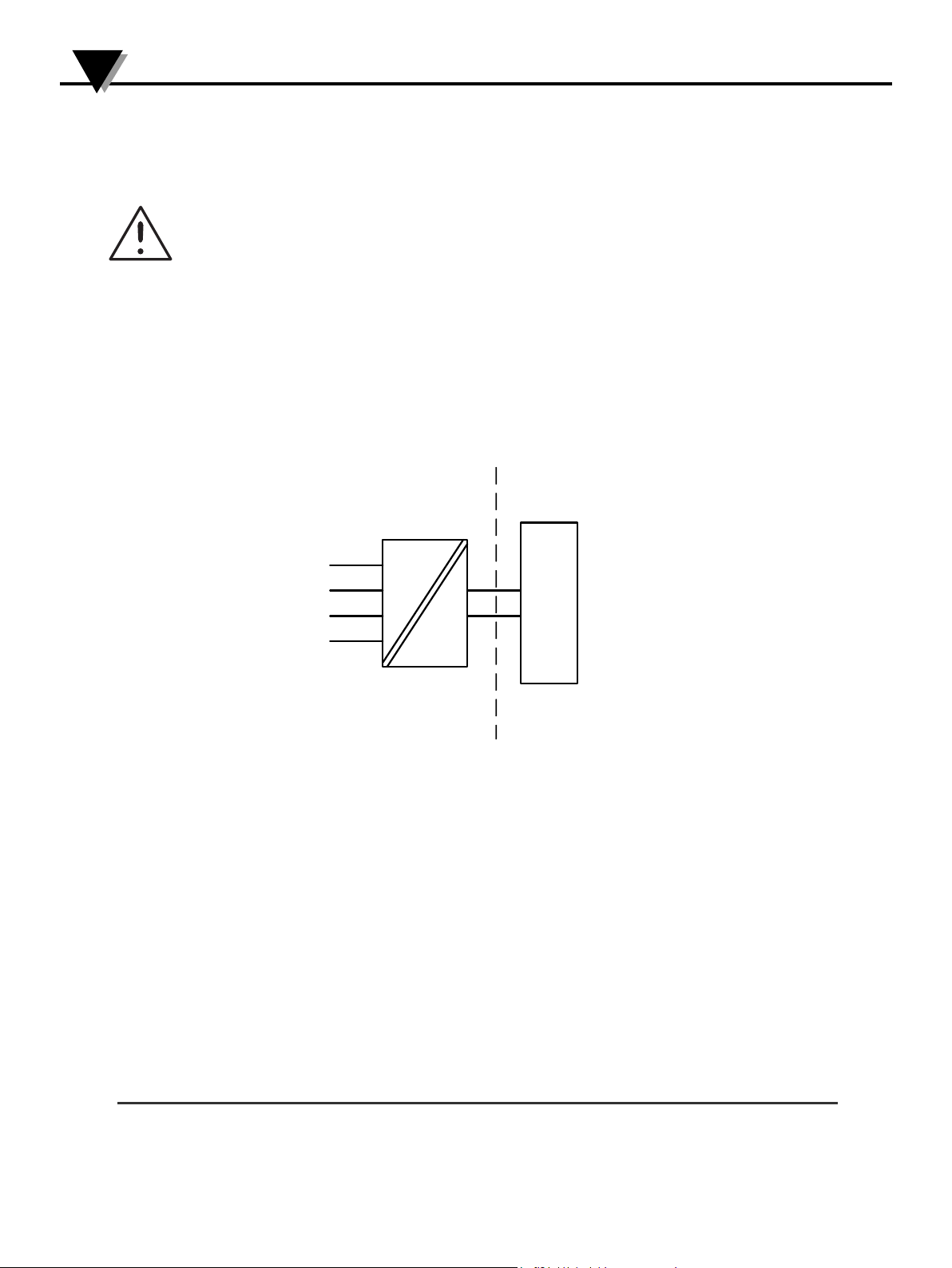

19

Appendix

7501 CSA Installation

For safe installation of TXUN-FD the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.

Intrinsic Safe Installation / SÉCURITÉ INTRINSÉQUE , Exia

Applicable for (TXUN-FD).

Hazardous classified Location
Class I,Division1, Groups, ABCD;
Class II,Group EFG;
Class III, Division 1.
Class I, Zone 0, IIC
Ex/AEx ia IIC Ga

T4: -40 ≤ Ta ≤ 85ºC T100 ºC (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T100 ºC TXUN-FD)

T5: -40 ≤ Ta ≤ 60ºC T75 ºC
T6: -40 ≤ Ta ≤ 45ºC T60 ºC

Terminal: 3,4,5,6

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF

Warning
Substitution of components may impair intrinsic safety.

AVERTISSEMENT

LA SUBSTITUTION DE COMPOSANTS PEUT COMPROMETTRE LA SÉCURITÉ INTRINSÉQUE

The module must be installed according to the installation codes stipulated in the Canadian
Electrical Code (CEC) or for US the National Electrical Code (NEC).

6

+

5

4

3

TXUN-FD

1

2

Terminal: 1,2

-

TXUN-FD

Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W

Li: 0 μH

Ci: 2 nF

Non classified Location

The barrier must not
be connected to any
associated apparatus
which uses or
generates more than
250 VRMS

UM < 250V
Voc or Uo < Vmax or Ui
Isc or Io < Imax or Ii
Po < Pi
Ca or Co > Ci + Ccable
La or Lo > Li + Lcable

59

7501QC01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Appendix

Explosion proof / Dust ignition proof installation:

Applicable for (TXUN-FD)

Explosion proof for Hazardous area
Class I, Division 1, Groups ABCD;
Class II, Division 1, Groups EFG;
Class III
Ex d IIC, Class I, Zone 1

T6: -20/-40 ≤ Ta ≤ 70ºC T85°C

6

5

4

3

TXUN-FD

+

1

-

2

Supply

Non Hazardous Area

19

Terminal: 3,4,5,6
Sensor: RTD or TC

O-ring Sealing

Silicone rubber:-40°C ≤Ta ≤ +85°C
FKM rubber: -20°C ≤Ta ≤ +85°C

Terminal: 1,2

Umax: 35 VDC

60

7501QC01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

19

Appendix

Explosion proof / Dust ignition proof installation:
Applicable for (TXUN-FD)

Conduit and sensor connections must be in NPT modified threads.

Only third party certified sensors suitable for Class I, Division 1, Groups ABCDEFG or

Class I ,Zone 1 IIC may be attached to the Temperature Transmitter without additional approval
of the combination.

For Class I Group A installation and Class I Zone 1 installation, conduit seal is required within 18

inches of enclosure.

For an ambient temperature exceeding 70°C, heat resistant cables and cables suitable for at least
90°C shall be used.

The display cover must be screwed all the way in and the safety catch must be fastened before

putting the module into service.

Do not

The remote temperature sensor must comply with the requirements for installation in hazardous

locations “Class I, Division 1 / Zone 1, Groups ABCD / IIC”

The remote temperature sensor must comply with the requirements for Ex d installat

Only certified cable and cable glands shall be used that are suitable for the application and

correctly installed.

open / remove front cover unless area is known to be safe.

ion

61

7501QC01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Explosion proof / Dust ignition proof installation:
Applicable for (TXUN-FD)

Conduit and sensor connections must be in NPT modified threads.

Only third party certified sensors suitable for Class I, Division 1, Groups ABCDEFG or

Class I ,Zone 1 IIC may be attached to the Temperature Transmitter without additional approval
of the combination.

For Class I Group A installation and Class I Zone 1 installation, conduit seal is required within 18

inches of enclosure.

For an ambient temperature exceeding 70°C, heat resistant cables and cables suitable for at least
90°C shall be used.

The display cover must be screwed all the way in and the safety catch must be fastened before

putting the module into service.

Do not

open / remove front cover unless area is known to be safe.

The remote temperature sensor must comply with the requirements for installation in hazardous

locations “Class I, Division 1 / Zone 1, Groups ABCD / IIC”

The remote temperature sensor must comply with the requirements for Ex d installat

ion

Only certified cable and cable glands shall be used that are suitable for the application and

correctly installed.

For protection according to Type 4X / IP66 use Loctite 577 on threads of sensor and cable glands.

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

7501 Desenho de Instalação INMETRO

Para instalação segura do TXUN-FD o seguinte deve ser observado. O módulo deve ser instalado,
apenas por pessoas qualificadas as quais estão familiarizadas com as normas nacionais e
internacionais, diretrizes e padrões (ABNT NBR IEC60079-14) que se aplicam a esta área.

Instalação Segura do Ex ia installation:

Certificado DEKRA 15.0014X

Marca

Normas : ABNT NBR IEC 60079-0: 2013, ABNT NBR IEC 60079-11: 2013
ABNT NBR IEC 60079-26: 2008

Áreas não classificadas

Áreas classificadas
Zona 0, 1, 2, 20, 21, 22, Minas

T4: -40 ≤ Ta ≤ 85ºC T100 ºC (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T100 ºC (TXUN-FD)
T5: -40 ≤ Ta ≤ 60ºC T100 ºC
T6: -40 ≤ Ta ≤ 45ºC T100 ºC

Ex ia IIC T6...T4 Ga
Ex ia IIIC T100°C Da
Ex ia I Ma (apenas para Tipo TXUN-FD )

Terminal do
sensor: 3,4,5,6

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF

Terminal de
alimentação: 1,2

Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W

Li: 0 μH

Ci: 2 nF

1

2

6

5

4

3

+

-

TXUN-FD

TXUN-FD

The enclosure must be connected to the potential matching line

Unused cable entries must be sealed by the blanking elements supplied with the TXUN-FD or other Ex

certified blanking elements.

If the transmitter is physically connected to a possible source of heating or cooling, e.g. by
mounting to a process pipe or a temperature sensor, the temperature at the point of connection
shall be within the ambient temperature range as given in the certificate.

When the process temperature range exceeds the service temperature range it shall be verified by
on-site temperature measurements, taking the worst case conditions into account,
temperature does not exceed the range of the

For Class II, III, electrostatic charging of the paint layer shall be avoided.

No modification to the enclosure is allowed by the customer except as mentioned in the manual or
installation drawing.

module.

that the service

Appendix

19

62

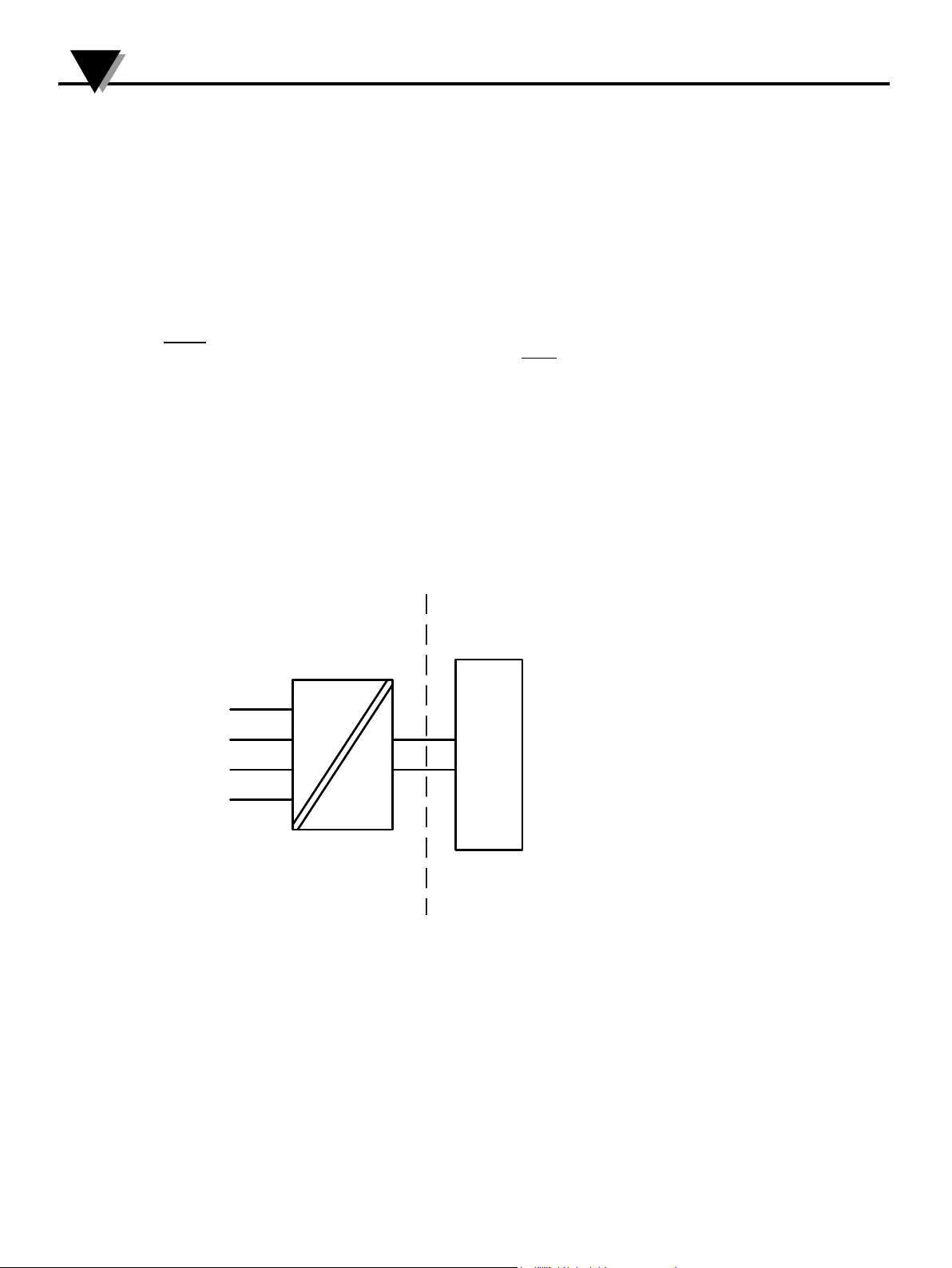

19

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Appendix

7501 Desenho de Instalação INMETRO

Para instalação segura do TXUN-FD o seguinte deve ser observado. O módulo deve ser instalado,
apenas por pessoas qualificadas as quais estão familiarizadas com as normas nacionais e
internacionais, diretrizes e padrões (ABNT NBR IEC60079-14) que se aplicam a esta área.

Instalação Segura do Ex ia installation:

Certificado DEKRA 15.0014X

Marca

Normas : ABNT NBR IEC 60079-0: 2013, ABNT NBR IEC 60079-11: 2013
ABNT NBR IEC 60079-26: 2008

Áreas classificadas
Zona 0, 1, 2, 20, 21, 22, Minas

T4: -40 ≤ Ta ≤ 85ºC T100 ºC (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC T100 ºC (TXUN-FD)
T5: -40 ≤ Ta ≤ 60ºC T100 ºC
T6: -40 ≤ Ta ≤ 45ºC T100 ºC

Terminal do
sensor: 3,4,5,6

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF

Ex ia IIC T6...T4 Ga
Ex ia IIIC T100°C Da
Ex ia I Ma (apenas para Tipo TXUN-FD )

6

+

5

4

3

TXUN-FD

1

-

2

TXUN-FD

Áreas não classificadas

Terminal de
alimentação: 1,2

Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W

Li: 0 μH

Ci: 2 nF

63

Appendix

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Instalação do Ex ia

Instruções de instalação gerais
O circuito do sensor não é infalivelmente galvânico-isolado do circuito de saída de alimentação.
Contudo, a isolação galvânica entre os circuitos é capaz de resistir a teste de tensão de 500Vac
durante 1 minuto.

Para o grupo III (poeiras), deve ser evitada a carga electrostática da camada de tinta.

O equipamento deve ser conectado à linha potencial correspondente

Se o transmissor estiver fisicamente conectado a uma possível fonte de calor ou resfriamento, por
exemplo, através da montagem de um tubo de processo ou sensor de temperatura, a temperatura
no ponto de conexão deve estar entre a faixa de temperatura ambiente determinada no certificado
ou neste manual.

As entradas dos cabos e elementos de supressão devem ser usadas adequadamente para
aplicação INMETRO, aprovada e instalada corretamente.

Para instalação TXUN-FD em zona 0
O transmissor deve ser instalado de modo que, mesmo em um evento raro de incidente, fontes de
ignição devido a impactos e fricção, faíscas sejam evitadas.

O grau de proteção do IP 54 de acordo com a ABNT NBR IEC 60529 é alcançado se o certificado
prensa-cabos ou dispositivos de entrada de conduíte são usados e adequad
instalados corretamente.

O grau de proteção do IP 68 de acordo com a ABNT NBR IEC 60529 é apenas alcançado se o
certificado prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para
aplicação e instalados corretamente com selos de vedação ou selante Loctite adicionados para as
linhas do sensor, elementos de supressão e prensa-cabos.

/ EPL Ga, se aplicam as seguintes instruções:

os para a aplicação e

19

64

19

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Appendix

Instalação Ex ic, Ex nA:

Certificado DEKRA 15.0014X

Marca Ex nA IIC T6…T4 Gc

Ex ic IIC T6…T4 Gc

Normas: ABNT NBR IEC 60079-0: 2013, ABNT NBR IEC 60079-15: 2012

Ex nA

Anel de vedação O : Silicone

T4: -40 ≤ Ta ≤ 85ºC (TXUN-FD)
T4: -40 ≤ Ta ≤ 80ºC (TXUN-FD)
T6: -40 ≤ Ta ≤ 60ºC

Anel de vedação O : FKM

T4: -20 ≤ Ta ≤ 85ºC (TXUN-FD)
T4: -20 ≤ Ta ≤ 80ºC (TXUN-FD)
T6: -20 ≤ Ta ≤ 60ºC

TXUN-FD classificadas
Zona 2

6

5

4

1

2

Ex ic

T4: -40 ≤ Ta ≤ 85ºC (TXUN-FD)
T4; -40 ≤ Ta ≤ 80ºC (TXUN-FD)
T6: -40 ≤ Ta ≤ 60ºC

Áreas não classificadas

+

-

Terminal do
sensor: 3,4,5,6
Ex ic

Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 45 mH
Co: 28 μF

3

TXUN-FD

TXUN-FD

Terminal de
alimentação: 1,2
Ex ic

Ui: 35 VDC

Li: 0 μH

Ci: 2 nF

65

Terminal de
alimentação: 1,2
Ex nA

U : 35 VDC

Appendix

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Instalação Ex ic, Ex nA:

Para uma temperatura ambiente excedendo 70 ºC, cabos resistentes ao calor e prensa-cabos
adequados para pelo menos 90 ºC devem ser usados.

Se o transmissor estiver fisicamente conectado a uma possível fonte de calor ou resfriamento, por
exemplo, através da montagem de um tubo de processo ou sensor de temperatura, a temperatura
no ponto de conexão deve estar entre a faixa de temperatura ambiente determinada no certificado
ou neste manual.

As entradas dos cabos e elementos de supressão devem ser usadas adequadamente para a
aplicação e instaladas corretamente.

O equipamento deve ser conectado à linha potencial correspondente

O torque aplicado no terminal de parafusos é no máximo 0.4 Nm em todos os terminais.

O grau de proteção do IP 54 de acordo com a ABNT NBR IEC 60529 é alcançado se o certificado
prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para a aplicação e
instalados corretamente.

O grau de proteção do IP 68 de acordo com a ABNT NBR IEC 60529 é apenas alcançado se o
certificado prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para
aplicação e instalados corretamente com selos de vedação ou selante Loctite adicionados para as
linhas do sensor, elementos de supressão e prensa-cabos.

19

66

19

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Appendix

Instalação Ex tb, Ex d:

Certificado DEKRA 15.0014X

Marca

Normas ABNT NBR IEC 60079-0: 2013, ABNT NBR IEC 60079-1: 2009,
ABNT NBR IEC 60079-31:2014

TXUN-FD d

T4,T5: -40 ≤ Ta ≤ 85ºC (TXUN-FD)
T4,T5: -40 ≤ Ta ≤ 80ºC (TXUN-FD)

T6: -40 ≤ Ta ≤ 70ºC

Áreas classificadas
Zona 1, 2, 21, 22

Ex d IIC T6…T4 Gb
Ex tb IIIC T100°C Db

6

+

5

4

3

TXUN-FD

1

-

2

Ex tb

Anel de vedação O: Silicone

-40 ≤ Ta ≤ 85ºC T100°C (TXUN-FD)

-40 ≤ Ta ≤ 80ºC T100°C (TXUN-FD)

-40 ≤ Ta ≤ 70ºC T100°C

Anel de vedação O: FKM

-20 ≤ Ta ≤ 85ºC T100°C (TXUN-FD)

-20 ≤ Ta ≤ 80ºC T100°C (TXUN-FD)

-20 ≤ Ta ≤ 70ºC T100°C

Áreas não classificadas

TXUN-FD

Terminal: 3,4,5,6
Sensor: RTD ou TC

Terminal: 1,2

Alimentação: 35 VDC

67

Appendix

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Instalação Ex tb, Ex d:

O transmissor é destinado, quer para ser ligado através de um cabo, ou pode ser montado directamente
sobre uma sonda de detecção de temperatura.
Sensores apenas INMETRO certificadas, apropriadas para a aplicação e instalado corretamente, pode ser
montado diretamente sobre o transmissor sem certificação adicional da combinação.

Se o transmissor estiver fisicamente conectado a uma possível fonte de calor ou resfriamento, por exemplo,
através da montagem de um tubo de processo ou sensor de temperatura, a temperatura no ponto de
conexão deve estar entre a faixa de temperatura ambiente dada no certificado. O sensor deve ser adequado
para ser usado como entrada de equipamento no equipamento Ex d e nenhum volume deve ser adicionado
no enclosure do TXUN-FD.

Entradas de cabos não utilizadas devem ser selados pelas elementos de bloqueio 8550-xxx e 8551-xxx
fornecidos com o TXUN-FD ou seladas

pelo INMETRO aprovou elementos adequados para a aplicação.

Prensa-cabos e cabos devem ser INMETRO Ex d / tb aprovado, adequado para a aplicação e
correctamente instalados

O Sensor / Sonda aplicado deve ser adequado para a aplicação, instalado corretamente, e deve ser
certificado pelo INMETRO.

O grau de proteção do IP 54 de acordo com a ABNT NBR IEC 60529 é alcançado se o certificado Ex de
prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para a aplicação e instalados
corretamente.

O grau de proteção do IP 68 de acordo com a ABNT NBR IEC 60529 é apenas alcançado se o certificado
Ex de prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para aplicação e
instalados corretamente com selos de vedação ou selante Loctite adicionados para as linhas do sensor,
elementos de supressão e prensa-cabos.

A tampa do display deve ser parafusada em todos os pontos e o fecho de segurança deve ser ajustado
antes de colocá-lo em serviço. Não abra a tampa do display até 30 minutos depois de desconectar a
alimentação a fim de permitir que os capacitores internos descarreguem, ou não abra a tampa do display a
menos que a área seja conhecida como segura.

Para uma temperatura ambiente que excede 70 ºC, cabos resistentes a aquecimento e prensa-cabos
adequados para pelo menos 90 ºC devem ser usados.

O equipamento deve ser conectado em uma linha potencial correspondente.

Quando a faixa de temperatura do p

rocesso excede a faixa de temperatura de serviço ela deve ser
verificada através de medições de temperatura no local, levando a pior condição em conta, que a
temperatura de serviço não exceda a faixa do módulo.

Para o grupo III (poeiras), deve ser evitada a carga electrostática da camada de tinta.

Nenhuma modificação no equipamento pelo cliente é permitida exceto o que é mencionado no manual ou no

desenho de instalação.

Instalação Ex tb, Ex d:

O transmissor é destinado, quer para ser ligado através de um cabo, ou pode ser montado directamente
sobre uma sonda de detecção de temperatura.
Sensores apenas INMETRO certificadas, apropriadas para a aplicação e instalado corretamente, pode ser
montado diretamente sobre o transmissor sem certificação adicional da combinação.

Se o transmissor estiver fisicamente conectado a uma possível fonte de calor ou resfriamento, por exemplo,
através da montagem de um tubo de processo ou sensor de temperatura, a temperatura no ponto de
conexão deve estar entre a faixa de temperatura ambiente dada no certificado. O sensor deve ser adequado
para ser usado como entrada de equipamento no equipamento Ex d e nenhum volume deve ser adicionado
no enclosure do TXUN-FD.

Entradas de cabos não utilizadas devem ser selados pelas elementos de bloqueio 8550-xxx e 8551-xxx
fornecidos com o TXUN-FD ou seladas

Prensa-cabos e cabos devem ser INMETRO Ex d / tb aprovado, adequado para a aplicação e
correctamente instalados

O Sensor / Sonda aplicado deve ser adequado para a aplicação, instalado corretamente, e deve ser
certificado pelo INMETRO.

O grau de proteção do IP 54 de acordo com a ABNT NBR IEC 60529 é alcançado se o certificado Ex de
prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para a aplicação e instalados
corretamente.

pelo INMETRO aprovou elementos adequados para a aplicação.

19

68

7501QB01

LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM

Instalação Ex tb, Ex d:

O transmissor é destinado, quer para ser ligado através de um cabo, ou pode ser montado directamente
sobre uma sonda de detecção de temperatura.
Sensores apenas INMETRO certificadas, apropriadas para a aplicação e instalado corretamente, pode ser
montado diretamente sobre o transmissor sem certificação adicional da combinação.

Se o transmissor estiver fisicamente conectado a uma possível fonte de calor ou resfriamento, por exemplo,
através da montagem de um tubo de processo ou sensor de temperatura, a temperatura no ponto de
conexão deve estar entre a faixa de temperatura ambiente dada no certificado. O sensor deve ser adequado
para ser usado como entrada de equipamento no equipamento Ex d e nenhum volume deve ser adicionado
no enclosure do TXUN-FD.

Entradas de cabos não utilizadas devem ser selados pelas elementos de bloqueio 8550-xxx e 8551-xxx
fornecidos com o TXUN-FD ou seladas

pelo INMETRO aprovou elementos adequados para a aplicação.

Prensa-cabos e cabos devem ser INMETRO Ex d / tb aprovado, adequado para a aplicação e
correctamente instalados

O Sensor / Sonda aplicado deve ser adequado para a aplicação, instalado corretamente, e deve ser
certificado pelo INMETRO.

O grau de proteção do IP 54 de acordo com a ABNT NBR IEC 60529 é alcançado se o certificado Ex de
prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para a aplicação e instalados
corretamente.

O grau de proteção do IP 68 de acordo com a ABNT NBR IEC 60529 é apenas alcançado se o certificado

19

O equipamento deve ser conectado em uma linha potencial correspondente.

Quando a faixa de temperatura do p

Para o grupo III (poeiras), deve ser evitada a carga electrostática da camada de tinta.

Nenhuma modificação no equipamento pelo cliente é permitida exceto o que é mencionado no manual ou no

Appendix

Ex de prensa-cabos ou dispositivos de entrada de conduíte são usados e adequados para aplicação e
instalados corretamente com selos de vedação ou selante Loctite adicionados para as linhas do sensor,
elementos de supressão e prensa-cabos.

A tampa do display deve ser parafusada em todos os pontos e o fecho de segurança deve ser ajustado
antes de colocá-lo em serviço. Não abra a tampa do display até 30 minutos depois de desconectar a
alimentação a fim de permitir que os capacitores internos descarreguem, ou não abra a tampa do display a
menos que a área seja conhecida como segura.

Para uma temperatura ambiente que excede 70 ºC, cabos resistentes a aquecimento e prensa-cabos
adequados para pelo menos 90 ºC devem ser usados.

verificada através de medições de temperatura no local, levando a pior condição em conta, que a
temperatura de serviço não exceda a faixa do módulo.

desenho de instalaçã

rocesso excede a faixa de temperatura de serviço ela deve ser

o.

69

20

Document History

Document history

The following list provides notes concerning revisions of this document.

Rev. ID Date Notes

100 152 4 initial release of the product
101 15 3 0 FM installation drawing updated

Application drawing updated

102 1541 CSA, EU-RO marine, InMetro and NEPSI approvals

added

103 154 3 Assembly drawing added
104 1612 Installations drawings updated

2 items added under accessories
105 1634 New firmware - menu structure updated to enable
PIN code access to menus

106 1651 FM installation drawing updated
107 1719 Version with stainless steel housing added
108 1750 Menu updated with display scaling option

70

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace
period to the normal one (1) year product warranty to cover handling and shipping time. This ensures
that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at
no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchas­er, including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR)
NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the outside of the return package and on any
correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR WARRANTY RETURNS, please have the
following information available BEFORE contacting
OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.

OMEGA is a trademark of OMEGA ENGINEERING, INC.
© Copyright 2018 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior
written consent of OMEGA ENGINEERING, INC.

FOR NON-WARRANTY REPAIRS, consult
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

MU

Thermocouple, RTD & Thermistor Probes, Connectors,

Panels & Assemblies

MU

Wire: Thermocouple, RTD & Thermistor

MU

Calibrators & Ice Point References

MU

Recorders, Controllers & Process Monitors

MU

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

MU

Transducers & Strain Gages

MU

Load Cells & Pressure Gages

MU

Displacement Transducers

MU

Instrumentation & Accessories

FLOW/LEVEL

MU

Rotameters, Gas Mass Flowmeters & Flow Computers

MU

Air Velocity Indicators

MU

Turbine/Paddlewheel Systems

MU

Totalizers & Batch Controllers

pH/CONDUCTIVITY

MU

pH Electrodes, Testers & Accessories

MU

Benchtop/Laboratory Meters

MU

Controllers, Calibrators, Simulators & Pumps

MU

Industrial pH & Conductivity Equipment

DATA ACQUISITION

MU

Communications-Based Acquisition Systems

MU

Data Logging Systems

MU

Wireless Sensors, Transmitters, & Receivers

MU

Signal Conditioners

MU

Data Acquisition Software

HEATERS

MU

Heating Cable

MU

Cartridge & Strip Heaters

MU

Immersion & Band Heaters

MU

Flexible Heaters

MU

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

MU

Metering & Control Instrumentation

MU

Refractometers

MU

Pumps & Tubing

MU

Air, Soil & Water Monitors

MU

Industrial Water & Wastewater Treatment

MU

pH, Conductivity & Dissolved Oxygen Instruments

M5696/1118
