TXDIN1600S
Smart Powered Strain Bridge/
Load Cell Conditioner
Page 2
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3
SM
ART POWERED STRAIN GAUGE / LOAD CELL CONDITIONER
IMPORTANT - CE & SAFETY REQUIREMENTS
Important - Potentially Hazardous situations. Persons responsible for the installation and operation of this equipment must be fully aware of all aspects of this guide. Failure to
follow the instructions can cause severe injuries and damage.
This product is suitable for environment Installation category II pollution degree. The product is classed as "PERMANENTLY CONNECTED EQUIPMENT", and must be DIN rail
mounted, inside a suitable enclosure providing environmental protection to IP65 or greater.
DC supply must be derived from a local supply and not a distribution system.
To maintain CE EMC requirements , input and DC supply wires must be less than 30 meters. The product contains no serviceable parts , or internal adjustments. No attempt
must be made to repair this product. Faulty units must be returned to supplier for repair. This product must be installed by a qualified person. All electrical wiring must be
carried out in accordance with the appropriate regulations for the place of installation. Before attempting any electrical connection work, please ensure all supplies are
switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit):Supply Voltage ± 50 V dc (Protected for over voltage and reverse connection)
Current with over voltage ± 200 mA
Input Voltage ± 10 VDC, 10 V rms between any terminals
Input Current ± 100 mA between terminals
Ambient Temperature (-30 to 75) °C Humidity (10 to 95) % RH (Non condensing)
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment
without notice.
RECEIVE AND UNPACKING
Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please
notify your supplier immediately.

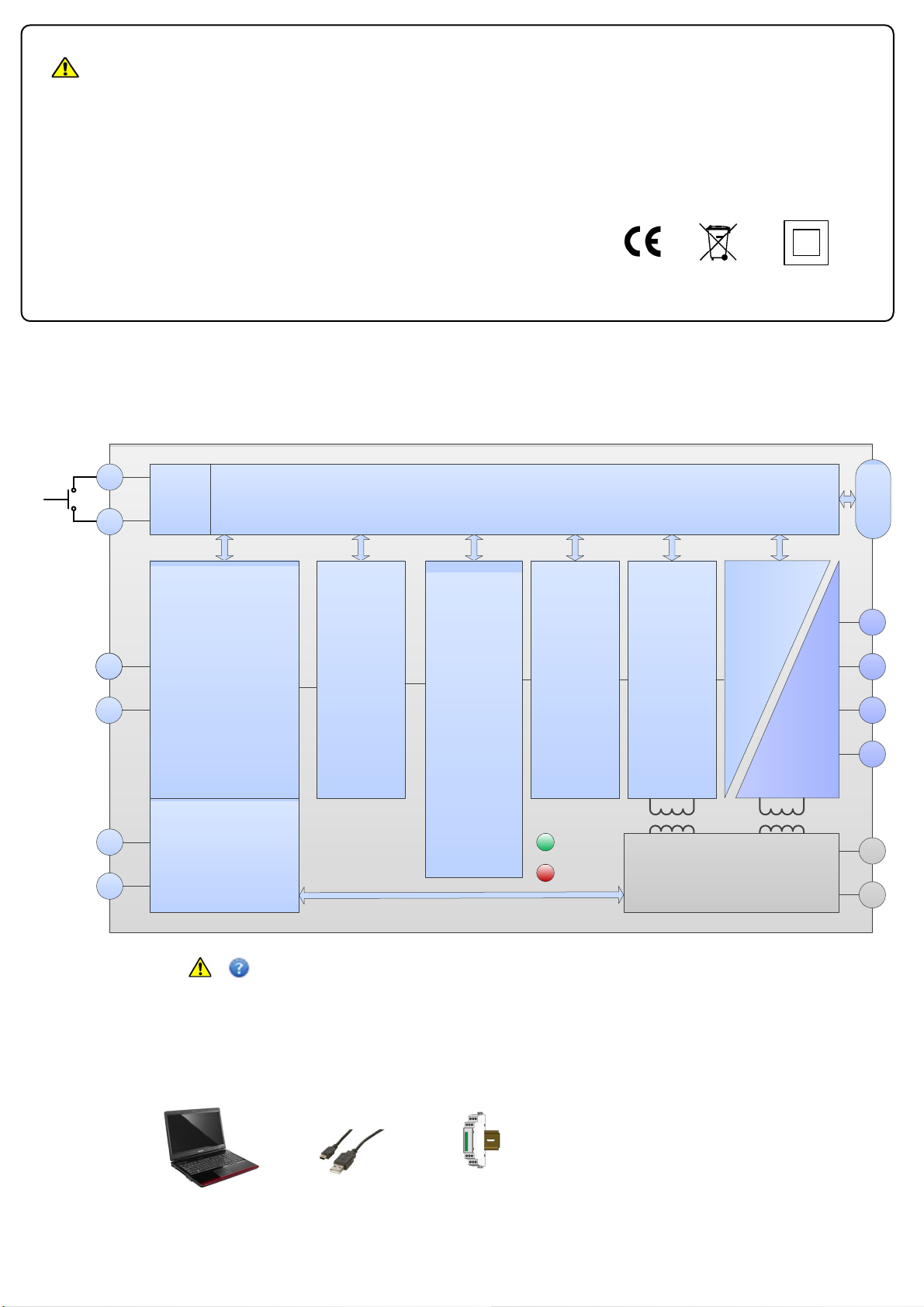

OPERATION
TARE
I/P SIGNAL
U
ser settings
A
dditional Data :- Tag number, Process Data, Tare and button lock
Filter
U
ser settings
CONTROLLER
CALIBRATION
P
OINTS
O/P PROCESS
U
ser settings
O/P SIGNAL
U
ser settings
USB
DAC
(2 to 6) Points
Full Range
(-7.6 to 7.6) mV/V
+
User selects any range
within full range
Filter (0 to 20)
Seconds
Signal to
Process
With active
calibration
Scale Range
Active Scale
Type /Range
Between:mA
(0 to 20) mA
against a live
-
Sample Rate 10/80 SPS
input.
Volts
(0 to10) V
Process Units
± Volts
(-10 to 10) V
Process
Bridge excitation 5 V dc
+
Signal
-
Range LED
G
reen OK
Red ERROR
I
POWER SUPPLY
nput (10 to 48) Vdc or (10 to 32) Vac
CONFIGURATION
T
his product is configured using the USB port of a PC running USB_Speed_Link software, available from your suppliers. During configuration the product is powered direct from the
usb port, removing the need for additional power. If the user wishes to monitor live process data during configuration, then power must be applied. Note the input and USB port of the
device share the same ground, therefore care must be taken to ensure isolation between PC and input circuit. This is best achieved by using a portable laptop or notebook PC.
USB_Speed_Link software is provided with detailed help menu to guide the user through the simple configuration procedure. Unless specified at the time of order this product is
supplied with the default configuration listed below.
CLICK USB_SPEEDLINK HELP BUTTON FOR FULL GUIDE TO CONFIGURATION
Factory default:
M
odel (sensor) = “ “
Calibration Factor = 2 mV/V
Balance = 0.0
Sample Rate = 10 SPS
Filter = 0 (off)
Scale = 2 points
Process Range = (0 to100)
Units = “PV”
Process Output = (0 to 100)
Output range = (4 to 20) mA
Tare Setpoint = 0.0
Tare Offset = 0.0
Tag = “ “
Button Tare Lock off
Trim Buttons Lock off
Page 4
MECHANICAL INSTALLATION
1 2 3
4 5 6
1
2
987
11 1210
.5 mm
Style
Material
Terminals
Cable
Color
DIN 43880 (1 module width)
Polyamide 6.6 self extinguishing
Screw terminal
2.5 mm Max
Gra
y

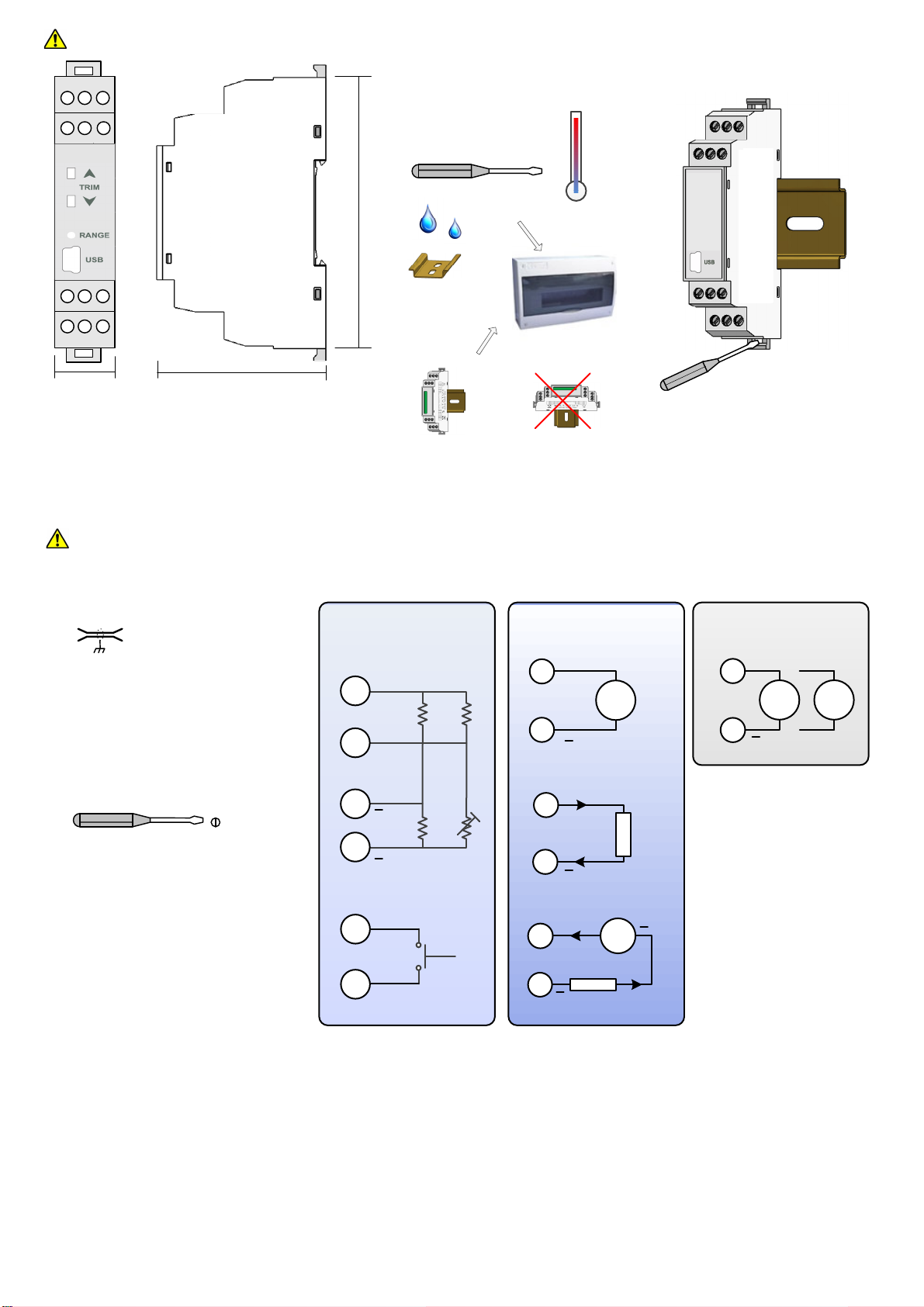

ELECTRICAL INSTALLATION
90mm
MO
UNTING
Screw driver
Ø 3 mm
70
-30°C
°C
TOP
≥ IP65
EN50022 DIN RAIL
56.4 mm17
To fit or release module
In
sert screw driver into slot and lever latch away from body
1.0 TURN OFF SUPPLY BEFORE WORKING ON ANY ELECTRICAL CONNECTION.
2.0 SUPPLY IS OVER VOLTAGE PROTECTED AND FUSED WITH INTERNAL RESSETTBLE FUSE.
Screened Cable
CONNECTION
For cable length < 3 Meters no
required.
Use recommended types for cable length (3 to
30) meters.
Screw Driver
screen or twist pair
Ø 3 mm
INPUT
+
8
+
7
Bridge Input
10
11
Vexc
Vexc
Ta
re
9
12
OUTPUT
+
4
5
+
3
6
mA
Externally Powered
+ +
6
5
Vol
mA
tage
V
out
Vs
SU
PPLY
1
2
+
Vdc Vac
PU
SH BUTTON CONFIGURATION
Two trim buttons are provided on the front panel – blue = low trim, red = high trim. The trim buttons allow the operator to trim the device against a live input signal (similar to
the “Active Range” range buttons available in the configuration software). The trim buttons operate as follows, please note both trim points operate independently, if desired
only one trim point may be set, for example the low (blue) to correct a zero offset :With the input settled at the required high or low trim point, press and keep button pressed - the range light will go off for a few seconds then flash at a fast rate before
returning to a steady state. Release button. Trim operation complete. Output trims to levels preset in the software configuration.
The tare may be set remotely by using contacts 9 and 12 connected to a volt free contact. The actual tare setpoint can be pre-programmed into the device during
configuration.
On tare contact closure corrections within the device in the form of a offset to set the present input signal to represent the preset tare setpoint value.
