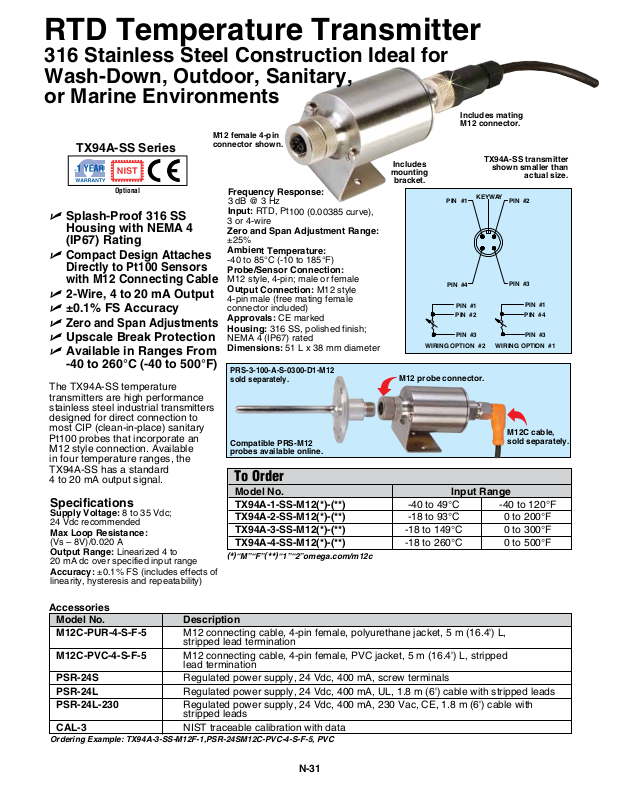

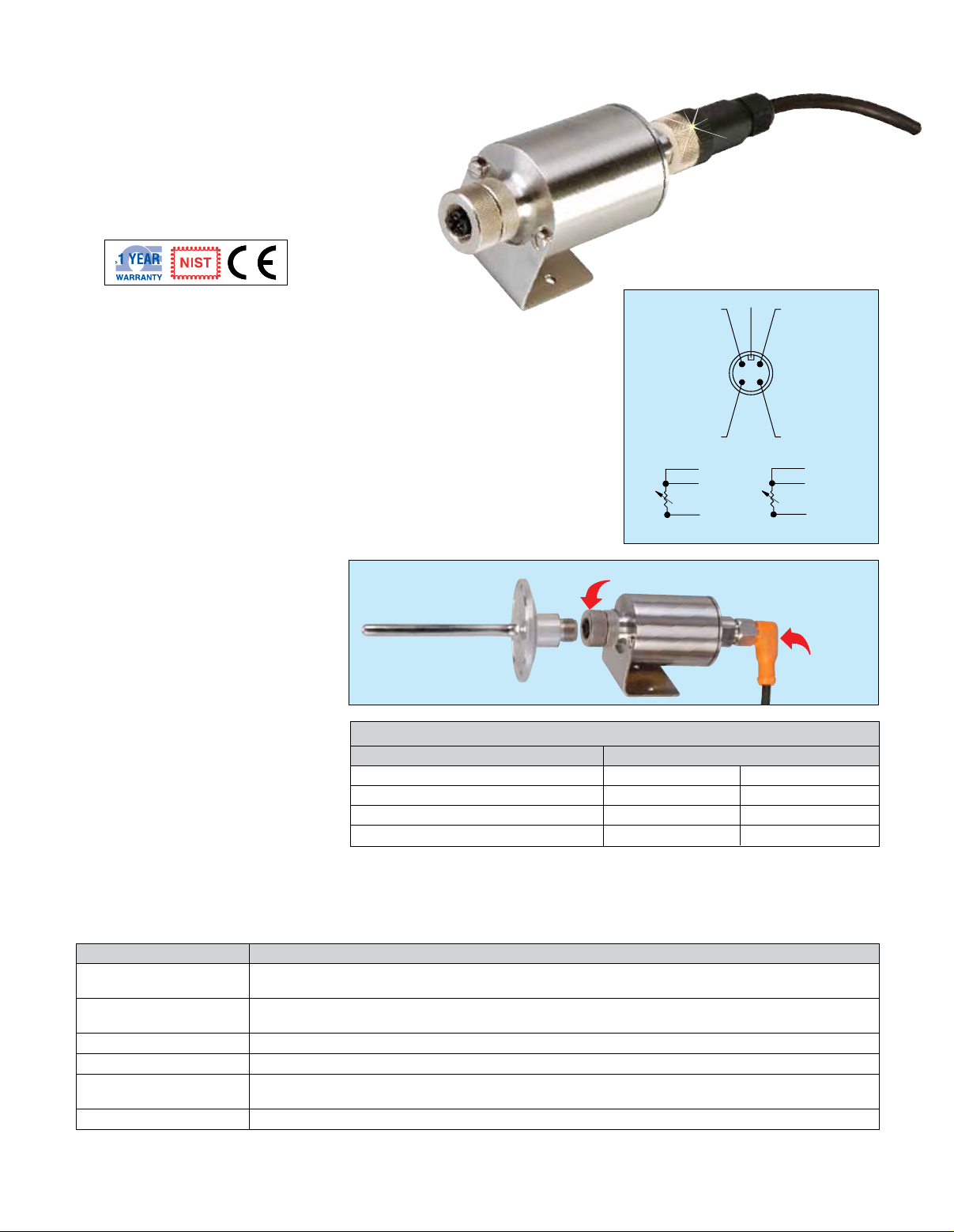

RTD Temperature Transmitter
316 Stainless Steel Construction Ideal for
Wash-Down, Outdoor, Sanitary,
or Marine Environments
Includes mating
M12 connector.
M12 female 4-pin
TX94A-SS Series
Optional
U Splash-Proof 316 SS
Housing with NEMA 4
(IP67) Rating
U
Compact Design Attaches
Directly to Pt100 Sensors
with M12 Connecting Cable
U
2-Wire, 4 to 20 mA Output
U ±0.1% FS Accuracy
U
Zero and Span Adjustments
U Upscale Break Protection
U Available in Ranges From
-40 to 260°C (-40 to 500°F)
The TX94A-SS temperature
transmitters are high performance
stainless steel industrial transmitters
designed for direct connection to
most CIP (clean-in-place) sanitary
Pt100 probes that incorporate an
M12 style connection. Available
in four temperature ranges, the
TX94A-SS has a standard
4 to 20 mA output signal.
Specifications
Supply Voltage: 8 to 35 Vdc;
24 Vdc recommended
Max Loop Resistance:
(Vs – 8V)/0.020 A
Output Range: Linearized 4 to
20 mA dc over specified input range
Accuracy: ±0.1% FS (includes effects of
linearity, hysteresis and repeatability)
connector shown.
Includes
mounting
bracket.
Frequency Response:
3 dB @ 3 Hz
Input: RTD, Pt100 (0.00385 curve),
3 or 4-wire
Zero and Span Adjustment Range:
±25%
Ambient Temperature:
-40 to 85°C (-10 to 185°F)
Probe/Sensor Connection:
M12 style, 4-pin; male or female
Output Connection: M12 style
4-pin male (free mating female
connector included)
Approvals: CE marked
Housing: 316 SS, polished finish;
NEMA 4 (IP67) rated
Dimensions: 51 L x 38 mm diameter
PRS-3-100-A-S-0300-D1-M12
sold separately.
Compatible PRS-M12
probes available online.
(2.0 x 1.50”)
M12 probe connector.
PIN #1
PIN #4
PIN #1
PIN #2
PIN #3
WIRING OPTION #2
To Order
Model No. Input Range
TX94A-1-SS-M12(*)-(**) -40 to 49°C -40 to 120°F
TX94A-2-SS-M12(*)-(**) -18 to 93°C 0 to 200°F
TX94A-3-SS-M12(*)-(**) -18 to 149°C 0 to 300°F
TX94A-4-SS-M12(*)-(**) -18 to 260°C 0 to 500°F
(*)
“M”“F”
(**)
“1”“2”omega.com/m12c
TX94A-SS transmitter
shown smaller than
KEYWAY
actual size.
PIN #2
PIN #3
PIN #1
PIN #4
PIN #3
WIRING OPTION #1
M12C cable,
sold separately.
Accessories
Model No. Description
M12C-PUR-4-S-F-5 M12 connecting cable, 4-pin female, polyurethane jacket, 5 m (16.4') L,
stripped lead termination
M12C-PVC-4-S-F-5 M12 connecting cable, 4-pin female, PVC jacket, 5 m (16.4') L, stripped
lead termination
PSR-24S Regulated power supply, 24 Vdc, 400 mA, screw terminals
PSR-24L Regulated power supply, 24 Vdc, 400 mA, UL, 1.8 m (6') cable with stripped leads
PSR-24L-230 Regulated power supply, 24 Vdc, 400 mA, 230 Vac, CE, 1.8 m (6') cable with
stripped leads
CAL-3 NIST traceable calibration with data
Ordering Example: TX94A-3-SS-M12F-1,PSR-24SM12C-PVC-4-S-F-5, PVC
N-31
