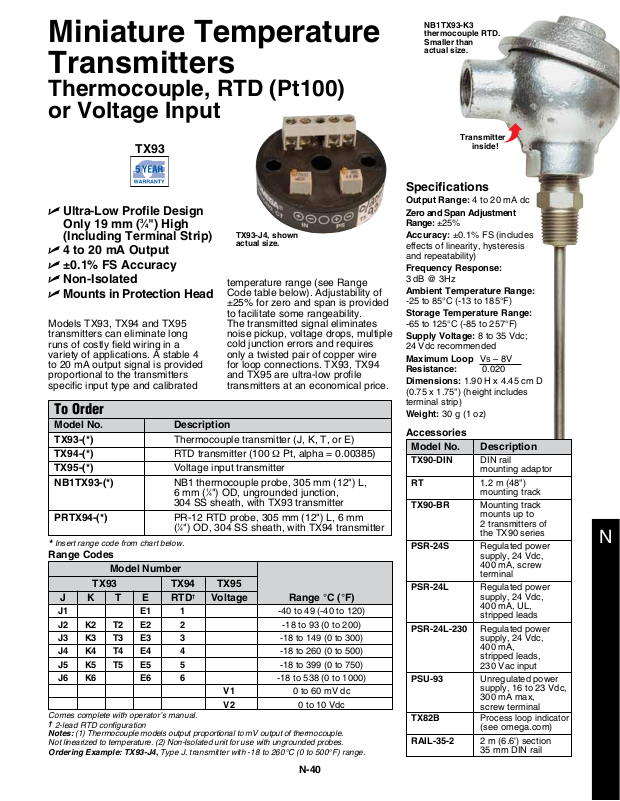

Miniature Temperature
Transmitters
Thermocouple, RTD (Pt100)
or Voltage Input
TX93
U Ultra-Low Profile Design
Only 19 mm (3⁄4") High
(Including Terminal Strip)
U 4 to 20 mA Output
U ±0.1% FS Accuracy
U Non-Isolated
U Mounts in Protection Head
Models TX93, TX94 and TX95
transmitters can eliminate long
runs of costly field wiring in a
variety of applications. A stable 4
to 20 mA output signal is provided
proportional to the transmitters
specific input type and calibrated
To Order
Model No. Description
TX93-(*) Thermocouple transmitter (J, K, T, or E)
TX94-(*) RTD transmitter (100 Ω Pt, alpha = 0.00385)
TX95-(*) Voltage input transmitter
NB1TX93-(*) NB1 thermocouple probe, 305 mm (12") L,
6 mm (1⁄4") OD, ungrounded junction,
304 SS sheath, with TX93 transmitter
PRTX94-(*) PR-12 RTD probe, 305 mm (12") L, 6 mm
(1⁄4") OD, 304 SS sheath, with TX94 transmitter
Insert range code from chart below.
*
Range Codes
Model Number
TX93 TX94 TX95
J K T E RTD† Voltage Range °C (°F)
J1 E1 1 -40 to 49 (-40 to 120)
J2 K2 T2 E2 2 -18 to 93 (0 to 200)
J3 K3 T3 E3 3 -18 to 149 (0 to 300)
J4 K4 T4 E4 4 -18 to 260 (0 to 500)
J5 K5 T5 E5 5 -18 to 399 (0 to 750)
J6 K6 E6 6 -18 to 538 (0 to 1000)
Comes complete with operator’s manual.
†
2-lead RTD configuration
Notes: (1) Thermocouple models output proportional to mV output of thermocouple.
Not linearized to temperature. (2) Non-Isolated unit for use with ungrounded probes.
Ordering Example: TX93-J4, Type J, transmitter with -18 to 260°C (0 to 500°F) range.

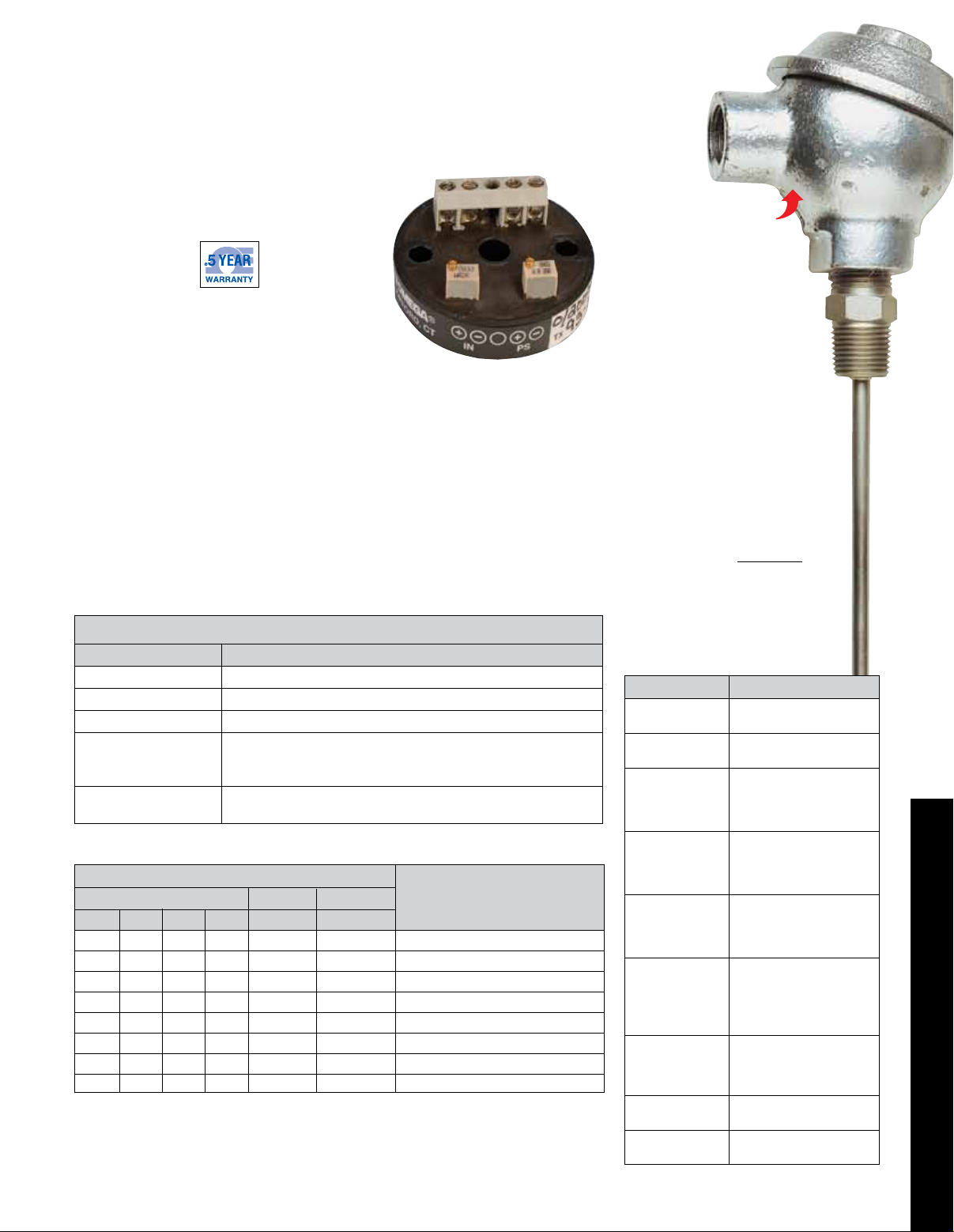

TX93-J4, shown
actual size.
temperature range (see Range
Code table below). Adjustability of
±25% for zero and span is provided
to facilitate some rangeability.
The transmitted signal eliminates
noise pickup, voltage drops, multiple
cold junction errors and requires
only a twisted pair of copper wire
for loop connections. TX93, TX94
and TX95 are ultra-low profile
transmitters at an economical price.
V1 0 to 60 mV dc
V2 0 to 10 Vdc
NB1TX93-K3
thermocouple RTD.
Smaller than
actual size.
Transmitter
inside!
Specifications
Output Range: 4 to 20 mA dc
Zero and Span Adjustment
Range: ±25%
Accuracy: ±0.1% FS (includes
effects of linearity, hysteresis
and repeatability)
Frequency Response:
3 dB @ 3Hz
Ambient Temperature Range:
-25 to 85°C (-13 to 185°F)
Storage Temperature Range:
-65 to 125°C (-85 to 257°F)
Supply Voltage: 8 to 35 Vdc;
24 Vdc recommended
Maximum Loop Vs – 8V
Resistance: 0.020
Dimensions: 1.90 H x 4.45 cm D
(0.75 x 1.75") (height includes
terminal strip)
Weight: 30 g (1 oz)
Accessories
Model No. Description
TX90-DIN DIN rail
RT 1.2 m (48")
TX90-BR Mounting track
PSR-24S Regulated power
PSR-24L Regulated power
PSR-24L-230 Regulated power
PSU-93 Unregulated power
TX82B
RAIL-35-2 2 m (6.6') section
mounting adaptor
mounting track
mounts up to
2 transmitters of
the TX90 series
supply, 24 Vdc,
400 mA, screw
terminal
supply, 24 Vdc,
400 mA, UL,
stripped leads
supply, 24 Vdc,
400 mA,
stripped leads,
230 Vac input
supply, 16 to 23 Vdc,
300 mA max,
screw terminal
Process loop indicator
(see omega.com)
35 mm DIN rail
