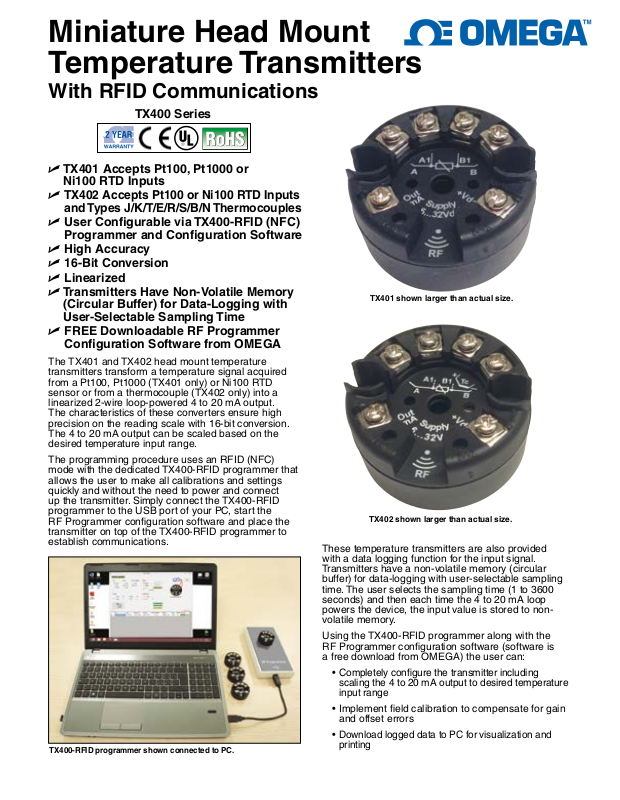

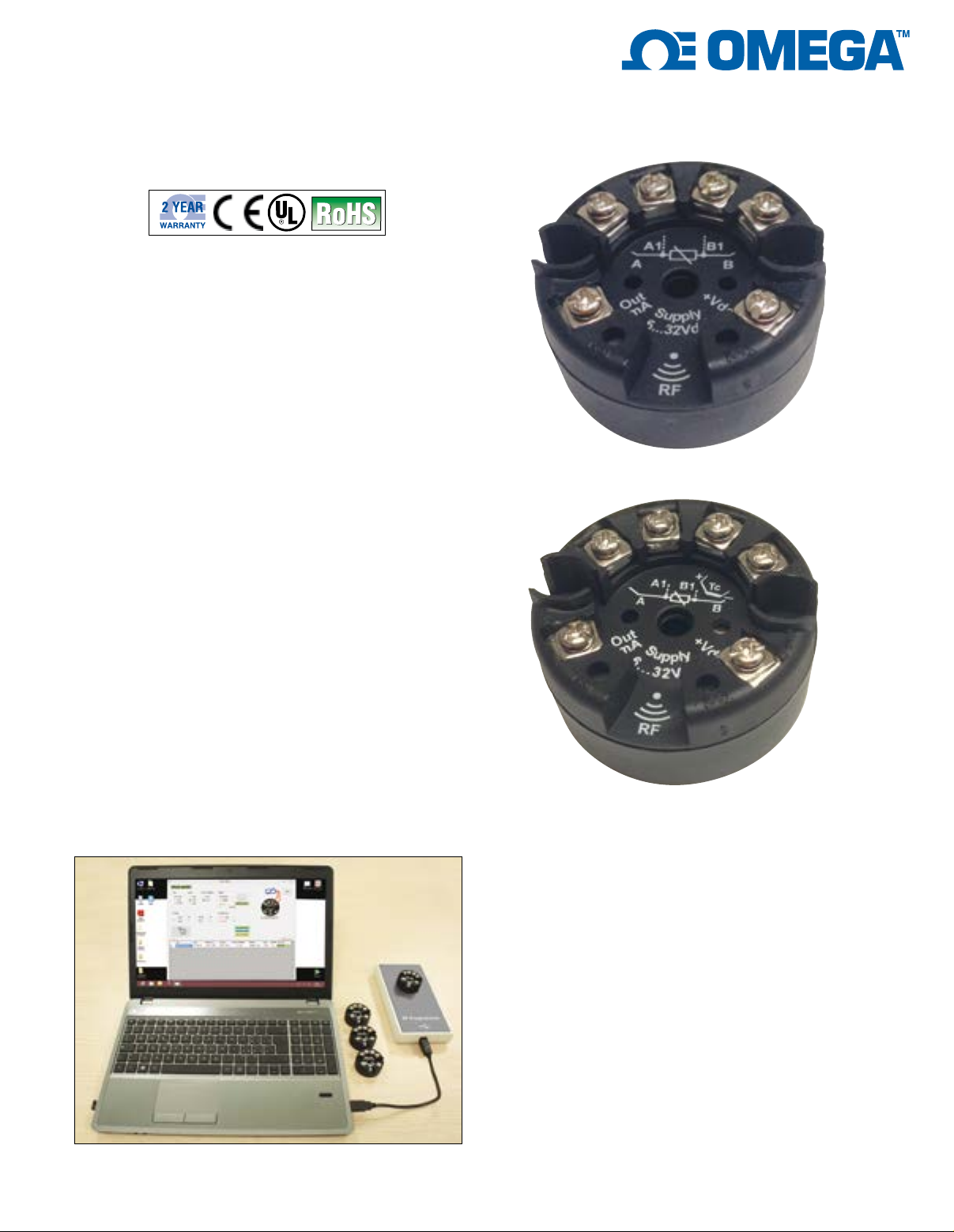

Page 1
Miniature Head Mount
Temperature Transmitters
With RFID Communications
TX400 Series
TM
U TX401 Accepts Pt100, Pt1000 or
Ni100 RTD Inputs
U
TX402 Accepts Pt100 or Ni100 RTD Inputs
and Types J/K/T/E/R/S/B/N Thermocouples
U User Configurable via TX400-RFID (NFC)
Programmer and Configuration Software
U High Accuracy
U 16-Bit Conversion
U Linearized
U Transmitters Have Non-Volatile Memory
(Circular Buffer) for Data-Logging with
User-Selectable Sampling Time
U FREE Downloadable RF Programmer
Configuration Software from OMEGA
TX401 shown larger than actual size.
The TX401 and TX402 head mount temperature
transmitters transform a temperature signal acquired
from a Pt100, Pt1000 (TX401 only) or Ni100 RTD
sensor or from a thermocouple (TX402 only) into a
linearized 2-wire loop-powered 4 to 20 mA output.
The characteristics of these converters ensure high
precision on the reading scale with 16-bit conversion.
The 4 to 20 mA output can be scaled based on the
desired temperature input range.
The programming procedure uses an RFID (NFC)
mode with the dedicated TX400-RFID programmer that
allows the user to make all calibrations and settings
quickly and without the need to power and connect
up the transmitter. Simply connect the TX400-RFID
programmer to the USB port of your PC, start the
RF Programmer configuration software and place the
transmitter on top of the TX400-RFID programmer to
establish communications.
TX400-RFID programmer shown connected to PC.
TX402 shown larger than actual size.
These temperature transmitters are also provided
with a data logging function for the input signal.
Transmitters have a non-volatile memory (circular
buffer) for data-logging with user-selectable sampling
time. The user selects the sampling time (1 to 3600
seconds) and then each time the 4 to 20 mA loop
powers the device, the input value is stored to nonvolatile memory.
Using the TX400-RFID programmer along with the
RF Programmer configuration software (software is
a free download from OMEGA) the user can:
•
Completely configure the transmitter including
scaling the 4 to 20 mA output to desired temperature
input range
• Implement field calibration to compensate for gain
and offset errors
•
Download logged data to PC for visualization and
printing

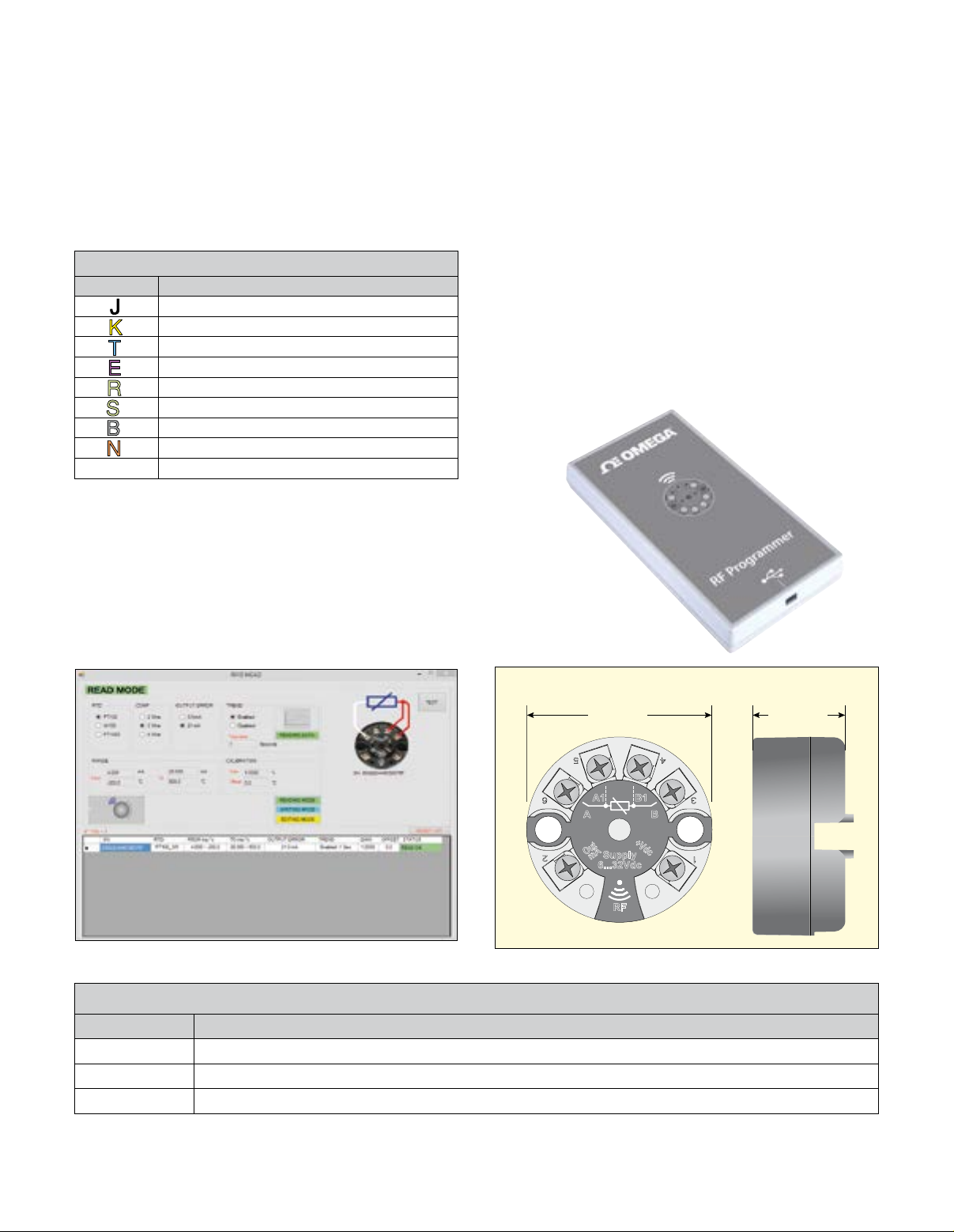

Page 2
Specifications
RTD Input Types and Ranges:
TX401, TX402: Pt100 (α = 0.00385), 2, 3, or 4-wire
connection: TX401: -200 to 800°C (-328 to 1472°F),
TX402: -200 to 600°C (-328 to 1112°F)
TX401 Only: Pt1000 (α = 0.00385), 2-wire connection;
-200 to 800°C (-328 to 1472°F)
TX401, TX402: Ni100 (α = 0.00618), 2, 3, or 4-wire
connection: TX401: -50 to 170°C (-58 to 338°F),
TX402: -60 to 180°C (-76 to 356°F)
Thermocouple Inputs (TX402 Only)
Types Ranges
J -200 to 1200°C (-328 to 2192°F)
K -260 to 1360°C (-436 to 2480°F)
T -260 to 400°C (-436 to 752°F)
E -260 to 940°C (-436 to 1724°F)
R -40 to 1760°C (-40 to 3200°F)
S -40 to 1760°C (-40 to 3200°F)
B 40 to 1820°C (104 to 3308°F)
N -260 to 1280°C (-436 to 2336°F)
mV -10 to 70 mV
Response Time (10 to 90%): 600 msec
Non-Volatile Memory (Circular Buffer) for Data Logging:
TX401: 3966 Data Points
TX402: 2546 Data Points
Cable Resistance: 20Ω max
Temperature Coefficient: <100 ppm
Power: 2-wire loop powered; operating range 6 to 32 Vdc
Isolation:
TX401: Non-isolated
TX402: galvanic, 1 KVac input/output
Operating Environment: -40 to 85°C (-40 to 185°F),
30 to 90% RH (non condensing)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Mounting: DIN/B head
Enclosure Material: Nylon (PA66)
Enclosure Rating: NEMA 1 (IP20) according to CE,
EN 61000-6-4, EN 61000-6-2
Programming: Wireless with RFID technology (NFC)
Software: Windows
®
XP/7/8 (32-bit and 64-bit),
Windows 10 (64-bit)
Connection: Screw terminals
Weight: 30 g (1.05 oz) approx
Dimensions: 23 H x 45 mm dia (0.9 x 1.77")
Output Resolution: 1 μA
Over-Range Output: FS + 5°C
Under-Range Output: FS - 5°C
Output Error (Failure): Selectable: TX401: between
21.5 or 3.8 mA, TX402: between 21 or 3.8 mA
Current Output Protection: 30 mA approx
Rejection: 50 to 60 Hz
Maximum Transmission Error: 0.1% FS or 0.2°C
whichever is greater
Sampling Time: 300 msec
RF programmer PC configuration software available via free
download from OMEGA.
TX400-RFID, RFID
programmer shown
smaller than actual size.
Dimensions: mm (inch)
45 (1.77) 23 (0.9)
A1 B1
A B
Out
A
Supply
m
6...32Vdc
RF
+Vdc
To Order
Model No. Description
TX401
TX402
TX400-RFID
TX400-RFID programmer is supplied with complete user’s guide and USB interface cable. User’s guide for the TX401 and TX402 transmitters can
be downloaded from OMEGA. RF programmer PC configuration software is a free download from OMEGA.
Ordering Example: TX401, RTD input head mount RFID temperature transmitter and TX400-RFID programmer.
RTD input head mount RFID temperature transmitter
Thermocouple/RTD input head mount RFID temperature transmitter
RFID programmer
