TX33

Loop-powered RTD Input In-head

Programmable Transmitter

Shop online at

User’s Guide

MADE IN TAIWAN

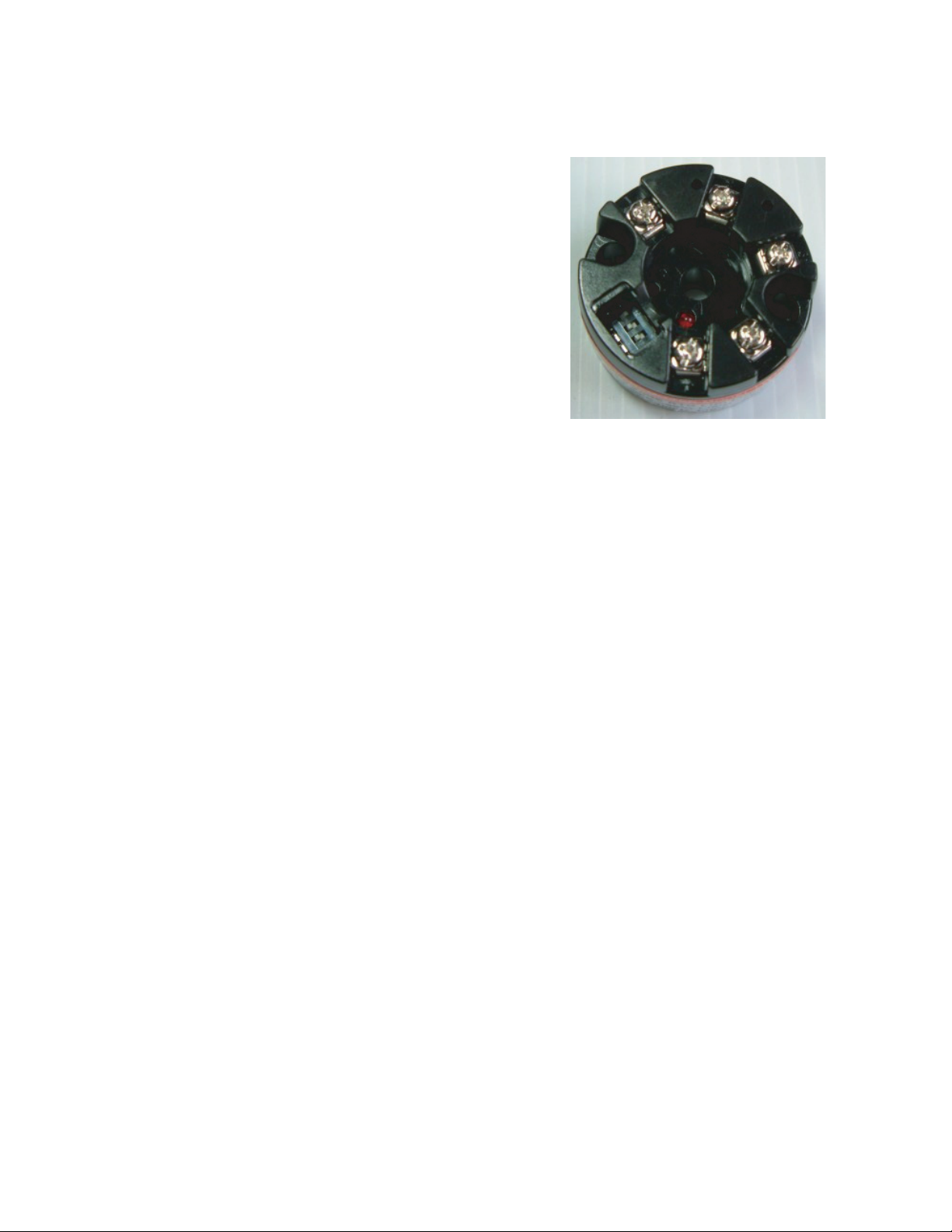

Loop-powered RTD Input
In- Head Programmable Transmitter
Model TX33

Multi-ranges Selectable

Temperature Linearized

Low Temperature Drift

Easy Calibration

Competitive pricing

Descriptions

The Model TX33 is an analog, non-isolated, 2-wire head-mounted temperature transmitter that
converter the RTD input into a proportional, linear, and highly accurate 4- 20 mA output current
in a variety applications such as process control, automation system, and energy source
management.The TX33 is performed by means of a 6 dip-switch array for the coarse range
setting, and two multi-turn potentiometers (Zero & Span) which are used for the final fine-tuning.
The TX33 accepts low level signal from RTD, filtered, amplified, and converter to process
current to reduce susceptibility transients and noise operations and allow the same two wires to
carry the transmitter power and output current signal simultaneously.

Specifications

( Vloop = 24 Vdc, Tamb = 23 ± 2 deg C, Rload = 250 ohms)

Output: 4 - 20 mA; Upscale < 25 mA; Downscale < 3.0 mA
Loop power: 10 - 32 Vdc. Reverse polarity protected, LED on Indication
Input RTD: Pt100, 2 or 3- wire DIN. 43760, BS1904 characteristics
Max.sensor wire resistance: 30 ohm / wire
Supply voltage effect: ± 0.01 % of span /Volt
Temperature coefficient: ± 0.01 % of span / deg C (200 deg C measurement range)
Linearity error: ± 0.15% of span ± 0.1 deg C
Repeatability: ± 0.01 % of span
Load capability: 50 x (loop power - 10) ohms
Input zero range: -50 to 50 deg C , adjustable
Span: 50 to 200 deg C selectable; see table 1
Fine adjustment: 5 % of ZERO and SPAN
RFI effect (5W, 470 MHz): < ± 10% of span
Response time (0 to 90%): 200 ms
Housing material: Polycarbonate, UL94-V0 grade
Connection: M3 Screw, AWG 14 - 22
Operation environment: -40 to 85 deg C; 5 to 85 %, non-condensing
Dimensions: 45mm Dia. X 20 mm H
Weight: 35 g

Omega Engineering Inc

Adjustments

Connect signal source (calibrator) to the unit, power on warm up 5 minutes or more.

1. Set the calibrator to the desired low temperature (4 mA point) and adjust the potentiometer
ZERO to get Iout = 4 mA.

2. Set the calibrator to the desired high temperature (20 mA point) and adjust the potentiometer
SPAN to get Iout = 20 mA.

3. Repeats steps 1 & 2 once, if necessary for best accuracy

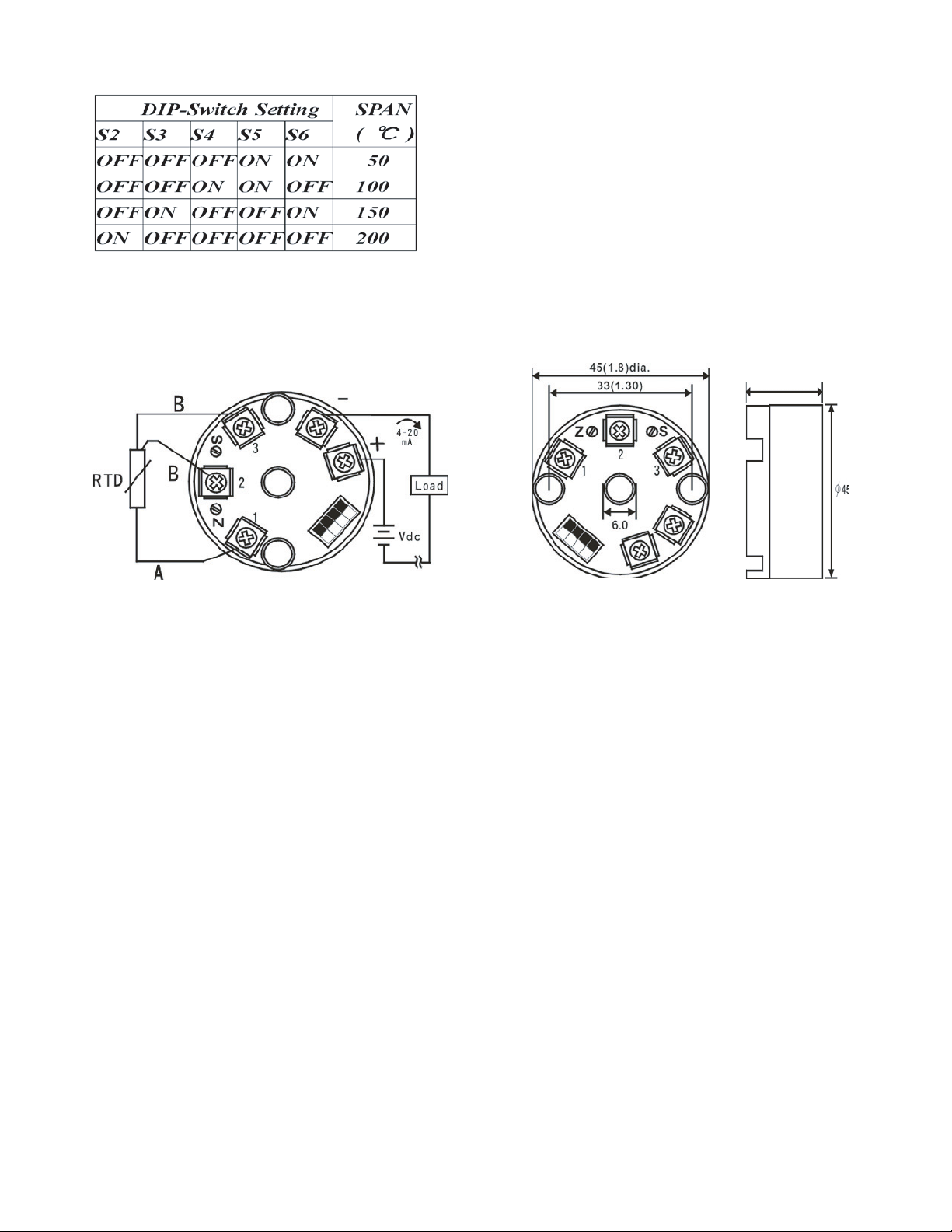

< Table 1> span setting

Note:

1. For 2-wire RTD input Terminal # 2 & # 3 must be shorten together.

2. When change the span by DIP-switch setting, the transmitter should be calibrated
again for best accuracy.

3. Without specified, the unit is calibrated 200 ¢J before shipping.

Dimensions: mm (inch)

Wiring Connections

H = 20

Measurement Range

Note:

The DIP-switch is protected by a small tip which
has to be moved before setting
S1 = ON Position, ZERO Range: -50 ~ 0 Deg. C
S1 = OFF Position, ZERO Range: 0 ~ +50 Deg. C
