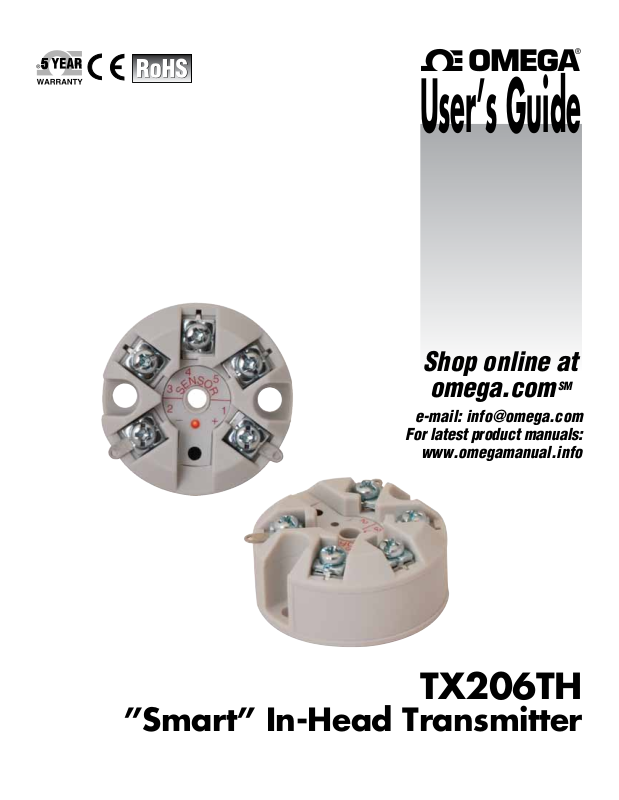

Page 1
User’s Guide
Shop online at
omega.com
e-mail: [email protected]
For latest product manuals:
www.omegamanual.info
SM
TX206TH
”Smart” In-Head Transmitter
Page 2
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3

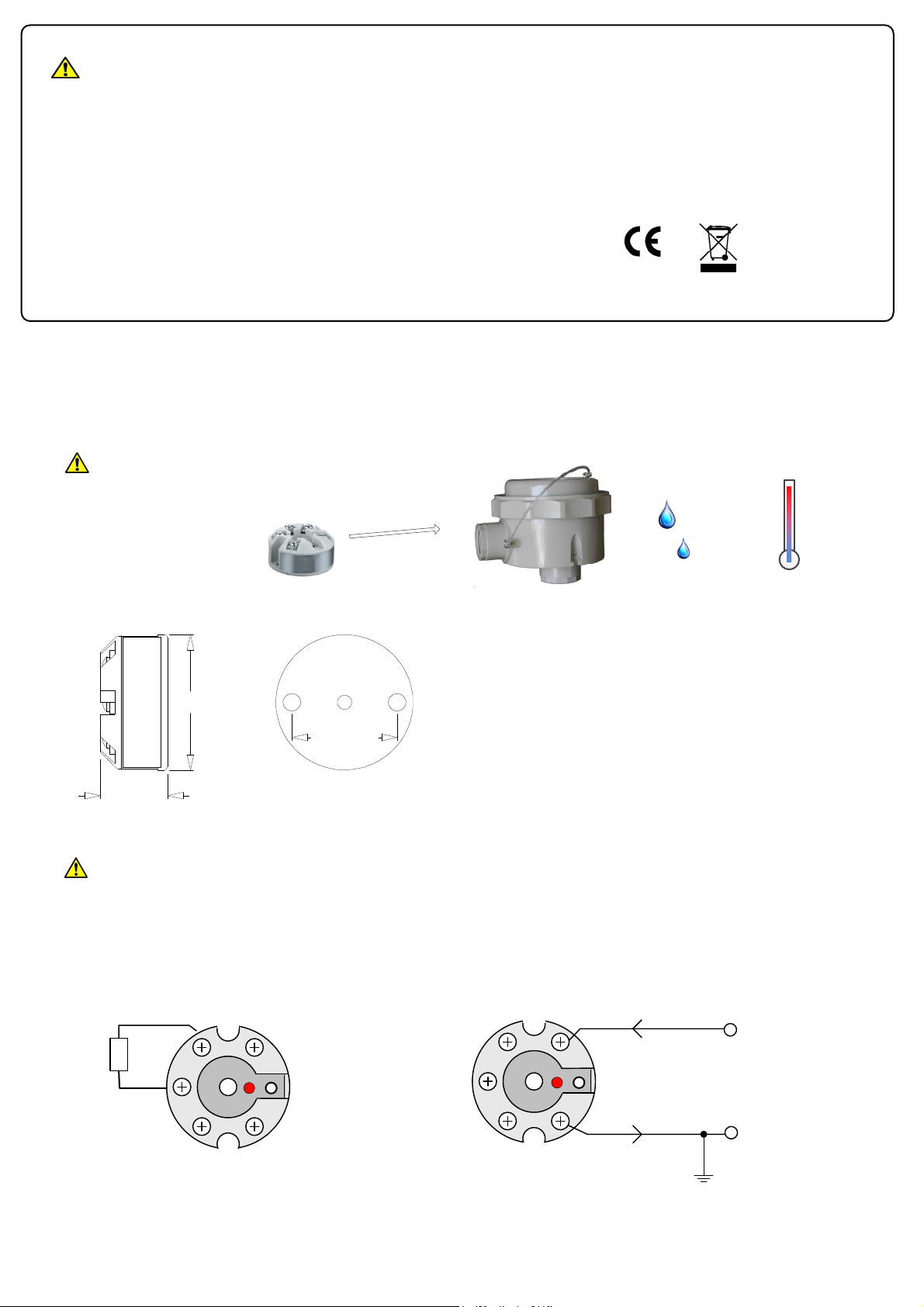

SMART THERMISTOR INPUT - TWO WIRE (4 to 20) mA OUTPUT TRANSMITTER USER MANUAL
33.0 mm
21.0 mm
IMPORTANT - CE & SAFETY REQUIREMENTS
This product must be mounted inside a suitable enclosure providing environmental protection = > IP65.
To maintain CE compliance all input wires must be less than 3 metres.
The product contains no user serviceable parts, or internal adjustments. No attempt should be made to repair this device. Faulty units must be returned to supplier or manufacturer for
repair or replacement.
This product must be installed by competent qualified personnel.
All electrical wiring must be installed to comply with the area standards, regulations.
Before attempting electrical connection ensure all supplies are switched off.
ABSOLUTE MAXIMUM OPERATING CONDITIONS :-
PLEASE REFER TO THE PRODUCT LABEL FOR MANUFACTURERS CONTACT DETAILS.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment
without notice.
RECEIVE AND UNPACKING
Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please
notify your supplier immediately.
SPECIFICATION (please refer to data sheet for full technical specification.)
Supply 30 V dc ( reverse protected to -30 V dc)
Supply Current on over voltage + 100 mA (when supply exceeds 30 V dc protection device will conduct )
Input voltage ± 3.0 V
Ambient (-40 to 85) °C
MECHANICAL INSTALLATION
MOUNTING
85°C
>= IP65
-40°C
SIDE VIEW BASE VIEW
The device is mounted using two 5.5 mm holes, on standard 33 mm
fixing centres and will fit a DIN standard termination head. The
device must be installed with adequate protection from moisture and
Ø 43.0 mm
corrosive atmospheres.
Care must be taken to ensure the device is located to ensure the
CENTRES
ambient temperature does not exceed the specified operating
temperature.
ELECTRICAL INSTALLATION
Wire sensor.
Sensor connections are as follows, to maintain BS EN61326 compliance sensor wires must be less than 3 metres. All sensor connections must
be isolated from ground. Screened or twisted pair cable recommended for (4 to 20) mA loop.
Thermistor
Wire (4 to 20) mA Loop
+
1
1
5
4
2
3
5
4
2
3
dc Supply
-
D2565-02-01 Generic User Gui de
Page 4

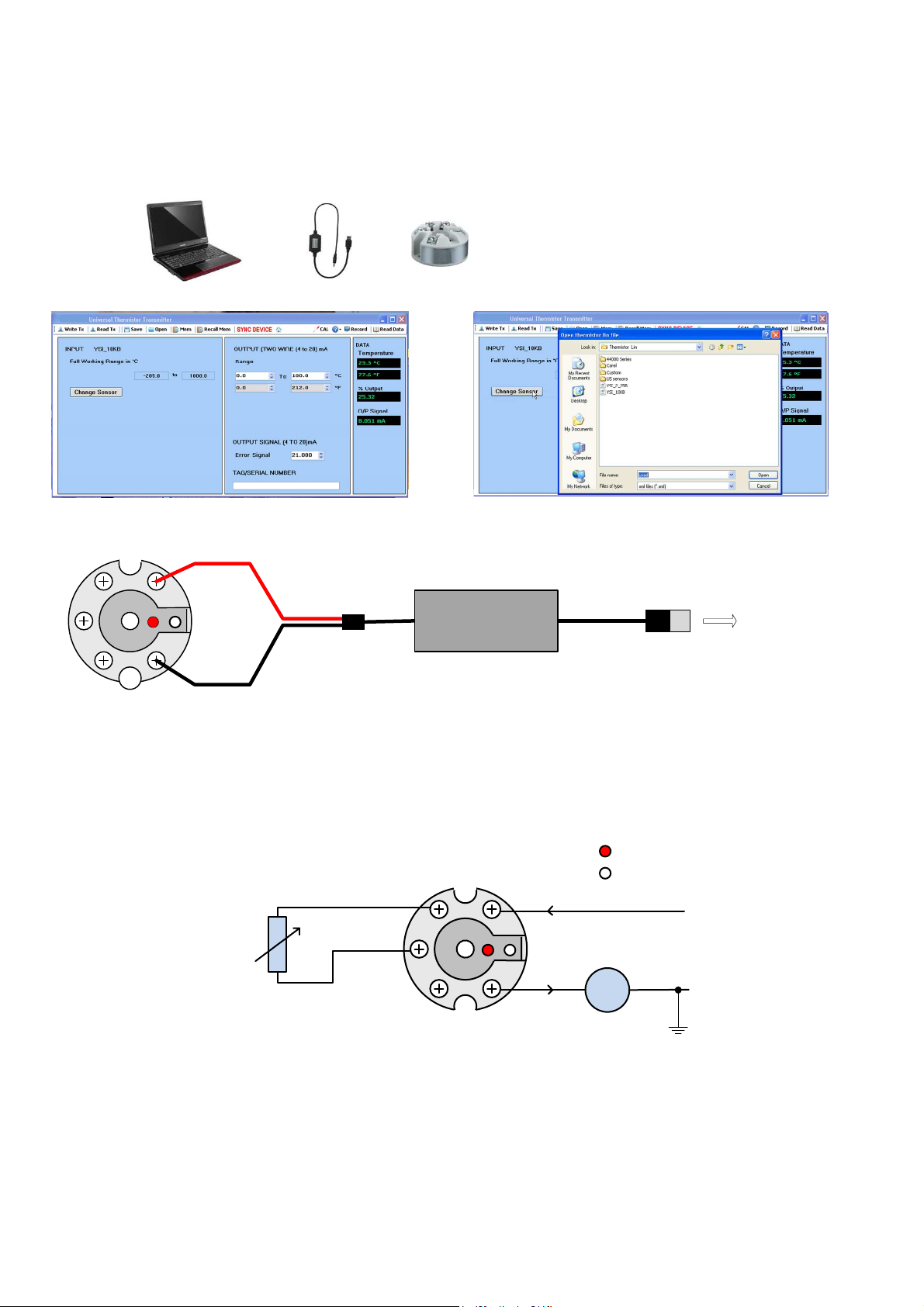

PC SENSOR AND RANGE CONFIGURATION
To carry out PC configuration the USB Configurator Kit is required. This is available from your supplier.
This product is configured using the USB port of a PC running USBSpeedLink software, available from your supplier’s web site.
During configuration the product is powered direct from the usb port, removing the need for additional power.
USBSpeedLink software is provided with detailed help menus to guide the user through the simple configuration procedure.
Unless specified at the time of order this product is supplied with the default configuration listed below.
Connect red wire to + terminal, black wire to – terminal of the Transmitter.
Factory default:
Input range = YSI 10K B
Process Output = (0 to 100) °C
Output range = (4 to 20) mA
Error = 21.0 mA
Tag =
Use clips to connect
Red
1
5
4
2
3
Black
USB Configurator
PC USB
SOCKET
Device to be configured
MANUAL RANGE (ONLY) CONFIGURATION
Equipment - Precision resistance box, DC power supply (voltage between (10 to 30) V dc), Screwdriver to operate push button and
mA meter to monitor loop current.
Range LED
Push Button
CIRCUIT
Precision
resistance
box
1
5
4
2
2
3
mA
+
dc Supply
-
mA meter
(Refer to thermistor tables for correct sensor resistance)
1. Connect the circuit as shown above.
2. Set the precision resistance box representative value for low scale (4 mA out) sensor resistance. Allow ten seconds settling time. (Refer
to thermistor tables for correct sensor resistance)
3. Press and hold push button ( for about five seconds) until the range LED starts to flash. This indicates the new low range setting has been
stored.
4. Set the precision resistance box to the representative value for high scale (20 mA out) sensor resistance. Allow ten seconds settling time.
5. Press and release push button to store new high range setting. The Range LED will flash at a faster rate to indicate storing new value.
6. Device returns to normal operation.
D2565-02-01 Generic User Gui de
