SELF-ADJUSTING
SEE "LOAD CELL
BOLT TORQUE"
"G" DIA. THRU,
8 PLA
CES
B
A
D
Square
E
H

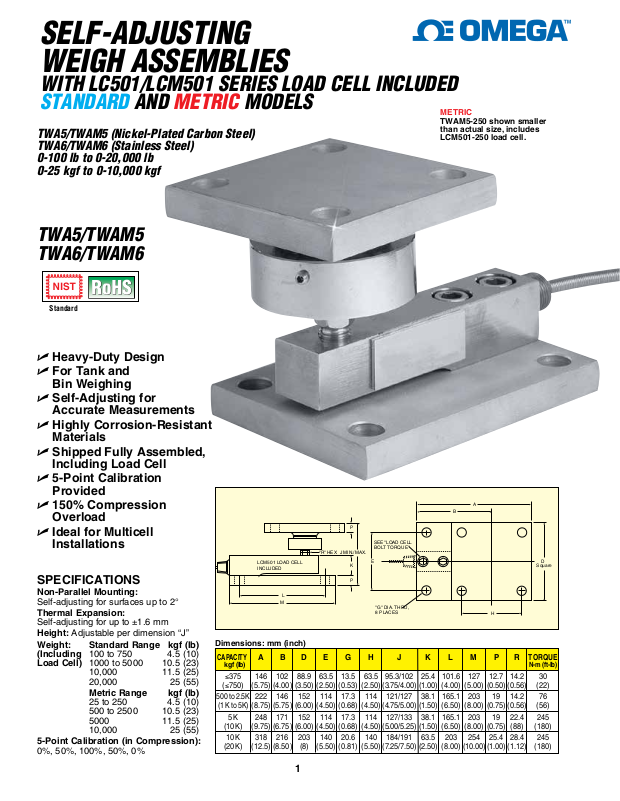

WEIGH ASSEMBLIES
WITH LC501/LCM501 SERIES LOAD CELL INCLUDED
STANDARD AND METRIC MODELS
TWA5/TWAM5 (Nickel-Plated Carbon Steel)
TWA6/TWAM6 (Stainless Steel)
0-100 lb to 0-20,000 lb
0-25 kgf to 0-10,000 kgf
TWA5/TWAM5
TWA6/TWAM6
Standard
U Heavy-Duty Design
U For Tank and
Bin Weighing
U Self-Adjusting for
Accurate Measurements
U Highly Corrosion-Resistant
Materials
U Shipped Fully Assembled,
Including Load Cell
U 5-Point Calibration
Provided
U 150% Compression
Overload
U Ideal for Multicell
Installations
LCM501 LOAD CELL
INCLUDED
SPECIFICATIONS
Non-Parallel Mounting:
Self-adjusting for surfaces up to 2°
Thermal Expansion:
Self-adjusting for up to ±1.6 mm
Height: Adjustable per dimension “J”
Weight: Standard Range kgf (lb)
(Including 100 to 750 4.5 (10)
Load Cell) 1000 to 5000 10.5 (23)
10,000 11.5 (25)
20,000 25 (55)
Metric Range kgf (lb)
25 to 250 4.5 (10)
500 to 2500 10.5 (23)
5000 11.5 (25)
10,000 25 (55)
5-Point Calibration (in Compression):
0%, 50%, 100%, 50%, 0%
Dimensions: mm (inch)
CAPACITY
kgf (lb)
≤375 146 102 88.9 63.5 13.5 63.5 95.3/102 25.4 101.6 127 12.7 14.2 30
(≤750) (5.75) (4.00) (3.50) (2.50) (0.53) (2.50) (3.75/4.00) (1.00) (4.00) (5.00) (0.50) (0.56) (22)
(1 K to 5K)
5K 248 171 152 114 17.3 114 127/133 38.1 165.1 203 19 22.4 245
(10K) (9.75) (6.75) (6.00) (4.50) (0.68) (4.50) (5.00/5.25) (1.50) (6.50) (8.00) (0.75) (88) (180)
10K 318 216 203 140 20.6 140 184/191 63.5 203 254 25.4 28.4 245
(20K) (12.5) (8.50) (8) (5.50) (0.81) (5.50) (7.25/7.50) (2.50) (8.00) (10.00) (1.00) (1.12) (180)
A B D E G H J K L M P R
500 to 2.5K
222 146 152 114 17.3 114 121/127 38.1 165.1 203 19 14.2 76
(8.75) (5.75) (6.00) (4.50) (0.68) (4.50) (4.75/5.00) (1.50) (6.50) (8.00) (0.75) (0.56) (56)
L
M
METRIC

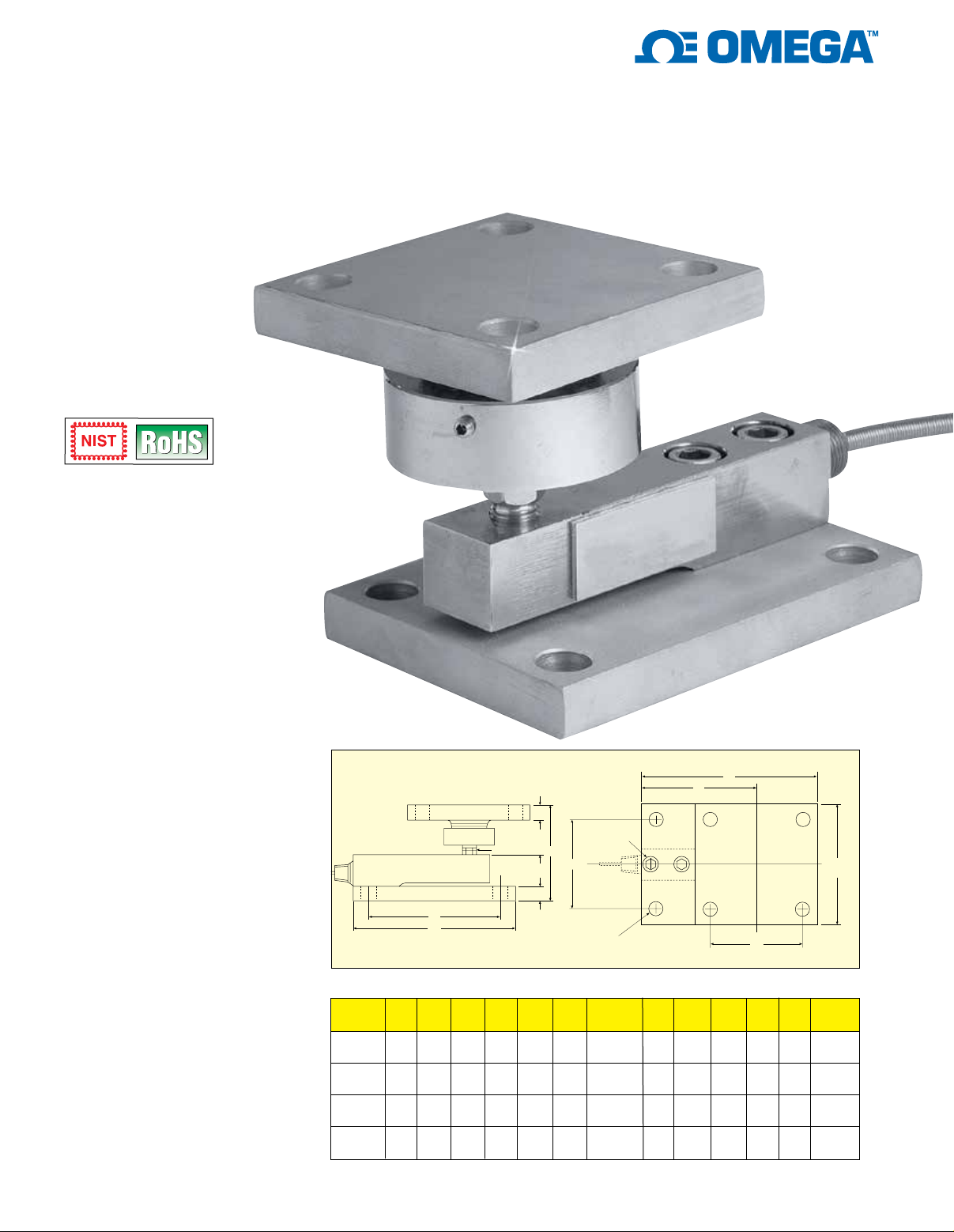

TWAM5-250 shown smaller
than actual size, includes
LCM501-250 load cell.
A
B
P
SEE "LOAD CELL
K
P
BOLT TORQUE"
E
"G" DIA. THRU,
8 PLA
CES
D
Square
H
TORQUE
N-m (ft-lb)
J MIN./MAX."R" HEX
1
Page 2
SELF-ADJUSTING WEIGH ASSEMBLIES
To Order
WEIGHING ASSEMBLIES WITH LOAD CELL
CAPACITY CARBON STEEL STAINLESS STEEL REPLACEMENT LOAD CELL
kgf lb MODEL NO. MODEL NO. MODEL NO.
STANDARD MODELS
45 100 TWA5-100 TWA6-100 LC501-100
91 200 TWA5-200 TWA6-200 LC501-200
227 500 TWA5-500 TWA6-500 LC501-500
341 750 TWA5-750 TWA6-750 LC501-750
455 1000 TWA5-1K TWA6-1K LC501-1K
909 2000 TWA5-2K TWA6-2K LC501-2K
1361 3000 TWA5-3K TWA6-3K LC501-3K
2269 5000 TWA5-5K TWA6-5K LC501-5K
4537 10,000 TWA5-10K TWA6-10K LC501-10K
9074 20,000 TWA5-20K TWA6-20K LC501-20K
METRIC MODELS
25 55 TWAM5-25 TWAM6-25 LCM501-25
50 110 TWAM5-50 TWAM6-50 LCM501-50
100 220 TWAM5-100 TWAM6-100 LCM501-100
250 551 TWAM5-250 TWAM6-250 LCM501-250
500 1102 TWAM5-500 TWAM6-500 LCM501-500
1000 2205 TWAM5-1K TWAM6-1K LCM501-1K
2500 5512 TWAM5-2.5K TWAM6-2.5K LCM501-2.5K
5000 11,023 TWAM5-5K TWAM6-5K LCM501-5K
10,000 22,046 TWAM5-10K TWAM6-10K LCM501-10K
Note: Weighing assembly is shipped fully assembled including the load cell. Load cell comes with 5-point NIST-traceable calibration and 59 kΩ
shunt data.
Ordering Examples: TWA6-5K, 5000 lb weighing assembly in stainless steel with, LC501-5K load cell included.
TWA5-750, 750 lb weighing assembly in carbon steel with LC501-750 load cell included.
TWAM6-2.5K, 2500 kgf capacity stainless steel weighing assembly with LCM501-2.5K, load cell (included).
TWAM5-250, 250 kgf capacity carbon steel weighing assembly with LCM501-250, load cell (included).
LC501 series load cell will be installed into the TWA module.

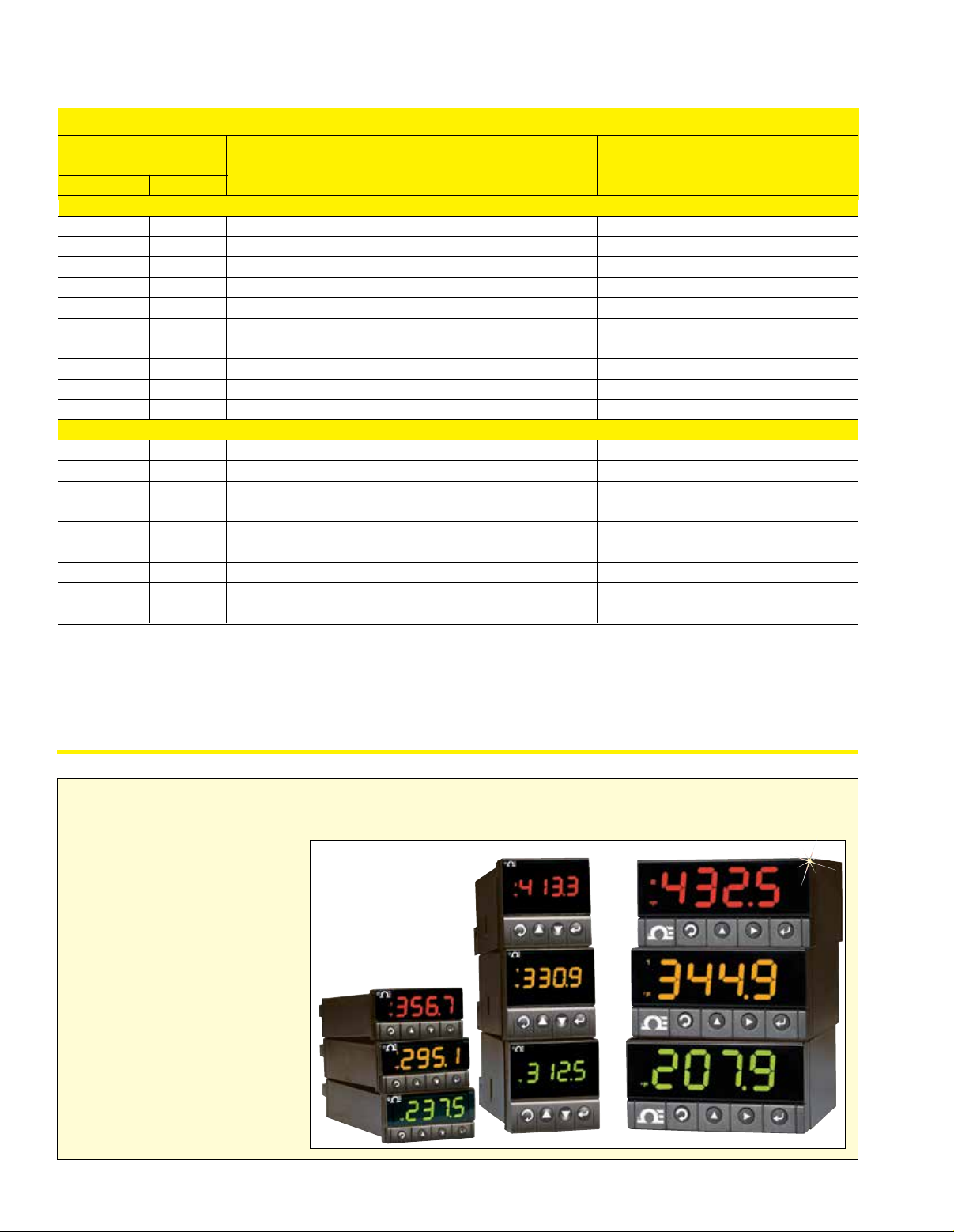

COMPATIBLE METERS/CONTROLLERS FOR PX309 SERIES PRESSURE TRANSDUCERS
The iSeries is available in
1
⁄16, and 1⁄8 DIN program mable
process controllers with serial
and embedded Internet/Ether net
com muni cations (Order EI Option
CNi16D). The iSeries features
programmable color displays, free
software and ActiveX Controls,
selectable full autotune PID
control, and NEMA 4 (IP65) rated
front bezel. Ordering Examples:
DPiS8, strain/process (monitor
1
only),
⁄8 DIN; CNiS8, strain/
process controller with
2 control outputs.
Visit us online for a complete
selection.
