Omega TSWB User guide

2-19/32

3-5/8

7/32

E

Digital

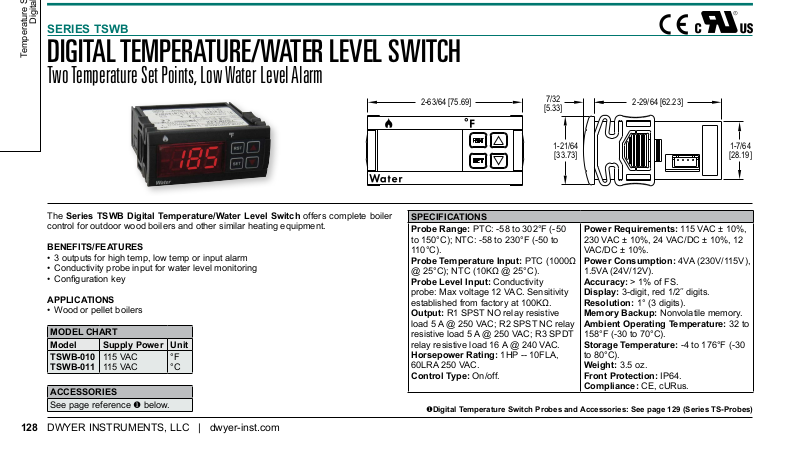

SERIES TSWB

Temperature Switches,

DIGITAL TEMPERATURE/WATER LEVEL SWITCH

Two Temperature Set Points, Low Water Level Alarm

2-63/64 [75.69]

[5.33]

2-29/64 [62.23]

The Series TSWB Digital Temperature/Water Level Switch offers complete boiler
control for outdoor wood boilers and other similar heating equipment.

BENEFITS/FEATURES

• 3 outputs for high temp, low temp or input alarm

• Conductivity probe input for water level monitoring

• Congurationkey

APPLICATIONS

• Wood or pellet boilers

MODEL CHART
Model Supply Power Unit
TSWB-010

TSWB-011

ACCESSORIES

See page reference u below.

DWYERINSTRUMENTS,LLC|dwyer-inst.com128

115VAC
115VAC

°F
°C

1-21/64

[33.73]

SPECIFICATIONS
Probe Range: PTC: -58 to 302°F (-50

to 150°C); NTC: -58 to 230°F (-50 to
110°C).

Probe Temperature Input: PTC(1000Ω
@25°C);NTC(10KΩ@25°C).

Probe Level Input: Conductivity

probe:Maxvoltage12VAC.Sensitivity
establishedfromfactoryat100KΩ.

Output: R1 SPST NO relay resistive

load5A@250VAC;R2SPSTNCrelay
resistiveload5A@250VAC;R3SPDT
relayresistiveload16A@240VAC.

Horsepower Rating: 1HP -- 10FLA,

60LRA250VAC.

Control Type: On/off.

uDigital Temperature Switch Probes and Accessories: See page 129 (Series TS-Probes)

Power Requirements: 115VAC±10%,

230VAC±10%,24VAC/DC±10%,12
VAC/DC±10%.
Power Consumption: 4VA(230V/115V),

1.5VA(24V/12V).

Accuracy:>1%ofFS.
Display: 3-digit,red1/2˝digits.
Resolution: 1° (3 digits).
Memory Backup: Nonvolatile memory.
Ambient Operating Temperature: 32 to

158°F (-30 to 70°C).

Storage Temperature: -4to176°F(-30

to 80°C).

Weight: 3.5 oz.
Front Protection: IP64.
Compliance: CE, cURus.

1-7/64
[28.19]
