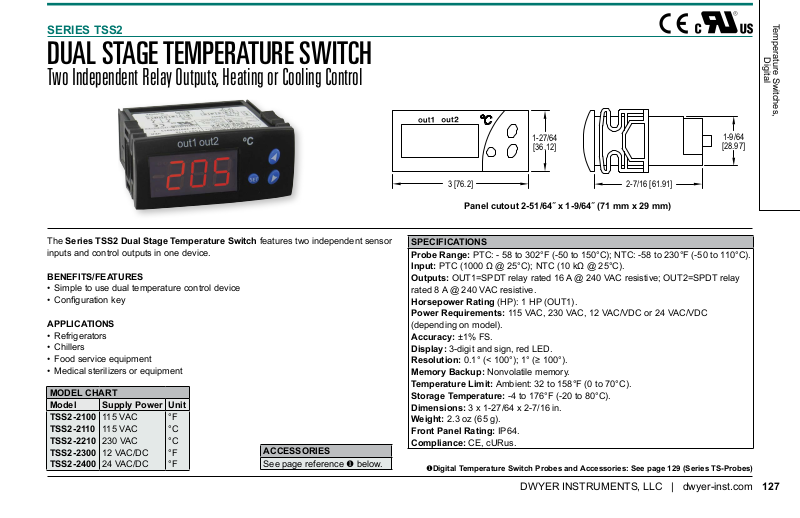

SERIES TSS2

E

TemperatureSwitches,

DUAL STAGE TEMPERATURE SWITCH

Two Independent Relay Outputs, Heating or Cooling Control

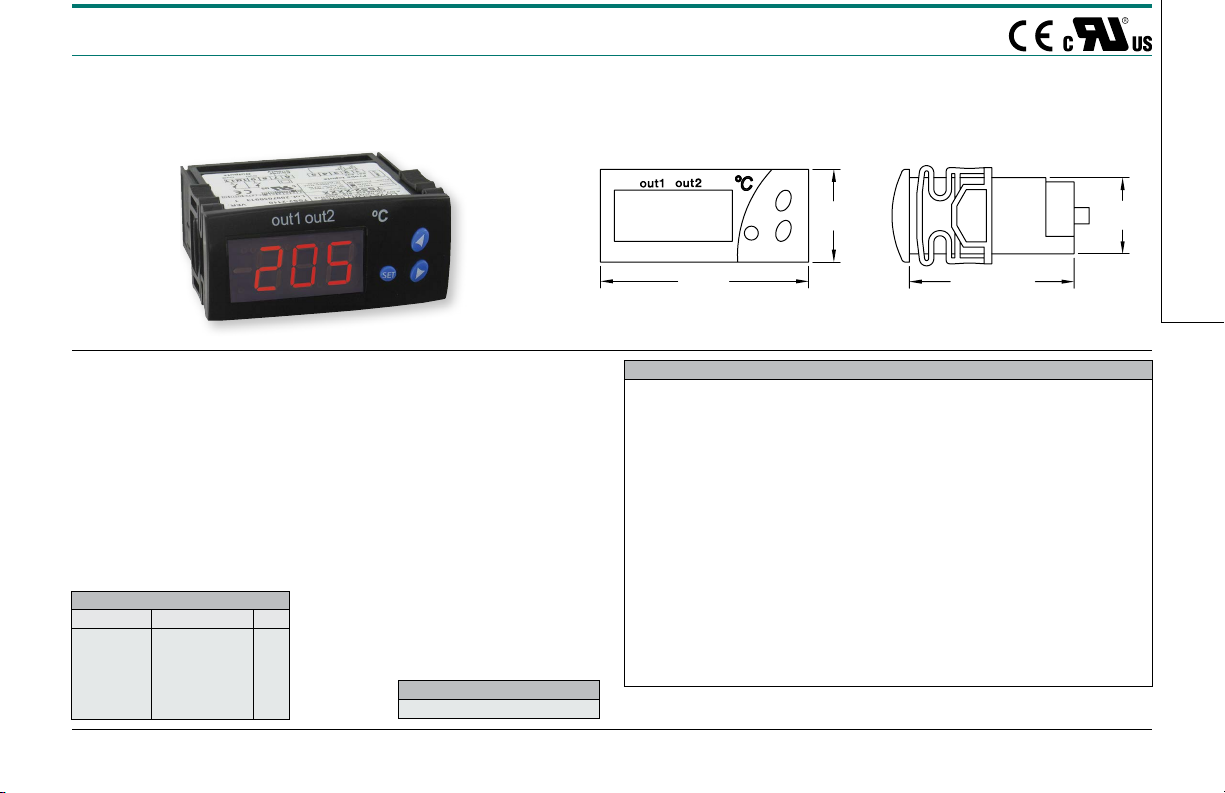

The Series TSS2 Dual Stage Temperature Switch features two independent sensor
inputs and control outputs in one device.

BENEFITS/FEATURES

• Simple to use dual temperature control device

• Congurationkey

APPLICATIONS

• Refrigerators

• Chillers

• Food service equipment

• Medical sterilizers or equipment

MODEL CHART
Model Supply Power Unit
TSS2-2100
TSS2-2110
TSS2-2210
TSS2-2300
TSS2-2400

115VAC
115VAC
230VAC
12VAC/DC
24VAC/DC

°F
°C
°C
°F
°F

ACCESSORIES

See page reference u below.

1-27/64

[36.12]

3 [76.2]

Panel cutout 2-51/64˝ x 1-9/64˝ (71 mm x 29 mm)

SPECIFICATIONS
Probe Range: PTC: - 58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input: PTC(1000Ω@25°C);NTC(10kΩ@25°C).
Outputs: OUT1=SPDTrelayrated16A@240VACresistive;OUT2=SPDTrelay

rated8A@240VACresistive.

Horsepower Rating (HP):1HP(OUT1).
Power Requirements: 115VAC,230VAC,12VAC/VDCor24VAC/VDC

(depending on model).

Accuracy: ±1% FS.
Display: 3-digitandsign,redLED.
Resolution: 0.1°(<100°);1°(≥100°).
Memory Backup: Nonvolatile memory.
Temperature Limit: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4to176°F(-20to80°C).
Dimensions: 3x1-27/64x2-7/16in.
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Compliance: CE,cURus.

uDigital Temperature Switch Probes and Accessories: See page 129 (Series TS-Probes)

1-9/64
[28.97]
