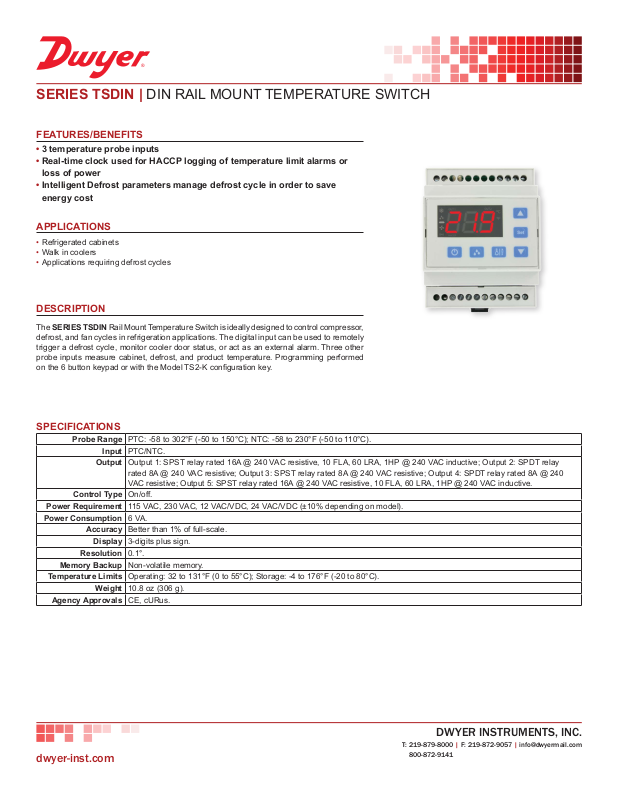

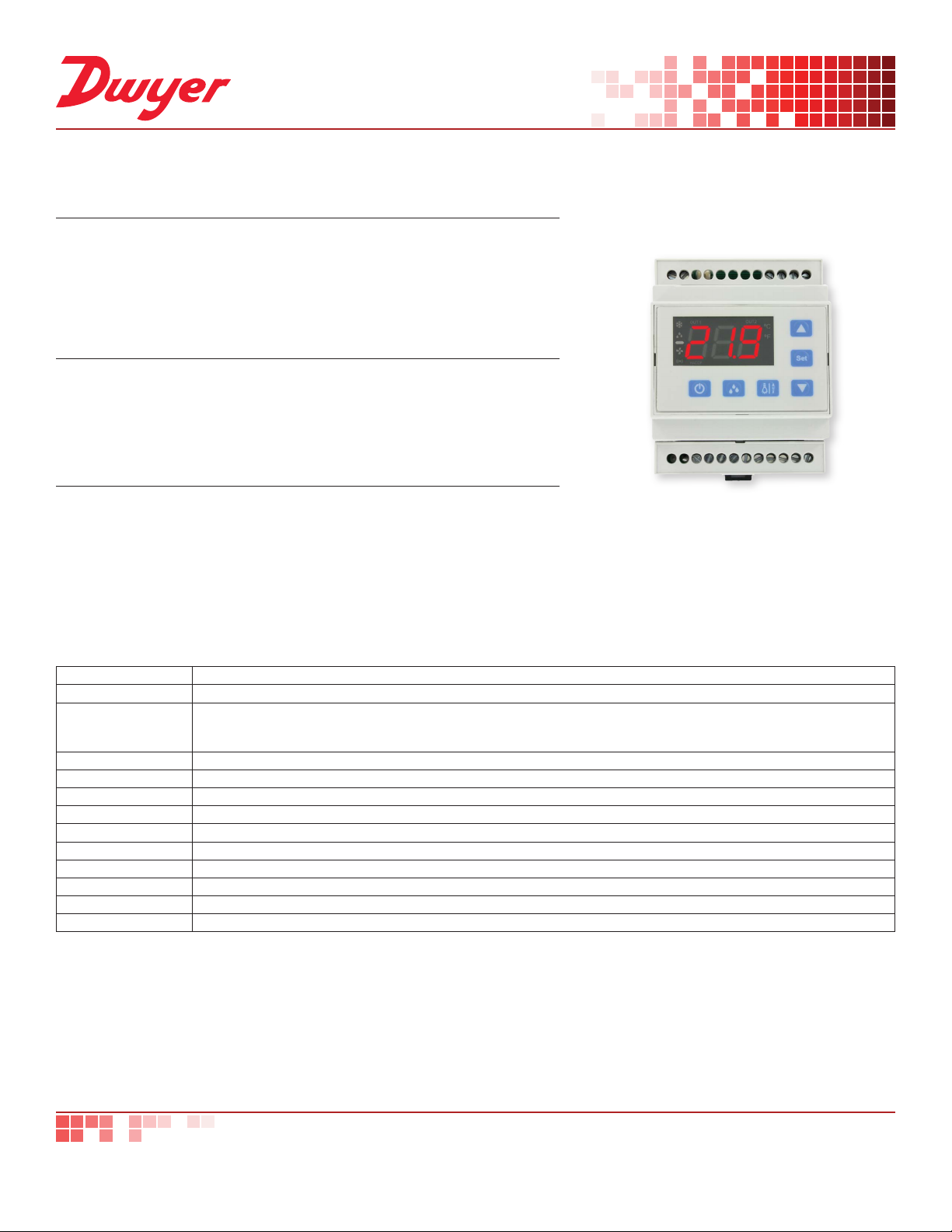

SERIES TSDIN | DIN RAIL MOUNT TEMPERATURE SWITCH
®
FEATURES/BENEFITS
• 3 temperature probe inputs
• Real-time clock used for HACCP logging of temperature limit alarms or
loss of power
• Intelligent Defrost parameters manage defrost cycle in order to save
energy cost
APPLICATIONS
• Refrigerated cabinets
• Walk in coolers
• Applications requiring defrost cycles
DESCRIPTION
The SERIES TSDIN Rail Mount Temperature Switch is ideally designed to control compressor,
defrost, and fan cycles in refrigeration applications. The digital input can be used to remotely
trigger a defrost cycle, monitor cooler door status, or act as an external alarm. Three other
probe inputs measure cabinet, defrost, and product temperature. Programming performed
on the 6 button keypad or with the Model TS2-K conguration key.
SPECIFICATIONS
Probe Range PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input PTC/NTC.
Output Output 1: SPST relay rated 16A @ 240 VAC resistive, 10 FLA, 60 LRA, 1HP @ 240 VAC inductive; Output 2: SPDT relay
rated 8A @ 240 VAC resistive; Output 3: SPST relay rated 8A @ 240 VAC resistive; Output 4: SPDT relay rated 8A @ 240
VAC resistive; Output 5: SPST relay rated 16A @ 240 VAC resistive, 10 FLA, 60 LRA, 1HP @ 240 VAC inductive.
Control Type On/off.
Power Requirement 115 VAC, 230 VAC, 12 VAC/VDC, 24 VAC/VDC (±10% depending on model).
Power Consumption 6 VA.
Accuracy Better than 1% of full-scale.
Display 3-digits plus sign.
Resolution 0.1°.
Memory Backup Non-volatile memory.
Temperature Limits Operating: 32 to 131°F (0 to 55°C); Storage: -4 to 176°F (-20 to 80°C).
Weight 10.8 oz (306 g).
Agency Approvals CE, cURus.
dwyer-inst.com
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
800-872-9141
Page 2
®

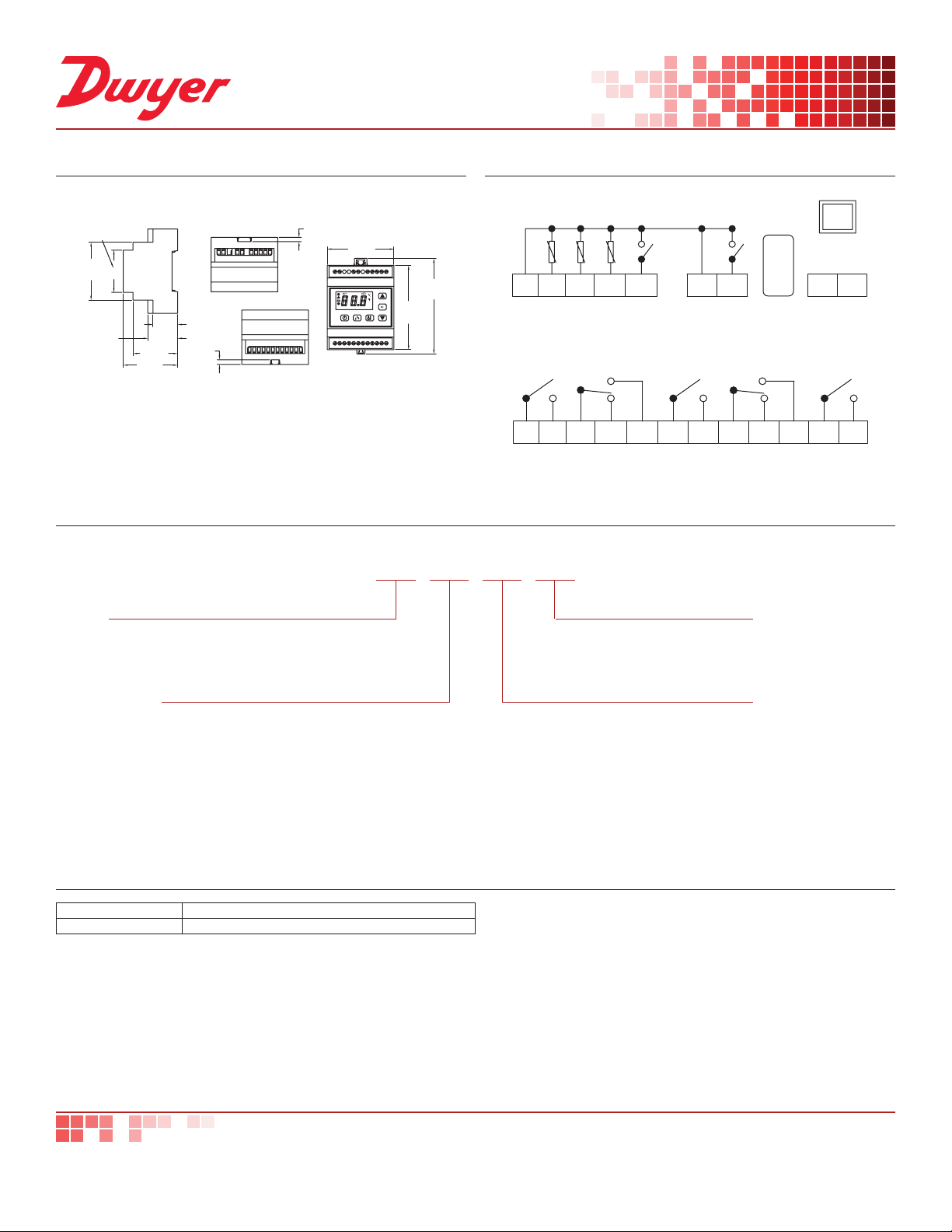

DIMENSIONS WIRING DIAGRAM
2-7/16
[61.82]
1-25/32
3/16
]
[58.00]
2O
Probe Inputs
[45.06]
1-1/4
[31.83]
1-7/8
[47.57]
2-9/32
1-1/32
[26.31]
13/64
[5.08]
[4.57]
2-51/64
[71.20]
3-35/64
[90.00]
4-1/64
[101.96
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
TSDIN -0 1 3
SERIES
TSDIN - DIN rail mount temperature switch
Sd1 Sd2 Sd3 In2
t° t° t°
1
2
Out5 Out4 Out3Out
13
14
4
3
15
5
16
17
18
In1
8
7
20
19
Power
Supply
TS2-K
11
12
ut1
23
22
21
24
NUMBER OF OUTPUTS
3 - 1, 2, 3
5 - 1, 2, 3, 4, 5
DISPLAY COLOR
-0 - Red
-1 - Blue
SUPPLY POWER
1 - 115 VAC
2 - 230 VAC
3 - 12 VAC/VDC
4 - 24 VAC/VDC
ACCESSORIES
Model Description
Series TS-PROBES Digital temperature switch probes and accessories
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
dwyer-inst.com
T: 219-879-8000 | F: 219-872-9057 | [email protected]
800-872-9141
DWYER INSTRUMENTS, INC.
DS-TSDIN | 11/17
