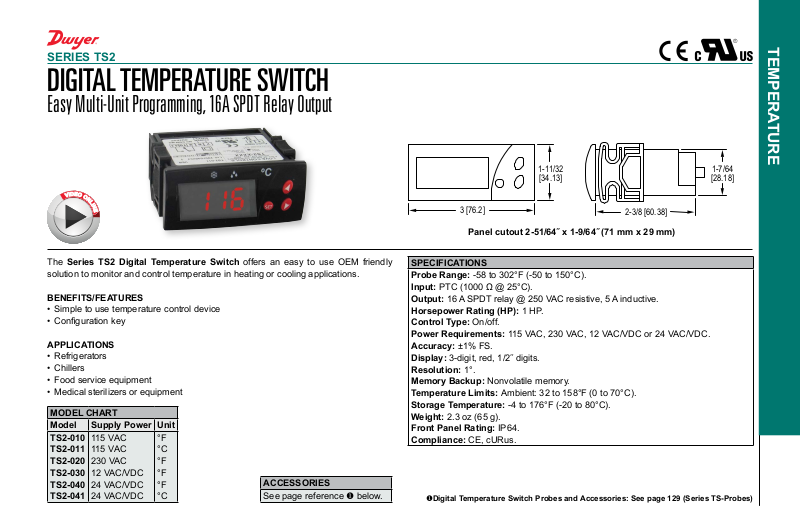

Omega TS2 User guide

2-3/8 [60.38]

SERIES TS2

E

DIGITAL TEMPERATURE SWITCH

Easy Multi-Unit Programming, 16A SPDT Relay Output

TEMPERATURE

E

O

D

I

V

O

N

L

I

N

The Series TS2 Digital Temperature Switch offers an easy to use OEM friendly
solution to monitor and control temperature in heating or cooling applications.

BENEFITS/FEATURES

• Simple to use temperature control device

• Congurationkey

APPLICATIONS

• Refrigerators

• Chillers

• Food service equipment

• Medical sterilizers or equipment

MODEL CHART
Model Supply Power Unit
TS2-010
TS2-011
TS2-020
TS2-030
TS2-040
TS2-041

115VAC
115VAC
230VAC
12VAC/VDC
24VAC/VDC
24VAC/VDC

°F
°C
°F
°F
°F
°C

ACCESSORIES

See page reference u below.

1-11/32

[34.13]

3 [76.2]

Panel cutout 2-51/64˝ x 1-9/64˝ (71 mm x 29 mm)

SPECIFICATIONS
Probe Range: -58 to 302°F (-50 to 150°C).
Input: PTC(1000Ω@25°C).
Output: 16ASPDTrelay@250VACresistive,5Ainductive.

Horsepower Rating (HP): 1 HP.

Control Type: On/off.
Power Requirements: 115VAC,230VAC,12VAC/VDCor24VAC/VDC.
Accuracy: ±1% FS.
Display: 3-digit,red,1/2˝digits.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature:-4to176°F(-20to80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Compliance:CE,cURus.

uDigital Temperature Switch Probes and Accessories: See page 129 (Series TS-Probes)

1-7/64
[28.18]
