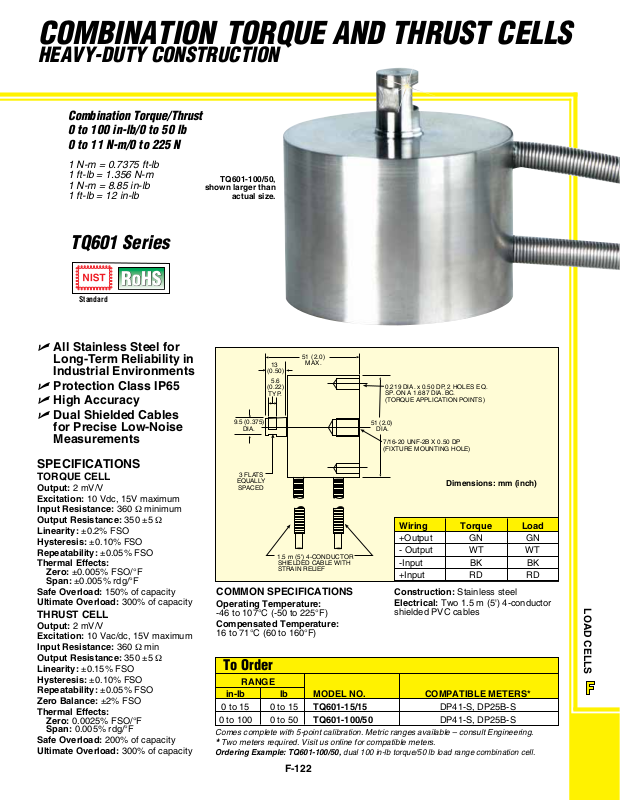

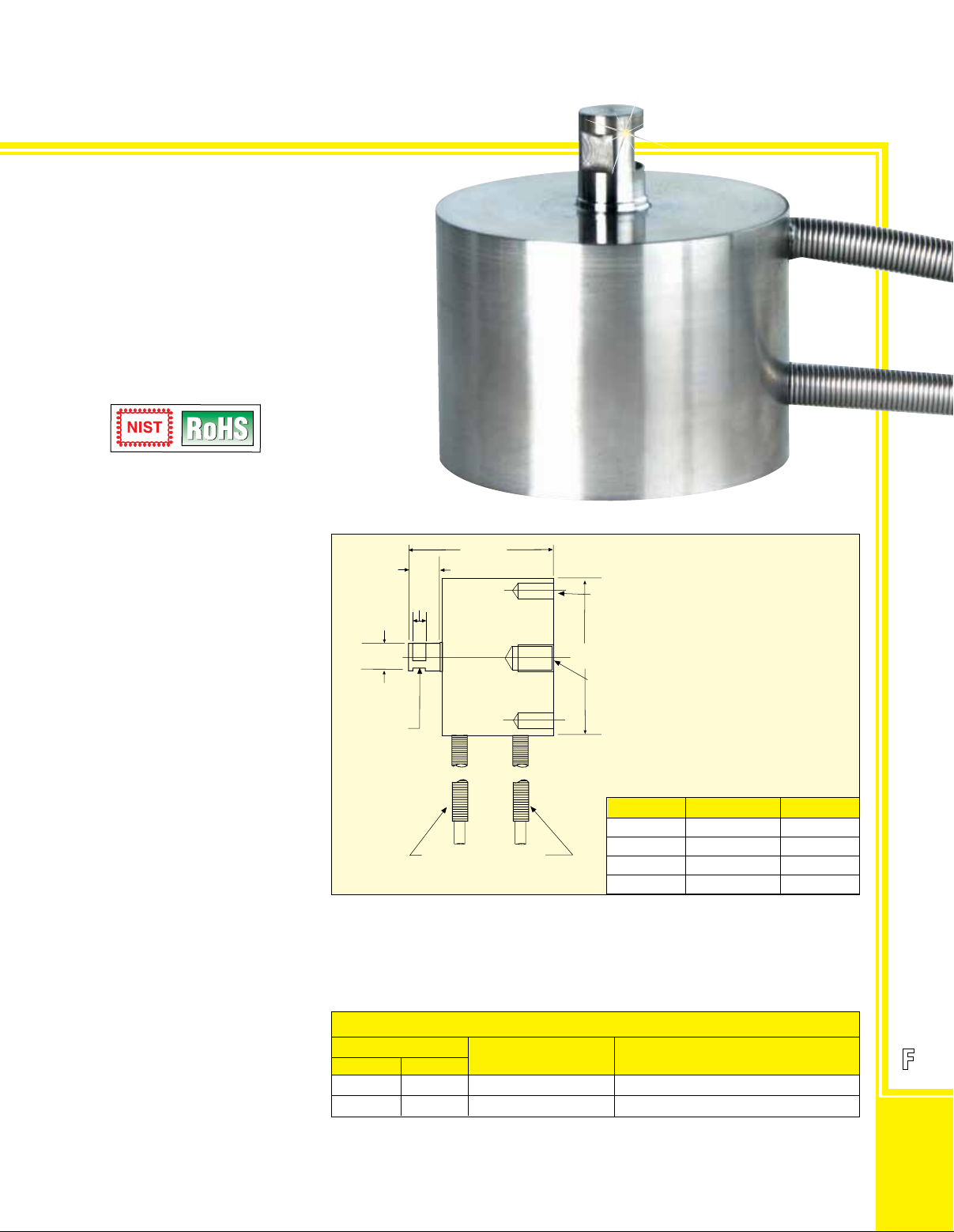

COMBINATION TORQUE AND THRUST CELLS
HEAvy-DUTy CONSTRUCTION
Combination Torque/Thrust
0 to 100 in-lb/0 to 50 lb
0 to 11 N-m/0 to 225 N
1 N-m = 0.7375 ft-lb
1 ft-lb = 1.356 N-m
1 N-m = 8.85 in-lb
1 ft-lb = 12 in-lb
TQ601 Series
Standard
TQ601-100/50,
shown larger than
actual size.
U All Stainless Steel for
Long-Term Reliability in
Industrial Environments
U Protection Class IP65
U High Accuracy
U Dual Shielded Cables
for Precise Low-Noise
Measurements
SPECIFICATIONS
TORQUE CELL
Output: 2 mV/V
Excitation: 10 Vdc, 15V maximum
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Linearity: ±0.2% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% rdg/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
THRUST CELL
Output: 2 mV/V
Excitation: 10 Vac/dc, 15V maximum
Input Resistance: 360 Ω min
Output Resistance: 350 ±5 Ω
Linearity: ±0.15% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Thermal Effects:
Zero: 0.0025% FSO/°F
Span: 0.005% rdg/°F
Safe Overload: 200% of capacity
Ultimate Overload: 300% of capacity
51 (2.0)
13
(0.50)
5.6
(0.22)
TYP.
9.5 (0.375)
DIA.
3 FLATS
EQUALLY
SPACED
COMMON SPECIFICATIONS
Operating Temperature:
-46 to 107°C (-50 to 225°F)
Compensated Temperature:
16 to 71°C (60 to 160°F)
To Order
RANGE
in-lb lb MODEL NO. COMPATIBLE METERS*
0 to 15 0 to 15 TQ601-15/15 DP41-S, DP25B-S
0 to 100 0 to 50 TQ601-100/50 DP41-S, DP25B-S
Comes complete with 5-point calibration. Metric ranges available – consult Engineering.
Two meters required. Visit us online for compatible meters.
*
Ordering Example: TQ601-100/50, dual 100 in-lb torque/50 lb load range combination cell.
MAX.
1.5 m (5') 4-CONDUCTOR
SHIELDED CABLE WITH
STRAIN RELIEF
0.219 DIA. x 0.50 DP, 2 HOLES EQ.
SP. ON A 1.687 DIA. BC.
(TORQUE APPLICATION POINTS)
51 (2.0)
DIA.
7/16-20 UNF-2B X 0.50 DP.
(FIXTURE MOUNTING HOLE)
Dimensions: mm (inch)
Wiring Torque Load
+Output GN GN
- Output WT WT
-Input BK BK
+Input RD RD
Construction: Stainless steel
Electrical: Two 1.5 m (5') 4-conductor
shielded PVC cables
F-122
LOAD CELLS
