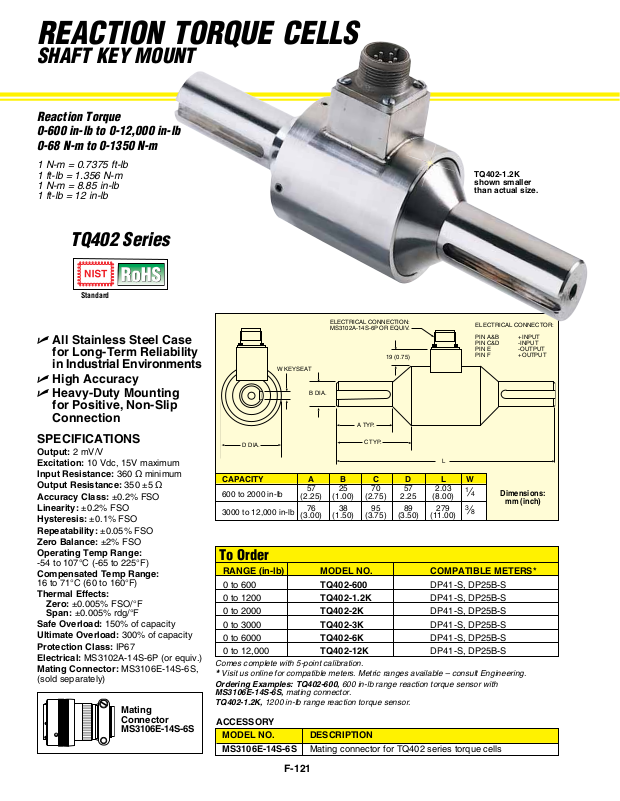

REACTION TORQUE CELLS
SHAFT KEY MOUNT
Reaction Torque
0-600 in-lb to 0-12,000 in-lb
0-68 N-m to 0-1350 N-m
1 N-m = 0.7375 ft-lb
1 ft-lb = 1.356 N-m
1 N-m = 8.85 in-lb
1 ft-lb = 12 in-lb
TQ402 Series
Standard
U All Stainless Steel Case
for Long-Term Reliability
in Industrial Environments
U High Accuracy
U Heavy-Duty Mounting
for Positive, Non-Slip
Connection
SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15V maximum
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Accuracy Class: ±0.2% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 107°C (-65 to 225°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% rdg/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Protection Class: IP67
Electrical: MS3102A-14S-6P (or equiv.)
Mating Connector: MS3106E-14S-6S,
(sold separately)
Mating
Connector
MS3106E-14S-6S

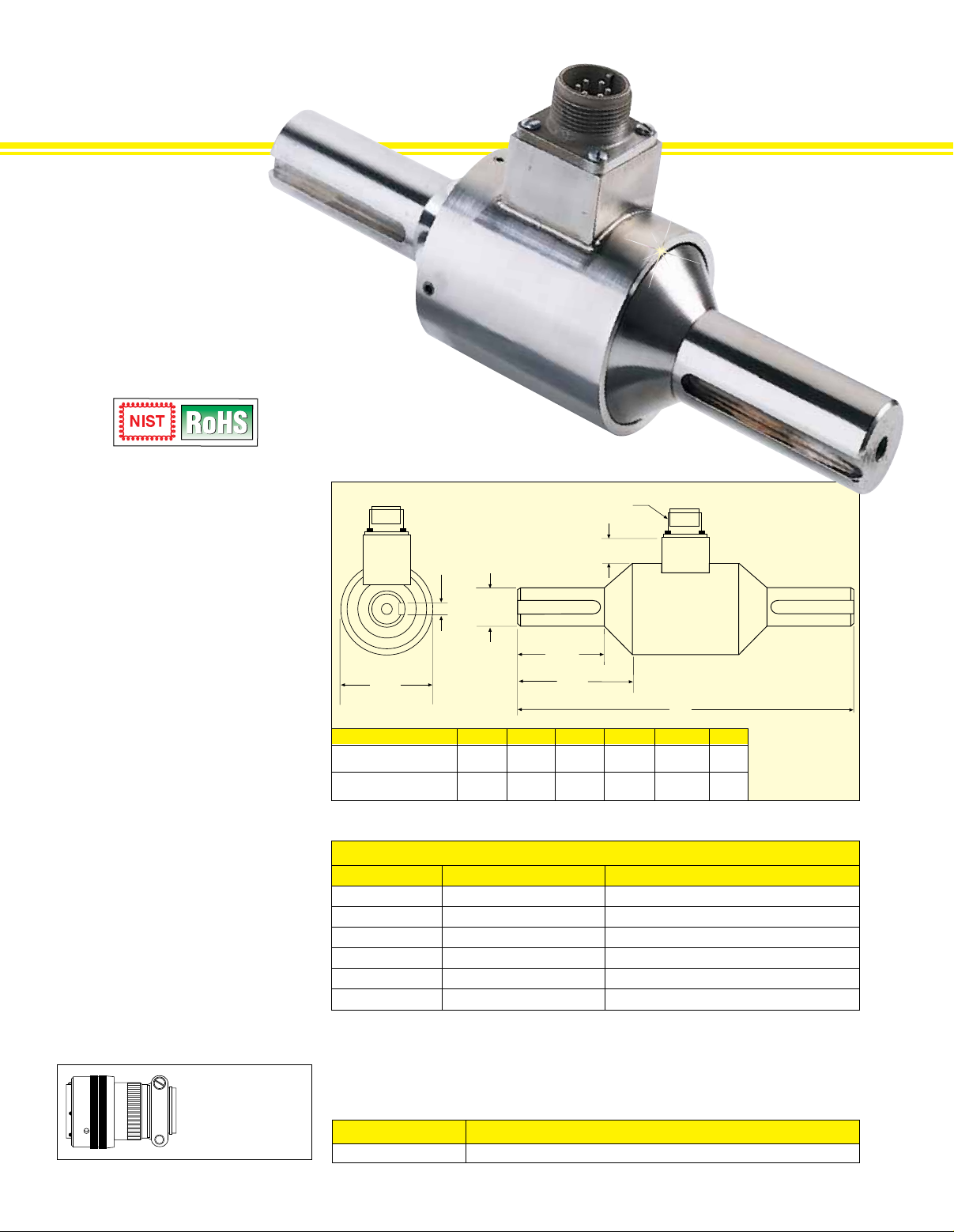

TQ402-1.2K
shown smaller
than actual size.
ELECTRICAL CONNECTION:
MS3102A-14S-6P OR EQUIV.
19 (0.75)
W KEYSEAT
B DIA.
A TYP.
D DIA.
CAPACITY A B C D L W
600 to 2000 in-lb
3000 to 12,000 in-lb
(3.00) (1.50) (3.75) (3.50) (11.00)
To Order
RANGE (in-lb) MODEL NO. COMPATIBLE METERS*
0 to 600 TQ402-600 DP41-S, DP25B-S
0 to 1200 TQ402-1.2K DP41-S, DP25B-S
0 to 2000 TQ402-2K DP41-S, DP25B-S
0 to 3000 TQ402-3K DP41-S, DP25B-S
0 to 6000 TQ402-6K DP41-S, DP25B-S
0 to 12,000 TQ402-12K DP41-S, DP25B-S
Comes complete with 5-point calibration.
Visit us online for compatible meters. Metric ranges available – consult Engineering.
*
Ordering Examples: TQ402-600, 600 in-lb range reaction torque sensor with
MS3106E-14S-6S, mating connector.
TQ402-1.2K, 1200 in-lb range reaction torque sensor.
ACCESSORY
MODEL NO. DESCRIPTION
MS3106E-14S-6S Mating connector for TQ402 series torque cells
57 25 70 57 2.03
(2.25) (1.00) (2.75) 2.25 (8.00)
76 38 95 89 279
C TYP.
L
ELECTRICAL CONNECTOR:
PIN A&B +INPUT
PIN C&D -INPUT
PIN E -OUTPUT
PIN F +OUTPUT
1
⁄4
3
⁄8
Dimensions:
mm (inch)
F-121
