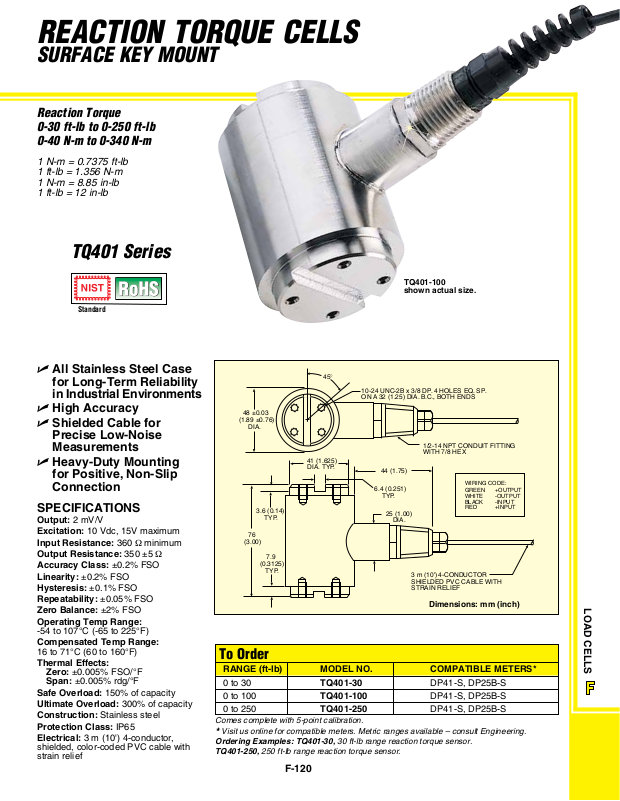

REACTION TORQUE CELLS
SURFACE KEY MOUNT
Reaction Torque
0-30 ft-lb to 0-250 ft-lb
0-40 N-m to 0-340 N-m
1 N-m = 0.7375 ft-lb
1 ft-lb = 1.356 N-m
1 N-m = 8.85 in-lb
1 ft-lb = 12 in-lb
TQ401 Series
Standard

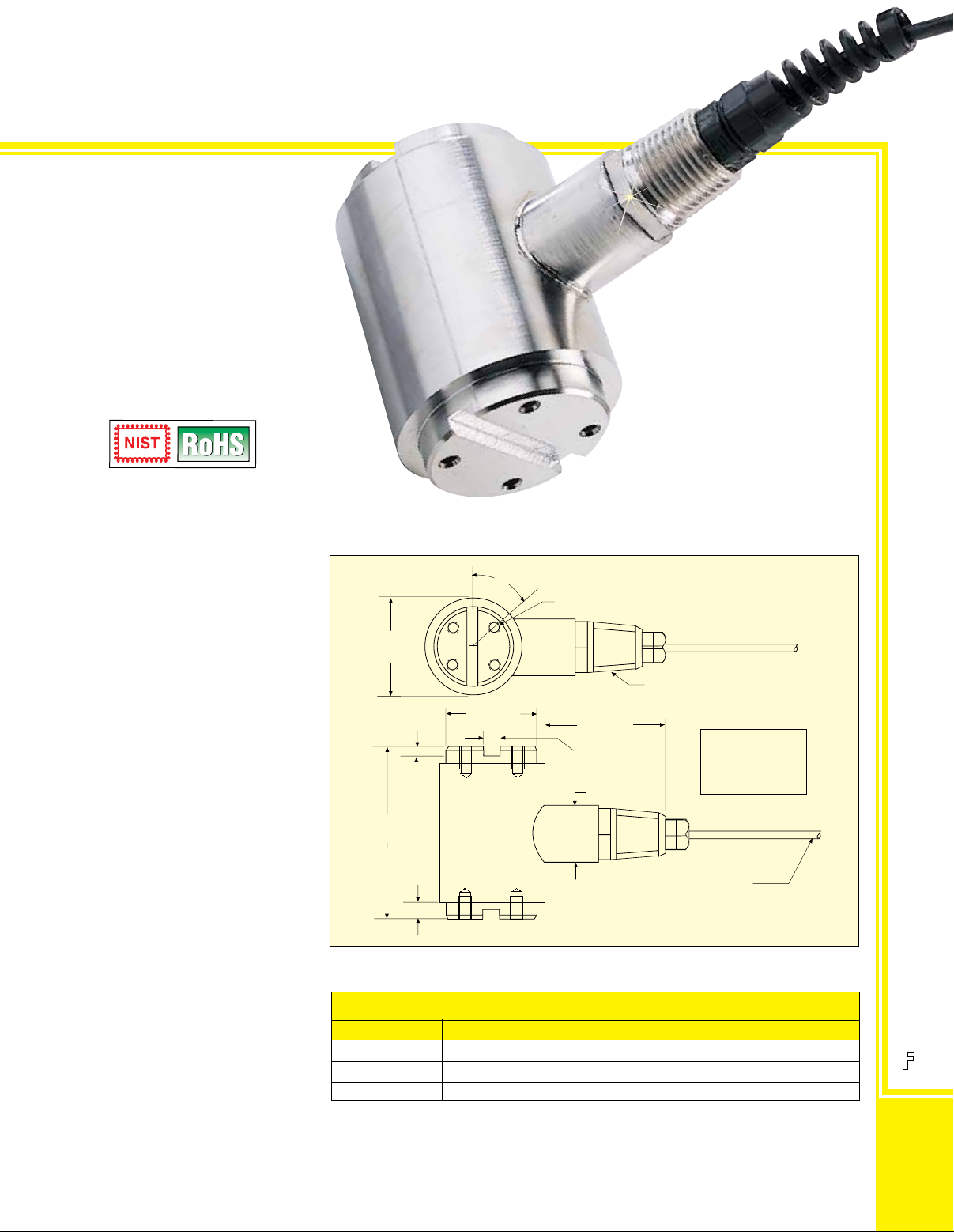

TQ401-100
shown actual size.
U All Stainless Steel Case
for Long-Term Reliability
in Industrial Environments
U High Accuracy
U Shielded Cable for
Precise Low-Noise
Measurements
U Heavy-Duty Mounting
for Positive, Non-Slip
Connection
SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15V maximum
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Accuracy Class: ±0.2% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 107°C (-65 to 225°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% rdg/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Construction: Stainless steel
Protection Class: IP65
Electrical: 3 m (10') 4-conductor,
shielded, color-coded PVC cable with
strain relief
45°
10-24 UNC-2B x 3/8 DP. 4 HOLES EQ. SP.
ON A 32 (1.25) DIA. B.C., BOTH ENDS
1/2-14 NPT CONDUIT FITTING
WITH 7/8 HEX
44 (1.75)
6.4 (0.251)
TYP.
25 (1.00)
DIA.
3 m (10') 4-CONDUCTOR
SHIELDED PVC CABLE WITH
STRAIN RELIEF
Dimensions: mm (inch)
WIRING CODE:
WIRING CODE:
GREEN +OUTPUT
GREEN +OUTPUT
WHITE -OUTPUT
WHITE -OUTPUT
BLACK -INPUT
BLACK -INPUT
RED +INPUT
RED +INPUT
48 ±0.03
(1.89 ±0.76)
DIA.
3.6 (0.14)
TYP.
76
(3.00)
(0.3125)
TYP.
7.9
1.31
(33)
41 (1.625)
DIA. TYP.
To Order
RANGE (ft-lb) MODEL NO. COMPATIBLE METERS*
0 to 30 TQ401-30 DP41-S, DP25B-S
0 to 100 TQ401-100 DP41-S, DP25B-S
0 to 250 TQ401-250 DP41-S, DP25B-S
Comes complete with 5-point calibration.
Visit us online for compatible meters. Metric ranges available – consult Engineering.
*
Ordering Examples: TQ401-30, 30 ft-lb range reaction torque sensor.
TQ401-250, 250 ft-lb range reaction torque sensor.
F-120
LOAD CELLS
