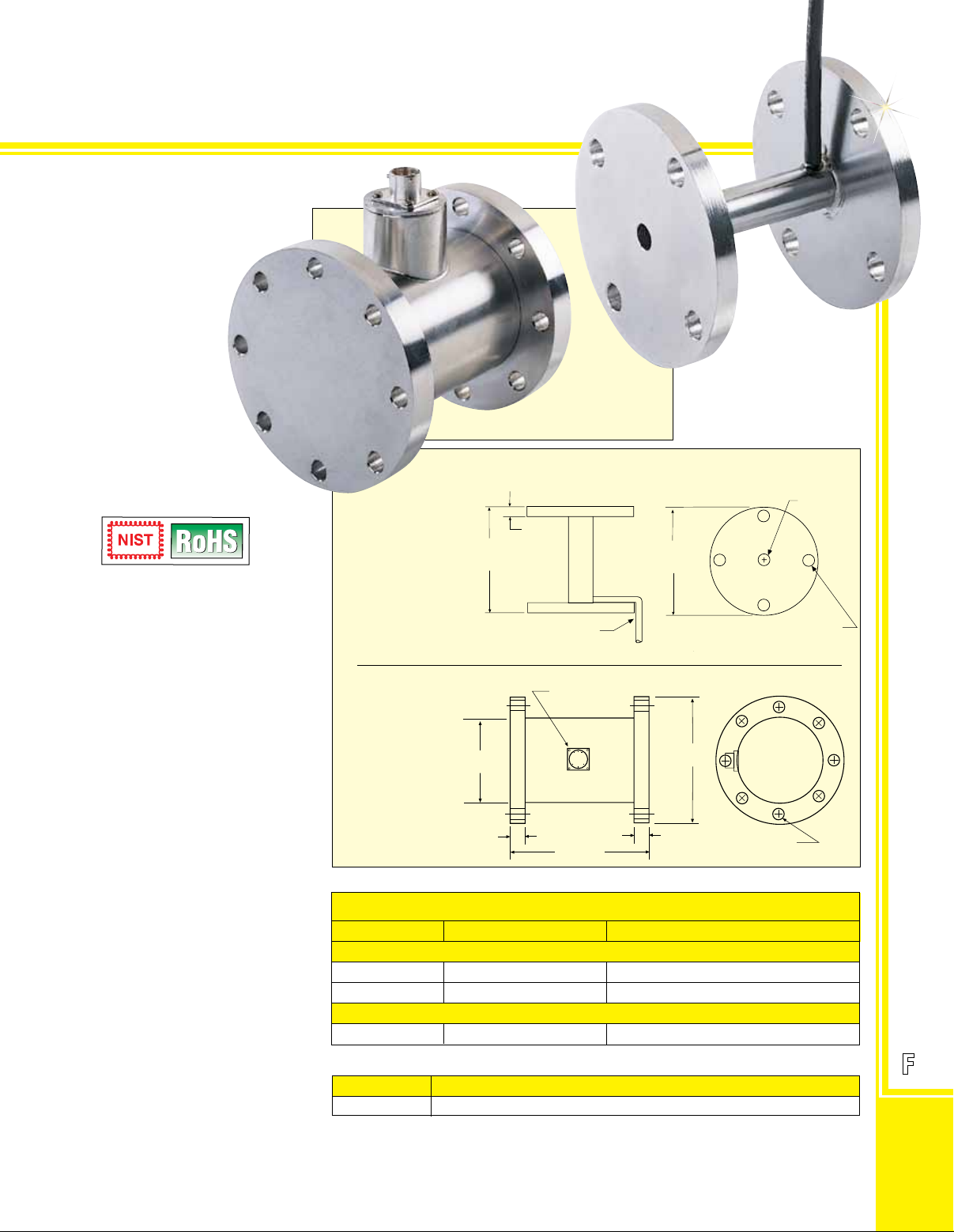

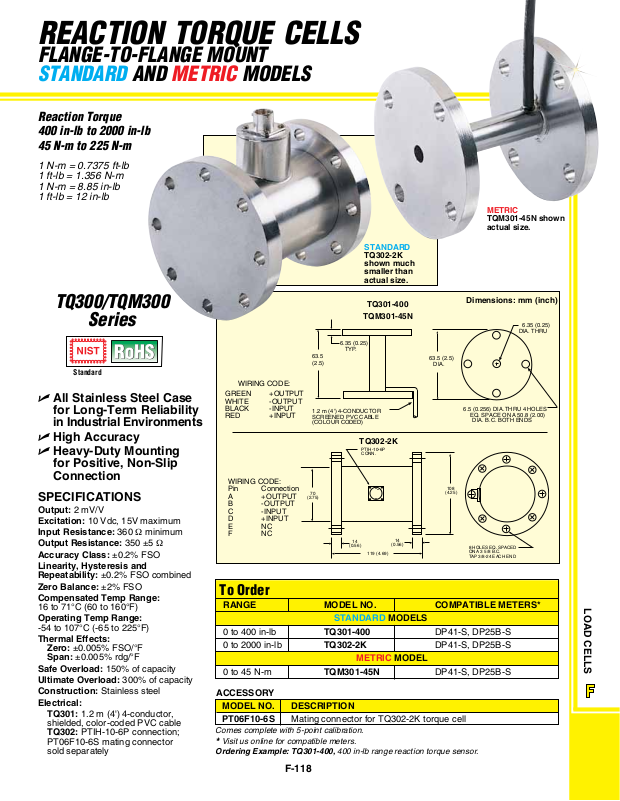

REACTION TORQUE CELLS
6.35 (0.25)
DIA. THRU
63.5 (2.5)
DIA.
6.5 (0.256) DIA. THRU 4 HOLES
EQ. SPACE ON A 50.8 (2.00)
DIA. B.C. BOTH ENDS
6.35 (0.25)
DIA. THRU
6.35 (0.25)
TYP.
6.5 (0.256) DIA. THRU 4 HOLES
EQ. SPACE ON A 50.8 (2.00)
DIA. B.C. BOTH ENDS
8 HOLES EQ. SP ACED
ON A 3 5/8 B.C.
T AP 3/8-24 EACH END
PTIH-10-6P
CONN.
108
(4.25)
119 (4.69)
14
(0.56)
FLANGE-TO-FLANGE MOUNT
STANDARD AND METRIC MODELS
Reaction Torque
400 in-lb to 2000 in-lb
45 N-m to 225 N-m
1 N-m = 0.7375 ft-lb
1 ft-lb = 1.356 N-m
1 N-m = 8.85 in-lb
1 ft-lb = 12 in-lb
METRIC
TQM301-45N shown
actual size.
STANDARD
TQ302-2K
shown much
smaller than
actual size.
TQ300/TQM300
Series
Standard
U All Stainless Steel Case
for Long-Term Reliability
in Industrial Environments
U High Accuracy
U Heavy-Duty Mounting
for Positive, Non-Slip
Connection
SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15V maximum
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Accuracy Class: ±0.2% FSO
Linearity, Hysteresis and
Repeatability: ±0.2% FSO combined
Zero Balance: ±2% FSO
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Operating Temp Range:
-54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% rdg/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Construction: Stainless steel
Electrical:
TQ301: 1.2 m (4') 4-conductor,
shielded, color-coded PVC cable
TQ302: PTIH-10-6P connection;
PT06F10-6S mating connector
sold separately
WIRING CODE:
GREEN +OUTPUT
WHITE -OUTPUT
BLACK -INPUT
RED +INPUT
WIRING CODE:
Pin Connection
A +OUTPUT
B -OUTPUT
C -INPUT
D +INPUT
ENC
FNC
To Order
RANGE MODEL NO. COMPATIBLE METERS*
STANDARD MODELS
0 to 400 in-lb TQ301-400 DP41-S, DP25B-S
0 to 2000 in-lb TQ302-2K DP41-S, DP25B-S
METRIC MODEL
0 to 45 N-m TQM301-45N DP41-S, DP25B-S
ACCESSORY
MODEL NO. DESCRIPTION
PT06F10-6S Mating connector for TQ302-2K torque cell
Comes complete with 5-point calibration.
Visit us online for compatible meters.
*
Ordering Example: TQ301-400, 400 in-lb range reaction torque sensor.
6.35 (0.25)
63.5
(2.5)
1.2 m. (4') 4-CONDUCTOR
SCREENED PVC CABLE
(COLOUR CODED)
70
(2.75)
TYP.
TQ302-2K
14
(0.56)
PTIH-10-6P
CONN.
TQ301-400
TQM301-45N
14
(0.56)
119 (4.69)
63.5 (2.5)
DIA.
(4.25)
Dimensions: mm (inch)
6.5 (0.256) DIA. THRU 4 HOLES
EQ. SPACE ON A 50.8 (2.00)
DIA. B.C. BOTH ENDS
108
8 HOLES EQ. SP ACED
ON A 3 5/8 B.C.
T AP 3/8-24 EACH END
6.35 (0.25)
DIA. THRU
LOAD CELLS
F-118
