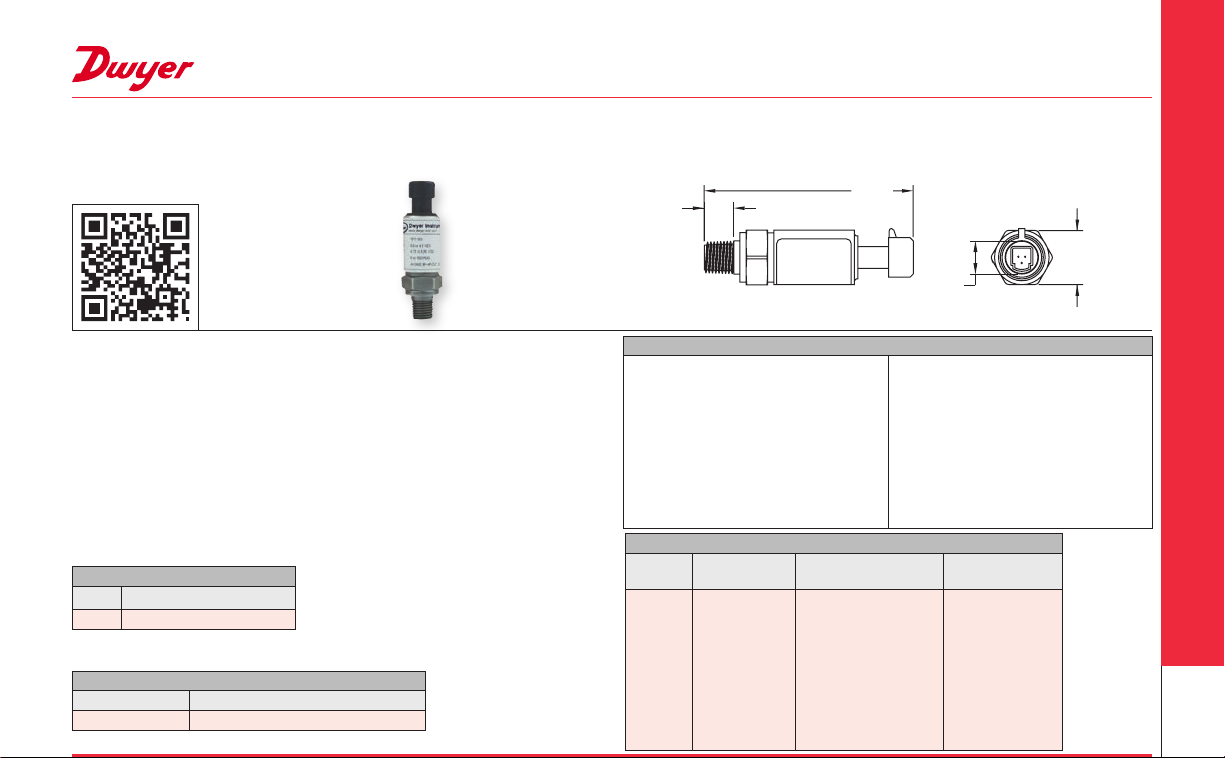

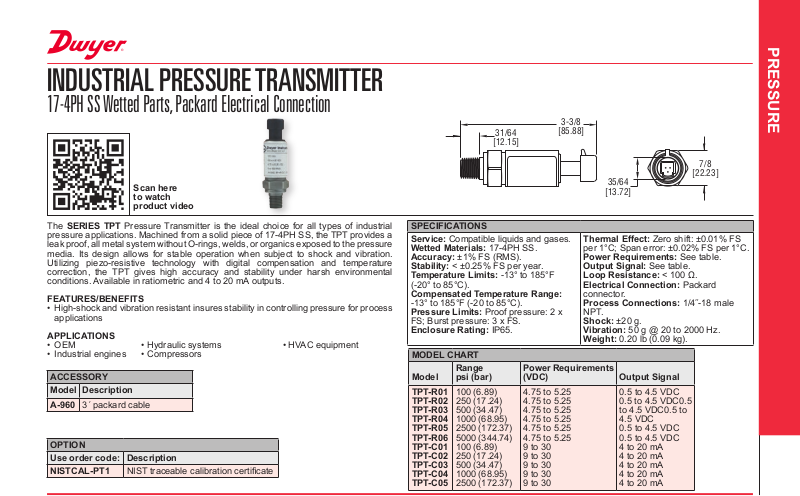

INDUSTRIAL PRESSURE TRANSMITTER

17-4PH SS Wetted Parts, Packard Electrical Connection

PRESSURE

Scan here to watch product video

The SERIES TPT Pressure Transmitter is the ideal choice for all types of industrial pressure applications. Machined from a solid piece of 17-4PH SS, the TPT provides a leak proof, all metal system without O-rings, welds, or organics exposed to the pressure media. Its design allows for stable operation when subject to shock and vibration. Utilizing piezo-resistive technology with digital compensation and temperature correction, the TPT gives high accuracy and stability under harsh environmental conditions. Available in ratiometric and 4 to 20 mA outputs.

FEATURES/BENEFITS

• High-shock and vibration resistant insures stability in controlling pressure for process applications

APPLICATIONS

• OEM • Hydraulic systems • HVAC equipment

• Industrial engines • Compressors

ACCESSORY Model Description

A-960 3´ packard cable

OPTION Use order code: Description NISTCAL-PT1 NIST traceable calibration certicate

31/64

[12.15]

SPECIFICATIONS Service: Compatible liquids and gases.

Wetted Materials: 17-4PH SS. Accuracy: ±1% FS (RMS). Stability: < ±0.25% FS per year. Temperature Limits: -13° to 185°F

(-20° to 85°C).

Compensated Temperature Range:

-13° to 185°F (-20 to 85°C). Pressure Limits: Proof pressure: 2 x FS; Burst pressure: 3 x FS.

Enclosure Rating: IP65.

MODEL CHART

Model

TPT-R01 TPT-R02 TPT-R03 TPT-R04 TPT-R05 TPT-R06 TPT-C01 TPT-C02 TPT-C03 TPT-C04 TPT-C05

Range psi (bar)

100 (6.89) 250 (17.24) 500 (34.47) 1000 (68.95) 2500 (172.37) 5000 (344.74) 100 (6.89) 250 (17.24) 500 (34.47) 1000 (68.95) 2500 (172.37)

[85.88]

Power Requirements (VDC) Output Signal

4.75 to 5.25

4.75 to 5.25 9 to 30 9 to 30 9 to 30 9 to 30 9 to 30

7/8

35/64

[13.72]

Thermal Effect: Zero shift: ±0.01% FS per 1°C; Span error: ±0.02% FS per 1°C.

Power Requirements: See table. Output Signal: See table. Loop Resistance: < 100 Ω. Electrical Connection: Packard

connector.

Process Connections: 1/4˝-18 male

NPT.

Shock: ±20 g. Vibration: 50 g @ 20 to 2000 Hz. Weight: 0.20 lb (0.09 kg).

0.5 to 4.5 VDC

0.5 to 4.5 VDC0.5 to 4.5 VDC0.5 to

4.5 VDC

0.5 to 4.5 VDC

0.5 to 4.5 VDC 4 to 20 mA 4 to 20 mA 4 to 20 mA 4 to 20 mA 4 to 20 mA
