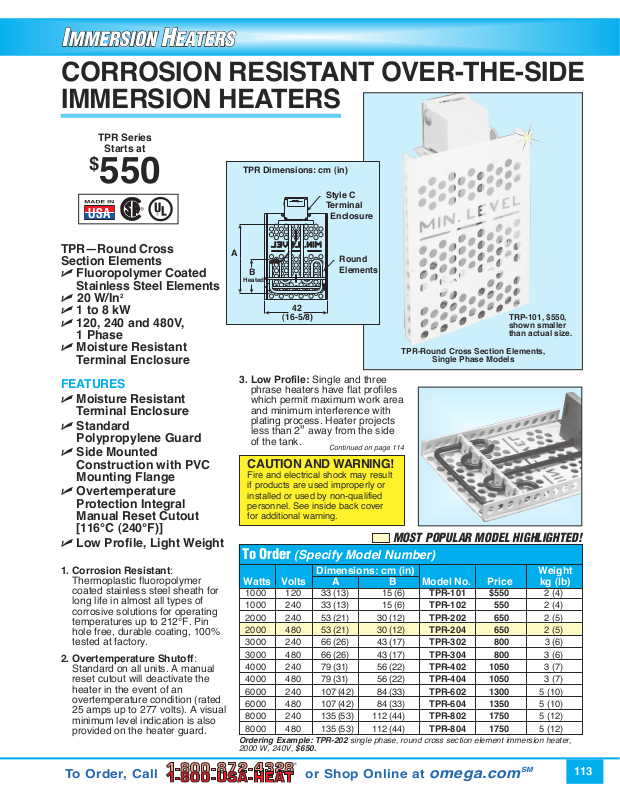

CORROSION RESISTANT OVER-THE-SIDE
TPR Dimensions: cm (in)
Style C
Terminal
Enclosure
A
B
Heated
42
(16-5/8)
Round
Elements
®
IMMERSION HEATERS
TPR Series
Starts at
$
550
TPR—Round Cross
Section Elements
Fluoropolymer Coated
Stainless Steel Elements
20 W/In
1 to 8 kW
120, 240 and 480V,
1 Phase
Moisture Resistant
Terminal Enclosure
2
TRP-101, $550,
shown smaller
than actual size.
TPR-Round Cross Section Elements,
Single Phase Models
FEATURES
Moisture Resistant
Terminal Enclosure
Standard
Polypropylene Guard
Side Mounted
Construction with PVC
Mounting Flange
Overtemperature
Protection Integral
Manual Reset Cutout
[116°C (240°F)]
Low Profile, Light Weight
1. Corrosion Resistant:
Thermoplastic fluoropolymer
coated stainless steel sheath for
long life in almost all types of
corrosive solutions for operating
temperatures up to 212°F. Pin
hole free, durable coating, 100%
tested at factory.
2. Overtemperature Shutoff:
Standard on all units. A manual
reset cutout will deactivate the
heater in the event of an
overtemperature condition (rated
25 amps up to 277 volts). A visual
minimum level indication is also
provided on the heater guard.
To Order, Call or Shop Online at
3. Low Profile: Single and three
phrase heaters have flat profiles
which permit maximum work area
and minimum interference with
plating process. Heater projects
less than 2" away from the side
of the tank.
Continued on page 114
CAUTION AND WARNING!
Fire and electrical shock may result
if products are used improperly or
installed or used by non-qualified
personnel. See inside back cover
for additional warning.
MOST POPULAR MODEL HIGHLIGHTED!
To Order
Watts Volts ABModel No. Price kg (lb)
1000 120 33 (13) 15 (6) TPR-101 $550 2 (4)
1000 240 33 (13) 15 (6) TPR-102 550 2 (4)
2000 240 53 (21) 30 (12) TPR-202 650 2 (5)
2000 480 53 (21) 30 (12) TPR-204 650 2 (5)
3000 240 66 (26) 43 (17) TPR-302 800 3 (6)
3000 480 66 (26) 43 (17) TPR-304 800 3 (6)
4000 240 79 (31) 56 (22) TPR-402 1050 3 (7)
4000 480 79 (31) 56 (22) TPR-404 1050 3 (7)
6000 240 107 (42) 84 (33) TPR-602 1300 5 (10)
6000 480 107 (42) 84 (33) TPR-604 1350 5 (10)
8000 240 135 (53) 112 (44) TPR-802 1750 5 (12)
8000 480 135 (53) 112 (44) TPR-804 1750 5 (12)
Ordering Example: TPR-202 single phase, round cross section element immersion heater,
2000 W, 240V, $650.
(Specify Model Number)
Dimensions: cm (in) Weight
omega.com
SM
113
Page 2
TPF Dimension: cm (in)
Style C Terminal
Enclosure
Flat
Elements
A
B
Heated
28.6
(11)
®
CORROSION RESISTANT OVER-THE-SIDE
IMMERSION HEATERS
TPF—Flat Elements
Fluoropolymer Coated
20 W/In
3 to 10 kW
240 and 480V,
Moisture Resistant
FEATURES
Moisture Resistant
Standard Polypropylene
Side Mounted
Overtemperature
Low Profile,
4. Vapor Tight Terminal:
5. Mounting Bracket: Made of PVC
6. Polypropylene Guard:
7. Grounded Construction: With
114
TPF Series
Starts at
$
915
Stainless Steal
Thinblade Elemants
3 Phase
Terminal Enclosure
Terminal Enclosure
Guard
Construction with
PVC Mounting Flange
Protection Integral
Manual Reset
Cutout (240°F)
Light Weight
Enclosure of PVC material with
left or right hand conduit entry.
material with conveniently located
mounting slots.
Standard on all units. It protects
the heater from work in process
in heating tank. Guard easily
disassembles for ease of
cleaning heating elements.
metal sheath heating elements to
allow for proper grounding safety.
2
To Order, Call or Shop Online at
TPF-302, $1000,
shown smaller
than actual size.
TPF-Flat Element, Three Phase Models
8. Low Watt Density: 20 watts per
square inch heat output suitable
for almost all corrosive solutions.
9. Light Weight: Simple design
permits easy installation and
removal for cleaning.
CAUTION AND WARNING!
Fire and electrical shock may result
if products are used improperly or
installed or used by non-qualified
personnel. See inside back cover
for additional warning.
MOST POPULAR MODELS HIGHLIGHTED!
To Order
Watts Volts ABModel No. Price kg (lb)
3000 240 51 (20) 28(11) TPF-302 $1000 4 (8)
3000 480 51 (20) 28(11) TPF-304
4000 240 58 (23) 36(14) TPF-402 1100 4 (9)
4000 480 58 (23) 36(14) TPF-404
6000 240 76 (30) 53(21) TPF-602 1450 5 (11)
6000 480 76 (30) 53(21) TPF-604
8000 240 94 (37) 71 (28) TPF-802 1750 5 (12)
8000 480 94 (37) 71 (28) TPF-804
10000 240 112 (44) 89 (35) TPF-1002 2150 6 (14)
10000 480 112 (44) 89 (35) TPF-1004
1
Not UL Listed or CSA Certified.
Ordering Example: TPF-404, three phase, flat element immersion heater, 4000 W, 480V, $1100.
It is not UL Listed or CSA Certified.
(Specify Model Number)
Dimensions: cm (in) Weight
1
1
1
1
1
795 4 (8)
1100 4 (9)
1450 5 (11)
1750 5 (12)
2150 6 (14)
