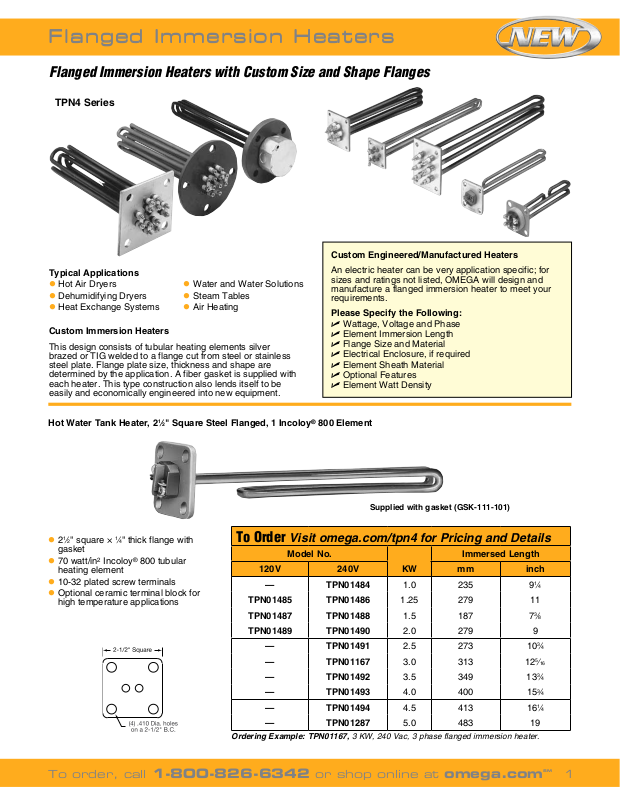

Flanged Immersion Heaters
Flanged Immersion Heaters
Flanged Immersion Heaters with Custom Size and Shape Flanges
TPN4 Series
Custom Engineered/Manufactured Heaters
Typical Applications
l Hot Air Dryers
l Dehumidifying Dryers
l Heat Exchange Systems
l Water and Water Solutions
l Steam Tables
l Air Heating
Custom Immersion Heaters
This design consists of tubular heating elements silver
brazed or TIG welded to a flange cut from steel or stainless
steel plate. Flange plate size, thickness and shape are
determined by the application. A fiber gasket is supplied with
each heater. This type construction also lends itself to be
easily and economically engineered into new equipment.
An electric heater can be very application specific; for
sizes and ratings not listed, OMEGA will design and
manufacture a flanged immersion heater to meet your
requirements.
Please Specify the Following:
U Wattage, Voltage and Phase
U Element Immersion Length
U Flange Size and Material
U Electrical Enclosure, if required
U Element Sheath Material
U Optional Features
U Element Watt Density

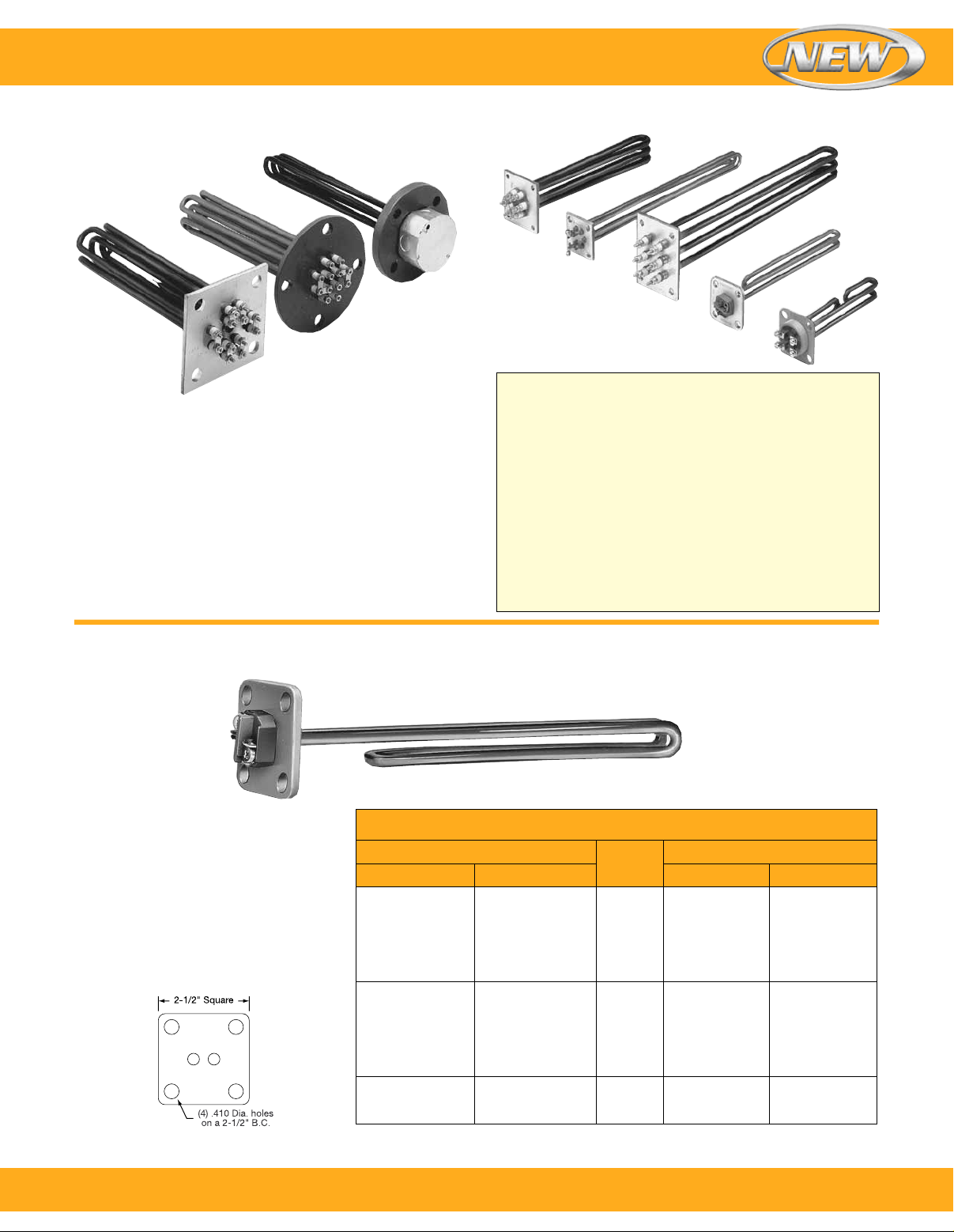

Hot Water Tank Heater, 21⁄2" Square Steel Flanged, 1 Incoloy® 800 Element
1
l 2
⁄2" square × 1⁄4" thick flange with
gasket
l 70 watt/in2 Incoloy® 800 tubular
heating element
l 10-32 plated screw terminals
l Optional ceramic terminal block for
high temperature applications
To Order Visit omega.com/tpn4 for Pricing and Details
Model No.
120V 240V mm inch
— TPN01484
TPN01485 TPN01486
TPN01487 TPN01488
TPN01489 TPN01490
— TPN01491
— TPN01167
— TPN01492
— TPN01493
— TPN01494
— TPN01287
Ordering Example: TPN01167, 3 KW, 240 Vac, 3 phase flanged immersion heater.
Supplied with gasket (GSK-111-101)
Immersed Length
KW
1.0 235 9
1.25 279 11
1.5 187 7
2.0 279 9
2.5 273 10
3.0 313 125⁄16
3.5 349 13
4.0 400 15
4.5 413 16
5.0 483 19
1
⁄4
3
⁄8
3
⁄4
3
⁄4
3
⁄4
1
⁄4
To order, call 1-800-826-6342 or shop online at omega.com
