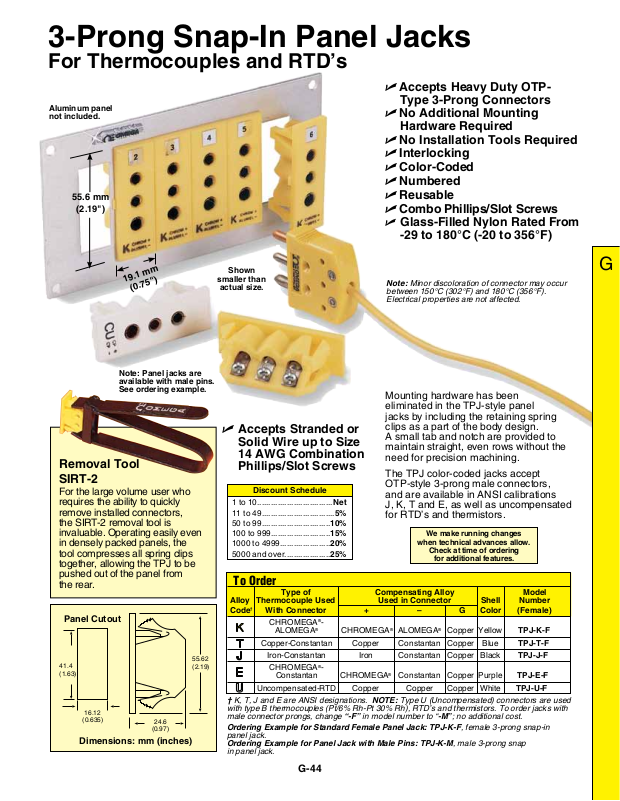

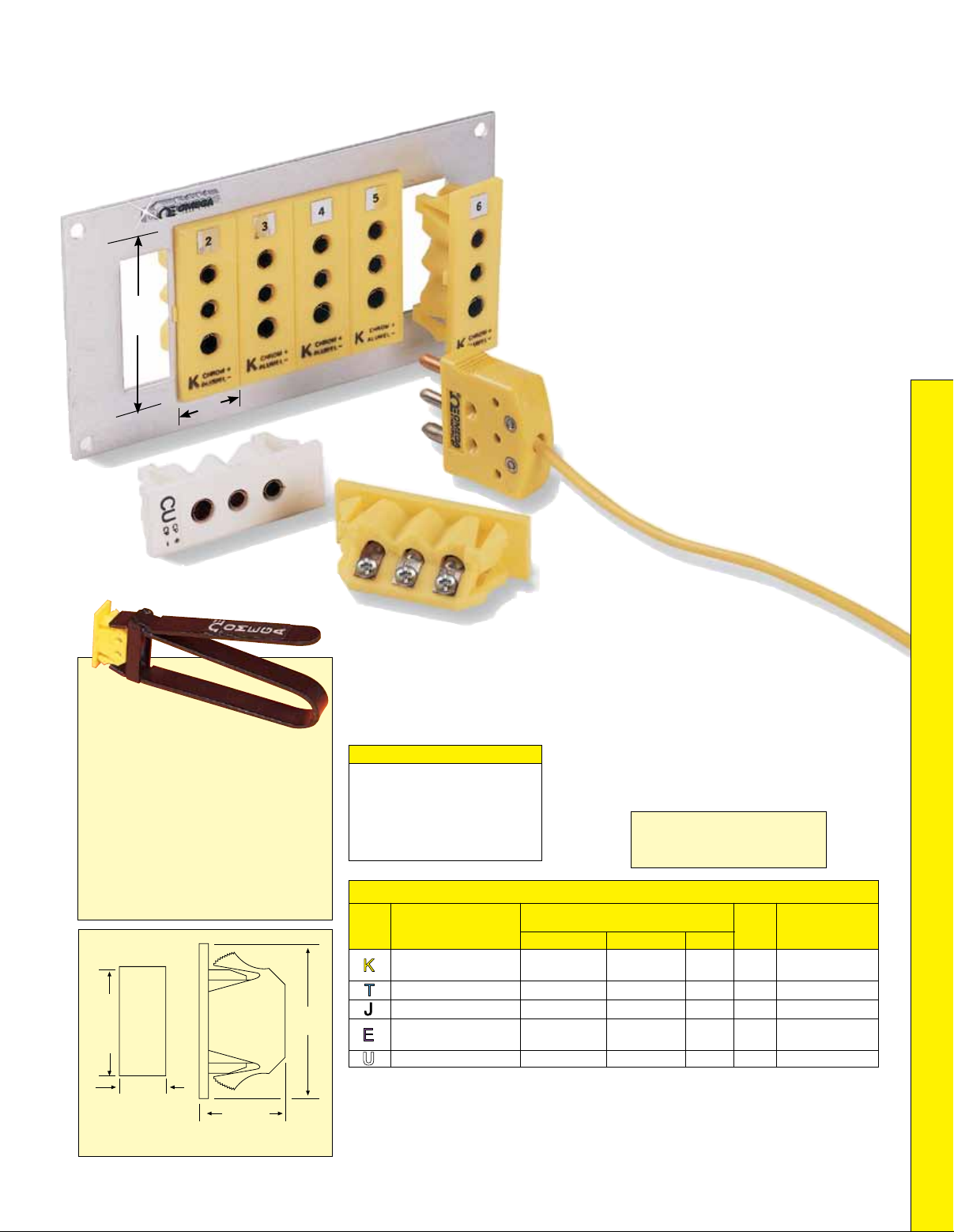

3-Prong Snap-In Panel Jacks
U
W
U
For Thermocouples and RTD’s
U Accepts Heavy Duty OTP-
Aluminum panel
not included.
55.6 mm
(2.19")
Type 3-Prong Connectors
U No Additional Mounting
Hardware Required
U No Installation Tools Required
U Interlocking
U Color-Coded
U Numbered
U Reusable
U Combo Phillips/Slot Screws
U Glass-Filled Nylon Rated From
-29 to 180°C (-20 to 356°F)
19.1 mm
(0.75")
Note: Panel jacks are
available with male pins.
See ordering example.
Removal Tool
SIRT-2
For the large volume user who
requires the ability to quickly
remove installed connectors,
the SIRT-2 removal tool is
invaluable. Operating easily even
in densely packed panels, the
tool compresses all spring clips
together, allowing the TPJ to be
pushed out of the panel from
the rear.
Panel Cutout
41.4
(1.63)
16.12
(0.635)
Dimensions: mm (inches)
24.6
(0.97)
55.62
(2.19)
Shown
smaller than
actual size.
Note: Minor discoloration of connector may occur
between 150°C (302°F) and 180°C (356°F).
Electrical properties are not affected.
Mounting hardware has been
eliminated in the TPJ-style panel
jacks by including the retaining spring
U Accepts Stranded or
Solid Wire up to Size
14 AWG Combination
Phillips/Slot Screws
Discount Schedule
1 to 10................................. Net
11 to 49................................5%
50 to 99..............................10%
100 to 999..........................15%
1000 to 4999......................20%
5000 and over....................25%
clips as a part of the body design.
A small tab and notch are provided to
maintain straight, even rows without the
need for precision machining.
The TPJ color-coded jacks accept
OTP-style 3-prong male connectors,
and are available in ANSI calibrations
J, K, T and E, as well as uncompensated
for RTD’s and thermistors.
We make running changes
when technical advances allow.
Check at time of ordering
for additional features.
To Order
Type of Compensating Alloy Model
Alloy Thermocouple Used Used in Connector Shell Number
Code† With Connector + – G Color (Female)
CHROMEGA® ALOMEGA® CHROMEGA® ALOMEGA® Copper Yellow TPJ-K-F
Copper-Constantan Copper Constantan Copper Blue TPJ-T-F
Iron-Constantan Iron Constantan Copper Black TPJ-J-F
CHROMEGA® Constantan CHROMEGA® Constantan Copper Purple TPJ-E-F
Uncompensated-RTD Copper Copper Copper White TPJ-U-F
† K, T, J and E are ANSI designations. NOTE: Type U (Uncompensated) connectors are used
with type B thermocouples (Pt/6% Rh-Pt 30% Rh), RTD’s and thermistors. To order jacks with
male connector prongs, change “-F” in model number to “-M”; no additional cost.
Ordering Example for Standard Female Panel Jack: TPJ-K-F, female 3-prong snap-in
panel jack.
Ordering Example for Panel Jack with Male Pins: TPJ-K-M, male 3-prong snap
in panel jack.
