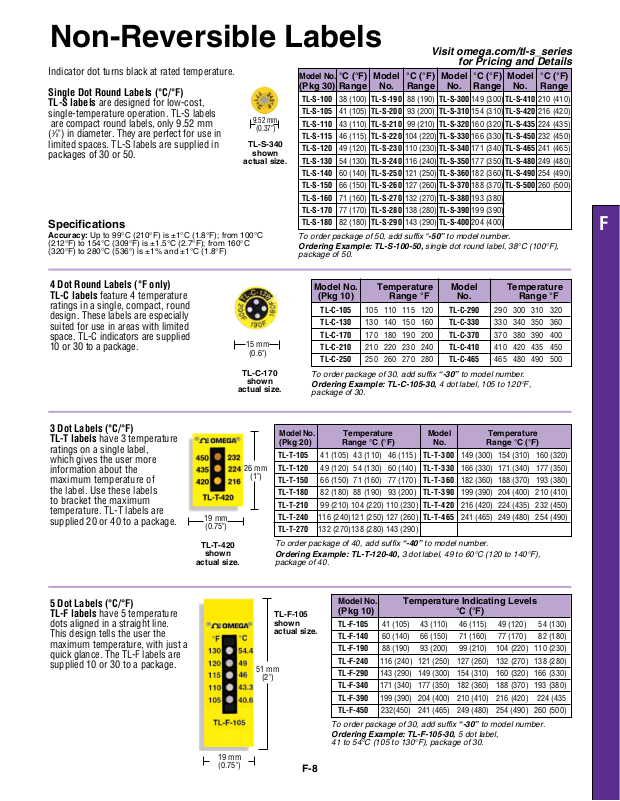

Non-Reversible Labels
Indicator dot turns black at rated temperature.
Single Dot Round Labels (°C/°F)
TL-S labels are designed for low-cost,
single-temperature operation. TL-S labels
are compact round labels, only 9.52 mm
(3⁄8") in diameter. They are perfect for use in
limited spaces. TL-S labels are supplied in
packages of 30 or 50.
9.52 mm
(0.37")
TL-S-340
shown
actual size.
Specifications
Accuracy: Up to 99°C (210°F) is ±1°C (1.8°F); from 100°C
(212°F) to 154°C (309°F) is ±1.5°C (2.7°F); from 160°C
(320°F) to 280°C (536°) is ±1% and ±1°C (1.8°F)
Model No.
(Pkg 30) Range
TL-S-100 38 (100)
TL-S-105 41 (105)
TL-S-110 43 (110)
TL-S-115 46 (115)
TL-S-120 49 (120)
TL-S-130 54 (130)
TL-S-140 60 (140)
TL-S-150 66 (150)
TL-S-160 71 (160)
TL-S-170 77 (170)
TL-S-180 82 (180)
To order package of 50, add suffix “-50” to model number.
Ordering Example: TL-S-100-50, single dot round label, 38°C (100°F),
package of 50.
°C (°F)
Model °C (°F)
No. Range
TL-S-190 88 (190)
TL-S-200 93 (200)
TL-S-210 99 (210)
TL-S-220 104 (220)
TL-S-230 110 (230)
TL-S-240 116 (240)
TL-S-250 121 (250)
TL-S-260 127 (260)
TL-S-270 132 (270)
TL-S-280 138 (280)
TL-S-290 143 (290)
Visit omega.com/tl-s_series
for Pricing and Details
Model °C (°F)
No. Range
TL-S-300 149 (300)
TL-S-310 154 (310)
TL-S-320 160 (320)
TL-S-330 166 (330)
TL-S-340 171 (340)
TL-S-350 177 (350)
TL-S-360 182 (360)
TL-S-370 188 (370)
TL-S-380 193 (380)
TL-S-390 199 (390)
TL-S-400 204 (400)
Model °C (°F)
No. Range
TL-S-410 210 (410)
TL-S-420 216 (420)
TL-S-435 224 (435)
TL-S-450 232 (450)
TL-S-465 241 (465)
TL-S-480 249 (480)
TL-S-490 254 (490)
TL-S-500 260 (500)
F
4 Dot Round Labels (°F only)
TL-C labels feature 4 temperature
ratings in a single, compact, round
design. These labels are especially
suited for use in areas with limited
space. TL-C indicators are supplied
10 or 30 to a package.
3 Dot Labels (°C/°F)
TL-T labels have 3 temperature
ratings on a single label,
which gives the user more
information about the
maximum temperature of
the label. Use these labels
to bracket the maximum
temperature. TL-T labels are
supplied 20 or 40 to a package.
19 mm
(0.75")
TL-T-420
shown
actual size.
15 mm
(0.6")
TL-C-170
shown
actual size.
26 mm
(1")
Model No.
(Pkg 10)
TL-C-105
TL-C-130
TL-C-170
TL-C-210
TL-C-250
To order package of 30, add suffix “-30” to model number.
Ordering Example: TL-C-105-30, 4 dot label, 105 to 120°F,
package of 30.
Model No.
(Pkg 20) Range °C (°F) No. Range °C (°F)
TL-T-105 41 (105) 43 (110) 46 (115) TL-T- 300 149 (300) 154 (310) 160 (320)
TL-T-120 49 (120) 54 (130) 60 (140) TL-T- 330 166 (330) 171 (340) 177 (350)
TL-T-150 66 (150) 71 (160) 77 (170) TL-T- 360 182 (360) 188 (370) 193 (380)
TL-T-180 82 (180) 88 (190) 93 (200) TL-T- 390 199 (390) 204 (400) 210 (410)
TL-T-210 99 (210) 104 (220) 110 (230) TL-T-420 216 (420) 224 (435) 232 (450)
TL-T-240 116 (240) 121 (250) 127 (260) TL-T-465 241 (465) 249 (480) 254 (490)
TL-T-270 132 (270) 138 (280) 143 (290)
To order package of 40, add suffix “-40” to model number.
Ordering Example: TL-T-120-40, 3 dot label, 49 to 60°C (120 to 140°F),
package of 40.
Temperature Model Temperature
Temperature
Range °F
105 110 115 120
130 140 150 160
170 180 190 200
210 220 230 240
250 260 270 280
Model
No.
TL-C-290
TL-C-330
TL-C-370
TL-C-410
TL-C-465
Temperature
Range °F
290 300 310 320
330 340 350 360
370 380 390 400
410 420 435 450
465 480 490 500
5 Dot Labels (°C/°F)
TL-F labels have 5 temperature
dots aligned in a straight line.
This design tells the user the
maximum temperature, with just a
quick glance. The TL-F labels are
supplied 10 or 30 to a package.
19 mm
(0.75")
51 mm
(2")
TL-F-105
shown
actual size.
F-8
Model No.
Temperature Indicating Levels
(Pkg 10) °C (°F)
TL-F-105 41 (105) 43 (110) 46 (115) 49 (120) 54 (130)
TL-F-140 60 (140) 66 (150) 71 (160) 77 (170) 82 (180)
TL-F-190 88 (190) 93 (200) 99 (210) 104 (220) 110 (230)
TL-F-240 116 (240) 121 (250) 127 (260) 132 (270) 138 (280)
TL-F-290 143 (290) 149 (300) 154 (310) 160 (320) 166 (330)
TL-F-340 171 (340) 177 (350) 182 (360) 188 (370) 193 (380)
TL-F-390 199 (390) 204 (400) 210 (410) 216 (420) 224 (435
TL-F-450 232(450) 241 (465) 249 (480) 254 (490) 260 (500)
To order package of 30, add suffix “-30” to model number.
Ordering Example: TL-F-105-30, 5 dot label,
41 to 54°C (105 to 130°F), package of 30.
