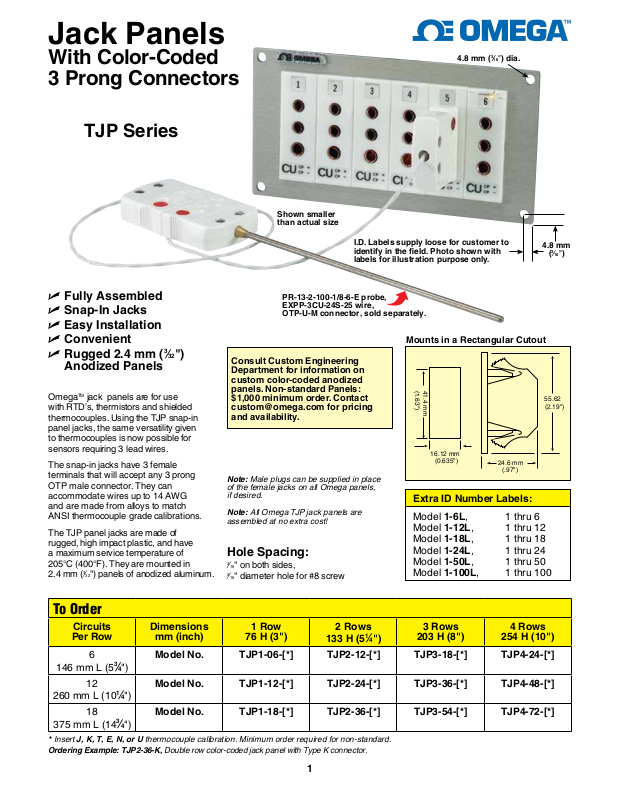

Jack Panels
With Color-Coded
3 Prong Connectors
TJP Series
Shown smaller
than actual size
4.8 mm (
3
⁄16") dia.
U Fully Assembled
U Snap-In Jacks
U Easy Installation
U Convenient
U Rugged 2.4 mm (3⁄32")
Anodized Panels
OmegaTM jack panels are for use
with RTD’s, thermistors and shielded
thermocouples. Using the TJP snap-in
panel jacks, the same versatility given
to thermocouples is now possible for
sensors requiring 3 lead wires.
The snap-in jacks have 3 female
terminals that will accept any 3 prong
OTP male connector. They can
accommodate wires up to 14 AWG
and are made from alloys to match
ANSI thermocouple grade calibrations.
The TJP panel jacks are made of
rugged, high impact plastic, and have
a maximum service temperature of
205°C (400°F). They are mounted in
2.4 mm (
3
⁄32") panels of anodized aluminum.
I.D. Labels supply loose for customer to
identify in the field. Photo shown with
labels for illustration purpose only.
PR-13-2-100-1/8-6-E probe,
EXPP-3CU-24S-25 wire,
OTP-U-M connector, sold separately.
Consult Custom Engineering
Department for information on
custom color-coded anodized
panels. Non-standard Panels:
$1,000 minimum order. Contact
[email protected] for pricing
and availability.
Note: Male plugs can be supplied in place
of the female jacks on all Omega panels,
if desired.
Note: All Omega
assembled at no extra cost!
TJP jack panels are
Hole Spacing:
3
⁄16" on both sides,
3
⁄16" diameter hole for #8 screw
Mounts in a Rectangular Cutout
41.4 mm
(1.63")
16.12 mm
(0.635")
24.6 mm
(.97")
Extra ID Number Labels:
Model 1-6L, 1 thru 6
Model 1-12L, 1 thru 12
Model 1-18L, 1 thru 18
Model 1-24L, 1 thru 24
Model 1-50L, 1 thru 50
Model 1-100L, 1 thru 100
4.8 mm
(3⁄16")
55.62
(2.19")
To Order
Circuits
Per Row
6
3
12
18
⁄4")
1
3
146 mm L (5
260 mm L (10
375 mm L (14
* Insert J, K, T, E, N, or U thermocouple calibration. Minimum order required for non-standard.
Ordering Example: TJP2-36-K, Double row color-coded jack panel with Type K connector.
⁄4")
⁄4")
Dimensions
mm (inch)
1 Row
76 H (3")
2 Rows
133 H (5
1
⁄4")
Model No. TJP1-06-[*] TJP2-12-[*] TJP3-18-[*] TJP4-24-[*]
Model No. TJP1-12-[*] TJP2-24-[*] TJP3-36-[*] TJP4-48-[*]
Model No. TJP1-18-[*] TJP2-36-[*] TJP3-54-[*] TJP4-72-[*]
1
3 Rows
203 H (8")
4 Rows
254 H (10")
