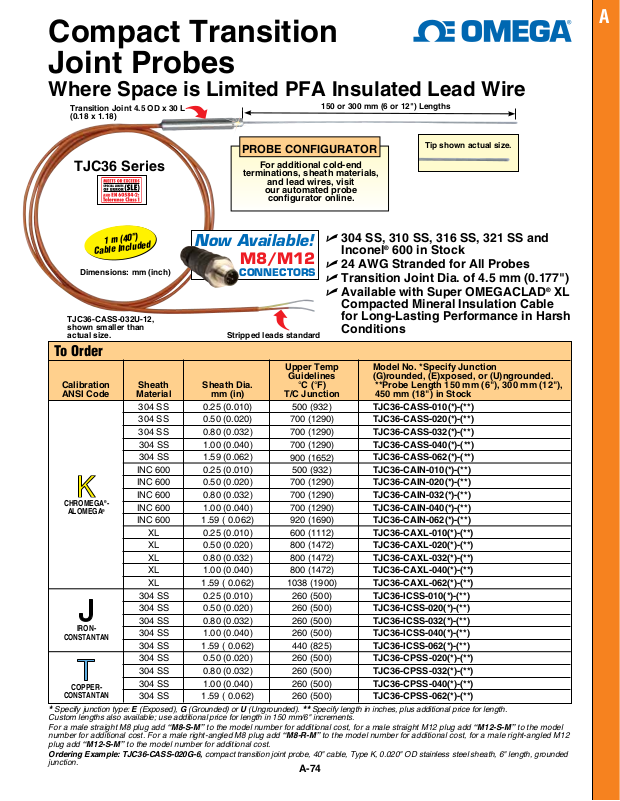

Compact Transition
Joint Probes
Where Space is Limited PFA Insulated Lead Wire
Transition Joint 4.5 OD x 30 L
(0.18 x 1.18)
150 or 300 mm (6 or 12") Lengths
A
Tip shown actual size.
TJC36 Series
1 m (40")
Cable Included
Dimensions: mm (inch)
PROBE CONFIGURATOR
For additional cold-end
terminations, sheath materials,
and lead wires, visit
our automated probe
configurator online.
Now Available!
M8/M12
CONNECTORS
U 304 SS, 310 SS, 316 SS, 321 SS and
Inconel® 600 in Stock
U 24 AWG Stranded for All Probes
U Transition Joint Dia. of 4.5 mm (0.177")
U Available with Super OMEGACLAD® XL
Compacted Mineral Insulation Cable
TJC36-CASS-032U-12,
shown smaller than
actual size.
Stripped leads standard
for Long-Lasting Performance in Harsh
Conditions
To Order
Upper Temp Model No. *Specify Junction
Calibration Sheath Sheath Dia. °C (°F) **Probe Length 150 mm (6"), 300 mm (12"),
ANSI Code Material mm (in) T/C Junction 450 mm (18") in Stock
304 SS 0.25 (0.010) 500 (932) TJC36-CASS-010(*)-(**)
304 SS 0.50 (0.020) 700 (1290) TJC36-CASS-020(*)-(**)
304 SS 0.80 (0.032) 700 (1290) TJC36-CASS-032(*)-(**)
304 SS 1.00 (0.040) 700 (1290) TJC36-CASS-040(*)-(**)
304 SS 1.59 (0.062)
INC 600 0.25 (0.010) 500 (932) TJC36-CAIN-010(*)-(**)
INC 600 0.50 (0.020) 700 (1290) TJC36-CAIN-020(*)-(**)
CHROMEGA®-
ALOMEGA
CONSTANTAN
COPPER-
CONSTANTAN
Specify junction type: E (Exposed), G (Grounded) or U (Ungrounded). ** Specify length in inches, plus additional price for length.
*
Custom lengths also available; use additional price for length in 150 mm/6" increments.
For a male straight M8 plug add “M8-S-M” to the model number for additional cost, for a male straight M12 plug add “M12-S-M” to the model
number for additional cost. For a male right-angled M8 plug add “M8-R-M” to the model number for additional cost, for a male right-angled M12
plug add “M12-S-M” to the model number for additional cost.
Ordering Example: TJC36-CASS-020G-6, compact transition joint probe, 40" cable, Type K, 0.020" OD stainless steel sheath, 6" length, grounded
junction.
®
IRON-
INC 600 0.80 (0.032) 700 (1290) TJC36-CAIN-032(*)-(**)
INC 600 1.00 (0.040) 700 (1290) TJC36-CAIN-040(*)-(**)
INC 600 1.59 ( 0.062) 920 (1690) TJC36-CAIN-062(*)-(**)
XL 0.25 (0.010) 600 (1112) TJC36-CAXL-010(*)-(**)
XL 0.50 (0.020) 800 (1472) TJC36-CAXL-020(*)-(**)
XL 0.80 (0.032) 800 (1472) TJC36-CAXL-032(*)-(**)
XL 1.00 (0.040) 800 (1472) TJC36-CAXL-040(*)-(**)
XL 1.59 ( 0.062) 1038 (1900) TJC36-CAXL-062(*)-(**)
304 SS 0.25 (0.010) 260 (500) TJC36-ICSS-010(*)-(**)
304 SS 0.50 (0.020) 260 (500) TJC36-ICSS-020(*)-(**)
304 SS 0.80 (0.032) 260 (500) TJC36-ICSS-032(*)-(**)
304 SS 1.00 (0.040) 260 (500) TJC36-ICSS-040(*)-(**)
304 SS 1.59 ( 0.062) 440 (825) TJC36-ICSS-062(*)-(**)
304 SS 0.50 (0.020) 260 (500) TJC36-CPSS-020(*)-(**)
304 SS 0.80 (0.032) 260 (500) TJC36-CPSS-032(*)-(**)
304 SS 1.00 (0.040) 260 (500) TJC36-CPSS-040(*)-(**)
304 SS 1.59 ( 0.062) 260 (500) TJC36-CPSS-062(*)-(**)
Guidelines (G)rounded, (E)xposed, or (U)ngrounded.
900 (
A-74
1652)
TJC36-CASS-062(*)-(**)
