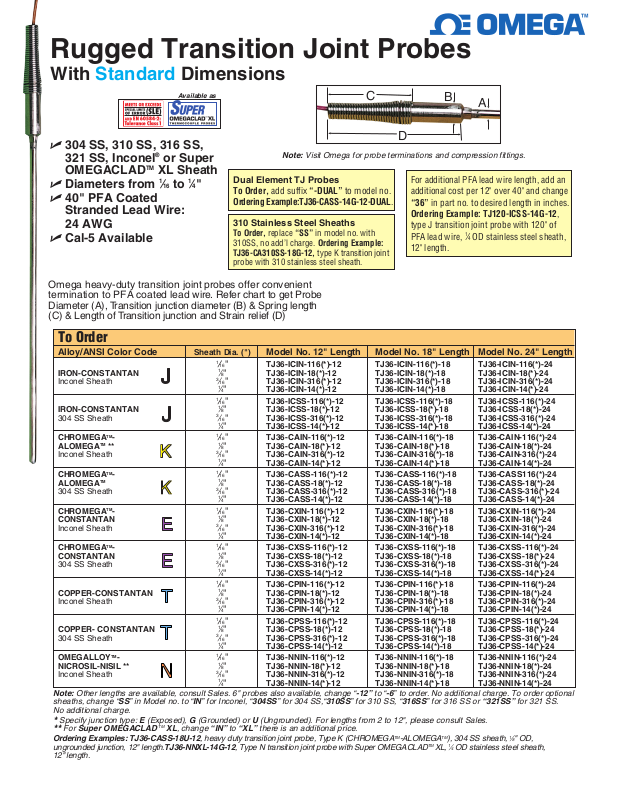

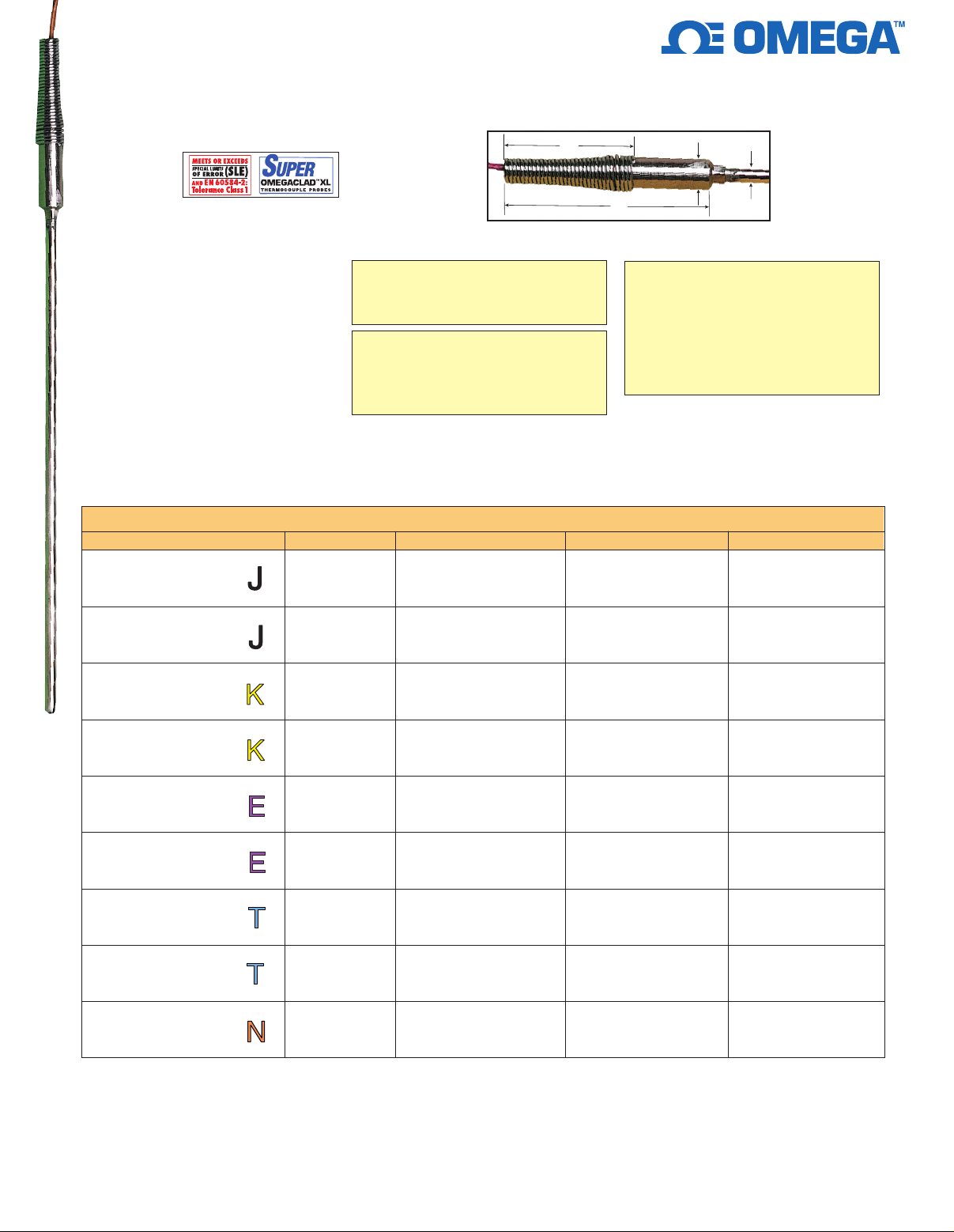

Rugged Transition Joint Probes
C
A
B
D
*Refer to chart for size options
With Standard Dimensions
Available as
U 304 SS, 310 SS, 316 SS,
321 SS, Inconel® or Super
Note: Visit Omega for probe terminations and compression fittings.
OMEGACLADTM XL Sheath
U Diameters from 1⁄16 to 1⁄4"
U 40" PFA Coated
Dual Element TJ Probes
To Order, add suffix “-DUAL” to model no.
Ordering Example:TJ36-CASS-14G-12-DUAL.
Stranded Lead Wire:
24 AWG
U Cal-5 Available

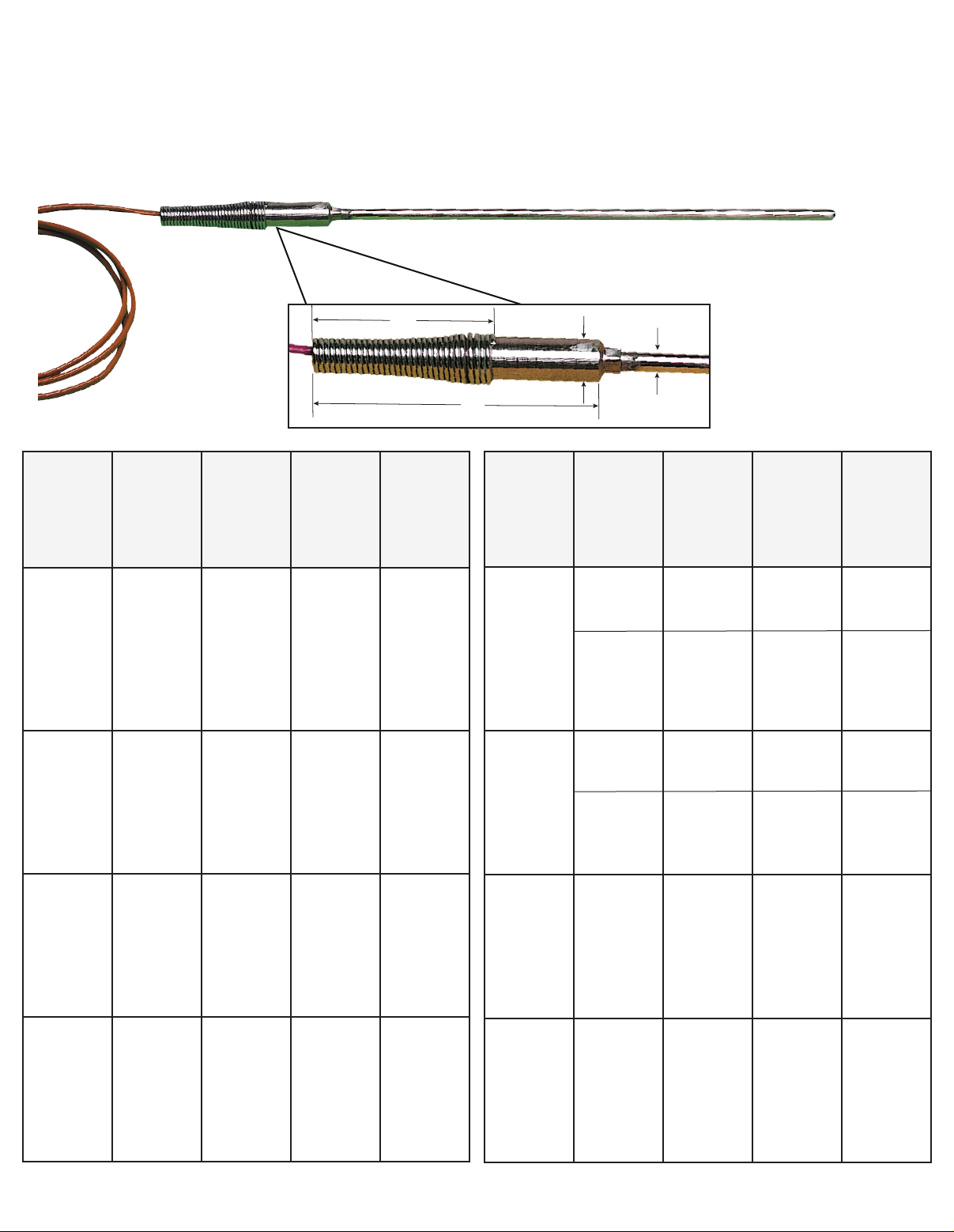

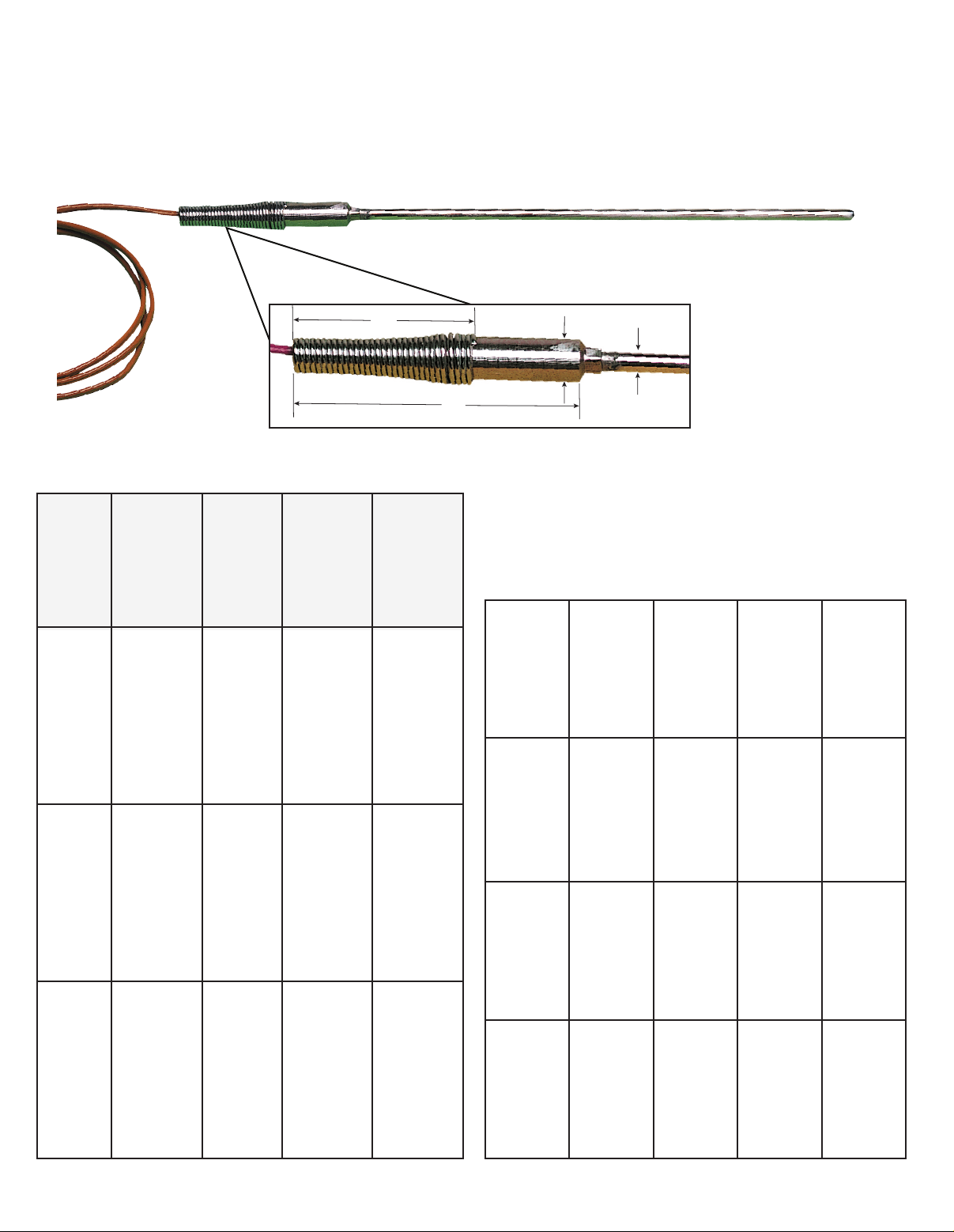

Omega heavy-duty transition joint probes offer convenient
termination to PFA coated lead wire. Refer chart to get Probe
Diameter (A), Transition junction diameter (B) & Spring length
(C) & Length of Transition junction and Strain relief (D)
310 Stainless Steel Sheaths
To Order, replace “SS” in model no. with
310SS, no add’l charge. Ordering Example:
TJ36-CA310SS-18G-12, type K transition joint
probe with 310 stainless steel sheath.
For additional PFA lead wire length, add an
additional cost per 12" over 40" and change
“36” in part no. to desired length in inches.
Ordering Example: TJ120-ICSS-14G-12,
type J transition joint probe with 120" of
PFA lead wire,
1
⁄4 OD stainless steel sheath,
12" length.
To Order
Alloy/ANSI Color Code Sheath Dia. (") Model No. 12" Length Model No. 18" Length Model No. 24" Length
IRON-CONSTANTAN
Inconel Sheath
IRON-CONSTANTAN
304 SS Sheath
CHROMEGATM-
ALOMEGATM **
Inconel Sheath
CHROMEGATM ALOMEGA
304 SS Sheath
CHROMEGATM-
CONSTANTAN
Inconel Sheath
CHROMEGATM-
CONSTANTAN
304 SS Sheath
COPPER-CONSTANTAN
Inconel Sheath
COPPER- CONSTANTAN
304 SS Sheath
OMEGALLOYTM-
NICROSIL-NISIL **
Inconel Sheath
Note: Other lengths are available, consult Sales. 6" probes also available, change “-12” to “-6” to order. No additional charge. To order optional
sheaths, change “SS” in Model no. to “IN” for Inconel, “304SS” for 304 SS,“310SS” for 310 SS, “316SS” for 316 SS or “321SS” for 321 SS.
No additional charge.
Specify junction type: E (Exposed), G (Grounded) or U (Ungrounded). For lengths from 2 to 12", please consult Sales.
*
For Super OMEGACLADTM XL, change “IN” to “XL” there is an additional price.
**
Ordering Examples: TJ36-CASS-18U-12, heavy duty transition joint probe, Type K (CHROMEGATM-ALOMEGATM), 304 SS sheath, 1⁄8" OD,
ungrounded junction, 12" length.TJ36-NNXL-14G-12, Type N transition joint probe with Super OMEGACLAD
12" length.
TM
1
1
⁄16" TJ36-ICIN-116(*)-12 TJ36-ICIN-116(*)-18 TJ36-ICIN-116(*)-24
⁄8" TJ36-ICIN-18(*)-12 TJ36-ICIN-18(*)-18 TJ36-ICIN-18(*)-24
3
⁄16" TJ36-ICIN-316(*)-12 TJ36-ICIN-316(*)-18 TJ36-ICIN-316(*)-24
1
⁄4" TJ36-ICIN-14(*)-12 TJ36-ICIN-14(*)-18 TJ36-ICIN-14(*)-24
1
⁄16" TJ36-ICSS-116(*)-12 TJ36-ICSS-116(*)-18 TJ36-ICSS-116(*)-24
1
⁄8" TJ36-ICSS-18(*)-12 TJ36-ICSS-18(*)-18 TJ36-ICSS-18(*)-24
3
⁄16" TJ36-ICSS-316(*)-12 TJ36-ICSS-316(*)-18 TJ36-ICSS-316(*)-24
1
⁄4" TJ36-ICSS-14(*)-12 TJ36-ICSS-14(*)-18 TJ36-ICSS-14(*)-24
1
⁄16" TJ36-CAIN-116(*)-12 TJ36-CAIN-116(*)-18 TJ36-CAIN-116(*)-24
1
⁄8" TJ36-CAIN-18(*)-12 TJ36-CAIN-18(*)-18 TJ36-CAIN-18(*)-24
3
⁄16" TJ36-CAIN-316(*)-12 TJ36-CAIN-316(*)-18 TJ36-CAIN-316(*)-24
1
⁄4" TJ36-CAIN-14(*)-12 TJ36-CAIN-14(*)-18 TJ36-CAIN-14(*)-24
1
⁄16" TJ36-CASS-116(*)-12 TJ36-CASS-116(*)-18 TJ36-CASS116(*)-24
1
⁄8" TJ36-CASS-18(*)-12 TJ36-CASS-18(*)-18 TJ36-CASS-18(*)-24
3
⁄16" TJ36-CASS-316(*)-12 TJ36-CASS-316(*)-18 TJ36-CASS-316(*)-24
1
⁄4" TJ36-CASS-14(*)-12 TJ36-CASS-14(*)-18 TJ36-CASS-14(*)-24
1
⁄16" TJ36-CXIN-116(*)-12 TJ36-CXIN-116(*)-18 TJ36-CXIN-116(*)-24
1
⁄8" TJ36-CXIN-18(*)-12 TJ36-CXIN-18(*)-18 TJ36-CXIN-18(*)-24
3
⁄16" TJ36-CXIN-316(*)-12 TJ36-CXIN-316(*)-18 TJ36-CXIN-316(*)-24
1
⁄4" TJ36-CXIN-14(*)-12 TJ36-CXIN-14(*)-18 TJ36-CXIN-14(*)-24
1
⁄16" TJ36-CXSS-116(*)-12 TJ36-CXSS-116(*)-18 TJ36-CXSS-116(*)-24
1
⁄8" TJ36-CXSS-18(*)-12 TJ36-CXSS-18(*)-18 TJ36-CXSS-18(*)-24
3
⁄16" TJ36-CXSS-316(*)-12 TJ36-CXSS-316(*)-18 TJ36-CXSS-316(*)-24
1
⁄4" TJ36-CXSS-14(*)-12 TJ36-CXSS-14(*)-18 TJ36-CXSS-14(*)-24
1
⁄16" TJ36-CPIN-116(*)-12 TJ36-CPIN-116(*)-18 TJ36-CPIN-116(*)-24
1
⁄8" TJ36-CPIN-18(*)-12 TJ36-CPIN-18(*)-18 TJ36-CPIN-18(*)-24
3
⁄16" TJ36-CPIN-316(*)-12 TJ36-CPIN-316(*)-18 TJ36-CPIN-316(*)-24
1
⁄4" TJ36-CPIN-14(*)-12 TJ36-CPIN-14(*)-18 TJ36-CPIN-14(*)-24
1
⁄16" TJ36-CPSS-116(*)-12 TJ36-CPSS-116(*)-18 TJ36-CPSS-116(*)-24
1
⁄8" TJ36-CPSS-18(*)-12 TJ36-CPSS-18(*)-18 TJ36-CPSS-18(*)-24
3
⁄16" TJ36-CPSS-316(*)-12 TJ36-CPSS-316(*)-18 TJ36-CPSS-316(*)-24
1
⁄4" TJ36-CPSS-14(*)-12 TJ36-CPSS-14(*)-18 TJ36-CPSS-14(*)-24
1
⁄16" TJ36-NNIN-116(*)-12 TJ36-NNIN-116(*)-18 TJ36-NNIN-116(*)-24
1
⁄8" TJ36-NNIN-18(*)-12 TJ36-NNIN-18(*)-18 TJ36-NNIN-18(*)-24
3
⁄16" TJ36-NNIN-316(*)-12 TJ36-NNIN-316(*)-18 TJ36-NNIN-316(*)-24
1
⁄4" TJ36-NNIN-14(*)-12 TJ36-NNIN-14(*)-18 TJ36-NNIN-14(*)-24
TM
XL, 1⁄4 OD stainless steel sheath,
Page 2
Rugged Transition Joint Probes
C
A
B
D
*Refer to chart for size options
With Standard Dimensions
A
Sheath
Diameter
(in)
0.010
0.020
1/32
.040
Lead Wire
Type
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
B
Transition
Junction
Diameter
(in)
1/4 1 (25mm)
in (mm)
1/4 1 (25mm)
1/4 1 (25mm)
1/4 1 (25mm)
C
Spring
Length
D
Length of
Transition
Junction &
Strain Relief
in (mm)
2.06
(52.3mm)
2.06
(52.3mm)
2.06
(52.3mm)
2.06
(52.3mm)
A
Sheath
Diameter
(in)
1/16
1/8
3/16
1/4
Lead Wire
Type
--
-SB
-CC-SB
-CC
-BX
-CC-BX
-CC-XCIB
-CC-XSIB
-Dual
--
-SB
-CC-SB
-CC
-BX
-CC-BX
-CC-XCIB
-CC-XSIB
-Dual
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
-Dual
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
-Dual
B
Transition
Junction
Diameter
(in)
1/4
3/8
1/4
3/8
3/8 1.5 (38mm)
3/8 1.5 (38mm)
Spring
Length
in (mm)
1 (25mm)
1.5 (38mm)
1 (25mm)
1.5 (38mm
C
D
Length of
Transition
Junction &
Strain Relief
in (mm)
2.31
(58mm)
2.56
(66mm)
2.06
(52.3mm)
2.56
(66mm)
2.56
(66mm)
2.56
(66mm)
Page 3

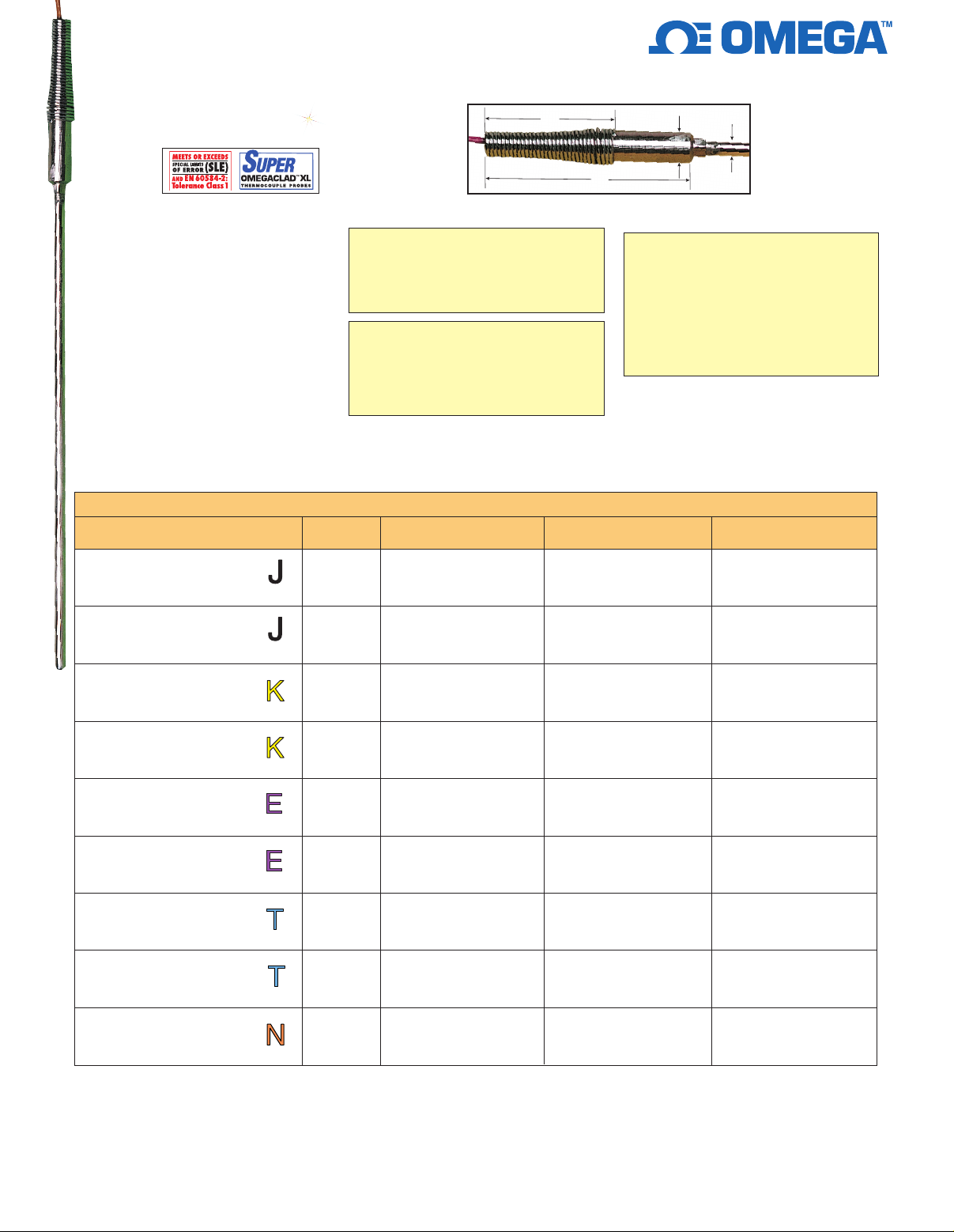

Rugged Transition Joint Probes
C
A
B
D
*Refer to chart for size options
With Metric Dimensions
Available as
U 304 SS, 310 SS, 316 SS, 321 SS,
Inconel® or Super
OMEGACLADTM XL Sheath
U Diameters from 1.5 to 6 mm
U
1 m PFA Coated Stranded
Dual Element TJ Probes
To Order, add suffix “-DUAL” to model no.
Ordering Example:
TJ1-CASS-M600G-300-DUAL.
Lead Wire: 24 AWG
Cal-5 Available
U
310 Stainless Steel Sheath
To Order, replace “SS” in Model no. with
310SS, no add’l charge. Ordering Example:
TJ1-CA310SS-M600G-300, type K transition
joint probe with 310 stainless steel sheath.
Note: Visit Omega for probe terminations and compression fittings.
For additional PFA lead wire length, add an
additional cost per meter over 1 m and
change “1” in part no. to desired total length
in meters.
Ordering Example: TJ3-ICSS-M600G-300,
type J transition joint probe with 3 m of PFA
lead wire, 6mm OD stainless steel sheath,
300mm probe length..
Omega heavy-duty transition joint probes offer convenient
termination to PFA coated lead wire. Refer chart to get Probe
Diameter (A), Transition junction diameter (B) & Spring length
(C) & Length of Transition junction and Strain relief (D)
To Order
Alloy/ANSI Color Code Dia. mm 300 mm Length 450 mm Length 600 mm Length
IRON-CONSTANTAN
Inconel Sheath 4.5 TJ1-ICIN-M45(*)-300 TJ1-ICIN-M45(*)-450 TJ1-ICIN-M45(*)-600
IRON-CONSTANTAN 3.0 TJ1-ICSS-M30(*)-300 TJ1-ICSS-M30(*)-450 TJ1-ICSS-M30(*)-600
304 SS Sheath 4.5 TJ1-ICSS-M45(*)-300 TJ1-ICSS-M45(*)-450 TJ1-ICSS-M45(*)-600
CHROMEGATM- 1.5 TJ1-CAIN-M15(*)-300 TJ1-CAIN-M15(*)-450 TJ1-CAIN-M15(*)-600
ALOMEGATM ** 3.0 TJ1-CAIN-M30(*)-300 TJ1-CAIN-M30(*)-450 TJ1-CAIN-M30(*)-600
Inconel Sheath 4.5 TJ1-CAIN-M45(*)-300 TJ1-CAIN-M45(*)-450 TJ1-CAIN-M45(*)-600
CHROMEGATM- 1.5 TJ1-CASS-M15(*)-300 TJ1-CASS-M15(*)-450 TJ1-CASS-M15(*)-600
ALOMEGA
304 SS Sheath 4.5 TJ1-CASS-M45(*)-300 TJ1-CASS-M45(*)-450 TJ1-CASS-M45(*)-600
CHROMEGATM-CONSTANTAN 3.0 TJ1-CXIN-M30(*)-300 TJ1-CXIN-M30(*)-450 TJ1-CXIN-M30(*)-600
Inconel Sheath 4.5 TJ1-CXIN-M45(*)-300 TJ1-CXIN-M45(*)-450 TJ1-CXIN-M45(*)-600
CHROMEGATM-CONSTANTAN 3.0 TJ1-CXSS-M30(*)-300 TJ1-CXSS-M30(*)-450 TJ1-CXSS-M30(*)-600
304 SS Sheath 4.5 TJ1-CXSS-M45(*)-300 TJ1-CXSS-M45(*)-450 TJ1-CXSS-M45(*)-600
COPPER-CONSTANTAN 3.0 TJ1-CPIN-M30(*)-300 TJ1-CPIN-M30(*)-450 TJ1-CPIN-M30(*)-600
Inconel Sheath 4.5 TJ1-CPIN-M45(*)-300 TJ1-CPIN-M45(*)-450 TJ1-CPIN-M45(*)-600
COPPER-CONSTANTAN 3.0 TJ1-CPSS-M30(*)-300 TJ1-CPSS-M30(*)-450 TJ1-CPSS-M30(*)-600
304 SS Sheath 4.5 TJ1-CPSS-M45(*)-300 TJ1-CPSS-M45(*)-450 TJ1-CPSS-M45(*)-600
OMEGALLOYTM- 1.5 TJ1-NNIN-M15(*)-300 TJ1-NNIN-M15(*)-450 TJ1-NNIN-M15(*)-600
NICROSIL-NISIL ** 3.0 TJ1-NNIN-M30(*)-300 TJ1-NNIN-M30(*)-450 TJ1-NNIN-M30(*)-600
Inconel Sheath 4.5 TJ1-NNIN-M45(*)-300 TJ1-NNIN-M45(*)-450 TJ1-NNIN-M45(*)-600
Note: Other lengths are available, consult Sales. Shorter probes are also available, change “-300” at the end of the model number to the
required length in millimeters, no additional charge. To order optional sheaths, change “SS” in model number to “IN” for Inconel, “304SS” for
304 SS,“310SS” for 310 SS, “316SS” for 316 SS or “321SS” for 321 SS, no additional charge.
Specify junction type: E (Exposed), G (Grounded) or U (Ungrounded). For lengths from 50 to 300 mm, please consult Sales Department.
*
For Super OMEGACLADTM XL, change “IN” to “XL” and add additional cost.
**
Ordering Example: TJ1-CAIN-M15G-300, heavy duty transition joint probe, Type K (CHROMEGATM-ALOMEGATM), Inconel sheath,
1.5 mm OD, grounded junction, 300 mm length.
Sheath Model No. Model No. Model No.
TM
1.5 TJ1-ICIN-M15(*)-300 TJ1-ICIN-M15(*)-450 TJ1-ICIN-M15(*)-600
3.0 TJ1-ICIN-M30(*)-300 TJ1-ICIN-M30(*)-450 TJ1-ICIN-M30(*)-600
6.0 TJ1-ICIN-M60(*)-300 TJ1-ICIN-M60(*)-450 TJ1-ICIN-M60(*)-600
1.5 TJ1-ICSS-M15(*)-300 TJ1-ICSS-M15(*)-450 TJ1-ICSS-M15(*)-600
6.0 TJ1-ICSS-M60(*)-300 TJ1-ICSS-M60(*)-450 TJ1-ICSS-M60(*)-600
6.0 TJ1-CAIN-M60(*)-300 TJ1-CAIN-M60(*)-450 TJ1-CAIN-M60(*)-600
3.0 TJ1-CASS-M30(*)-300 TJ1-CASS-M30(*)-450 TJ1-CASS-M30(*)-600
6.0 TJ1-CASS-M60(*)-300 TJ1-CASS-M60(*)-450 TJ1-CASS-M60(*)-600
1.5 TJ1-CXIN-M15(*)-300 TJ1-CXIN-M15(*)-450 TJ1-CXIN-M15(*)-600
6.0 TJ1-CXIN-M60(*)-300 TJ1-CXIN-M60(*)-600 TJ1-CXIN-M60(*)-600
1.5 TJ1-CXSS-M15(*)-300 TJ1-CXSS-M15(*)-450 TJ1-CXSS-M15(*)-600
6.0 TJ1-CXSS-M60(*)-300 TJ1-CXSS-M60(*)-450 TJ1-CXSS-M60(*)-600
1.5 TJ1-CPIN-M15(*)-300 TJ1-CPIN-M15(*)-450 TJ1-CPIN-M15(*)-600
6.0 TJ1-CPIN-M60(*)-300 TJ1-CPIN-M60(*)-450 TJ1-CPIN-M60(*)-600
1.5 TJ1-CPSS-M15(*)-300 TJ1-CPSS-M15(*)-450 TJ1-CPSS-M15(*)-600
6.0 TJ1-CPSS-M60(*)-300 TJ1-CPSS-M60(*)-450 TJ1-CPSS-M60(*)-600
6.0 TJ1-NNIN-M60(*)-300 TJ1-NNIN-M60(*)-450 TJ1-NNIN-M60(*)-600
Page 4
Rugged Transition Joint Probes
C
A
B
D
*Refer to chart for size options
With Metric Dimensions
A
Sheath
Diameter
(in)
0.5
1
1.5
Lead Wire
Type
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-CC-SB
-CC
-BX
-CC-BX
-CC-XCIB
-CC-XSIB
B
Transition
Junction
Diameter
(in)
1/4 1 (25mm)
1/4 1 (25mm)
1/4
3/8
Spring
Length
in (mm)
1 (25mm)
1.5 (38mm)
C
D
Length of
Transition
Junction &
Strain Relief
in (mm
2.06
(52.3mm)
2.06
(52.3mm)
2.06
(52.3mm)
2.56
(66mm)
continued...
2
3
4.5
6
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-CC-SB
-CC
-BX
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
--
-SB
-BX
-CC
-CC-SB
-CC-BX
-CC-XCIB
-CC-XSIB
1/4 1 (25mm)
1/4
3/8
3/8
3/8 1.5
1 (25mm)
1.5
(38mm)
1.5
(38mm)
(38mm)
2.06
(52.3mm)
2.06
(52.3mm)
2.56
(66mm)
2.56
(66mm)
2.56
(66mm)
Page 5

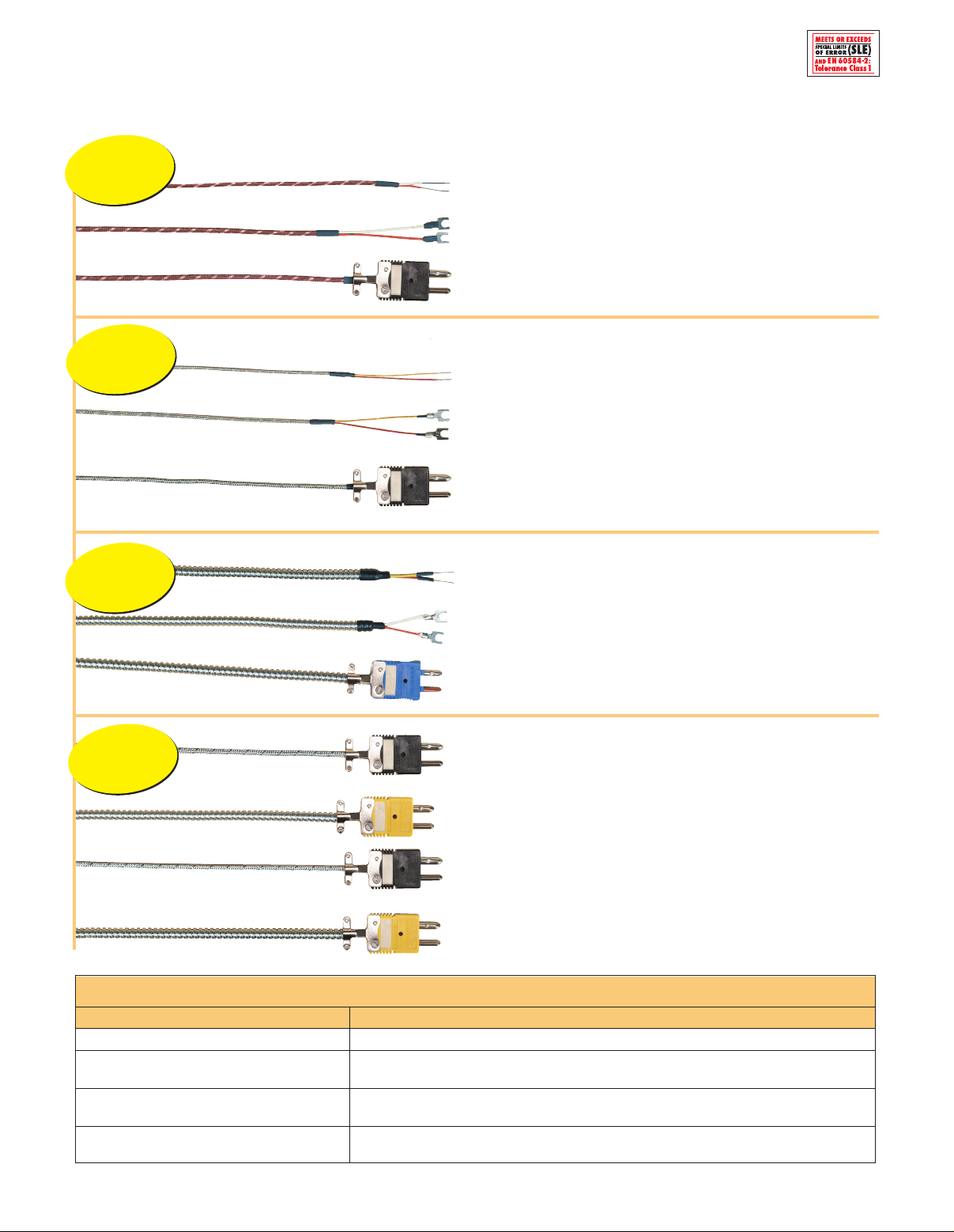

Transition Joint Probe
Lead Configurations
All products shown
smaller than actual size.
Standard
TJ Probe
Quick Disconnect Connector
Glass Overbraid.
Stainless Steel
Overbraiding
Options
Standard Quick Disconnect Connector
Armored Cable
Options
Stripped Ends
Spade Lugs
Stripped Ends
Spade Lugs
Stripped Ends
Spade Lugs
Quick Disconnect
Standard TJ probe construction is PFA insulation.
Consult Sales for glass braid insulation.
Standard TJ probe construction with thermocouple alloy
compensated spade lugs attached. Add suffix “-LUG”, for
additional cost.
Standard TJ probe construction with OST standard or SMP
miniature male thermocouple connector attached. Add suffix
“-OSTW-M” or “-SMPW-M” for additional cost.
Stainless Steel Overbraiding
Standard TJ probe construction with stainless steel overbraided
lead wire. Add suffix “-SB”, for additional cost. For lead wire
lengths over 900 mm (36"), consult sales.
Standard TJ probe construction with stainless steel
lead wire thermocouple alloy compensated spade
suffix “
-SB-LUG” for additional cost.
Standard TJ probe with stainless steel overbraided lead wire
and OST or SMP male connector. Add suffix “
or “-SB-SMPW-M”, for additional cost.
overbraided
lugs. Add
-SB-OSTW-M”
Armored Cable TJ Probes
Standard TJ probe construction with spiral armor cable. Add
suffix “-BX”, for additional cost. For lead wire lengths over
900 mm (36") consult sales.
Standard TJ probe construction with spiral armor cable
and thermocouple alloy compensated spade lugs.
Add suffix “
Standard TJ probe with spiral armor cable and OST male connector.
Add suffix “
-BX-LUG”, for additional cost.
-BX-OSTW-WM”, for additional
cost
.
High Temperature
Stainless Steel
Overbraiding
Options
Available in the same terminations shown above but with
high temperature construction. Entire probe will withstand
480°C (900°F). Add suffix “-CC” to suffixes used above, for
additional cost.
Ultra-High Temperature TJ Probes
815°C (1500°F) (Type K and N Only)
High Temperature TJ Probes 480°C (900°F)
Available in the same terminations shown above but with special
high temperature construction with Nextel
insulation and Inconel® overbraiding or SS armor for a temperature
rating of 815°C (1500°F). Add suffix “-CC-XCIB” or “-CC-XCBX” to
above numbers, for additional cost to price of probe. For lead wire
lengths over 900 mm (36"), consult sales.
®
ceramic fiber
To Order
Model Number-ANSI Color Code Description
TJ36-ICSS-316G-24-LUG 600 mm (24") Type J probe with 900 mm (36") lead wire, spade lug termination
TJ48-CASS-14G-12-SB-OSTW-M 300 mm (12") Type K probe with 1.2 m (48") stainless steel overbraid and OSTW
TJ36-CASS-14G-12-CC-BX-OSTW-M 300 mm (12") High temperature type K probe with 900 mm (36")
TJ60-CXSS-116G-12-CC-XCIB-LUG 300 mm (12") Type E probe with 1.5 m (5') of ultra-high temperature
standard size connector termination
armor cable and OSTW standard size connector termination
lead wire and Inconel overbraid, spade lug termination
Loading...
