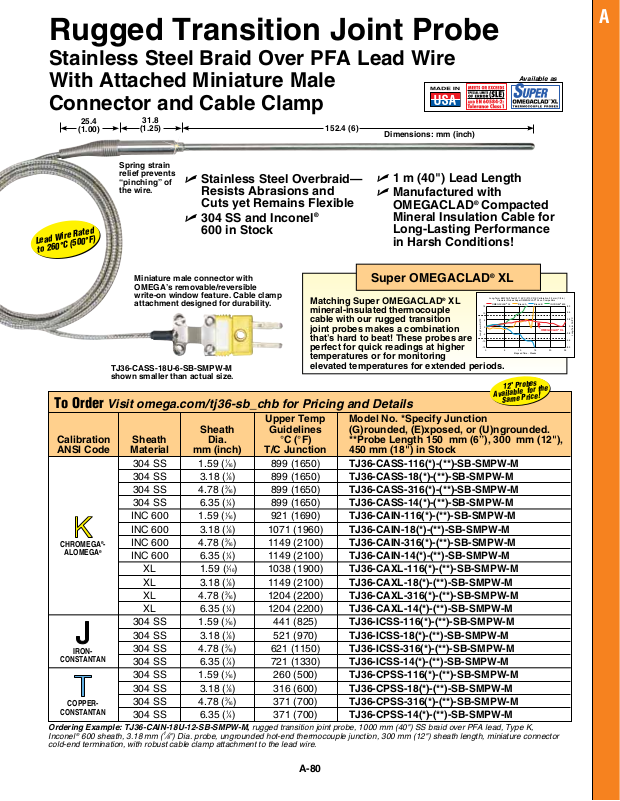

Rugged Transition Joint Probe
Stainless Steel Braid Over PFA Lead Wire
With Attached Miniature Male
Connector and Cable Clamp
25.4
(1.00)
Lead Wire Rated
to 260°C (500°F)
31.8
(1.25)
Spring strain
relief prevents
“pinching” of
the wire.
152.4 (6)
U Stainless Steel Overbraid—
Resists Abrasions and
Cuts yet Remains Flexible
®
U 304 SS and Inconel
600 in Stock
Dimensions: mm (inch)
U 1 m (40") Lead Length
U Manufactured with
OMEGACLAD
Mineral Insulation Cable for
Long-Lasting Performance
in Harsh Conditions!
Available as
®
Compacted
A
Miniature male connector with
OMEGA’s removable/reversible
write-on window feature. Cable clamp
attachment designed for durability.
Matching Super OMEGACLAD® XL
mineral-insulated thermocouple
cable with our rugged transition
joint probes makes a combination
that’s hard to beat! These probes are
perfect for quick readings at higher
temperatures or for monitoring
TJ36-CASS-18U-6-SB-SMPW-M
shown smaller than actual size.
elevated temperatures for extended periods.
To Order Visit omega.com/tj36-sb_chb for Pricing and Details
Super OMEGACLAD® XL
Long-Term EMF Drift Test @ 1149°C (2100°F) K Calibration, 3.2 mm (1/8 in)
Diameter Probes Super OMEGACLAD
OMEGACLAD
15
10
5
0
-5
Long-Term Drift°F
-10
-15
12" Probes
Available for the
Same Price!
®
XL
Elapsed Time - Weeks
®
XL vs. Competitors
Brand BBrand A
OMEGACLAD® XL
INCONEL® 600
Upper Temp Model No. *Specify Junction
Sheath Guidelines (G)rounded, (E)xposed, or (U)ngrounded.
Calibration Sheath Dia. °C (°F) **Probe Length 150 mm (6”), 300 mm (12"),
ANSI Code Material mm (inch) T/C Junction 450 mm (18") in Stock
304 SS 1.59 (1⁄16
304 SS 3.18 (1⁄8
304 SS 4.78 (3⁄16
304 SS 6.35 (1⁄4
INC 600 1.59 (1⁄16
INC 600 3.18 (1⁄8
INC 600 4.78 (3⁄16
CHROMEGA®-
ALOMEGA
INC 600 6.35 (1⁄4
®
XL 1.59 (1⁄16
XL 3.18 (1⁄8
XL 4.78 (3⁄16
XL 6.35 (1⁄4
304 SS 1.59 (1⁄16
304 SS 3.18 (1⁄8
304 SS 4.78 (3⁄16
IRON-
CONSTANTAN
304 SS 6.35 (1⁄4
304 SS 1.59 (1⁄16
304 SS 3.18 (1⁄8
304 SS 4.78 (3⁄16
COPPER-
CONSTANTAN
304 SS 6.35 (1⁄4
Ordering Example: TJ36-CAIN-18U-12-SB-SMPW-M, rugged transition joint probe, 1000 mm (40") SS braid over PFA lead, Type K,
Inconel® 600 sheath, 3.18 mm (
cold-end termination, with robust cable clamp attachment to the lead wire.
1
⁄8") Dia. probe, ungrounded hot-end thermocouple junction, 300 mm (12") sheath length, miniature connector
) 899 (1650) TJ36-CASS-116(*)-(**)-SB-SMPW-M
) 899 (1650) TJ36-CASS-18(*)-(**)-SB-SMPW-M
) 899 (1650) TJ36-CASS-316(*)-(**)-SB-SMPW-M
) 899 (1650) TJ36-CASS-14(*)-(**)-SB-SMPW-M
) 921 (1690) TJ36-CAIN-116(*)-(**)-SB-SMPW-M
) 1071 (1960) TJ36-CAIN-18(*)-(**)-SB-SMPW-M
) 1149 (2100) TJ36-CAIN-316(*)-(**)-SB-SMPW-M
) 1149 (2100) TJ36-CAIN-14(*)-(**)-SB-SMPW-M
) 1038 (1900) TJ36-CAXL-116(*)-(**)-SB-SMPW-M
) 1149 (2100) TJ36-CAXL-18(*)-(**)-SB-SMPW-M
) 1204 (2200) TJ36-CAXL-316(*)-(**)-SB-SMPW-M
) 1204 (2200) TJ36-CAXL-14(*)-(**)-SB-SMPW-M
) 441 (825) TJ36-ICSS-116(*)-(**)-SB-SMPW-M
) 521 (970) TJ36-ICSS-18(*)-(**)-SB-SMPW-M
) 621 (1150) TJ36-ICSS-316(*)-(**)-SB-SMPW-M
) 721 (1330) TJ36-ICSS-14(*)-(**)-SB-SMPW-M
) 260 (500) TJ36-CPSS-116(*)-(**)-SB-SMPW-M
) 316 (600) TJ36-CPSS-18(*)-(**)-SB-SMPW-M
) 371 (700) TJ36-CPSS-316(*)-(**)-SB-SMPW-M
) 371 (700) TJ36-CPSS-14(*)-(**)-SB-SMPW-M
8.3
5.6
2.8
0
-2.8
Long-Term Drift°C
-5.6
-8.3
2520151050
